LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#..ATM ; (9907- )RCH42

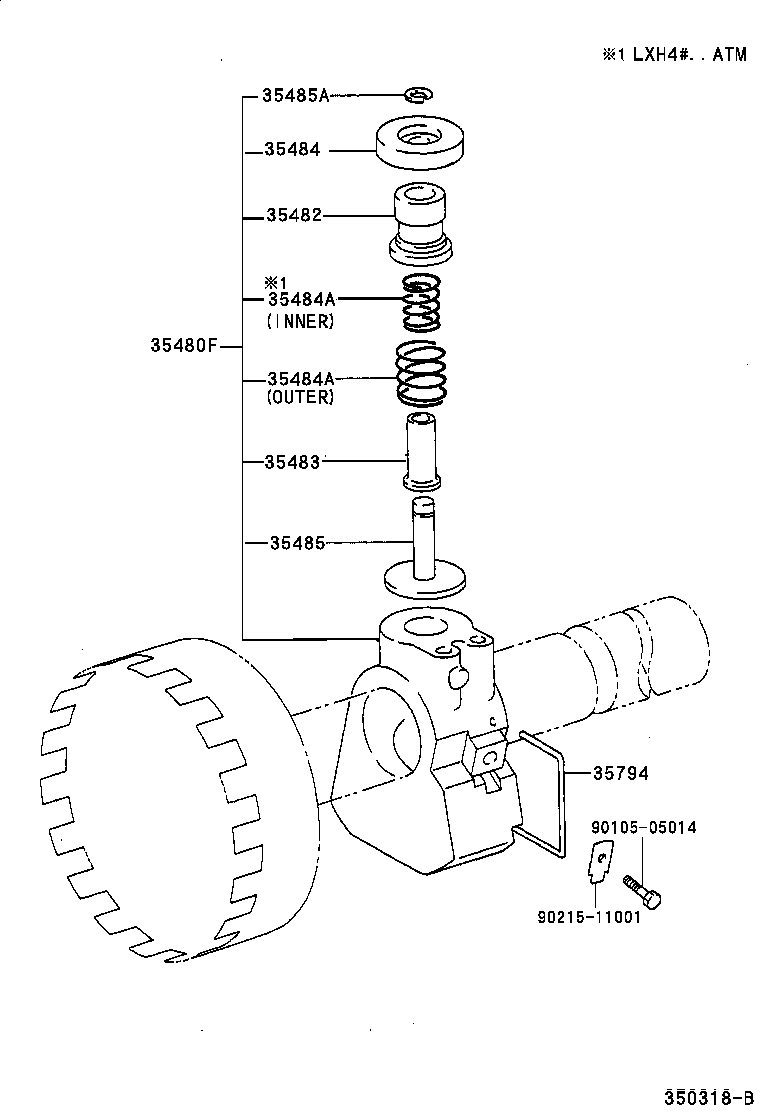

Click highlighted areas on diagram

A45DF,A45DL

diagram 35480F 35482 35483 35484 35484A 35484A 35485 35485A 35794 9010505014 9021511001
Part # Description Qty Price
35480F - BODY ASSY, GOVERNOR
35480-26030

LXH4#..ATM

 1
35482 - VALVE, GOVERNOR
35482-28010

LXH4#..ATM

 1
35483 - WEIGHT, GOVERNOR, INNER
35483-14010

LXH4#,RCH42..ATM

 1
35484 - WEIGHT, GOVERNOR, OUTER
35484-22010

LXH4#,RCH42..ATM

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-07033

LXH4#..ATM

内側

 1
90501-08059

LXH4#..ATM

外側

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-07033

LXH4#..ATM

内側

 1
90501-08059

LXH4#..ATM

外側

 1
35485 - SHAFT, GOVERNOR VALVE
35485-14010

LXH4#,RCH42..ATM

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05020

LXH4#,RCH42..ATM

 1
35794 - RING, GOVERNOR RETAINING
35794-22010

LXH4#,RCH42..ATM

 1
Common parts
90105-05014
90215-11001
