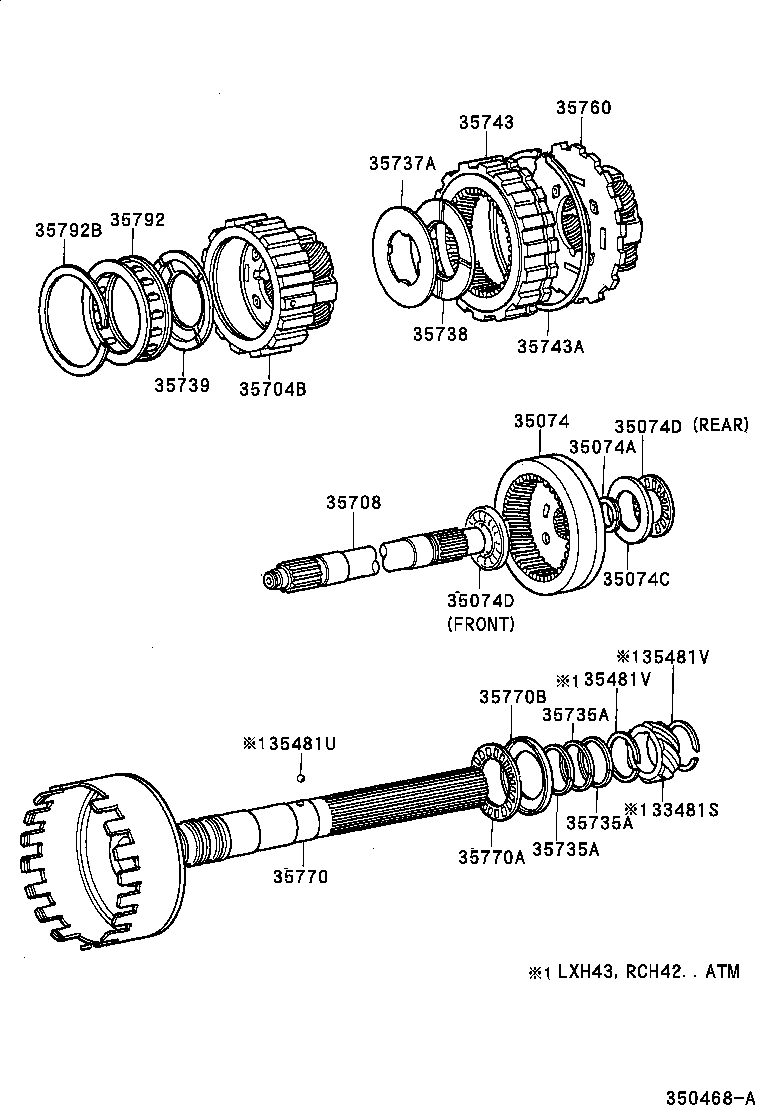

LXH49V-RRSDS (1997)
Toyota Regius/Touring Hiace
(9706- )LXH4#..ATM ; (9907- )RCH42
A45DF,A45DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-30030 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35074-30030 |
LXH4#,RCH42..ATM |
1 | ||
| 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) | ||||
| 90522-20037 |
LXH4#,RCH41,47..ATM |
1 | ||
| 90522-20037 |
LXH4#,RCH42..ATM |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-22020 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35789-22020 |
LXH4#,RCH42..ATM |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-28014 |
LXH4#,RCH41,47..ATM ﾘﾔ |
1 | ||
| 90374-21001 |
LXH4#,RCH42..ATM ﾌﾛﾝﾄ |
1 | ||
| 90374-28014 |
LXH4#,RCH42..ATM ﾘﾔ |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-21001 |
LXH4#,RCH42..ATM ﾌﾛﾝﾄ |
1 | ||
| 90374-28014 |
LXH4#,RCH41,47..ATM ﾘﾔ |
1 | ||
| 90374-28014 |
LXH4#,RCH42..ATM ﾘﾔ |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
KCH40,LXH4#,RCH41..ATM |
1 | ||
| 35704B - GEAR SUB-ASSY, FRONT PLANETARY | ||||
| 35704-30040 |
LXH4#,RCH42..ATM |
1 | ||
| 35708 - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-30041 |
LXH4#,RCH42..ATM |
1 | ||
| 35708-30041 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
LXH4#,RCH42..ATM |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
LXH4#,RCH42..ATM |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
LXH4#,RCH42..ATM |
3 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-22010 |
LXH4#,RCH42..ATM |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-30030 |
LXH4#,RCH42..ATM |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-30020 |
LXH4#,RCH42..ATM |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-30010 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35743-30010 |
LXH4#,RCH42..ATM |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99121 |
LXH4#,RCH42..ATM |
1 | ||
| 90520-99121 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30040 |
LXH4#,RCH42..ATM |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-28010 |
LXH49..ATM |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-38013 |
LXH4#,RCH41,47..ATM |
1 | ||
| 90374-38013 |
LXH4#,RCH42..ATM |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22040 |
LXH4#,RCH41,47..ATM |
1 | ||
| 35789-22040 |
LXH4#,RCH42..ATM |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30030 |
LXH4#,RCH42..ATM |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
LXH4#,RCH42..ATM |
1 | ||
| 90521-79148 |
LXH4#,RCH41,47..ATM |
1 | ||
