LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907)LXH49,RCH47..ATM ; (9907- )LXH49..ATM

Click highlighted areas on diagram

A43DF,A45DF

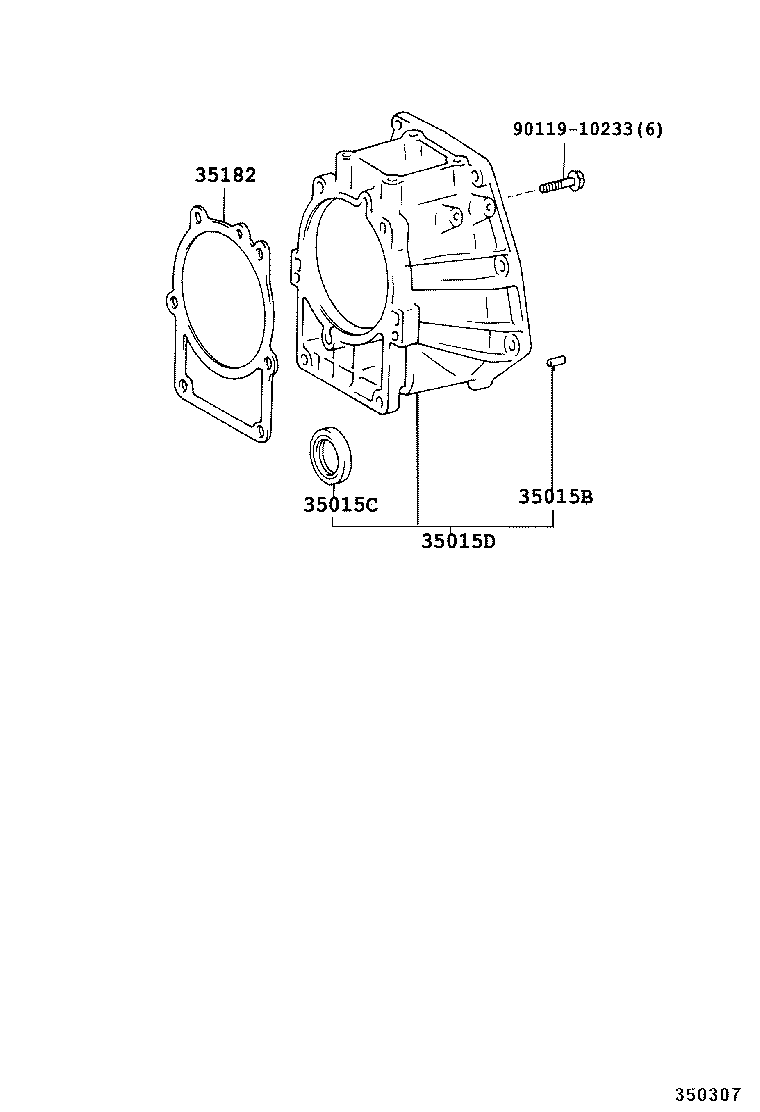

diagram 35015B 35015C 35015D 35182 9011910233
Part # Description Qty Price
35015B - PIN, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
90250-10214

KCH46,LXH49,RCH47..ATM

 2
35015C - SEAL, OIL(FOR TRANSMISSION CASE ADAPTER)
90310-40003

KCH46,LXH49,RCH47..ATM

 1
35015D - ADAPTER SUB-ASSY, TRANSMISSION CASE
35015-26050

LXH49..ATM

 1
35182 - GASKET, EXTENSION HOUSING (ATM)
35182-28010

KCH4#,LXH4#,RCH4#..ATM

 1
Common parts
90119-10233
