LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )5L

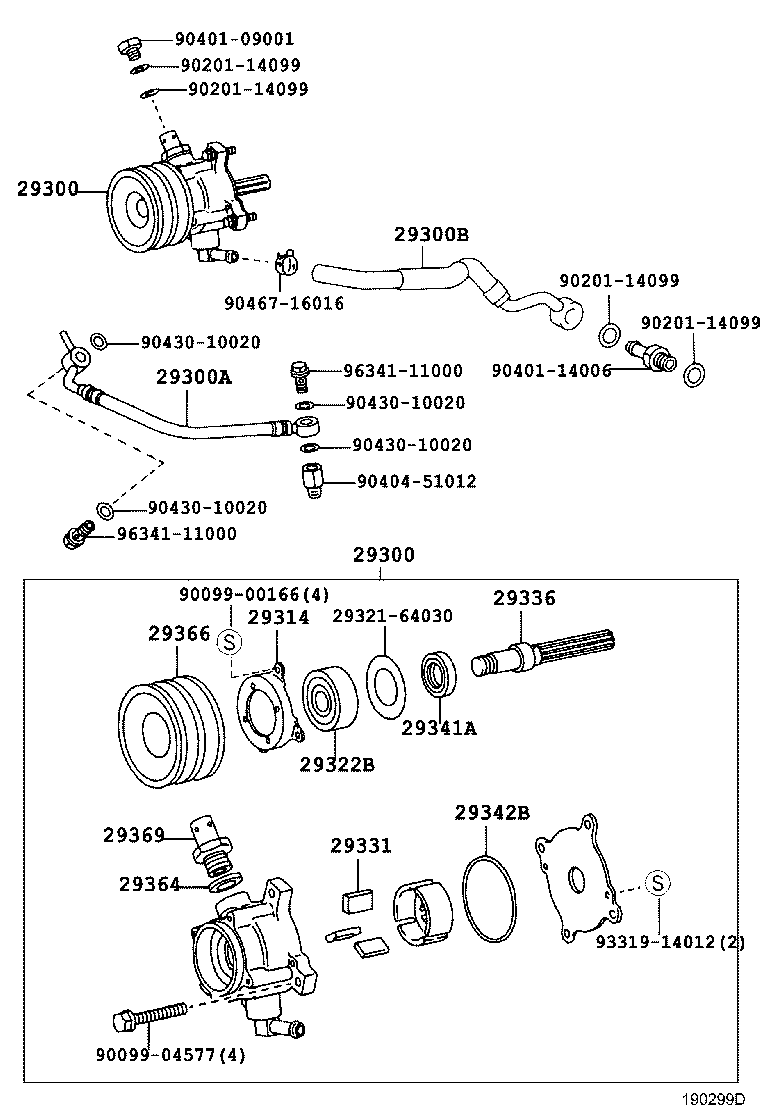

Click highlighted areas on diagram

diagram 29300 29300 29300A 29300B 29314 2932164030 29322B 29331 29336 29341A 29342B 29364 29366 29369 9009900166 9009904577 9020114099 9020114099 9020114099 9020114099 9040109001 9040114006 9040451012 9043010020 9043010020 9043010020 9043010020 9046716016 9331914012 9634111000 9634111000
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54170

5L..LXH4#..ATM

 1
29300-54150

5L..LXH4#

 1
29300 - PUMP ASSY, VACUUM
29300-54170

5L..LXH4#..ATM

 1
29300-54150

5L..LXH4#

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02118

5L..LXH4#

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29611-54090

5L..LXH4#

 1
29314 - RING, STOP
29314-64030

5L..LXH4#

 1
29322B - BEARING, VACUUM PUMP
90099-10199

5L..LXH4#

 1
90099-10166

5L..LXH4#

 1
29331 - BLADE, VACUUM PUMP, A
29331-54130

5L..LXH4#

 5
29336 - SHAFT, VACUUM PUMP
29336-64031

5L..LXH4#

 1
29341A - SEAL, OIL
29341-64030

5L..LXH4#

 1
29342B - RING, O
29342-64030

5L..LXH4#

 1
29364 - WASHER, VACUUM PUMP
29364-66010

1KZTE,5L..KCH4#,LXH4#

 1
29366 - PULLEY, VACUUM PUMP
29366-54110

5L..LXH4#

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

1KZTE,5L..KCH4#,LXH4#

 1
Common parts
29321-64030
90099-00166
90099-04577
90201-14099
90401-09001
90401-14006
90404-51012
90430-10020
90467-16016
93319-14012
96341-11000
