LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )5L

Click highlighted areas on diagram

12V 2.7KW

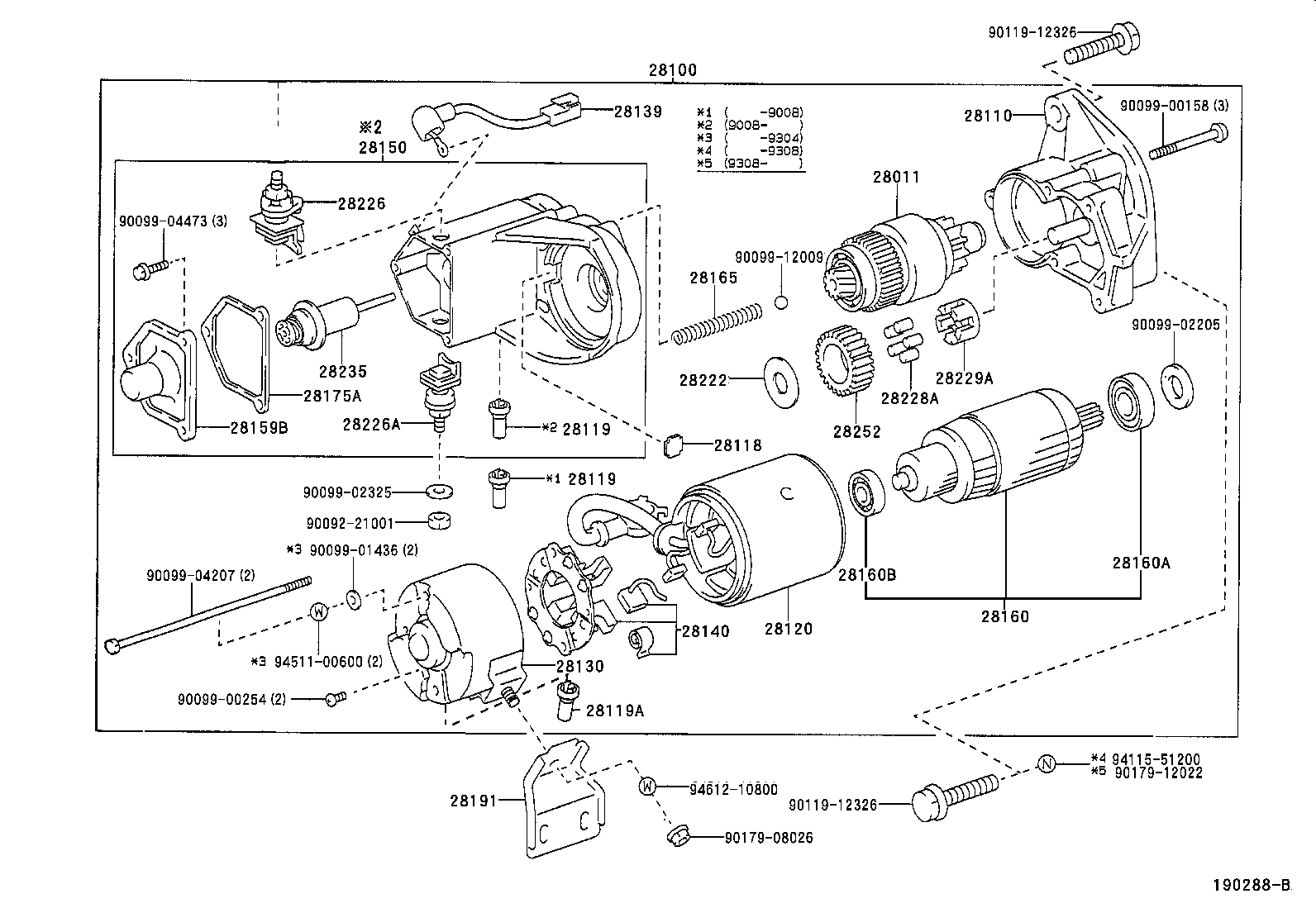

diagram 28011 28100 28110 28118 28119 28119 28119A 28120 28130 28139 28140 28150 28159B 28160 28160A 28160B 28165 28175A 28191 28222 28226 28226A 28228A 28229A 28235 28252 9009221001 9009900158 9009900254 9009901436 9009902205 9009902325 9009904207 9009904473 9009912009 9011912326 9011912326 9017908026 9017912022 9411551200 9451100600 9461210800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-54010

5L..LXH4#

12V 2.7KW

 1
28100 - STARTER ASSY
28100-54320

5L..LXH4#

12V 2.7KW

 1
28100-54470

5L..LXH4#

12V 2.7KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-54011

5L..LXH4#

12V 2.7KW

 1
28118 - PLATE(FOR STARTER YOKE)
28118-77090

5L..LXH4#

 1
28119 - COVER, STARTER END FRAME
28199-54190

1KZTE,5L..KCH4#,LXH4#

 1
28119 - COVER, STARTER END FRAME
28199-54190

1KZTE,5L..KCH4#,LXH4#

 1
28119A - COVER, STARTER END FRAME
28199-46080

1KZTE,5L,1RZE..KCH4#,LXH4#,RCH42

 1
28120 - YOKE ASSY, STARTER
28120-56081

5L..LXH4#

12V 2.7KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-54430

5L..LXH4#

12V 2.7KW

 1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-54251

5L..LXH4#

12V 2.7KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

12V 2.7KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-54320

5L..LXH4#

12V 2.7KW

 1
28150-54430

5L..LXH4#

12V 2.7KW

 1
28159B - COVER, MAGNET SWITCH
28159-56310

5L..LXH4#

12V 2.7KW

 1
28160 - ARMATURE ASSY, STARTER
28160-54140

5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

12V 2.7KW

 1
28160A - BEARING, STARTER ARMATURE
90099-10107

5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

12V 2.7KW

 1
28160B - BEARING, STARTER ARMATURE, NO.2
90099-10119

5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

12V 2.7KW

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090

5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

12V 2.7KW

 1
28175A - GASKET, MAGNET SWITCH COVER
28175-56310

5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

12V 2.7KW

 1
28191 - STAY, STARTER
28191-54020

5L..LXH49

12V 2.7KW

 1
28222 - WASHER, STARTER IDLE GEAR CLUTCH
28222-77090

1KZTE,5L..KCH4#,LXH4#

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-54320

1KZTE,5L..KCH4#,LXH4#

12V 2.7KW

 1
28226-17030

5L..LXH4#

12V 2.7KW

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-54220

5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

12V 2.7KW

 1
28228A - ROLLER, STARTER CLUTCH
28228-56080

1KZTE,5L..KCH4#,LXH4#

12V 2.7KW

 5
28229A - RETAINER, STARTER IDLE GEAR
28229-56080

5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

12V 2.7KW

 1
28235 - PLUNGER, MAGNET SWITCH
28235-17030

5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT

12V 2.7KW

 1
28252 - GEAR, STARTER IDLE
28254-77090

5L..LXH4#

12V 2.7KW

 1
