LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )5L..ATM

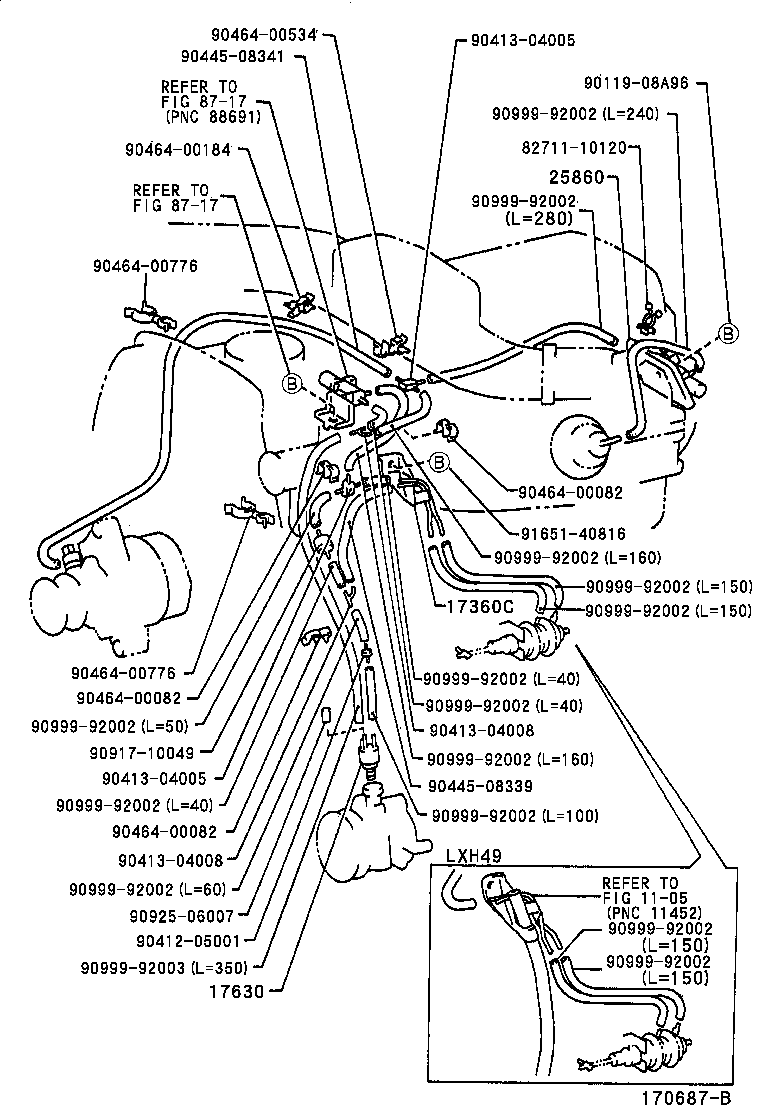

Click highlighted areas on diagram

diagram 1105 17360C 17630 25860 8271110120 8717 8717 9011908A96 9041205001 9041304005 9041304005 9041304008 9041304008 9044508339 9044508341 9046400082 9046400082 9046400082 9046400184 9046400534 9046400776 9046400776 9091710049 9092506007 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9165140816
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-54010

5L..LXH4#..ATM

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-54170

5L..LXH4#

 1
Common parts
82711-10120
90119-08A96
90412-05001
90413-04005
90413-04008
90445-08339
90445-08341
90464-00082
90464-00184
90464-00534
90464-00776
90917-10049
90925-06007
90999-92002
90999-92003
91651-40816
Linked diagrams
1105
8717
