LXH49V-RRSDS (1997)
Toyota Regius/Touring Hiace

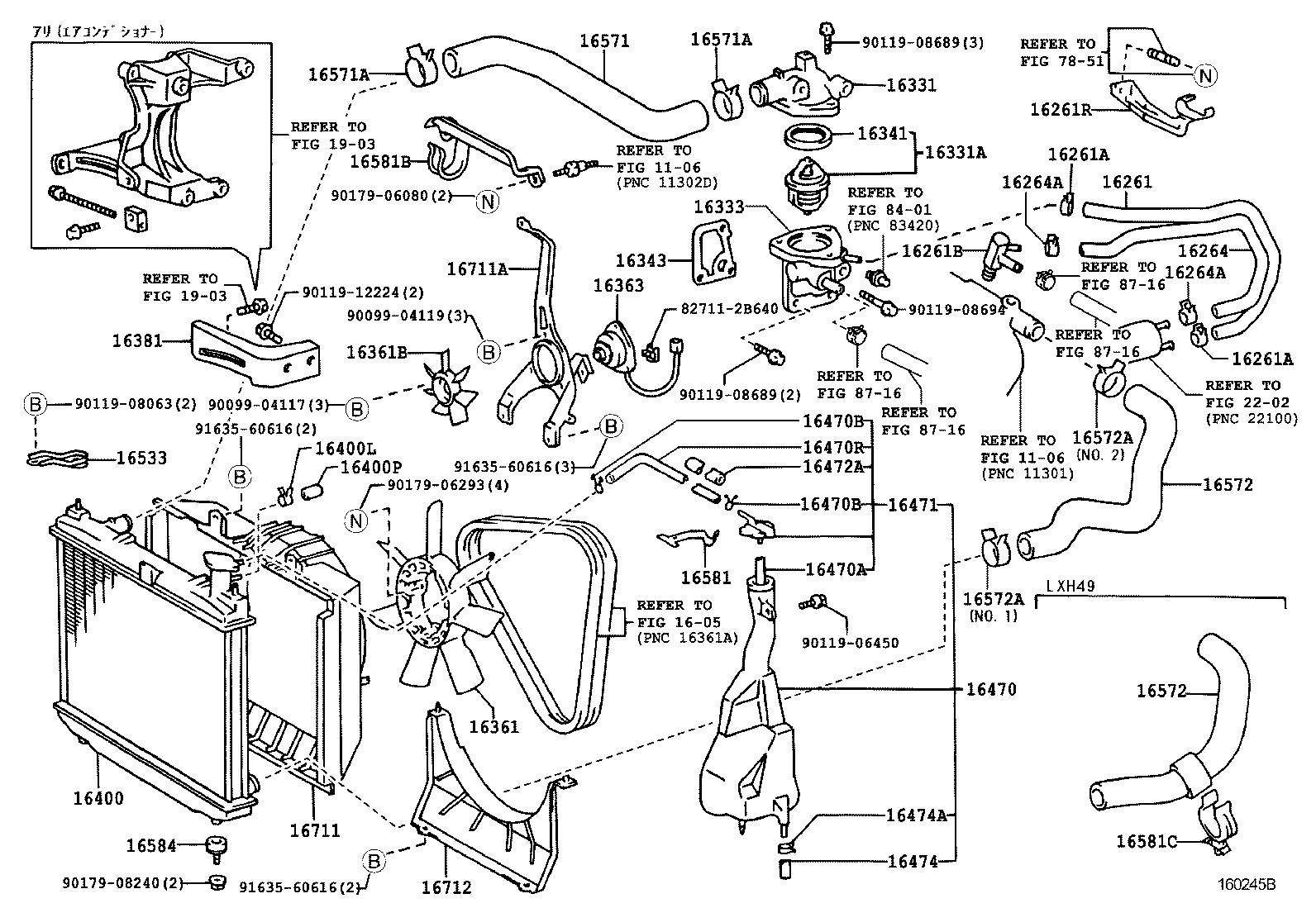

ILLUST NO. 1 OF 2(9706-9907)5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54121 |
5L..LXH4# |
1 | ||
| 16261-54120 |
5L..LXH4# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LXH4# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LXH4# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
5L..LXH4# |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90929-01219 |
5L..LXH4# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54121 |
5L..LXH4# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LXH4# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LXH4# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54202 |
5L..LXH4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-54010 |
5L..LXH4# *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54113 |
5L..LXH4# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
5L..LXH4# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
5L..LXH4# |
1 | ||
| 16361 - FAN | ||||
| 16361-67030 |
5L..LXH4# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54071 |
5L..LXH4# 厚さ=4.5 |
1 | ||
| 16381-54070 |
5L..LXH4# 厚さ=3.2 |
1 | ||
| 16381-54071 |
5L..LXH4# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B351 |
5L..LXH4#..ATM |
1 | ||
| 16400-5B350 |
5L..LXH4#..ATM |
1 | ||
| 16400-5B352 |
5L..LXH4#..ATM |
1 | ||
| 16400L - CLAMP, NO.1 | ||||
| 90467-13001 |
5L..LXH4# |
1 | ||
| 16400P - PLUG(FOR RADIATOR) | ||||
| 90339-07001 |
5L..LXH4# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-75050 |
5L..LXH4# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
5L..LXH4# *H,L=450 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L..LXH4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L..LXH4# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-54290 |
5L..LXH4# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75041 |
5L..LXH4# |
1 | ||
| 16405-75040 |
5L..LXH4# |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16479-75050 |
5L..LXH4# |
1 | ||
| 16474 - CAP(FOR RADIATOR RESERVE TANK DRAIN) | ||||
| 16474-54290 |
5L..LXH4# |
1 | ||
| 16474A - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP) | ||||
| 90467-09173 |
5L..LXH4# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-54050 |
5L..LXH4# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54420 |
5L..LXH4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37008 |
5L..LXH4# |
2 | ||
| 90467-37001 |
5L..LXH4# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37008 |
5L..LXH4# |
2 | ||
| 90467-37001 |
5L..LXH4# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54560 |
5L..LXH49 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54560 |
5L..LXH49 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
5L..LXH4# NO.2 |
1 | ||
| 90467-37001 |
5L..LXH4# NO.1 |
1 | ||
| 90467-37008 |
5L..LXH4# NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
5L..LXH4# NO.2 |
1 | ||
| 90467-37001 |
5L..LXH4# NO.1 |
1 | ||
| 90467-37008 |
5L..LXH4# NO.1 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-54060 |
5L..LXH4# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-54010 |
5L..LXH4# |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-54030 |
5L..LXH49 |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-54010 |
5L..LXH4# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-54650 |
5L..LXH4#..STD |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54330 |
5L..LXH4#..STD |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06450 | ||||
| 90119-08063 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 90179-06080 | ||||
| 90179-06293 | ||||
| 90179-08240 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1605 | ||||
| 1903 | ||||
| 2202 | ||||
| 7851 | ||||
| 8401 | ||||
| 8716 | ||||

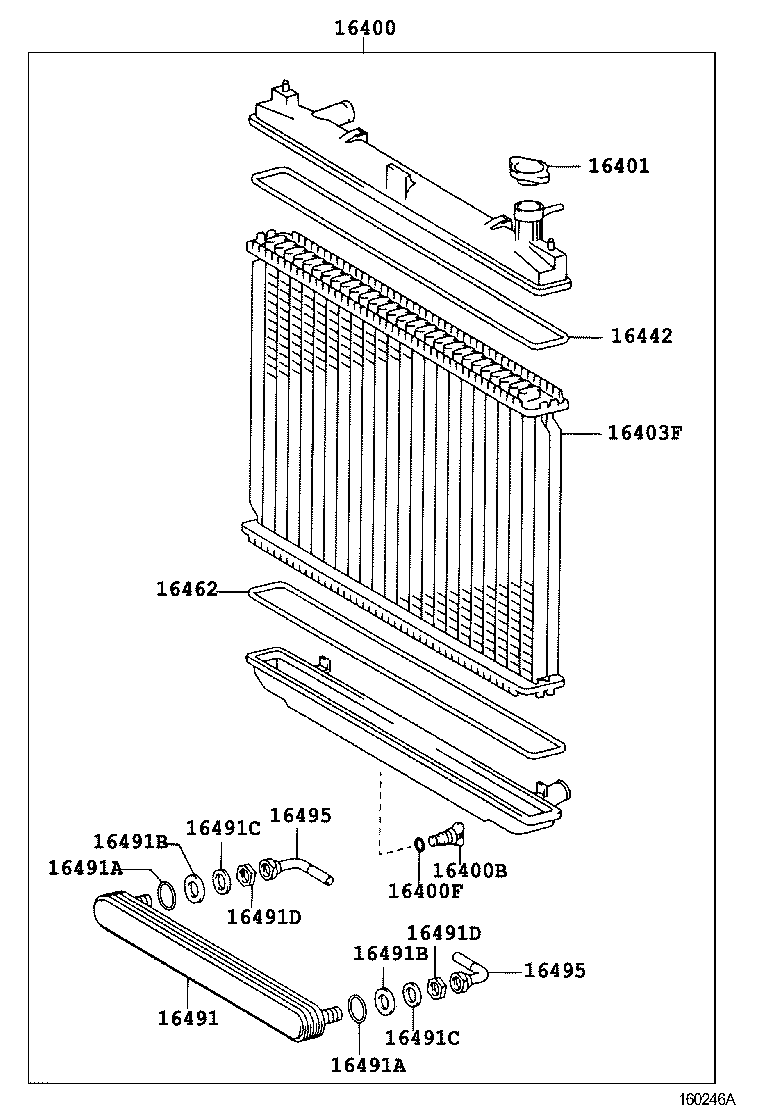

ILLUST NO. 2 OF 2(9706-9907)5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-5B351 |
5L..LXH4#..ATM |
1 | ||
| 16400-5B350 |
5L..LXH4#..ATM |
1 | ||
| 16400-5B352 |
5L..LXH4#..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
5L..LXH4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5L..LXH4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-54750 |
5L..LXH4# |
1 | ||
| 16401-67150 |
5L..LXH4# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-5B350 |
5L..LXH4#..ATM |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-67090 |
5L..LXH4# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-67090 |
5L..LXH4# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-67090 |
5L..LXH4#..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-61170 |
5L..LXH4#..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-61170 |
5L..LXH4#..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
5L..LXH4#..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-61170 |
5L..LXH4#..ATM |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
5L..LXH4#..ATM |
2 | ||
| 16491C - WASHER, SPRING(FOR ATM OIL COOLER) | ||||
| 16494-61170 |
5L..LXH4#..ATM |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
5L..LXH4#..ATM |
2 | ||
| 16491D - NUT(FOR ATM OIL COOLER) | ||||
| 16496-15580 |
5L..LXH4#..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16497-17030 |
5L..LXH4#..ATM |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16497-17030 |
5L..LXH4#..ATM |
2 | ||

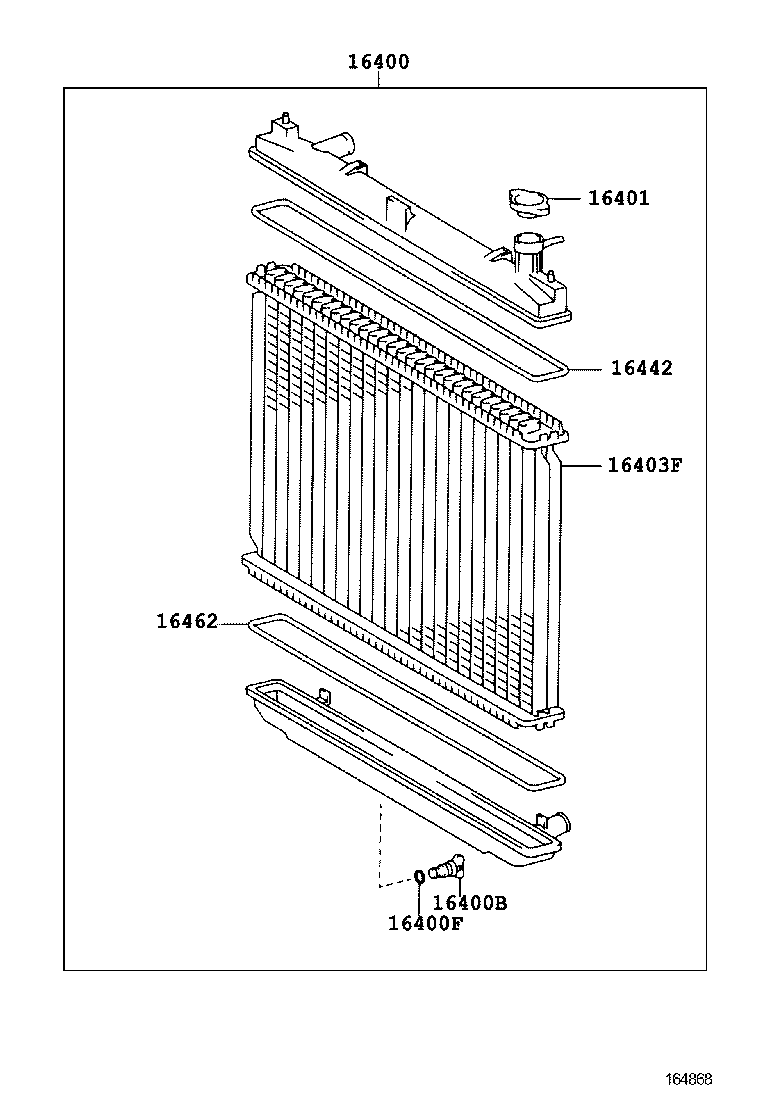

ILLUST NO. 2 OF 2(9907- )5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-5B351 |
5L..LXH4#..ATM |
1 | ||
| 16400-5B350 |
5L..LXH4#..ATM |
1 | ||
| 16400-5B352 |
5L..LXH4#..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
5L..LXH4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
5L..LXH4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-54750 |
5L..LXH4# |
1 | ||
| 16401-67150 |
5L..LXH4# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-5B350 |
5L..LXH4#..ATM |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-67090 |
5L..LXH4# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-67090 |
5L..LXH4# |
1 | ||

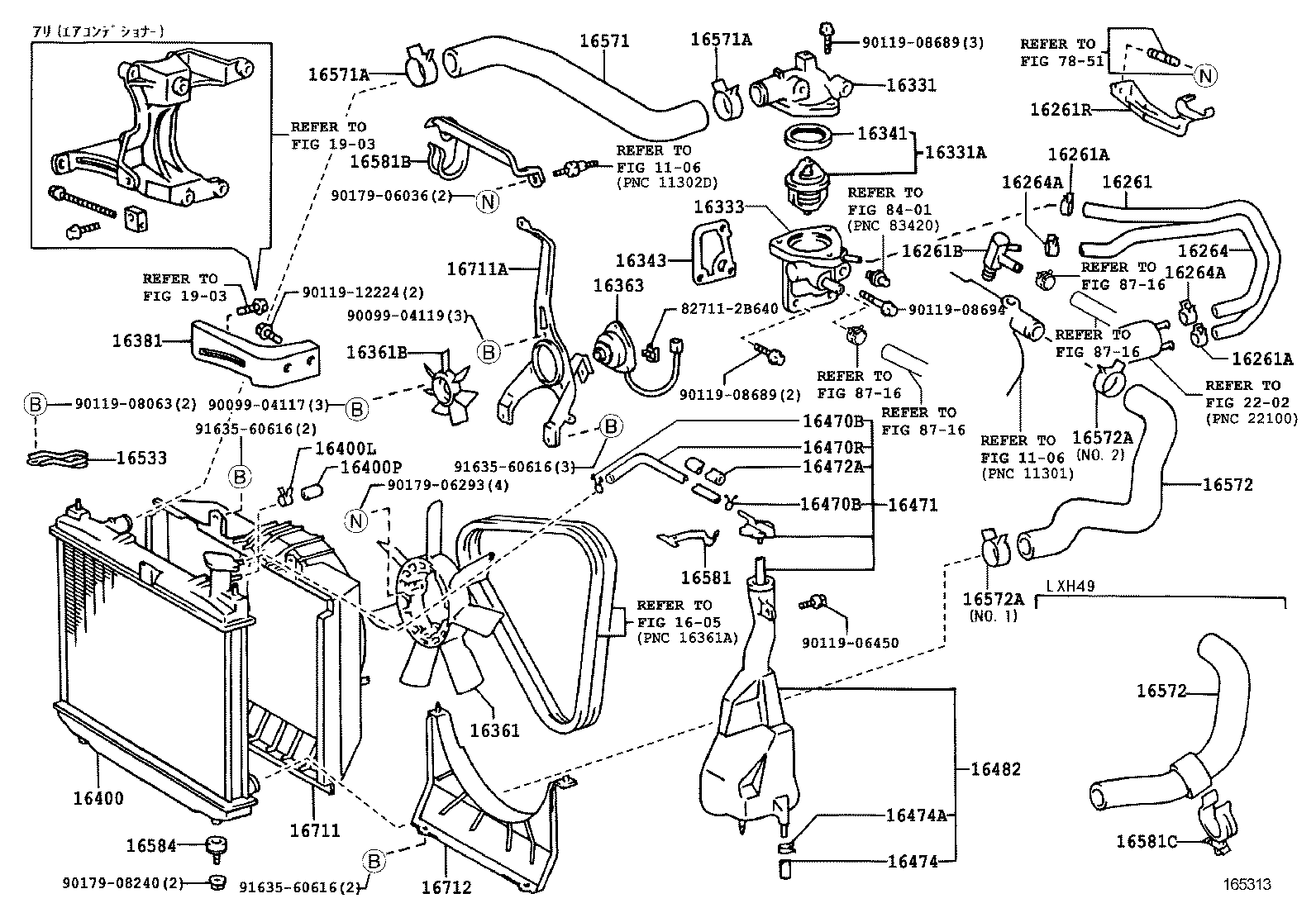

ILLUST NO. 1 OF 2(9907- )5L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54121 |
5L..LXH4# |
1 | ||
| 16261-54120 |
5L..LXH4# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LXH4# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
5L..LXH4# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-54037 |
5L..LXH4# |
1 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90929-01219 |
5L..LXH4# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54121 |
5L..LXH4# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LXH4# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
5L..LXH4# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54202 |
5L..LXH4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 16340-54010 |
5L..LXH4# *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54113 |
5L..LXH4# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
5L..LXH4# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54040 |
5L..LXH4# |
1 | ||
| 16361 - FAN | ||||
| 16361-67030 |
5L..LXH4# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54071 |
5L..LXH4# 厚さ=4.5 |
1 | ||
| 16381-54070 |
5L..LXH4# 厚さ=3.2 |
1 | ||
| 16381-54071 |
5L..LXH4# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B351 |
5L..LXH4#..ATM |
1 | ||
| 16400-5B350 |
5L..LXH4#..ATM |
1 | ||
| 16400-5B352 |
5L..LXH4#..ATM |
1 | ||
| 16400L - CLAMP, NO.1 | ||||
| 90467-13001 |
5L..LXH4# |
1 | ||
| 16400P - PLUG(FOR RADIATOR) | ||||
| 90339-07001 |
5L..LXH4# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L..LXH4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5L..LXH4# |
2 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-54290 |
5L..LXH4# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-75041 |
5L..LXH4# |
1 | ||
| 16405-75040 |
5L..LXH4# |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16479-75050 |
5L..LXH4# |
1 | ||
| 16474 - CAP(FOR RADIATOR RESERVE TANK DRAIN) | ||||
| 16474-54290 |
5L..LXH4# |
1 | ||
| 16474A - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK DRAIN CAP) | ||||
| 90467-09173 |
5L..LXH4# |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-54201 |
5L..LXH4# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-54050 |
5L..LXH4# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54420 |
5L..LXH4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37008 |
5L..LXH4# |
2 | ||
| 90467-37001 |
5L..LXH4# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37008 |
5L..LXH4# |
2 | ||
| 90467-37001 |
5L..LXH4# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54560 |
5L..LXH49 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54560 |
5L..LXH49 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
5L..LXH4# NO.2 |
1 | ||
| 90467-37001 |
5L..LXH4# NO.1 |
1 | ||
| 90467-37008 |
5L..LXH4# NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41001 |
5L..LXH4# NO.2 |
1 | ||
| 90467-37001 |
5L..LXH4# NO.1 |
1 | ||
| 90467-37008 |
5L..LXH4# NO.1 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-54060 |
5L..LXH4# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-54010 |
5L..LXH4# |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-54030 |
5L..LXH49 |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-54010 |
5L..LXH4# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-54650 |
5L..LXH4#..STD |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54330 |
5L..LXH4#..STD |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06450 | ||||
| 90119-08063 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 90179-06036 | ||||
| 90179-06293 | ||||
| 90179-08240 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1605 | ||||
| 1903 | ||||
| 2202 | ||||
| 7851 | ||||
| 8401 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
