LXH49V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )5L

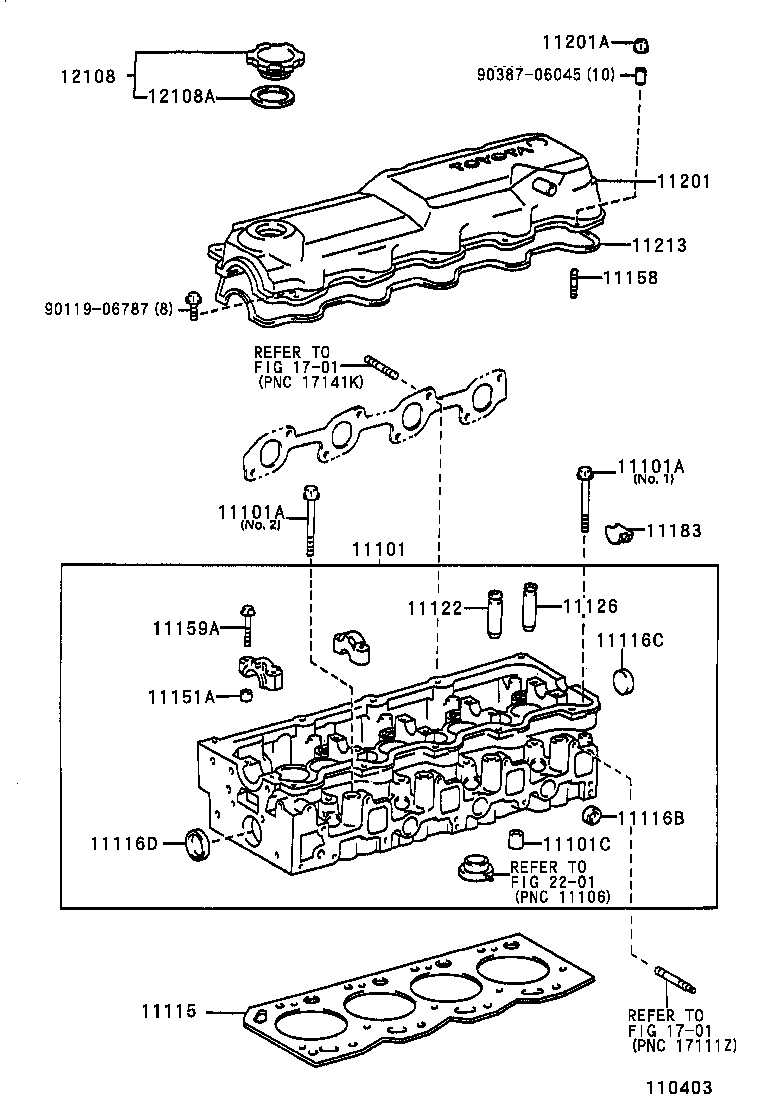

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101C 11115 11116B 11116C 11116D 11122 11126 11151A 11158 11159A 11183 11201 11201A 11213 12108 12108A 1701 1701 2201 9011906787 9038706045
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-54150

5L..LXH4#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02080

5L..LXH4#

NO.1

 14
90910-02081

5L..LXH4#

NO.2

 4
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02080

5L..LXH4#

NO.1

 14
90910-02081

5L..LXH4#

NO.2

 4
11101C - TUBE(FOR CYLINDER HEAD)
90440-15003

5L..LXH4#

 4
11115 - GASKET, CYLINDER HEAD
11115-54120B0

5L..LXH4#

MARK B

 1
11115-54120F0

5L..LXH4#

MARK F

 1
11115-54121B0

5L..LXH4#

MARK B,ﾏｰｸ B

 1
11115-54121F0

5L..LXH4#

MARK F,ﾏｰｸ F

 1
11115-54120D0

5L..LXH4#

MARK D

 1
11115-54130F0

5L..LXH4#

MARK F,ﾏｰｸ F

 1
11115-54121D0

5L..LXH4#

MARK D,ﾏｰｸ D

 1
11115-54130D0

5L..LXH4#

MARK D,ﾏｰｸ D

 1
11115-54130B0

5L..LXH4#

MARK B,ﾏｰｸ B

 1
11116B - PLUG, TIGHT, NO.2
96411-62500

5L..LXH4#

 7
96411-42500

5L..LXH4#

 7
11116C - PLUG, TIGHT, NO.3
96411-43000

5L..LXH4#

 1
96411-63000

5L..LXH4#

 1
11116D - PLUG, TIGHT, NO.4
96411-64500

5L..LXH4#

 2
96411-44500

5L..LXH4#

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-54020

5L..LXH4#

STD

 4
11123-54020

5L..LXH4#

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11123-54020

5L..LXH4#

O/S 0.05

 4
11122-54020

5L..LXH4#

STD

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

5L..LXH4#

長さ=8,外径=11

 7
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92122-80616

5L..LXH4#

ﾈｼﾞ部長さ=9 & 9,長さ=25

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-08166

5L..LXH4#

 10
11183 - PLUG, SEMICIRCULAR
11183-54020

5L..LXH4#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-54051

5L..LXH4#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-06319

5L..LXH4#

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-54050

5L..LXH4#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70020

5L..LXH4#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-70010

5L..LXH4#

 1
Common parts
90119-06787
90387-06045
Linked diagrams
1701
2201
