LXH49V-RRMDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

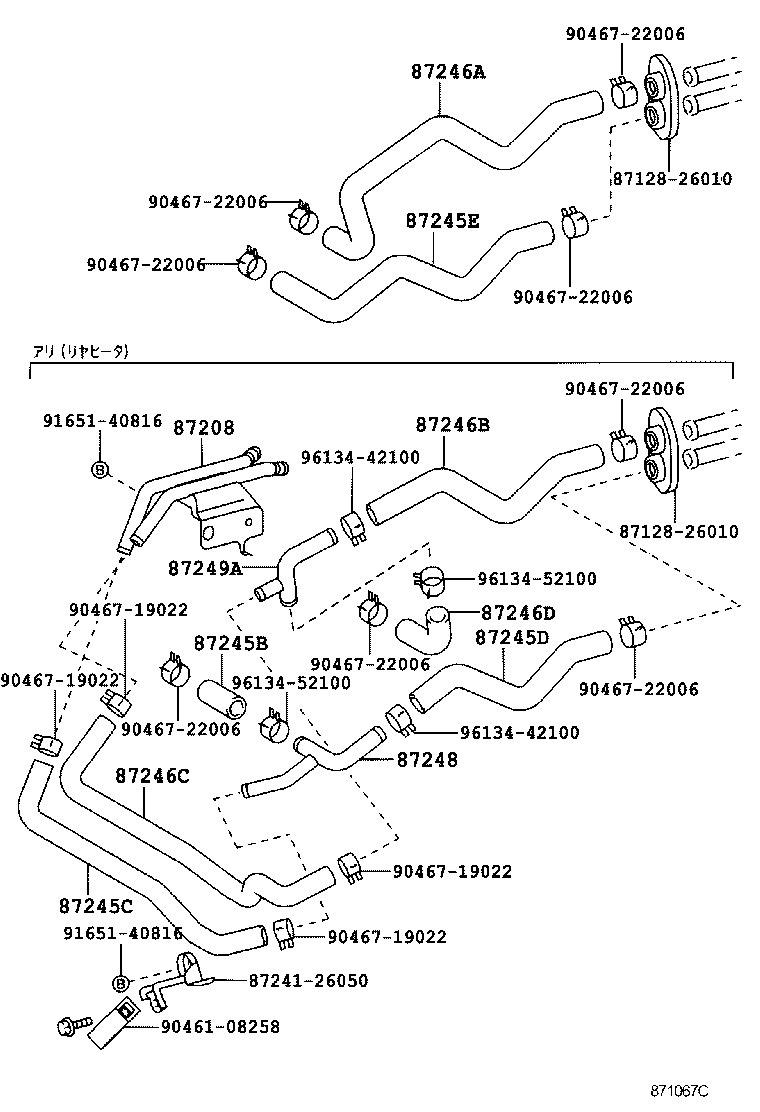

ILLUST NO. 1 OF 2(9706- )LXH4#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8712826010 8712826010 87208 8724126050 87245B 87245C 87245D 87245E 87246A 87246B 87246C 87246D 87248 87249A 9046108258 9046719022 9046719022 9046719022 9046719022 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9165140816 9165140816 9613442100 9613442100 9613452100 9613452100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-26630

LXH4#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-2F150

LXH4#

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-26810

LXH4#

 1
87245D - HOSE, HEATER WATER, INLET D
87245-26840

LXH4#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26870

LXH4#..STD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26860

LXH4#..STD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26830

LXH4#

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-26820

LXH4#

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-26850

LXH4#

 1
87248 - PIPE SUB-ASSY, WATER
87248-26160

LXH4#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26150

LXH4#

 1
Common parts
87128-26010
87241-26050
90461-08258
90467-19022
90467-22006
91651-40816
96134-42100
96134-52100

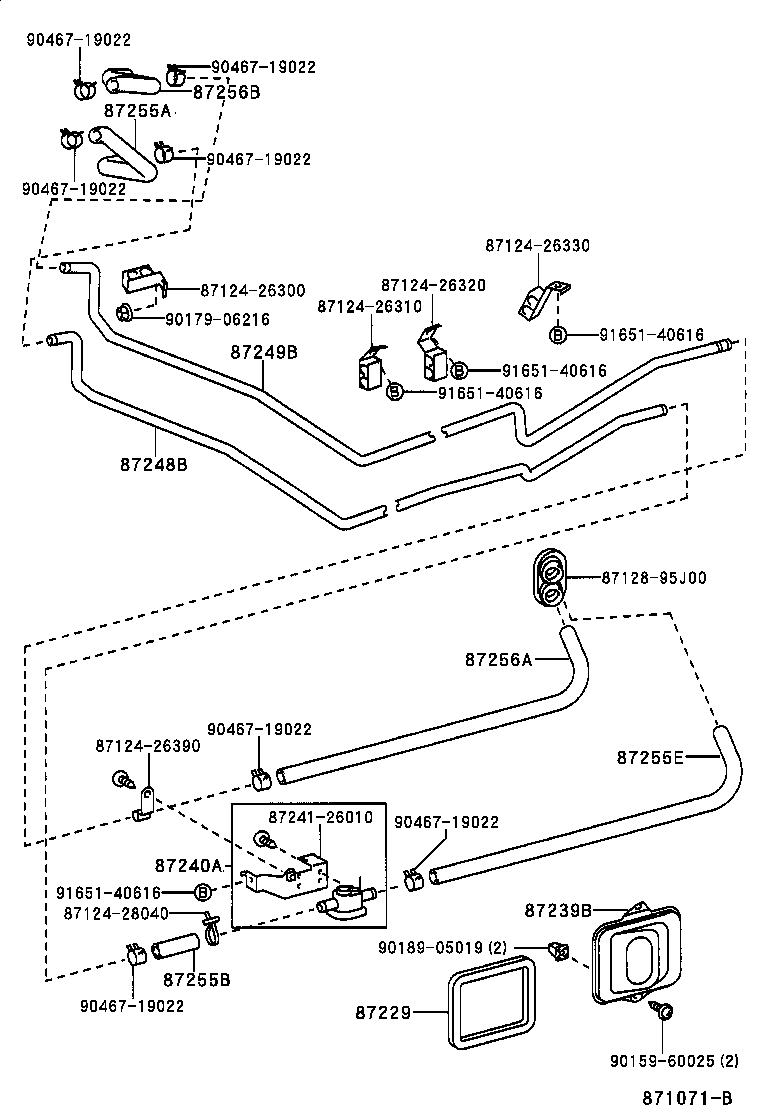

ILLUST NO. 2 OF 2(9706- )LXH4#

Click highlighted areas on diagram

ﾘﾔ---ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ

diagram 8712426300 8712426310 8712426320 8712426330 8712426390 8712428040 8712895J00 87229 87239B 87240A 8724126010 87248B 87249B 87255A 87255B 87255E 87256A 87256B 9015960025 9017906216 9018905019 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
87229 - PACKING, HEATER INLET HOLE COVER
87229-26010

KCH4#,LXH4#,RCH41,47..4D

 1
87239B - COVER, HEATER INLET HOLE
87239-26030

KCH4#,LXH4#,RCH41,47..4D

 1
87240A - VALVE ASSY, REAR HEATER WATER
87240-26070

KCH4#,LXH4#,RCH41,47..4D

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26120

KCH4#,LXH4#,RCH41,47..4D

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26110

KCH4#,LXH4#,RCH41,47..4D

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-2F090

LXH4#

 1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-26750

KCH4#,LXH4#,RCH41,47..4D

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-26611

KCH4#,LXH4#,RCH41,47..4D

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-26611

KCH4#,LXH4#,RCH41,47..4D

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-2F100

LXH4#

 1
Common parts
87124-26300
87124-26310
87124-26320
87124-26330
87124-26390
87124-28040
87128-95J00
87241-26010
90159-60025
90179-06216
90189-05019
90467-19022
91651-40616
