LXH49V-RRMDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#..MTM

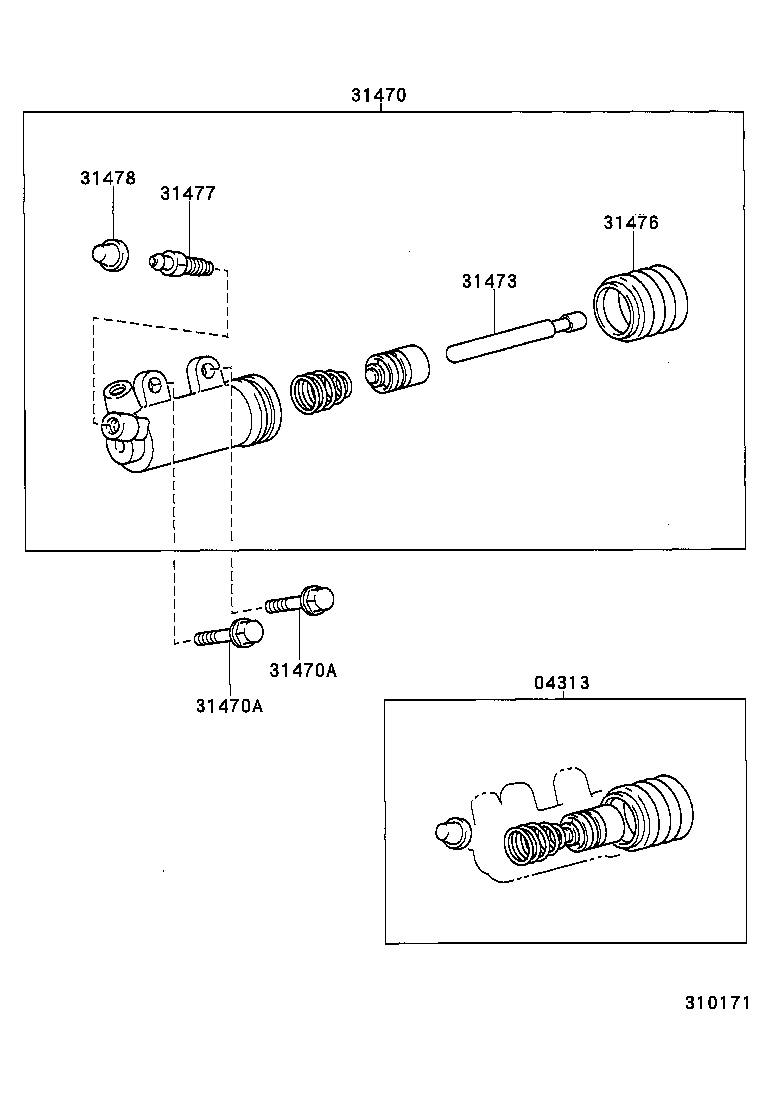

Click highlighted areas on diagram

diagram 04313 31470 31470A 31470A 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-22030

LXH4#..MTM

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-26061

LXH4#..MTM

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

LXH4#,RCH42..MTM

*8−1.25PX25−25

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

LXH4#,RCH42..MTM

*8−1.25PX25−25

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-20031

LXH4#..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

LXH4#,RCH42..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

LXH4#,RCH42..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LXH4#,RCH42..MTM

 1
