LXH43V-SRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )LXH4#,RCH42..STD

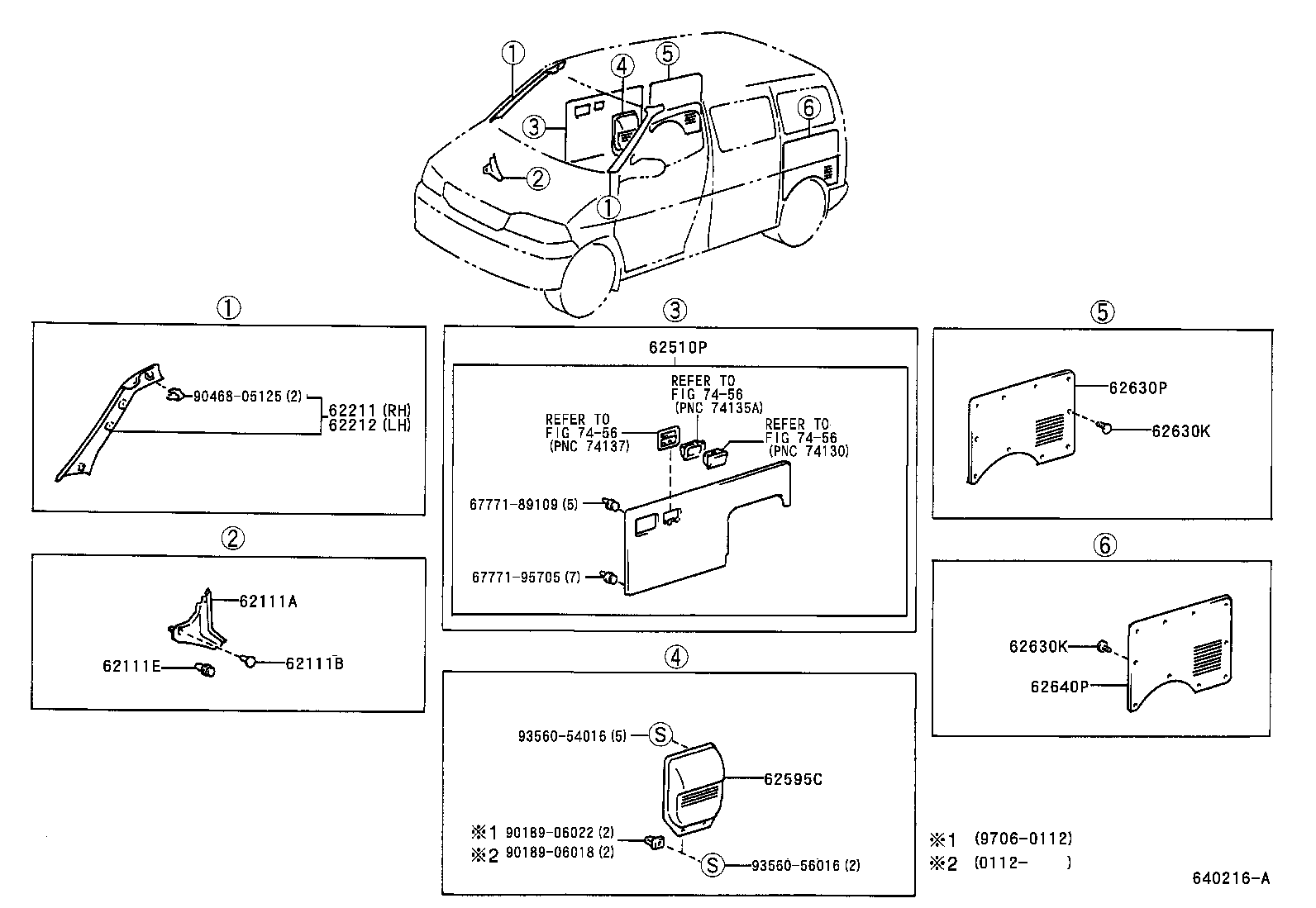

Click highlighted areas on diagram

diagram 62111A 62111B 62111E 62211 62212 62510P 62595C 62630K 62630K 62630P 62640P 6777189109 6777195705 7456 7456 7456 9018906018 9018906022 9046805125 9356054016 9356056016
Part # Description Qty Price
62111A - TRIM SUB-ASSY, COWL SIDE, RH
62111-26010B0

LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD

BLUISH GRAY,TRIM1#

 1
62111B - CLIP(FOR COWL SIDE TRIM)
90467-05080B0

LXH4#;KCH4#,RCH4#..E,STD,WINT,WISTD

BLUISH GRAY,TRIM1#

 1
62111E - RETAINER, COWL SIDE TRIM
90467-10147

LXH4#,RCH42..STD

 3
62211 - GARNISH, FRONT PILLAR, RH
62211-26070B0

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-26070B0

LXH4#,RCH42..STD

LT.GRAY,TRIM1#

 1
62630K - CLIP(FOR QUARTER TRIM REAR PANEL)
90467-10034N8

LXH4#,RCH42..STD

CREAM YELLOW,TRIM1#

 20
62630K - CLIP(FOR QUARTER TRIM REAR PANEL)
90467-10034N8

LXH4#,RCH42..STD

CREAM YELLOW,TRIM1#

 20
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-26030

LXH4#,RCH42..STD

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-26080

LXH4#,RCH42..STD

 1
Common parts
67771-89109
67771-95705
90189-06018
90189-06022
90468-05125
93560-54016
93560-56016
Linked diagrams
7456
