LXH43V-SRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )5L..LXH43 ; (9706- )5L..LXH49..ATM

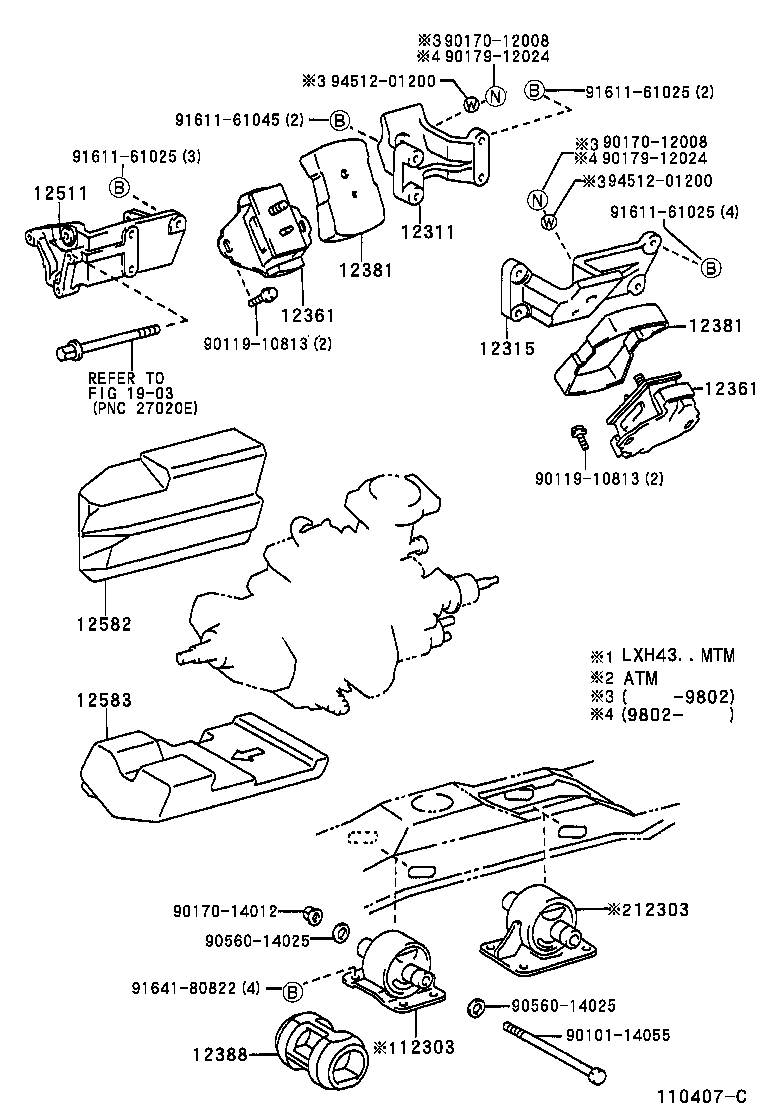

Click highlighted areas on diagram

diagram 12303 12303 12311 12315 12361 12361 12381 12381 12388 12511 12582 12583 1903 9010114055 9011910813 9011910813 9017012008 9017012008 9017014012 9017912024 9017912024 9056014025 9056014025 9161161025 9161161025 9161161025 9161161045 9164180822 9451201200 9451201200
Part # Description Qty Price
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-54060

5L..LXH43..ATM

 1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-54060

5L..LXH43..ATM

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54240

5L..LXH4#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-54030

5L..LXH4#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54220

5L..LXH4#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54220

5L..LXH4#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54081

5L..LXH4#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54081

5L..LXH4#

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-54020

5L..LXH43..ATM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-54031

5L..LXH4#

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-54021

5L..LXH4#

 1
12583 - INSULATOR, CYLINDER BLOCK, NO.3
12583-54030

5L..LXH4#

 1
Common parts
90101-14055
90119-10813
90170-12008
90170-14012
90179-12024
90560-14025
91611-61025
91611-61045
91641-80822
94512-01200
Linked diagrams
1903
