LXH43V-RRSDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )5L..ATM

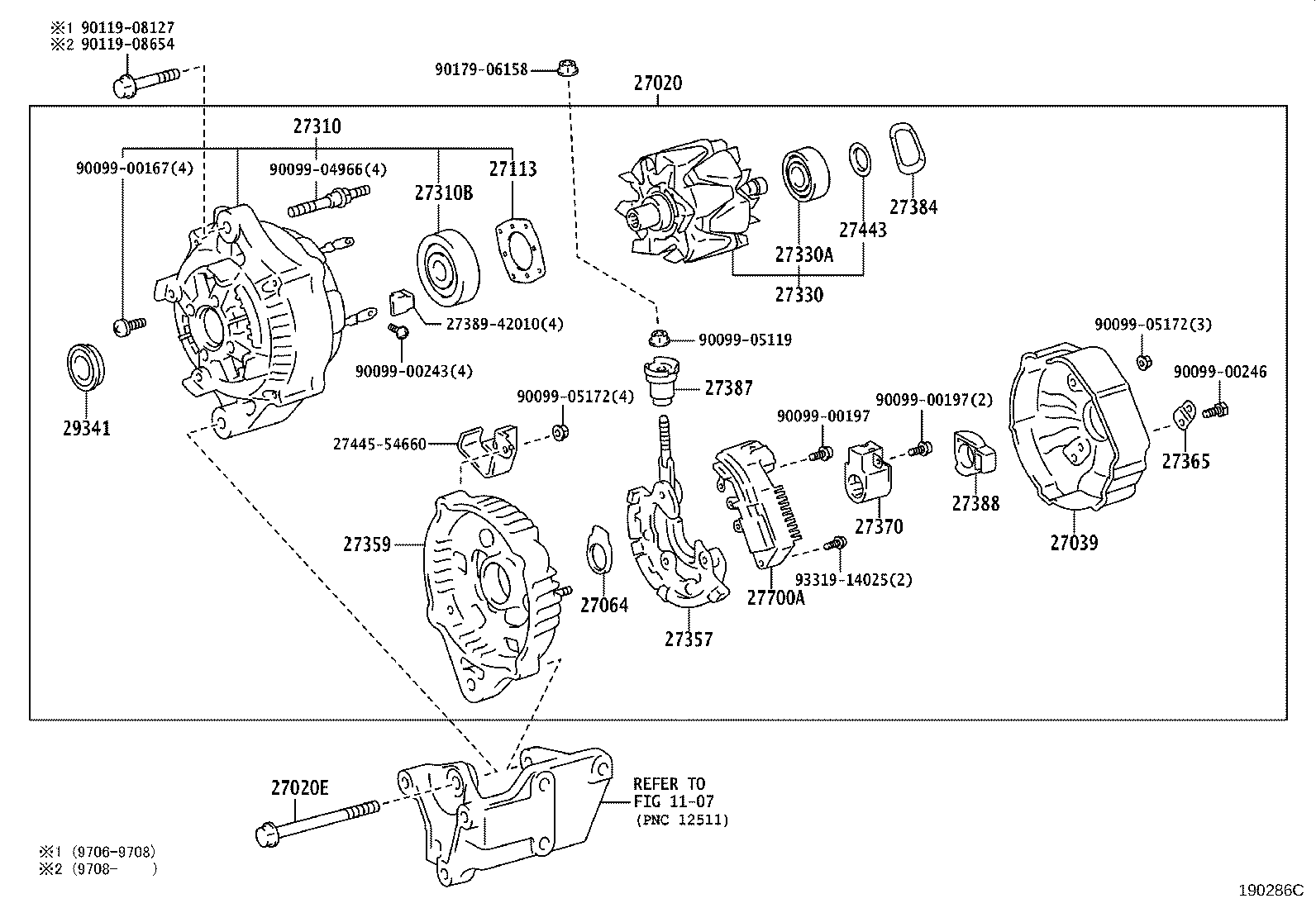

Click highlighted areas on diagram

12V 80A

diagram 1107 27020 27020E 27039 27064 27113 27310 27310B 27330 27330A 27357 27359 27365 27370 27384 27387 27388 2738942010 27443 2744554660 27700A 29341 9009900167 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905172 9009905172 9011908127 9011908654 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-54270

5L..LXH4#..ATM

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10287

5L..LXH4#

 1
27039 - COVER, ALTERNATOR REAR END
27039-55080

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27039-55080

5L..LXH4#..ATM

 1
27039-70470

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-64130

5L..LXH4#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-54520

5L..LXH4#..ATM

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10165

5L..LXH4#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-64190

5L..LXH4#..ATM

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-16310

5L..LXH4#..ATM;1KZTE..KCH4#..(G,V,WISTD)..(W07S,W08S)

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-54420

5L..LXH4#..ATM

 1
27365 - PLATE, TERMINAL
27365-55080

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27384 - WASHER
27384-50030

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27387 - INSULATOR, TERMINAL
27387-42021

5L..LXH4#..ATM

 1
27387-42021

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1KZTE,5L,3RZFE..KCH4#,LXH4#,RCH41,47..ATM

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1KZTE,5L,1RZE,3RZFE..KCH4#,LXH4#,RCH4#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-35040

5L..LXH4#

 1
29341 - SEAL, ALTERNATOR OIL
29341-64130

5L..LXH4#

 1
Common parts
27389-42010
27445-54660
90099-00167
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05172
90119-08127
90119-08654
90179-06158
93319-14025
Linked diagrams
1107
