LXH43V-RRMDS (1997)

Toyota Regius/Touring Hiace

Production Jun 1997 - May 2002
Engine 5L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9706- )MTM

Click highlighted areas on diagram

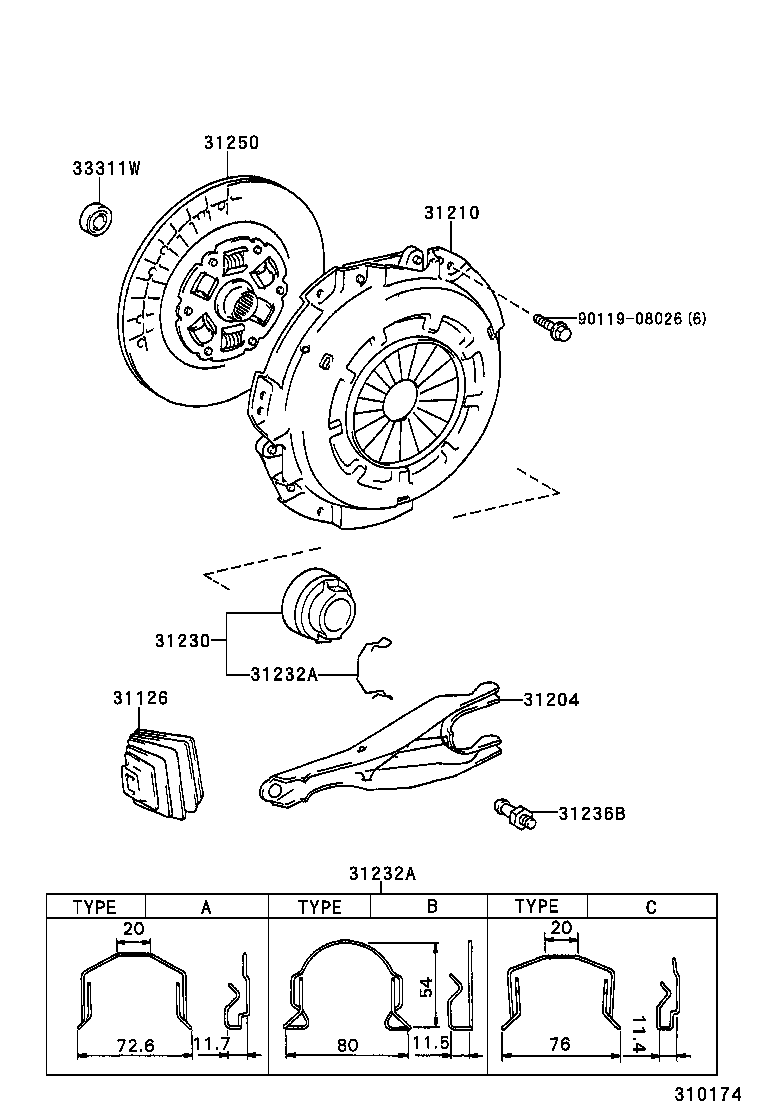

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

LXH4#..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-20071

LXH4#,RCH42..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-35121

LXH4#..MTM

 1
31210-35122

LXH4#..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35060

LXH4#..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LXH4#,RCH42..MTM

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35030

LXH4#..MTM

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LXH4#,RCH42..MTM

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31232-35030

LXH4#..MTM

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
31236B - SUPPORT, RELEASE FORK
31236-26010

LXH4#..MTM

 1
31236-30060

LXH4#,RCH42..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-26191

LXH4#..MTM

 1
31250-26192

LXH4#..MTM

 1
31250-26192

LXH4#..MTM

 1
31250-26193

LXH4#..MTM

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LXH4#,RCH42..MTM

 1
Common parts
90119-08026
