KCH46W-GRSST (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )KCH4#

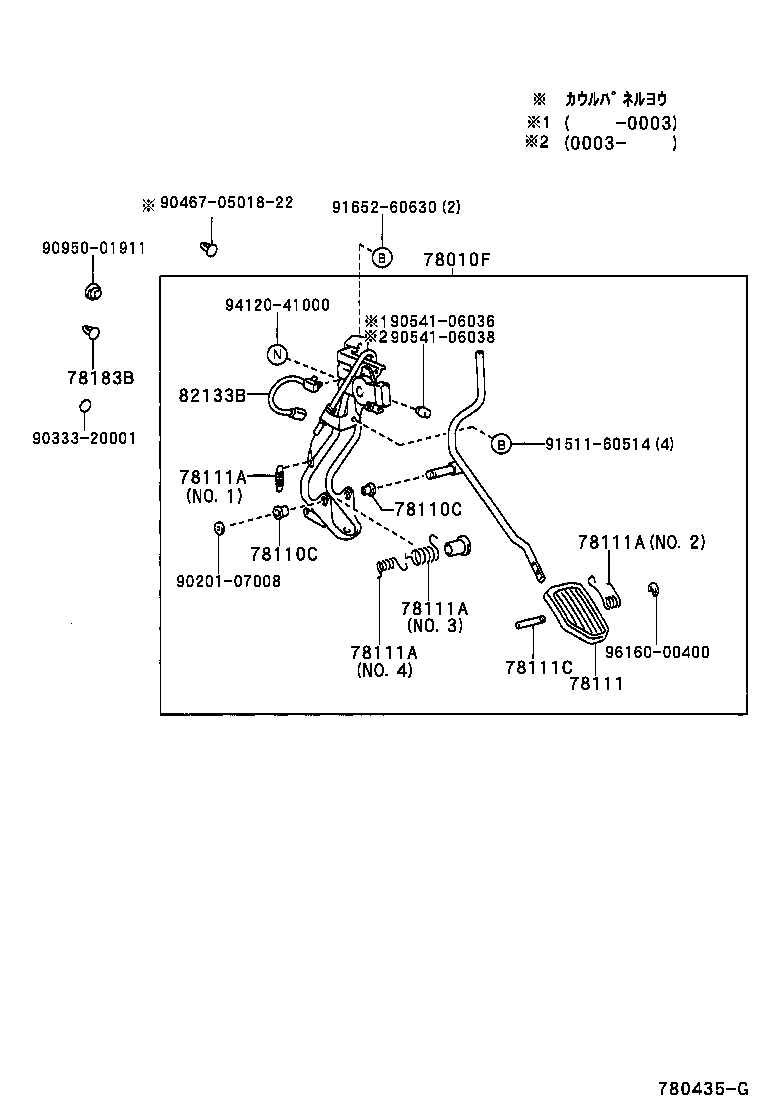

Click highlighted areas on diagram

diagram 78010F 78110C 78110C 78111 78111A 78111A 78111A 78111A 78111C 78183B 82133B 9020107008 9033320001 904670501822 9054106036 9054106038 9095001911 9151160514 9165260630 9412041000 9616000400
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78010-26020

KCH4#

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063

KCH4#

 2
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-08063

KCH4#

 2
78111 - PEDAL, ACCELERATOR
78111-20050

KCH4#,LXH4#,RCH4#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90959-03256

KCH4#

NO.4:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90508-18050

LXH4#,RCH4#;KCH4#..G07S;KCH4#..E,STD,WINT

 1
90508-18050

KCH4#

NO.2:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90506-13009

KCH4#

NO.1:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03255

KCH4#

NO.3:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90959-03256

KCH4#

NO.4:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90508-18050

LXH4#,RCH4#;KCH4#..G07S;KCH4#..E,STD,WINT

 1
90508-18050

KCH4#

NO.2:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90506-13009

KCH4#

NO.1:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03255

KCH4#

NO.3:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90959-03256

KCH4#

NO.4:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90508-18050

LXH4#,RCH4#;KCH4#..G07S;KCH4#..E,STD,WINT

 1
90508-18050

KCH4#

NO.2:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90506-13009

KCH4#

NO.1:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03255

KCH4#

NO.3:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90959-03256

KCH4#

NO.4:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90508-18050

LXH4#,RCH4#;KCH4#..G07S;KCH4#..E,STD,WINT

 1
90508-18050

KCH4#

NO.2:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90506-13009

KCH4#

NO.1:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03255

KCH4#

NO.3:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

KCH4#,LXH4#,RCH4#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-26120

KCH4#

 1
78183-26190

KCH4#

 1
82133B - WIRE, COWL, NO.3
82133-26570

KCH4#

 1
Common parts
90201-07008
90333-20001
90467-0501822
90541-06036
90541-06038
90950-01911
91511-60514
91652-60630
94120-41000
96160-00400
