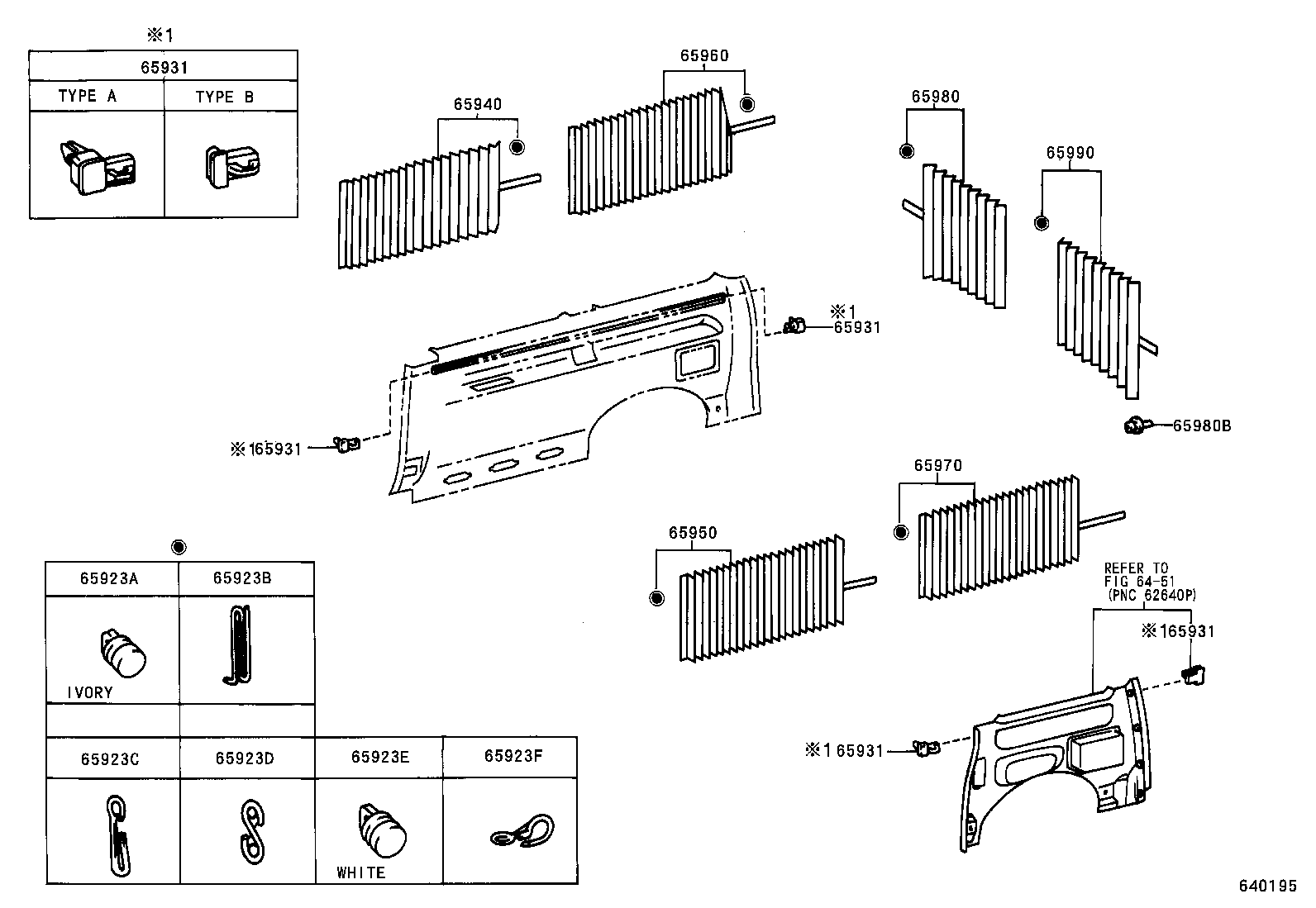

KCH46W-GRSST (1997)
Toyota Regius/Touring Hiace
(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65923A - HOOK, CURTAIN, NO.1 | ||||
| 65923-28040A0 |
KCH4#,RCH41,47..WINT IVORY,TRIM1# |
12 | ||
| 65923-28040A0 |
KCH4#,RCH41,47..4D..G IVORY,TRIM6# |
12 | ||
| 65923-28040A0 |
KCH4#,RCH41..WINT IVORY,TRIM1# |
12 | ||
| 65923B - HOOK, CURTAIN, NO.2 | ||||
| 65923-95J11 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
17 | ||
| 65923-95J11 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT) |
17 | ||
| 65923C - HOOK, CURTAIN, NO.3 | ||||
| 65923-95J24 |
KCH4#,RCH41,47..G,STD,WINT |
60 | ||
| 65923-95J24 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
60 | ||
| 65923D - HOOK, CURTAIN, NO.4 | ||||
| 65923-95J25 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
28 | ||
| 65923-95J25 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
28 | ||
| 65923-26020 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
28 | ||
| 65923E - HOOK, CURTAIN | ||||
| 65923-28070 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
15 | ||
| 65923-28070 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT) |
15 | ||
| 65923F - HOOK, CURTAIN, NO.5 | ||||
| 65923-95J28 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT) |
15 | ||
| 65923-95J28 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
15 | ||
| 65931 - COVER, CURTAIN RAIL | ||||
| 65931-26030G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
3 | ||
| 65931-95J00B1 |
KCH4#,RCH41,47..STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 65931-95J00G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
1 | ||
| 65931-26030B1 |
KCH4#,RCH41,47..STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
3 | ||
| 65931 - COVER, CURTAIN RAIL | ||||
| 65931-26030G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
3 | ||
| 65931-95J00B1 |
KCH4#,RCH41,47..STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 65931-95J00G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
1 | ||
| 65931-26030B1 |
KCH4#,RCH41,47..STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
3 | ||
| 65931 - COVER, CURTAIN RAIL | ||||
| 65931-26030G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
3 | ||
| 65931-95J00B1 |
KCH4#,RCH41,47..STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 65931-95J00G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
1 | ||
| 65931-26030B1 |
KCH4#,RCH41,47..STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
3 | ||
| 65931 - COVER, CURTAIN RAIL | ||||
| 65931-26030G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
3 | ||
| 65931-95J00B1 |
KCH4#,RCH41,47..STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 65931-95J00G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
1 | ||
| 65931-26030B1 |
KCH4#,RCH41,47..STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
3 | ||
| 65931 - COVER, CURTAIN RAIL | ||||
| 65931-26030G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
3 | ||
| 65931-95J00B1 |
KCH4#,RCH41,47..STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 65931-95J00G0 |
KCH4#,RCH41,47..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,SAGE,TRIM6# |
1 | ||
| 65931-26030B1 |
KCH4#,RCH41,47..STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,LT.BLUISH GRAY,TRIM1# |
3 | ||
| 65940 - CURTAIN ASSY, SIDE, FRONT RH | ||||
| 65940-26070B0 |
KCH4#,RCH41..G LT. GRAY,TRIM6# |
1 | ||
| 65940-26070B0 |
KCH4#,RCH41..WINT LT. GRAY,TRIM1# |
1 | ||
| 65940-26070A0 |
KCH4#,RCH41..WINT LT.GRAY,TRIM1# |
1 | ||
| 65940-26070B2 |
KCH4#,RCH41..G LT. GRAY,TRIM6# |
1 | ||
| 65940-26070A0 |
KCH4#,RCH41,47..WINT LT.GRAY,TRIM1# |
1 | ||
| 65940-26070A0 |
KCH4#,RCH41,47..4D..G LT.GRAY,TRIM6# |
1 | ||
| 65940-26070B2 |
KCH4#,RCH41..WINT LT. GRAY,TRIM1# |
1 | ||
| 65950 - CURTAIN ASSY, SIDE, FRONT LH | ||||
| 65950-26080B0 |
KCH4#,RCH41..WINT LT. GRAY,TRIM1# |
1 | ||
| 65950-26080B0 |
KCH4#,RCH41,47..G LT. GRAY,TRIM6# |
1 | ||
| 65950-26080B0 |
KCH4#,RCH41,47..WINT LT. GRAY,TRIM1# |
1 | ||
| 65960 - CURTAIN ASSY, SIDE, REAR RH | ||||
| 65960-26090B0 |
KCH4#,RCH41..WINT LT. GRAY,TRIM1# |
1 | ||
| 65960-26090B2 |
KCH4#,RCH41..WINT LT. GRAY,TRIM1# |
1 | ||
| 65960-26090B0 |
KCH4#,RCH41..G LT. GRAY,TRIM6# |
1 | ||
| 65960-26090B2 |
KCH4#,RCH41..G LT. GRAY,TRIM6# |
1 | ||
| 65960-26090A0 |
KCH4#,RCH41,47..G LT.GRAY,TRIM1# |
1 | ||
| 65960-26090A0 |
KCH4#,RCH41,47..WINT LT.GRAY,TRIM1# |
1 | ||
| 65960-26090A0 |
KCH4#,RCH41..WINT LT.GRAY,TRIM1# |
1 | ||
| 65970 - CURTAIN ASSY, SIDE, REAR LH | ||||
| 65970-26080B0 |
KCH4#,RCH41..WINT LT. GRAY,TRIM1# |
1 | ||
| 65970-26080A0 |
KCH4#,RCH41,47..WINT LT. GRAY,TRIM1# |
1 | ||
| 65970-26080A0 |
KCH4#,RCH41..WINT LT. GRAY,TRIM1# |
1 | ||
| 65970-26080B0 |
KCH4#,RCH41..G LT. GRAY,TRIM6# |
1 | ||
| 65970-26080A0 |
KCH4#,RCH41..G LT. GRAY,TRIM6# |
1 | ||
| 65980 - CURTAIN ASSY, BACK DOOR, RH | ||||
| 65980-26090B0 |
KCH4#,RCH41..WINT LT. GRAY,TRIM1# |
1 | ||
| 65980-26090B0 |
KCH4#,RCH41,47..G LT. GRAY,TRIM6# |
1 | ||
| 65980-26090B0 |
KCH4#,RCH41,47..WINT LT. GRAY,TRIM1# |
1 | ||
| 65980B - FASTNER(FOR BACK DOOR GARNISH) | ||||
| 90530-06009B2 |
KCH4#,RCH41,47..WINT LT.BLUISH GRAY,TRIM1# |
2 | ||
| 90530-06009B2 |
RCH47..STD;KCH4#,RCH41..STD,WINT LT.BLUISH GRAY,TRIM1# |
2 | ||
| 90530-06009B2 |
KCH4#,RCH41,47..G LT.BLUISH GRAY,TRIM6# |
2 | ||
| 90530-06009G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6# |
2 | ||
| 90530-06009G0 |
KCH4#,RCH41..4D..G SAGE,TRIM6# |
2 | ||
| 90530-06009G0 |
RCH41..5D;RCH41..STD;KCH4#,RCH47..(G,STD)..(G08S,W07S,W08S) SAGE,TRIM60 |
2 | ||
| 65990 - CURTAIN ASSY, BACK DOOR, LH | ||||
| 65990-26090B0 |
KCH4#,RCH41,47..WINT LT. GRAY,TRIM1# |
1 | ||
| 65990-26090B0 |
KCH4#,RCH41..WINT LT. GRAY,TRIM1# |
1 | ||
| 65990-26090B0 |
KCH4#,RCH41,47..G LT. GRAY,TRIM6# |
1 | ||
| Linked diagrams | ||||
| 6451 | ||||
