KCH46W-GRSGT (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

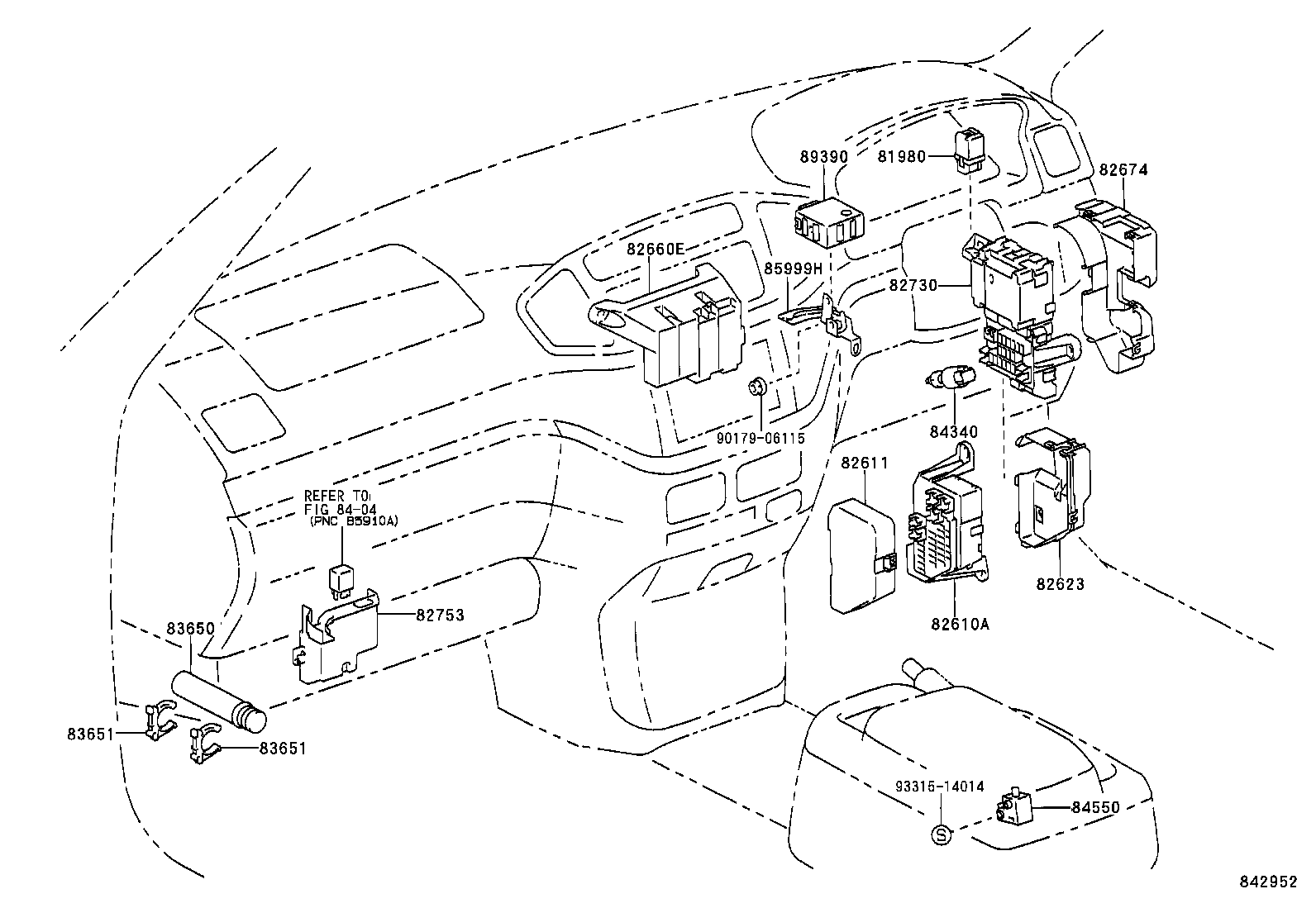

ILLUST NO. 3 OF 8(9907- )KCH4#,RCH41,47

Click highlighted areas on diagram

ｶｳﾙ

diagram 81980 82610A 82611 82623 82660E 82674 82730 82753 83650 83651 83651 8404 84340 84550 85999H 89390 9017906115 9331514014
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-30100

KCH4#,RCH41,47

 1
81980-12070

KCH4#,LXH4#,RCH4#

 1
81980-32010

KCH4#,RCH41,47

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82610A - BLOCK ASSY, FUSE
82610-26070

LXH4#..G;KCH4#,RCH41,47

 1
82610-26110

KCH4#,RCH41,47

 1
82611 - COVER, FUSE BLOCK
82611-26270

KCH4#,RCH41,47

 1
82611-26340

KCH4#,RCH41,47

 1
82623 - COVER, FUSIBLE LINK, LOWER
82623-26080

KCH4#,RCH41,47

 1
82623-26010

KCH4#,LXH4#,RCH4#

 1
82660E - BLOCK ASSY, RELAY
82660-26250

KCH4#,RCH41,47

 1
82674 - COVER, JUNCTION BLOCK LOWER
82674-26010

KCH4#,RCH41,47

 1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-26010

KCH4#,RCH41,47

 1
82753 - BLOCK, PASSENGER SIDE RELAY
82753-26010

LXH4#..G;KCH4#,RCH41,47

 1
82753-26030

LXH4#..STD;KCH4#,RCH4#

 1
83650 - FUSEE
90986-01005

KCH4#,LXH4#,RCH4#

 1
83651 - CLAMP, FUSEE
90468-25003

KCH4#,LXH4#,RCH4#

 2
83651 - CLAMP, FUSEE
90468-25003

KCH4#,LXH4#,RCH4#

 2
84340 - SWITCH ASSY, STOP LAMP
84340-42010

KCH4#,LXH4#,RCH4#

 1
84340-32090

KCH4#,LXH4#,RCH4#

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060

KCH4#,LXH4#,RCH4#

 1
85999H - BRACKET, RELAY
85999-26191

KCH4#,LXH4#,RCH4#

 1
89390 - RELAY, BRAKE WARNING
89391-26010

RCH41..4D;RCH47..W08S;KCH4#,LXH4#,RCH42

ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ)

 1
Common parts
90179-06115
93315-14014
Linked diagrams
8404
