KCH46G-GRSNT (1997)
Toyota Regius/Touring Hiace
Production
Apr 1997
-
Jul 1999
Engine
1KZTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704-9907)KCH4#,RCH41,47

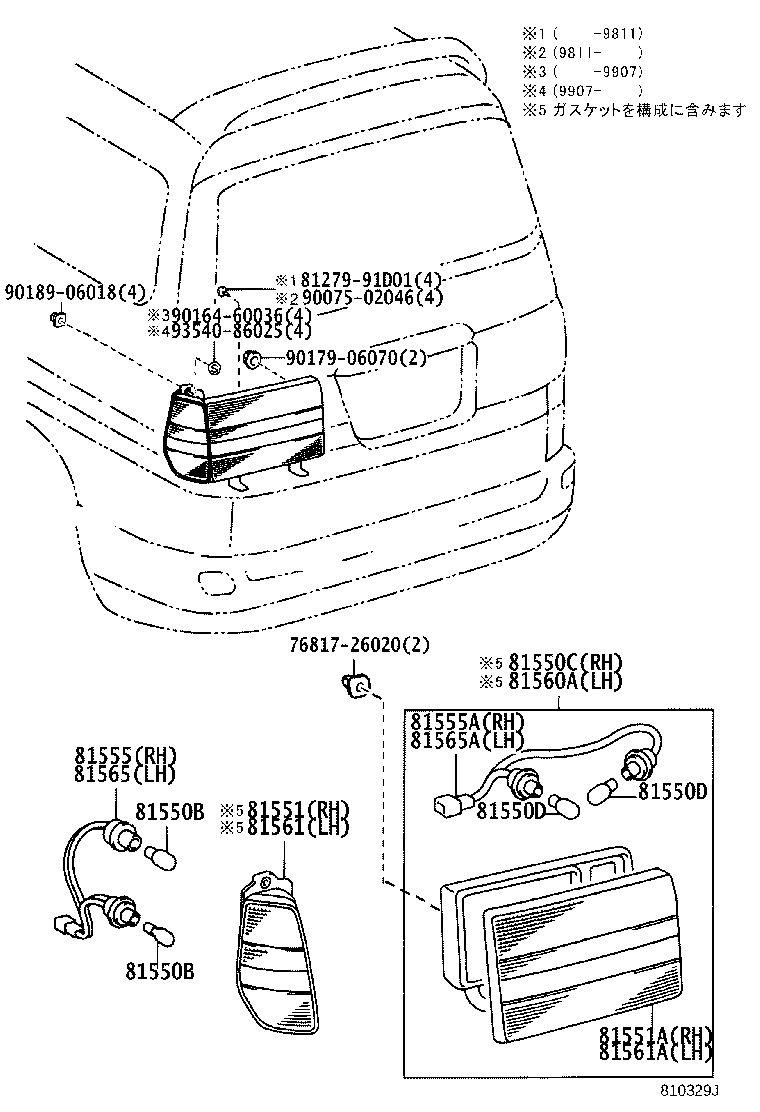

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13043 |
KCH4#,LXH4#,RCH4# 12V 21W |
2 | ||
| 90981-13044 |
KCH4#,LXH4#,RCH4# 12V 21/5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13043 |
KCH4#,LXH4#,RCH4# 12V 21W |
2 | ||
| 90981-13044 |
KCH4#,LXH4#,RCH4# 12V 21/5W |
2 | ||
| 81550C - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-26231 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81550-26230 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13043 |
KCH4#,RCH41,47 12V 21W |
2 | ||
| 90981-13044 |
KCH4#,RCH41,47 12V 21/5W |
2 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13043 |
KCH4#,RCH41,47 12V 21W |
2 | ||
| 90981-13044 |
KCH4#,RCH41,47 12V 21/5W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-26220 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81551A - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-26230 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81551-26231 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-26220 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-26230 |
KCH4#,RCH41,47 |
1 | ||
| 81560A - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-26231 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81560-26230 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-26220 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81561A - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-26230 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81561-26231 |
KCH4#,RCH41,47..E,G,STD |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-26220 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-26230 |
KCH4#,RCH41,47 |
1 | ||
| Common parts | ||||
| 76817-26020 | ||||
| 81279-91D01 | ||||
| 90075-02046 | ||||
| 90164-60036 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 93540-86025 | ||||
