KCH46G-GRSNT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907)KCH4#,RCH4#..E,G,STD ; (9805-9907)WINT ; (9907- )KCH4#,RCH41,47..G,V

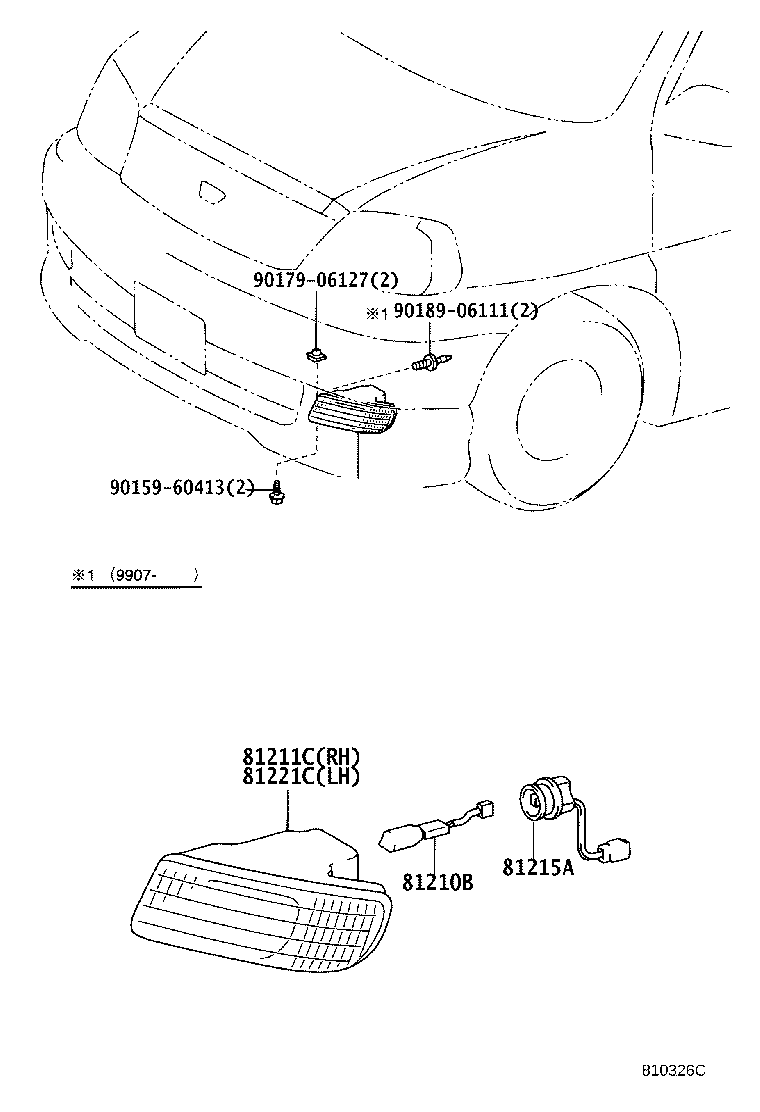

Click highlighted areas on diagram

diagram 81210B 81211C 81215A 81221C 9015960413 9017906127 9018906111
Part # Description Qty Price
81210B - BULB, FOG LAMP
90981-13060

KCH4#,RCH41,47..E,G,STD,V,WINT

12V 55W,ﾊﾛｹﾞﾝ

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-26020

KCH4#,RCH41,47..E,G,STD

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-26020

KCH4#,RCH41,47

 2
81221C - LAMP UNIT, FOG LAMP, LH
81221-26020

KCH4#,RCH41,47..E,G,STD

 1
Common parts
90159-60413
90179-06127
90189-06111
