Toyota Regius/touring hiace KCH46 CONTROL SHAFT & CROSSSHAFT

KCH46G-GRSNT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999

Engine 1KZTE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

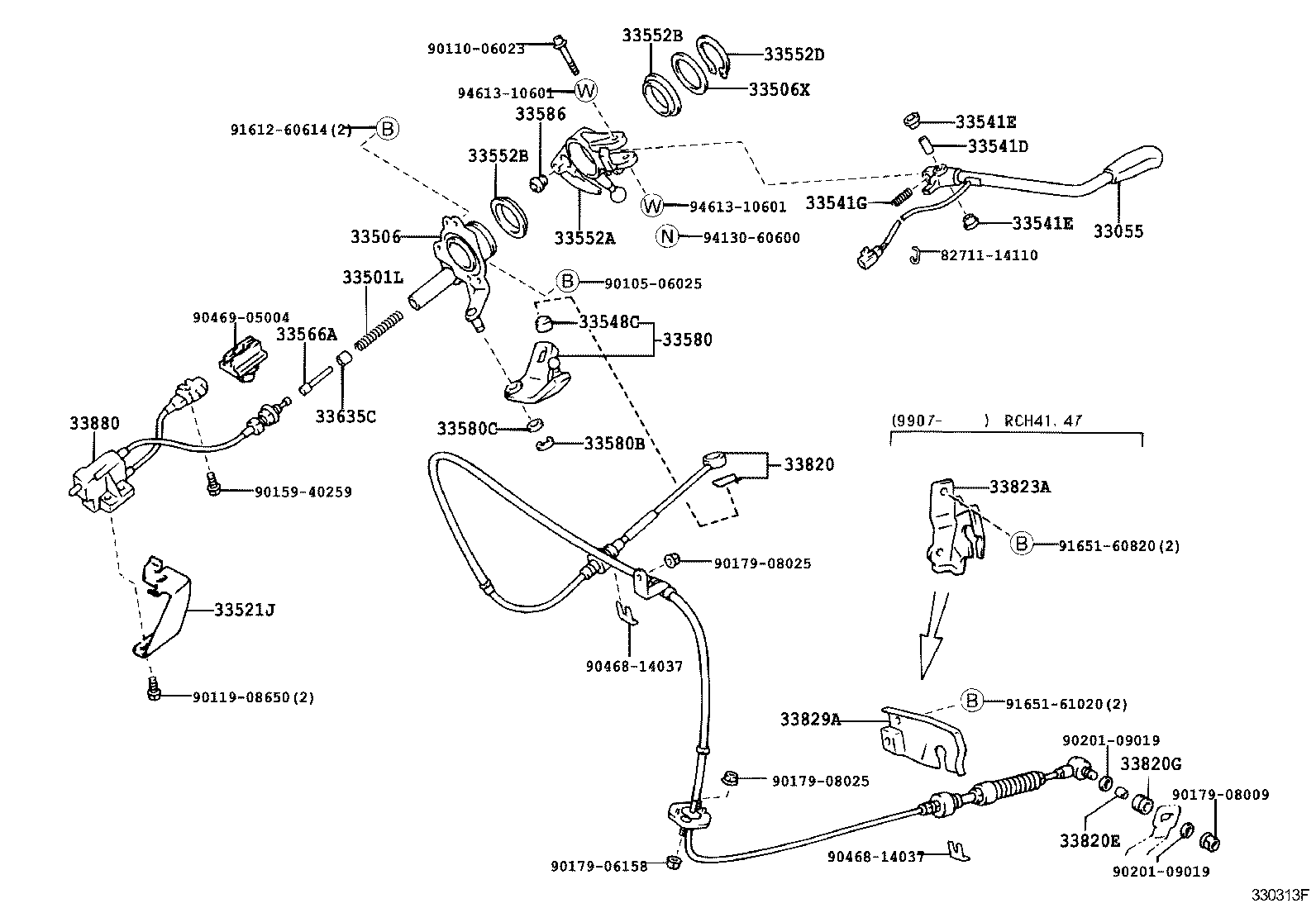

(9704- )ATM

Click highlighted areas on diagram

Part #	Description	Period	Qty
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-26080	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33501L - SPRING, COMPRESSION (FOR COLUMN SHIFT CONTROL SHAFT)
90501-06085	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF
33506-26050	LXH4#..G;KCH4#,RCH41,47	04/1997 - 12/2999	1
33506X - SPACER (FOR SHIFT LEVER ARM)
90560-47001	KCH4#,LXH4#,RCH4#..ATM 厚さ=1.0,内径=47.5	04/1997 - 12/2999	1
90560-47002	KCH4#,LXH4#,RCH4#..ATM 厚さ=1.2,内径=47.5	04/1997 - 12/2999	1
33521J - HOUSING, SHIFT LEVER (FOR COLUMN SHIFT)
33521-26110	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33541D - COLLAR (FOR COLUMN SHIFT LEVER)
90387-06062	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-10017	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	2
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-10017	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	2
33541G - SPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)
90501-16146	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33548C - BUSH, SHIFT LEVER (FOR COLUMN SHIFT)
33548-12021	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33552A - ARM, SHIFT LEVER
33552-26020	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33552B - BUSH (FOR SHIFT LEVER ARM)
90386-47001	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	2
33552B - BUSH (FOR SHIFT LEVER ARM)
90386-47001	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	2
33552D - RING, SNAP (FOR SHIFT LEVER ARM)
90520-45010	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33566A - PIN, SHIFT LEVER STOP (FOR COLUMN SHIFT)
33566-26020	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33580-26030	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33580B - RING, SHAFT SNAP (FOR SHIFTING BELLCRANK)
96160-01000	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33580C - WASHER, PLATE (FOR SHIFTING BELL CRANK)
90560-11028	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33586 - STOPPER, CONTROL SHIFT LEVER
33586-28011	KCH4#,LXH4#,RCH41,47..ATM	04/1997 - 04/1999	1
33586-28012	KCH4#,LXH4#,RCH4#..ATM	04/1999 - 12/2999	1
33635C - GUIDE, WIRE
33635-28040	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-26110	KCH4#	04/1997 - 12/2999	1
33820E - BUSH (FOR TRANSMISSION CONTROL CABLE)
90389-08005	RCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM	04/1997 - 07/1999	1
33820G - GROMMET (FOR TRANSMISSION CONTROL CABLE)
90480-17177	RCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM	04/1997 - 07/1999	1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26020	KCH4#,LXH4#,RCH41,47..ATM	04/1997 - 07/1999	1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-26030	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33880-26040	KCH4#,RCH41,47..4D..(G,STD,WINT) ｶｲﾃﾝﾌﾛﾝﾄｼ-ﾄ	04/1997 - 07/1999	1
Common parts
82711-14110
90105-06025
90110-06023
90119-08650
90159-40259
90179-06158
90179-08009
90179-08025
90201-09019
90468-14037
90469-05004
91612-60614
91651-60820
91651-61020
94130-60600
94613-10601

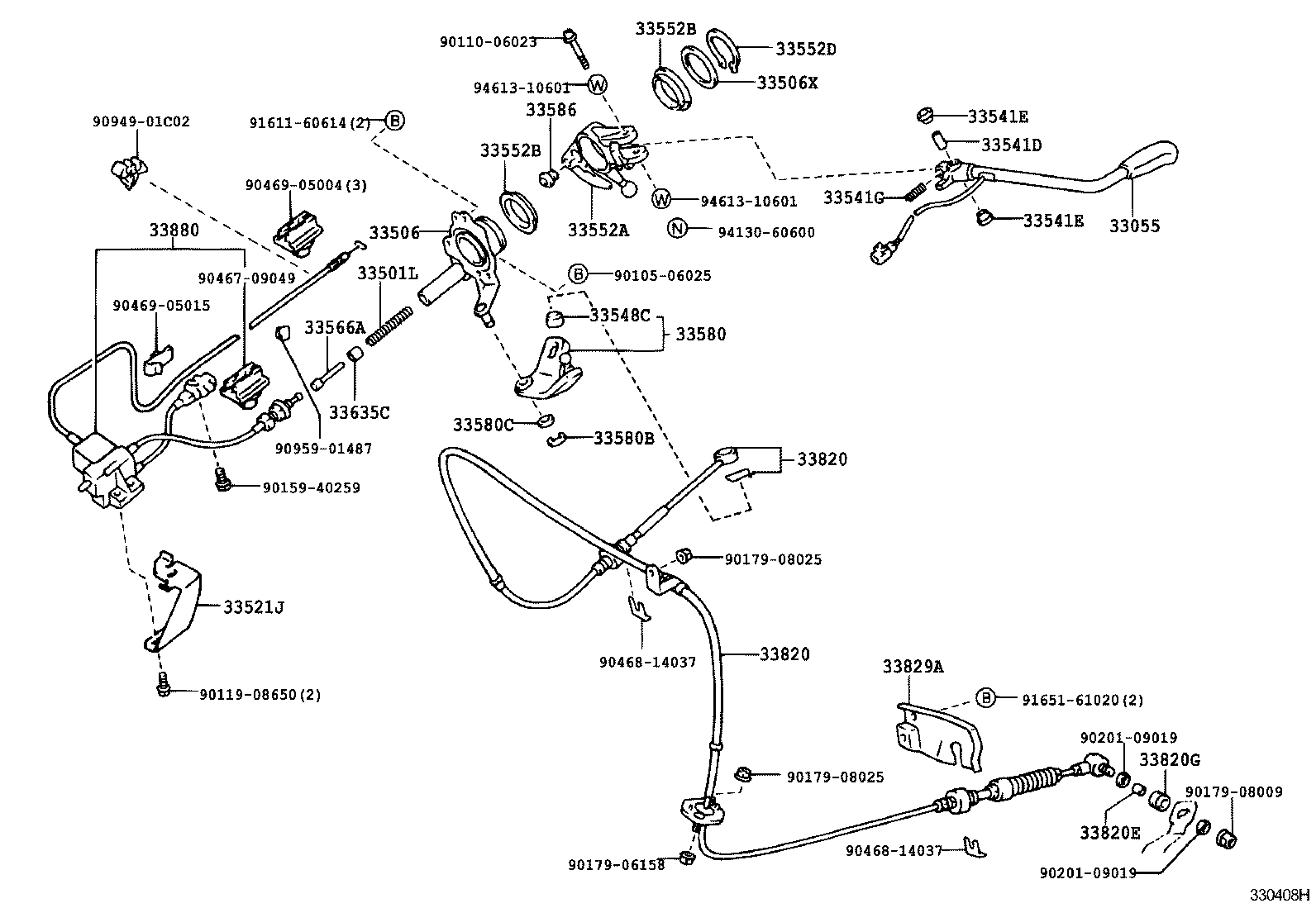

(9704-9907)KCH4#,RCH41,47..4D..G,STD,WINT

Click highlighted areas on diagram

ｶｲﾃﾝﾌﾛﾝﾄｼ-ﾄﾀｲﾌﾟ

Part #	Description	Period	Qty
33055 - LEVER SUB-ASSY, COLUMN SHIFT
33055-26080	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33501L - SPRING, COMPRESSION (FOR COLUMN SHIFT CONTROL SHAFT)
90501-06085	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF
33506-26050	LXH4#..G;KCH4#,RCH41,47	04/1997 - 12/2999	1
33506X - SPACER (FOR SHIFT LEVER ARM)
90560-47001	KCH4#,LXH4#,RCH4#..ATM 厚さ=1.0,内径=47.5	04/1997 - 12/2999	1
90560-47002	KCH4#,LXH4#,RCH4#..ATM 厚さ=1.2,内径=47.5	04/1997 - 12/2999	1
33521J - HOUSING, SHIFT LEVER (FOR COLUMN SHIFT)
33521-26110	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33541D - COLLAR (FOR COLUMN SHIFT LEVER)
90387-06062	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-10017	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	2
33541E - BUSH (FOR COLUMN SHIFT LEVER)
90386-10017	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	2
33541G - SPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)
90501-16146	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33548C - BUSH, SHIFT LEVER (FOR COLUMN SHIFT)
33548-12021	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33552A - ARM, SHIFT LEVER
33552-26020	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33552B - BUSH (FOR SHIFT LEVER ARM)
90386-47001	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	2
33552B - BUSH (FOR SHIFT LEVER ARM)
90386-47001	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	2
33552D - RING, SNAP (FOR SHIFT LEVER ARM)
90520-45010	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33566A - PIN, SHIFT LEVER STOP (FOR COLUMN SHIFT)
33566-26020	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)
33580-26030	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33580B - RING, SHAFT SNAP (FOR SHIFTING BELLCRANK)
96160-01000	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33580C - WASHER, PLATE (FOR SHIFTING BELL CRANK)
90560-11028	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33586 - STOPPER, CONTROL SHIFT LEVER
33586-28011	KCH4#,LXH4#,RCH41,47..ATM	04/1997 - 04/1999	1
33586-28012	KCH4#,LXH4#,RCH4#..ATM	04/1999 - 12/2999	1
33635C - GUIDE, WIRE
33635-28040	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-26110	KCH4#	04/1997 - 12/2999	1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-26110	KCH4#	04/1997 - 12/2999	1
33820E - BUSH (FOR TRANSMISSION CONTROL CABLE)
90389-08005	RCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM	04/1997 - 07/1999	1
33820G - GROMMET (FOR TRANSMISSION CONTROL CABLE)
90480-17177	RCH41..4D;RCH47..W08S;KCH4#,LXH4#..ATM	04/1997 - 07/1999	1
33829A - SUPPORT, TRANSMISSION CONTROL CABLE
33829-26020	KCH4#,LXH4#,RCH41,47..ATM	04/1997 - 07/1999	1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-26030	KCH4#,LXH4#,RCH4#..ATM	04/1997 - 12/2999	1
33880-26040	KCH4#,RCH41,47..4D..(G,STD,WINT) ｶｲﾃﾝﾌﾛﾝﾄｼ-ﾄ	04/1997 - 07/1999	1
Common parts
90105-06025
90110-06023
90119-08650
90159-40259
90179-06158
90179-08009
90179-08025
90201-09019
90467-09049
90468-14037
90469-05004
90469-05015
90949-01C02
90959-01487
91611-60614
91651-61020
94130-60600
94613-10601

KCH46G-GRSNT (1997)

(9704- )ATM

(9704-9907)KCH4#,RCH41,47..4D..G,STD,WINT
