KCH46G-GRSNT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )1KZTE

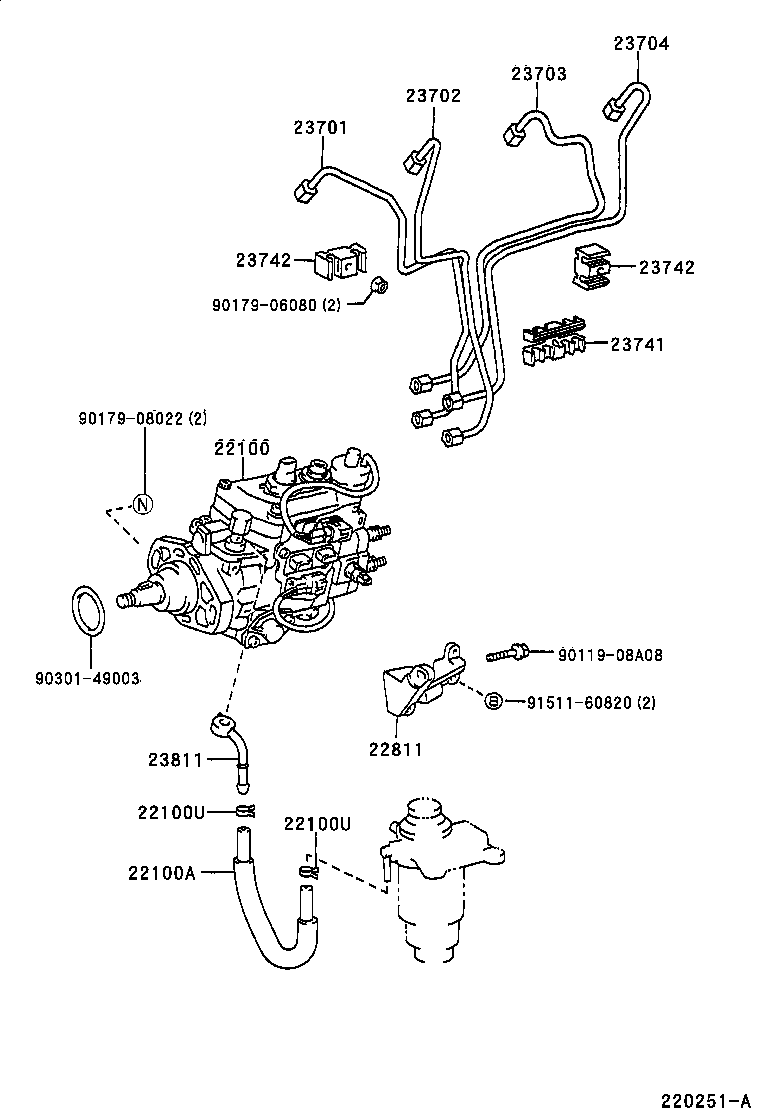

Click highlighted areas on diagram

diagram 22100 22100A 22100U 22100U 22811 23701 23702 23703 23704 23741 23742 23742 23811 9011908A08 9017906080 9017908022 9030149003 9151160820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-67070

1KZTE..KCH4#

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-67100

1KZTE..KCH4#

 1
22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP)
90467-13001

1KZTE..KCH4#

 2
22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP)
90467-13001

1KZTE..KCH4#

 2
22811 - STAY, INJECTION PUMP, NO.1
22811-67010

1KZTE..KCH4#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-67021

1KZTE..KCH4#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-67020

1KZTE..KCH4#

 1
23702-67021

1KZTE..KCH4#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-67021

1KZTE..KCH4#

 1
23703-67030

1KZTE..KCH4#

 1
23703-67031

1KZTE..KCH4#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-67020

1KZTE..KCH4#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64030

1KZTE..KCH4#

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-67010

1KZTE..KCH4#

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23742-67010

1KZTE..KCH4#

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-67010

1KZTE..KCH4#

 1
Common parts
90119-08A08
90179-06080
90179-08022
90301-49003
91511-60820
