KCH46G-GRSGT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )KCH4#

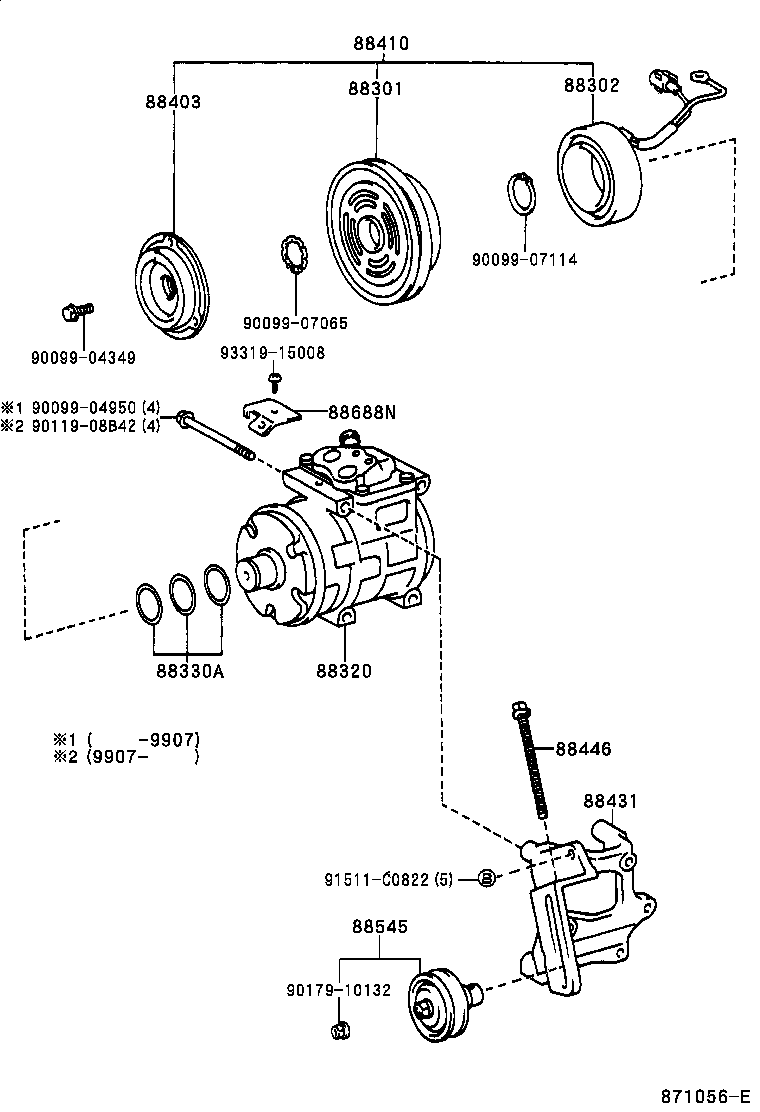

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88431 88446 88545 88688N 9009904349 9009904950 9009907065 9009907114 9011908B42 9017910132 91511C0822 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22070

KCH4#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-22310

KCH4#,LXH4#,RCH4#

 1
88411-2A030

KCH4#,LXH4#,RCH4#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-26610

LXH4#..G;KCH4#..G07S;KCH4#..E,STD,WINT

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

KCH4#,LXH4#,RCH4#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290

KCH4#,LXH4#,RCH4#

 1
88410 - CLUTCH ASSY, MAGNET
88410-60330

KCH4#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60220

KCH4#

 1
88446 - BOLT, IDLE PULLEY
88446-60040

KCH4#

 1
88545 - PULLEY ASSY, IDLE
88440-60050

KCH4#

 1
88688N - BRACKET, COOLER
88688-2D770

KCH4#,LXH4#,RCH42

NO.1

 1
88688-37320

KCH4#

NO.2

 1
Common parts
90099-04349
90099-04950
90099-07065
90099-07114
90119-08B42
90179-10132
91511-C0822
93319-15008
