KCH46G-GRSGT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

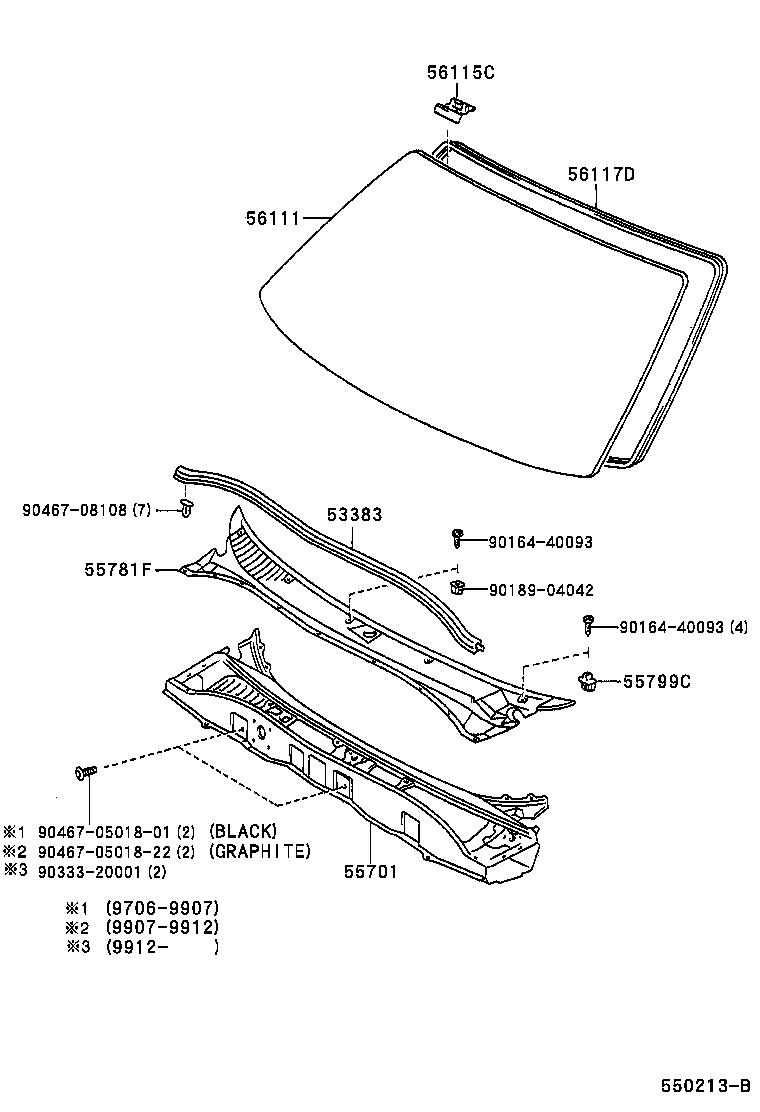

Click highlighted areas on diagram

diagram 53383 55701 55781F 55799C 56111 56115C 56117D 9016440093 9016440093 9018904042 9033320001 904670501801 904670501822 9046708108
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-26040

KCH4#,LXH4#,RCH4#

 1
55701 - PANEL SUB-ASSY, COWL
55700-26210

KCH4#,LXH4#,RCH41,47..ATM

 1
55781F - LOUVER, COWL TOP VENTILATOR
55708-26060

KCH4#,LXH4#,RCH4#

 1
55708-26050

KCH4#,LXH4#,RCH4#

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
55799C - CLIP, COWL TOP VENTILATOR LOUVER
55799-26010

KCH4#,LXH4#,RCH4#

 4
56111 - GLASS, WINDSHIELD
56111-26190

LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD

*LAM,T=5.3,ｸﾞﾘｰﾝ

 1
56111-26200

KCH4#,RCH41,47..G

*LAM,T=5.3,ﾌﾞﾛﾝｽﾞ

 1
56115C - STOPPER, WINDSHIELD GLASS
56115-26010

KCH4#,LXH4#,RCH4#

 2
56117D - DAM, WINDSHIELD GLASS ADHESIVE
56117-26030

KCH4#,LXH4#,RCH4#

 1
Common parts
90164-40093
90189-04042
90333-20001
90467-0501801
90467-0501822
90467-08108
