KCH46G-GRSGT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907)KCH4#,RCH41,47

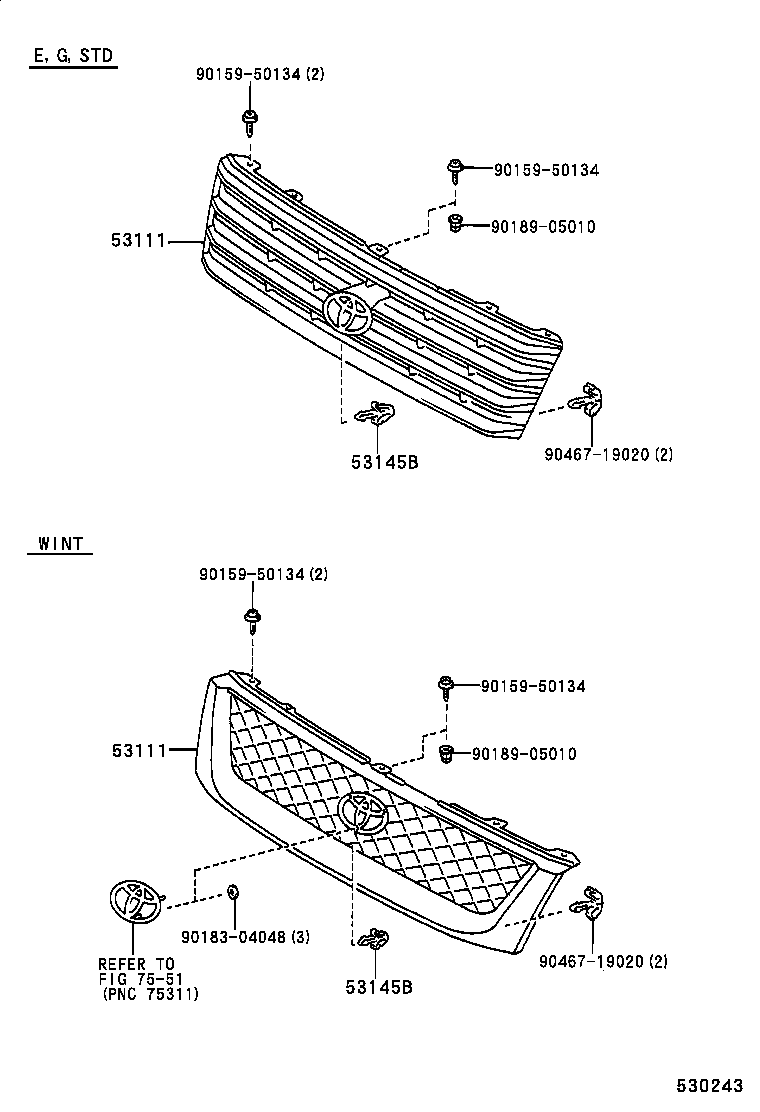

Click highlighted areas on diagram

diagram 53111 53111 53145B 53145B 7551 9015950134 9015950134 9015950134 9015950134 9018304048 9018905010 9018905010 9046719020 9046719020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-26170G1

KCH4#..E

LT GREEN M,6L5

 1
53111-26170G2

KCH4#,RCH41,47..G,STD

DK.GREEN M.M.,2DK

 1
53111-26170G1

KCH4#,RCH41,47..E,STD

LT GREEN M,6L5

 1
53111-26170B0

KCH4#,RCH41,47..STD

BLUISH SILVER ME.,1A0

 1
53111-26170J0

KCH4#,RCH41,47..STD

BLUE M.M.,2DM

 1
53111-26170G1

KCH4#,RCH41,47..G

LT GREEN M,2DJ

 1
53111-26170G1

KCH4#,RCH41,47..STD

LT GREEN M,2DJ ,6L5

 1
53111-26170C0

KCH4#,RCH41,47..G,STD

BLACK ME,2EV

 1
53111-26170A1

KCH4#,RCH41,47..STD

ﾎﾜｲﾄｴﾃﾞｲｼﾖﾝ *(S), *(T),WHITE,2EW

 1
53111-26170A0

KCH4#,RCH41,47..G,STD

WHITE PM,2EB

 1
53111 - GRILLE, RADIATOR
53111-26170G1

KCH4#..E

LT GREEN M,6L5

 1
53111-26170G2

KCH4#,RCH41,47..G,STD

DK.GREEN M.M.,2DK

 1
53111-26170G1

KCH4#,RCH41,47..E,STD

LT GREEN M,6L5

 1
53111-26170B0

KCH4#,RCH41,47..STD

BLUISH SILVER ME.,1A0

 1
53111-26170J0

KCH4#,RCH41,47..STD

BLUE M.M.,2DM

 1
53111-26170G1

KCH4#,RCH41,47..G

LT GREEN M,2DJ

 1
53111-26170G1

KCH4#,RCH41,47..STD

LT GREEN M,2DJ ,6L5

 1
53111-26170C0

KCH4#,RCH41,47..G,STD

BLACK ME,2EV

 1
53111-26170A1

KCH4#,RCH41,47..STD

ﾎﾜｲﾄｴﾃﾞｲｼﾖﾝ *(S), *(T),WHITE,2EW

 1
53111-26170A0

KCH4#,RCH41,47..G,STD

WHITE PM,2EB

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-26010

KCH4#,LXH4#,RCH4#

 1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-26010

KCH4#,LXH4#,RCH4#

 1
Common parts
90159-50134
90183-04048
90189-05010
90467-19020
Linked diagrams
7551
