KCH46G-GRSGT (1997)
Toyota Regius/Touring Hiace
Production
Apr 1997
-
Jul 1999
Engine
1KZTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

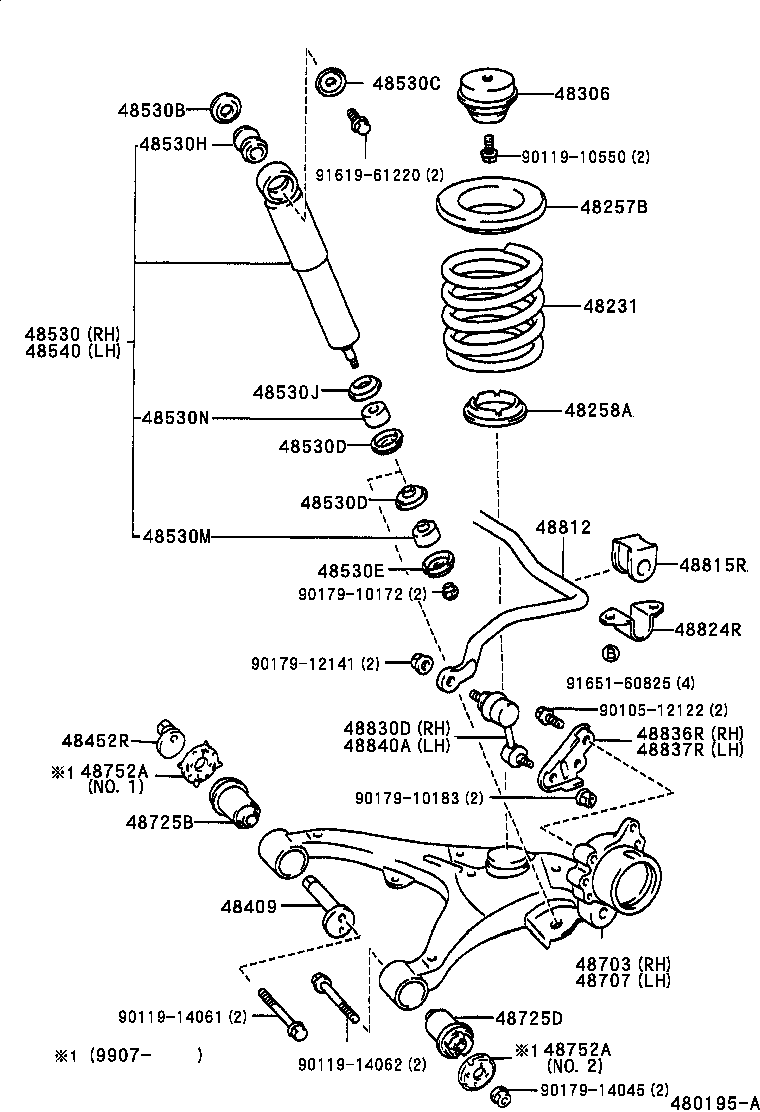

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231 - SPRING, COIL, REAR | ||||
| 48231-26370 |
KCH46..G08S |
2 | ||
| 48257B - INSULATOR, REAR COIL SPRING, UPPER | ||||
| 48257-26050 |
KCH4#,RCH41,47 |
2 | ||
| 48258A - INSULATOR, REAR COIL SPRING, LOWER | ||||
| 48258-26050 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-26120 |
KCH4#,RCH41,47 |
2 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-26050 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-26010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80636 |
KCH46,RCH47 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03015 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02077 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-02077 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-02169 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-19006 |
KCH4#,RCH41,47 |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02165 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 48530M - CUSHION, REAR SHOCK ABSORBER, NO.4 | ||||
| 90948-01059 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 48530N - CUSHION, REAR SHOCK ABSORBER, NO.5 | ||||
| 90948-01060 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80636 |
KCH46,RCH47 |
1 | ||
| 48703 - ARM SUB-ASSY, REAR SUSPENSION, RH | ||||
| 48703-26040 |
KCH4#,RCH41,47 |
1 | ||
| 48707 - ARM SUB-ASSY, REAR SUSPENSION, LH | ||||
| 48707-26020 |
KCH4#,RCH41,47 |
1 | ||
| 48725B - BUSH, REAR SUSPENSION ARM, NO.1 | ||||
| 48725-26030 |
KCH4#,RCH41,47 |
2 | ||
| 48725D - BUSH, REAR SUSPENSION ARM, NO.3 | ||||
| 48725-26020 |
KCH4#,RCH41,47 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-26211 |
KCH46,RCH47 |
1 | ||
| 48812-26210 |
KCH46,RCH47 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-26250 |
KCH46,RCH47 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26210 |
KCH4#,RCH41,47 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-26030 |
KCH4#,RCH41,47 |
1 | ||
| 48836R - BRACKET, REAR STABILIZER END, RH | ||||
| 48836-26050 |
KCH4#,RCH41,47 |
1 | ||
| 48837R - BRACKET, REAR STABILIZER END, LH | ||||
| 48837-26040 |
KCH4#,RCH41,47 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-26030 |
KCH4#,RCH41,47 |
1 | ||
| Common parts | ||||
| 90105-12122 | ||||
| 90119-10550 | ||||
| 90119-14061 | ||||
| 90119-14062 | ||||
| 90179-10172 | ||||
| 90179-10183 | ||||
| 90179-12141 | ||||
| 90179-14045 | ||||
| 91619-61220 | ||||
| 91651-60825 | ||||
