KCH46G-GRSGT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907)KCH4#,RCH4# ; (9706-9907)LXH4#..G

Click highlighted areas on diagram

2-SPOKE,ｱﾘ(*80)

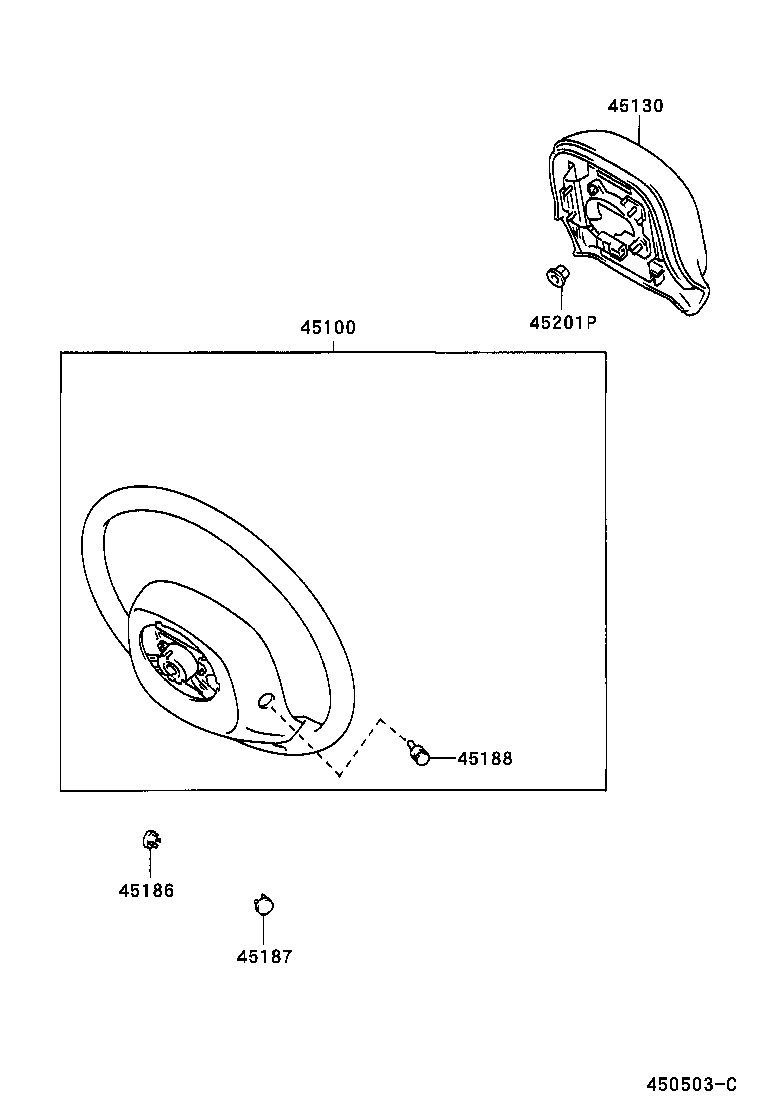

diagram 45100 45130 45186 45187 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26280B0

KCH4#,RCH41,47..G08S,W08S

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26250G0

KCH4#,RCH41,47..G,STD

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),DK.SAGE,TRIM6#

 1
45100-26250B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45100-26280G0

KCH4#,RCH41,47..G,STD

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),DK.SAGE,TRIM6#

 1
45130 - BUTTON ASSY, HORN
45130-26270G0

KCH4#,RCH41,47..G,STD

ｱﾘ(*80),DK.SAGE,TRIM6#

 1
45130-26270B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

ｱﾘ(*80),BLUISH GRAY,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-26010B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

BLUISH GRAY,TRIM1#

 1
45186-26010G0

KCH4#,RCH41,47..G,STD

DK.SAGE,TRIM6#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-26010G0

KCH4#,RCH41,47..G,STD

DK.SAGE,TRIM6#

 1
45186-26010B0

LXH4#;KCH4#,RCH4#..E,STD,WINT

BLUISH GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

KCH4#,LXH4#,RCH4#

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

KCH4#,LXH4#,RCH4#

 1
