KCH46G-GRSGT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )KCH4#,RCH41,47

Click highlighted areas on diagram

A340E,A343F

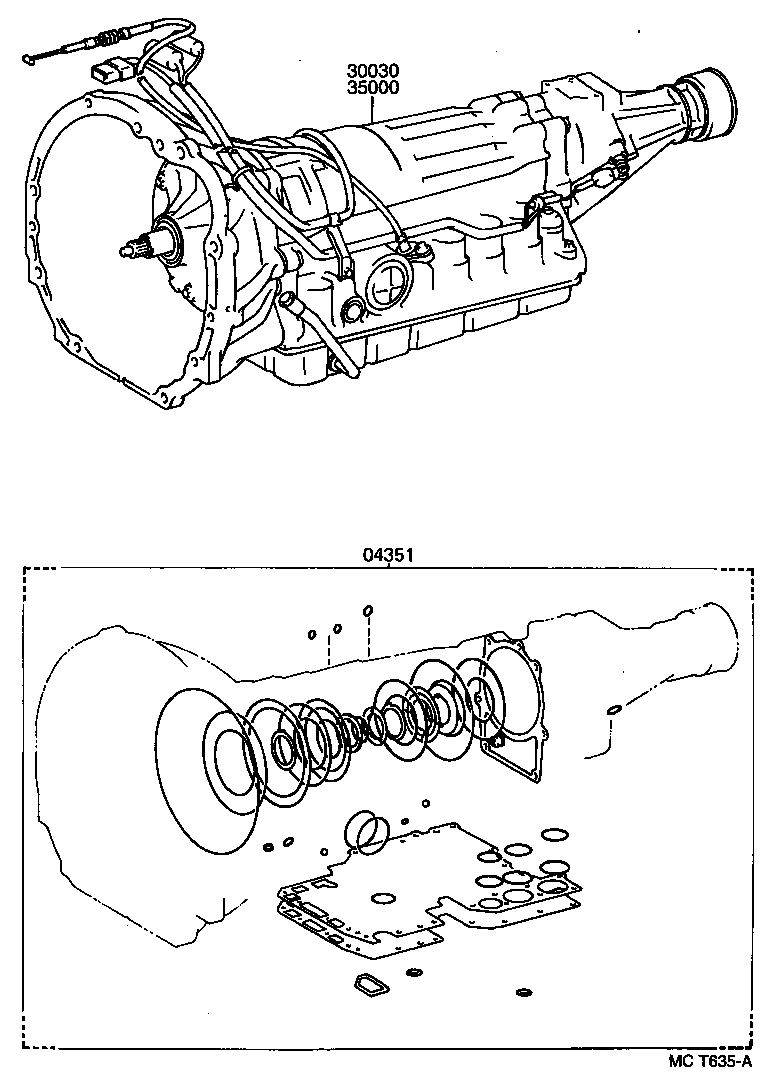

diagram 04351 30030 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-30170

KCH4#

 1
30030 - TRANSMISSION ASSY, REBUILT
30030-2F230

KCH46

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-2F230

KCH46

A340F

 1
