KCH46G-GFSQT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704-9907) ; (9907- )LXH4#,RCH42

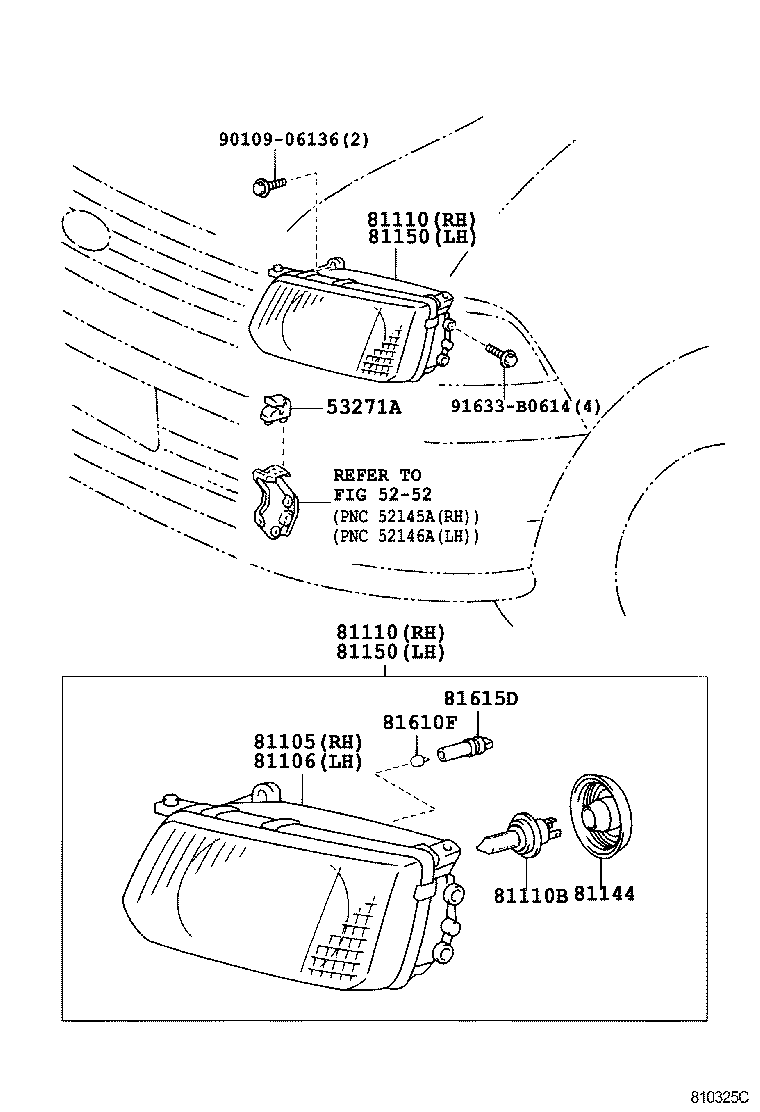

Click highlighted areas on diagram

diagram 5252 53271A 81105 81106 81110 81110 81110B 81144 81150 81150 81610F 81615D 9010906136 91633B0614
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

KCH4#,LXH4#,RCH4#

 2
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-26210

KCH4#,RCH41,47..E,G,STD

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-26220

KCH4#,RCH41,47..E,G,STD

 1
81110 - HEADLAMP ASSY, RH
81110-26210

KCH4#,RCH41,47..E,G,STD

 1
81110 - HEADLAMP ASSY, RH
81110-26210

KCH4#,RCH41,47..E,G,STD

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-22003

KCH4#,LXH4#,RCH4#

12V 60/55W,*HAL *WH

 2
81144 - COVER, HEADLAMP, NO.1
81139-87641

KCH4#,LXH4#,RCH4#

 2
81150 - HEADLAMP ASSY, LH
81150-26220

KCH4#,RCH41,47..E,G,STD

 1
81150 - HEADLAMP ASSY, LH
81150-26220

KCH4#,RCH41,47..E,G,STD

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

KCH4#,LXH4#,RCH4#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60004

KCH4#,LXH4#,RCH4#

 2
Common parts
90109-06136
91633-B0614
Linked diagrams
5252
