KCH46G-GFSQT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )KCH4#,RCH41,47..G,STD,V,WINT

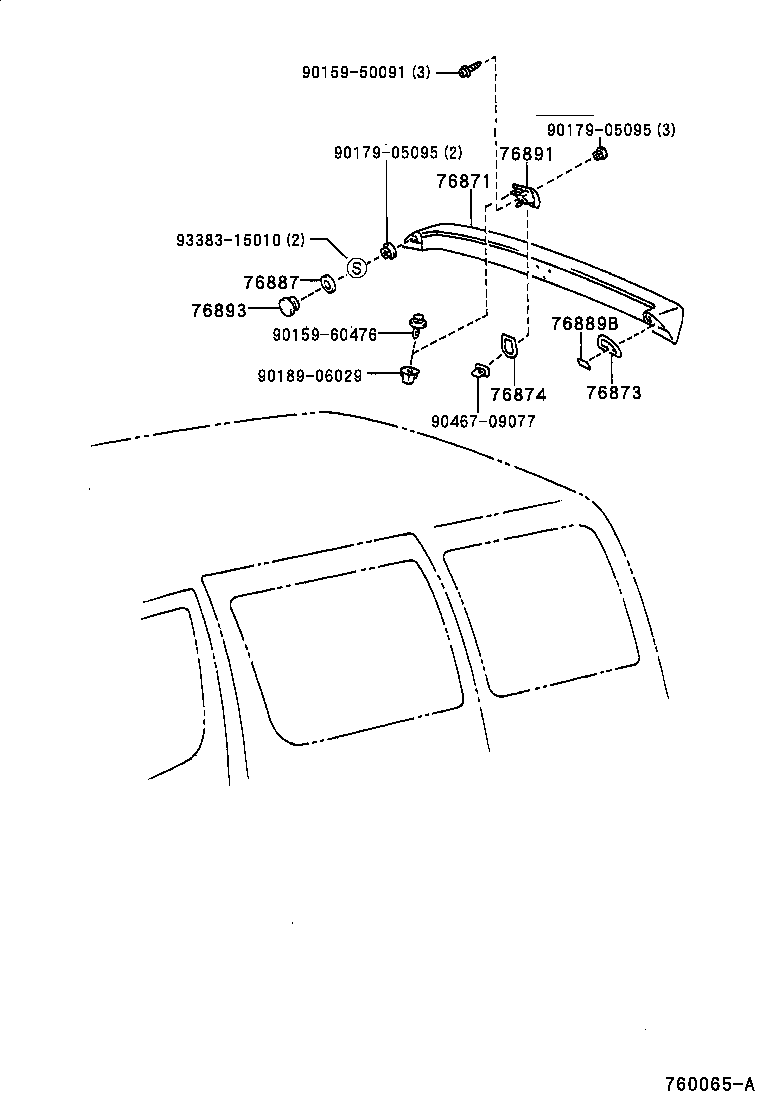

Click highlighted areas on diagram

diagram 76871 76873 76874 76887 76889B 76891 76893 9015950091 9015960476 9017905095 9017905095 9018906029 9046709077 9338315010
Part # Description Qty Price
76871 - SPOILER, REAR
76871-26901

KCH4#,RCH41,47..G,STD,V

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-26030

KCH4#,RCH41,47..G,STD,V

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-26030

KCH4#,RCH41,47..G,STD,V

 1
76887 - SEAL, REAR SPOILER
76887-26010

KCH4#,RCH41,47..G,STD,V,WISTD

 2
76889B - SEAL, REAR SPOILER, NO.1
76889-26010

KCH4#,RCH41,47..G,STD,V

 2
76891 - SPOILER, REAR NO.1
76891-26901

KCH4#,RCH41,47..G,STD,V

 1
76893 - COVER, REAR SPOILER, NO.1
76893-26020

KCH4#,RCH41,47..G,STD,V,WISTD

 2
Common parts
90159-50091
90159-60476
90179-05095
90189-06029
90467-09077
93383-15010
