KCH46G-GFSQT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )KCH4#,RCH41,47

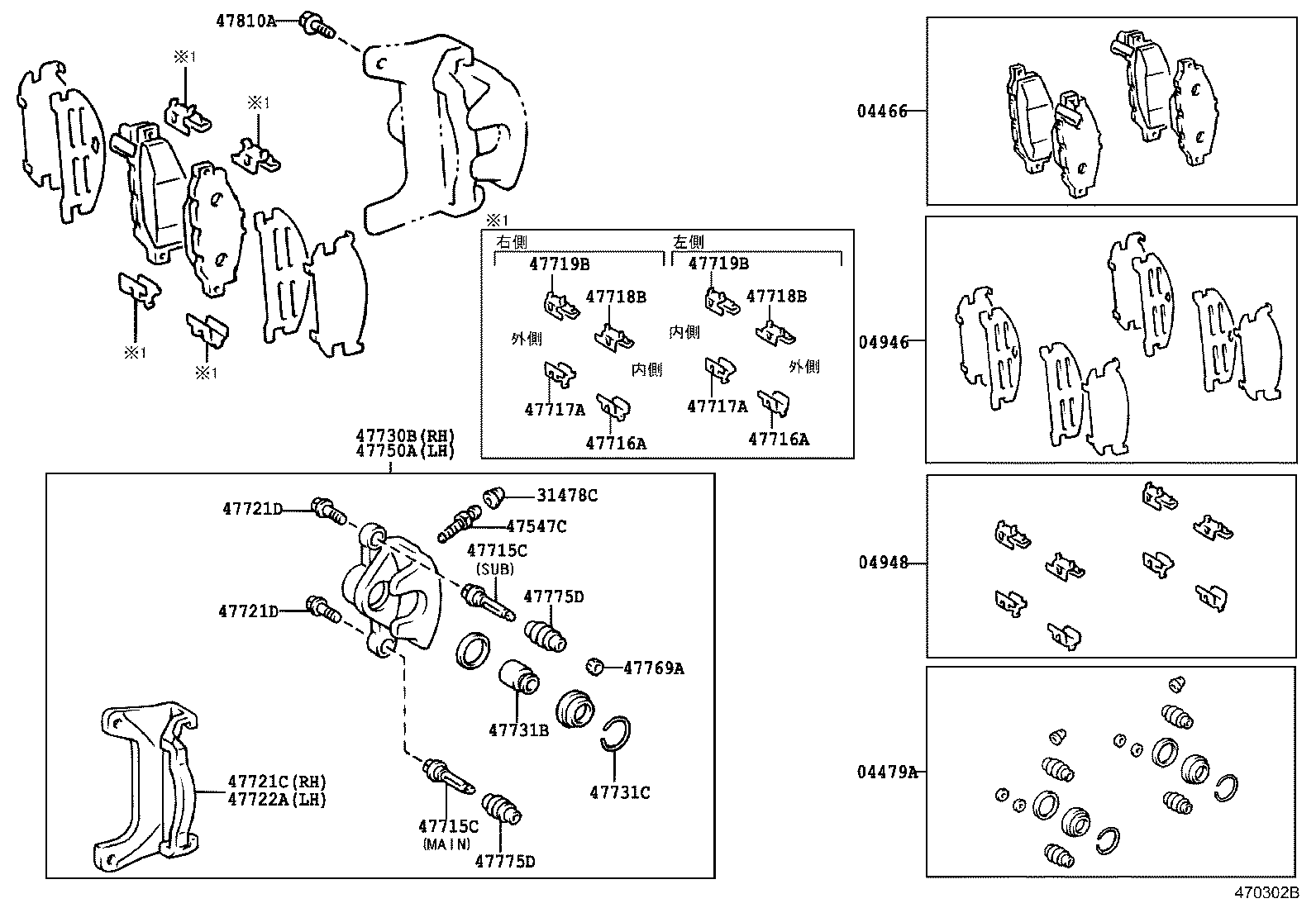

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47715C 47715C 47716A 47716A 47717A 47717A 47718B 47718B 47719B 47719B 47721C 47721D 47721D 47722A 47730B 47731B 47731C 47750A 47769A 47775D 47775D 47810A
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-26010

KCH4#,RCH41,47

ﾏｰｸ AK PA511

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-26070

KCH4#,RCH41,47

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-30060

KCH4#,RCH41,47

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-26010

KCH4#,RCH41,47

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

KCH4#,RCH41,47

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-27030

KCH4#,RCH41,47

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-22080

KCH4#,RCH41,47

ﾒｲﾝ

 2
47715-22070

KCH4#,RCH41,47

ｻﾌﾞ

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-22080

KCH4#,RCH41,47

ﾒｲﾝ

 2
47715-22070

KCH4#,RCH41,47

ｻﾌﾞ

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-30200

KCH4#,RCH41,47

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-30200

KCH4#,RCH41,47

 2
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47716-30210

KCH4#,RCH41,47

 2
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47716-30210

KCH4#,RCH41,47

 2
47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)
47717-30090

KCH4#,RCH41,47

 2
47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)
47717-30090

KCH4#,RCH41,47

 2
47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)
47717-30100

KCH4#,RCH41,47

 2
47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)
47717-30100

KCH4#,RCH41,47

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-26110

KCH4#,RCH41,47

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

KCH4#,RCH41,47

*8−1.00PX23−15

 4
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-08164

KCH4#,RCH41,47

*8−1.00PX23−15

 4
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47722-26040

KCH4#,RCH41,47

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-26140

KCH4#,RCH41,47

 1
47731B - PISTON, REAR DISC BRAKE
47731-26030

KCH4#,RCH41,47

 2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90520-52006

KCH4#,RCH41,47

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-26140

KCH4#,RCH41,47

 1
47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47769-50010

KCH4#,RCH41,47

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-30070

KCH4#,RCH41,47

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-30070

KCH4#,RCH41,47

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12208

KCH4#,RCH41,47

 4
