KCH40W-PFSQT (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

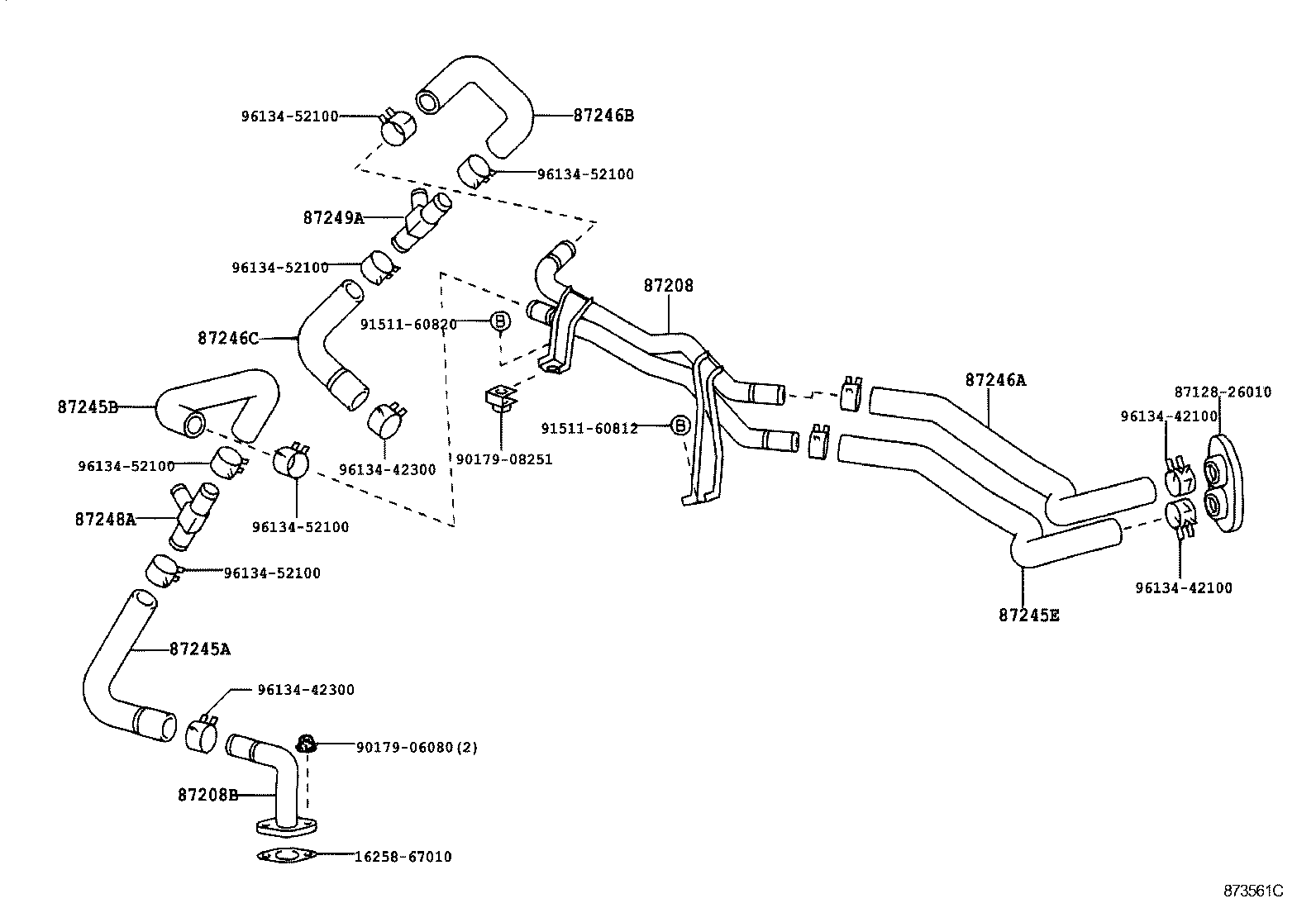

ILLUST NO. 1 OF 2(9907- )KCH4#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1625867010 8712826010 87208 87208B 87245A 87245B 87245E 87246A 87246B 87246C 87248A 87249A 9017906080 9017908251 9151160812 9151160820 9613442100 9613442100 9613442300 9613442300 9613452100 9613452100 9613452100 9613452100 9613452100 9613452100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
16206-67020

KCH4#

 1
87248-60460

KCH4#

 1
16206-67021

KCH4#

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-26220

KCH4#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-26600

KCH4#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-2F580

KCH4#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26330

KCH4#

 1
87245-2F550

KCH4#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-26640

KCH4#

 1
87245-2F560

KCH4#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26650

KCH4#

 1
87245-2F590

KCH4#

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2F280

KCH4#

 1
87245-26650

KCH4#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-60460

KCH4#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-60460

KCH4#

 1
Common parts
16258-67010
87128-26010
90179-06080
90179-08251
91511-60812
91511-60820
96134-42100
96134-42300
96134-52100
