KCH40W-PFSQT (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )KCH4#,RCH41,47..G,V

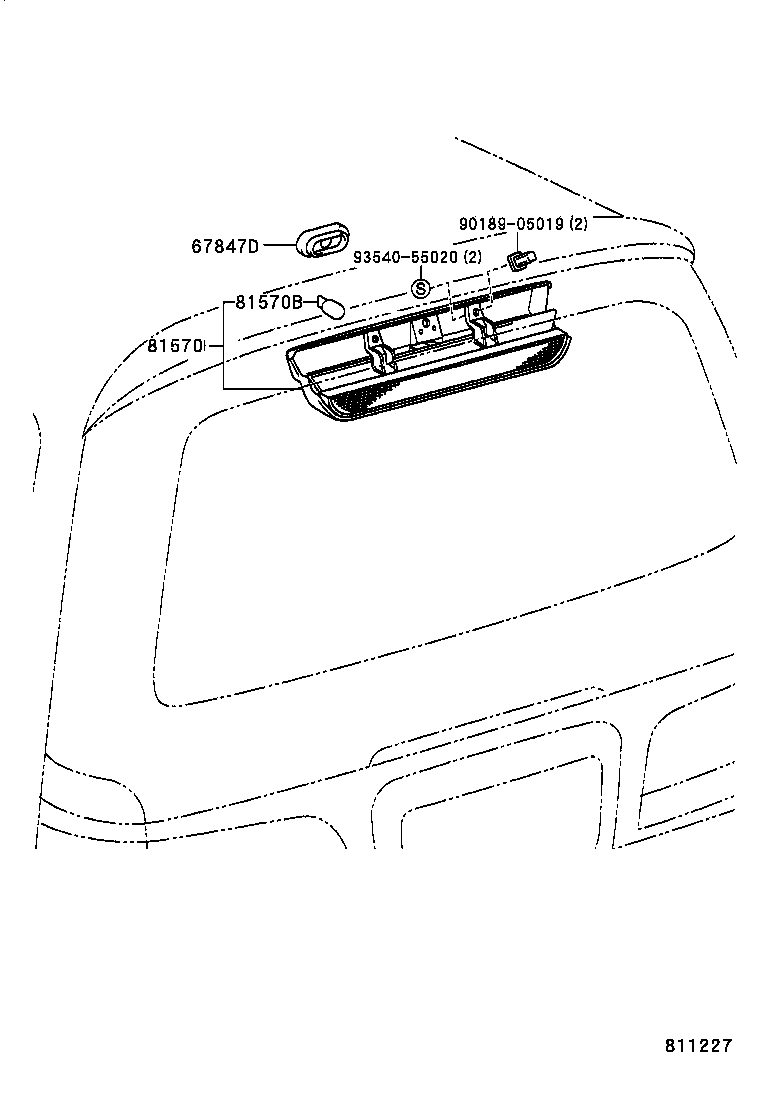

Click highlighted areas on diagram

diagram 67847D 81570 81570B 9018905019 9354055020
Part # Description Qty Price
67847D - COVER, BACK DOOR SERVICE HOLE
67847-26130

KCH4#,RCH41,47

 1
81570 - LAMP ASSY, CENTER STOP
81570-26140

KCH4#,RCH41,47..G,V

 1
81570-26070B0

KCH4#,RCH41,47..G,STD

LT.GRAY,TRIM6#

 1
81570B - BULB (FOR CENTER STOP LAMP)
99132-12050

KCH4#,RCH41,47..G,V

12V 5W

 5
Common parts
90189-05019
93540-55020
