KCH40W-GRSST (1997)
Toyota Regius/Touring Hiace
(9704- )E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-2F790B0 |
KCH4#,RCH41..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F850B0 |
RCH47..STD;KCH4#,RCH41..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N410B0 |
RCH47..STD;KCH4#,RCH41..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾃﾚﾋﾞ & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F830B0 |
KCH4#,RCH41..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ｸ-ﾙ ﾎﾞﾂｸｽ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F800B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F860G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),DK. SAGE,TRIM6# |
1 | ||
| 58510-2F840G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DK. SAGE,TRIM6# |
1 | ||
| 58510-2N140G0 |
KCH4#,RCH41,47..4D..G DK. SAGE,TRIM6# |
1 | ||
| 58510-2F870B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N020G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),DK. SAGE,TRIM6# |
1 | ||
| 58510-2F790B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F820G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ｸ-ﾙ ﾎﾞﾂｸｽ),DK. SAGE,TRIM6# |
1 | ||
| 58510-2F830B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ｸ-ﾙ ﾎﾞﾂｸｽ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N010B0 |
KCH4#,RCH41..STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F890G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),DK. SAGE,TRIM6# |
1 | ||
| 58510-2F850B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N410B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾃﾚﾋﾞ & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N010B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F810B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N400G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ & ﾜｲﾔﾘﾝｸﾞﾊ-ﾈｽ ﾎ-ﾙ,ｳﾝﾃﾝｾｷ ﾉﾐ),DK.SAGE,TRIM6# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 67771-26040E0 |
KCH4#,RCH41,47..G CREAM YELLOW,TRIM6# |
2 | ||
| 67771-26040E0 |
LXH4#,RCH42;KCH4#,RCH41,47..E,WINT,WISTD CREAM YELLOW,TRIM1# |
2 | ||
| 58518D - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26370 |
KCH4#..E |
1 | ||
| 58518-26370 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 58518-26440 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 58518E - MAT, REAR FLOOR, NO.2 | ||||
| 58518-2F030 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 58518-26480 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26190 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 58518-26360 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518-26360 |
KCH4#..E |
1 | ||
| 58518-2F050 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
1 | ||
| 58518F - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26400 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518-26450 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26300 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 58518-26400 |
KCH4#..E |
1 | ||
| 58518G - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26380 |
KCH4#..E |
1 | ||
| 58518-26500 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26460 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26460 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26320 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 58518-26380 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518H - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26760 |
KCH4#,RCH41,47..4D |
1 | ||
| 58518-26520 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518J - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26420 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26330 |
KCH4#,RCH41,47 |
1 | ||
| 58518K - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26340 |
KCH4#,RCH41,47 |
1 | ||
| 58518-26430 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518L - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26470 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26770 |
KCH4#,RCH41,47 |
1 | ||
| 58518-26560 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26470 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518M - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26310 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 58518-26570 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26390 |
KCH4#..E |
1 | ||
| 58518-2F040 |
KCH4#..E |
1 | ||
| 58518-26350 |
KCH4#,RCH41,47..STD,WINT |
1 | ||
| 58518-2F040 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58519C - CARPET, REAR WHEEL HOUSE, RH | ||||
| 58519-26190B1 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58519-26210B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 58519-26200G0 |
KCH4#,RCH41,47..G DK. SAGE,TRIM6# |
1 | ||
| 58529C - CARPET, REAR WHEEL HOUSE, LH | ||||
| 58529-26130G0 |
KCH4#,RCH41,47..G DK. SAGE,TRIM6# |
1 | ||
| 58529-26120B1 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58529-26140B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-26660G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ),DK. SAGE,TRIM6# |
1 | ||
| 58570-26640B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26630B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26720B0 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26620G0 |
KCH4#,RCH41,47..4D..G DK. SAGE,TRIM6# |
1 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-0604601 |
KCH4#..E BLACK,TRIM1# |
8 | ||
| 90467-0604601 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ),BLACK,TRIM6# |
24 | ||
| 90467-0604601 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
16 | ||
| 90467-0604601 |
KCH4#,RCH41,47..WINT BLACK,TRIM1# |
16 | ||
| 90467-0604601 |
KCH4#,RCH41,47..WINT ｼﾔﾙﾑ,BLACK,TRIM1# |
14 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26040G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6# |
8 | ||
| 58595-26030G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,ﾌﾛﾝﾄ |
4 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 58595-26040B0 |
KCH4#..E ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
8 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..STD,WINT ｼﾔﾙﾑ,BLUISH GRAY,TRIM1# |
7 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-26040B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 67910-26040G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-26020G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 67920-26020B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67907-26050B0 |
RCH47..STD;KCH4#,RCH41..STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26050B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26050G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),DK.SAGE,TRIM6# |
1 | ||
| 67907-26080B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26010B0 |
KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 67907-26080G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),DK.SAGE,TRIM6# |
1 | ||
| 67925 - COVER, DOOR SCUFF PLATE | ||||
| 67925-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 67925-26010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26070B0 |
KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 67935-26070G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90159-60554 | ||||
| 90189-06084 | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| 90467-10178 | ||||
| 90530-18002 | ||||
| 90901-89023 | ||||
| 93560-55014 | ||||

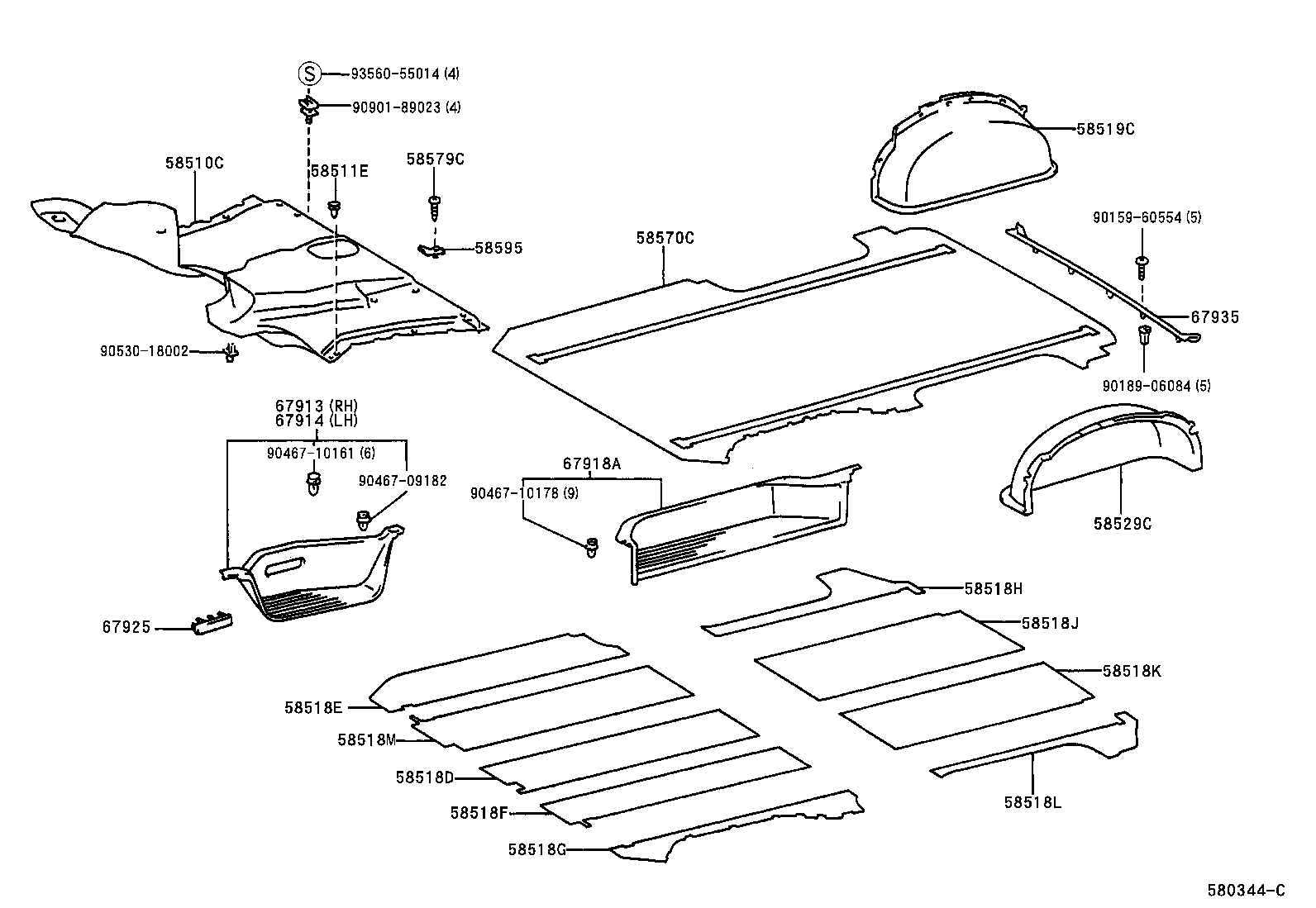

ILLUST NO. 1 OF 2(9704- )KCH4#,RCH41,47..G,STD,V,WINT,WISTD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-2F790B0 |
KCH4#,RCH41..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F850B0 |
RCH47..STD;KCH4#,RCH41..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N410B0 |
RCH47..STD;KCH4#,RCH41..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾃﾚﾋﾞ & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F830B0 |
KCH4#,RCH41..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ｸ-ﾙ ﾎﾞﾂｸｽ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F800B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F860G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),DK. SAGE,TRIM6# |
1 | ||
| 58510-2F840G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),DK. SAGE,TRIM6# |
1 | ||
| 58510-2N140G0 |
KCH4#,RCH41,47..4D..G DK. SAGE,TRIM6# |
1 | ||
| 58510-2F870B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N020G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),DK. SAGE,TRIM6# |
1 | ||
| 58510-2F790B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F820G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ｸ-ﾙ ﾎﾞﾂｸｽ),DK. SAGE,TRIM6# |
1 | ||
| 58510-2F830B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ｸ-ﾙ ﾎﾞﾂｸｽ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N010B0 |
KCH4#,RCH41..STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F890G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),DK. SAGE,TRIM6# |
1 | ||
| 58510-2F850B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N410B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- & ﾃﾚﾋﾞ & ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N010B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2F810B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 58510-2N400G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ & ﾜｲﾔﾘﾝｸﾞﾊ-ﾈｽ ﾎ-ﾙ,ｳﾝﾃﾝｾｷ ﾉﾐ),DK.SAGE,TRIM6# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 67771-26040E0 |
KCH4#,RCH41,47..G CREAM YELLOW,TRIM6# |
2 | ||
| 67771-26040E0 |
LXH4#,RCH42;KCH4#,RCH41,47..E,WINT,WISTD CREAM YELLOW,TRIM1# |
2 | ||
| 58519C - CARPET, REAR WHEEL HOUSE, RH | ||||
| 58519-26190B1 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58519-26210B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 58519-26200G0 |
KCH4#,RCH41,47..G DK. SAGE,TRIM6# |
1 | ||
| 58529C - CARPET, REAR WHEEL HOUSE, LH | ||||
| 58529-26130G0 |
KCH4#,RCH41,47..G DK. SAGE,TRIM6# |
1 | ||
| 58529-26120B1 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58529-26140B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-26660G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ),DK. SAGE,TRIM6# |
1 | ||
| 58570-26640B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26630B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26720B0 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26620G0 |
KCH4#,RCH41,47..4D..G DK. SAGE,TRIM6# |
1 | ||

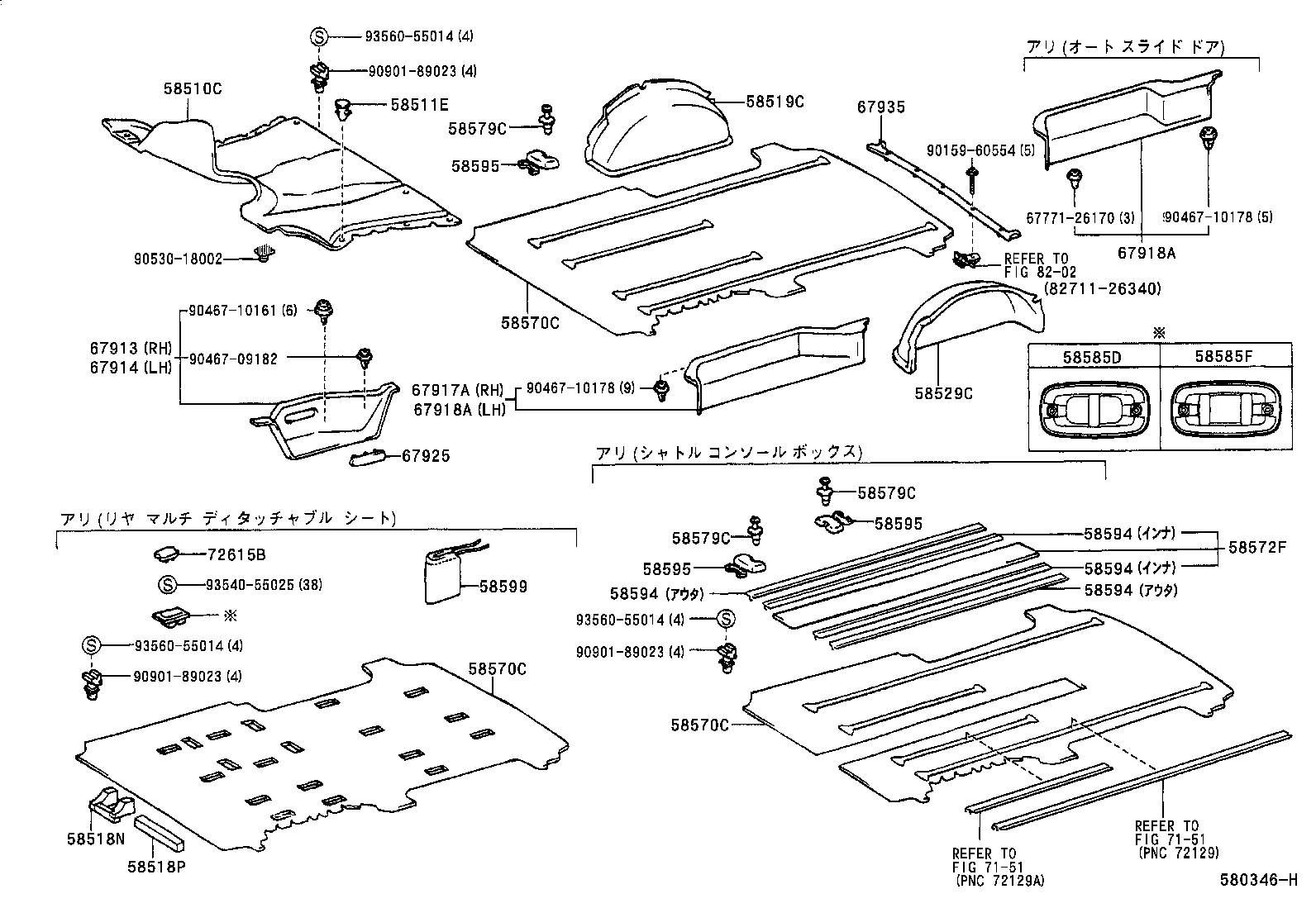

| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-26660G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ),DK. SAGE,TRIM6# |
1 | ||
| 58570-26640B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26630B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26720B0 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26620G0 |
KCH4#,RCH41,47..4D..G DK. SAGE,TRIM6# |
1 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-26660G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ),DK. SAGE,TRIM6# |
1 | ||
| 58570-26640B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26630B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26720B0 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ),BLUISH GRAY,TRIM1# |
1 | ||
| 58570-26620G0 |
KCH4#,RCH41,47..4D..G DK. SAGE,TRIM6# |
1 | ||
| 58572F - CARPET, REAR FLOOR, FRONT | ||||
| 58570-26730G0 |
KCH4#,RCH41,47..4D..G DK. SAGE,TRIM6# |
1 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-0604601 |
KCH4#..E BLACK,TRIM1# |
8 | ||
| 90467-0604601 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ),BLACK,TRIM6# |
24 | ||
| 90467-0604601 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
16 | ||
| 90467-0604601 |
KCH4#,RCH41,47..WINT BLACK,TRIM1# |
16 | ||
| 90467-0604601 |
KCH4#,RCH41,47..WINT ｼﾔﾙﾑ,BLACK,TRIM1# |
14 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-0604601 |
KCH4#..E BLACK,TRIM1# |
8 | ||
| 90467-0604601 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ),BLACK,TRIM6# |
24 | ||
| 90467-0604601 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
16 | ||
| 90467-0604601 |
KCH4#,RCH41,47..WINT BLACK,TRIM1# |
16 | ||
| 90467-0604601 |
KCH4#,RCH41,47..WINT ｼﾔﾙﾑ,BLACK,TRIM1# |
14 | ||
| 58579C - CLIP, REAR FLOOR CARPET SET | ||||
| 90467-0604601 |
KCH4#..E BLACK,TRIM1# |
8 | ||
| 90467-0604601 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ),BLACK,TRIM6# |
24 | ||
| 90467-0604601 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
16 | ||
| 90467-0604601 |
KCH4#,RCH41,47..WINT BLACK,TRIM1# |
16 | ||
| 90467-0604601 |
KCH4#,RCH41,47..WINT ｼﾔﾙﾑ,BLACK,TRIM1# |
14 | ||
| 58585D - COVER, REAR FLOOR SEAT LOCK | ||||
| 58585-26020B0 |
KCH4#,RCH41,47..WINT BLUISH GRAY,TRIM1# |
15 | ||
| 58585F - COVER, REAR FLOOR SEAT LOCK | ||||
| 58585-26030B0 |
KCH4#,RCH41,47..WINT BLUISH GRAY,TRIM1# |
4 | ||
| 58594 - MOULDING, FLOOR CARPET, NO.2 | ||||
| 58594-26040G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,外側 |
2 | ||
| 58594-26030G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,内側 |
2 | ||
| 58594 - MOULDING, FLOOR CARPET, NO.2 | ||||
| 58594-26040G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,外側 |
2 | ||
| 58594-26030G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,内側 |
2 | ||
| 58594 - MOULDING, FLOOR CARPET, NO.2 | ||||
| 58594-26040G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,外側 |
2 | ||
| 58594-26030G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,内側 |
2 | ||
| 58594 - MOULDING, FLOOR CARPET, NO.2 | ||||
| 58594-26040G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,外側 |
2 | ||
| 58594-26030G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,内側 |
2 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26040G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6# |
8 | ||
| 58595-26030G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,ﾌﾛﾝﾄ |
4 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 58595-26040B0 |
KCH4#..E ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
8 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..STD,WINT ｼﾔﾙﾑ,BLUISH GRAY,TRIM1# |
7 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26040G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6# |
8 | ||
| 58595-26030G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,ﾌﾛﾝﾄ |
4 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 58595-26040B0 |
KCH4#..E ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
8 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..STD,WINT ｼﾔﾙﾑ,BLUISH GRAY,TRIM1# |
7 | ||
| 58595 - MOULDING, FLOOR CARPET, NO.3 | ||||
| 58595-26040G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6# |
8 | ||
| 58595-26030G0 |
KCH4#,RCH41,47..4D..G DK.SAGE,TRIM6#,ﾌﾛﾝﾄ |
4 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 58595-26040B0 |
KCH4#..E ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..STD,WINT BLUISH GRAY,TRIM1# |
8 | ||
| 58595-26040B0 |
KCH4#,RCH41,47..STD,WINT ｼﾔﾙﾑ,BLUISH GRAY,TRIM1# |
7 | ||
| 58599 - COVER, SEAT SET BRACKET | ||||
| 58599-26010 |
KCH4#,RCH41,47..WINT,WISTD |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67910-26040B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 67910-26040G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67920-26020G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 67920-26020B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67907-26050B0 |
RCH47..STD;KCH4#,RCH41..STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26050B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26050G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),DK.SAGE,TRIM6# |
1 | ||
| 67907-26080B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26010B0 |
KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 67907-26080G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),DK.SAGE,TRIM6# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67907-26050B0 |
RCH47..STD;KCH4#,RCH41..STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26050B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26050G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),DK.SAGE,TRIM6# |
1 | ||
| 67907-26080B0 |
KCH4#,RCH41,47..STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26010B0 |
KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 67907-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 67907-26080G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ),DK.SAGE,TRIM6# |
1 | ||
| 67925 - COVER, DOOR SCUFF PLATE | ||||
| 67925-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 67925-26010B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-26070B0 |
KCH4#,RCH41,47..E,STD,WINT,WISTD BLUISH GRAY,TRIM1# |
1 | ||
| 67935-26070G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72615B - COVER, REAR SEAT LOCK STRIKER, RH | ||||
| 72615-26010B0 |
KCH4#,RCH41,47..WINT BLUISH GRAY,TRIM1# |
19 | ||
| 72615-26010B0 |
KCH4#,RCH41,47..WINT BLUISH GRAY,TRIM1# |
4 | ||
| Common parts | ||||
| 67771-26170 | ||||
| 90159-60554 | ||||
| 90467-09182 | ||||
| 90467-10161 | ||||
| 90467-10178 | ||||
| 90530-18002 | ||||
| 90901-89023 | ||||
| 93540-55025 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 7151 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 2(9704-9907)KCH4#,RCH41,47..G,STD,WINT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58518B - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26490 |
KCH4#,RCH41,47..WINT,WISTD |
1 | ||
| 58518-26690 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518C - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26700 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26510 |
KCH4#,RCH41,47..WINT,WISTD |
1 | ||
| 58518D - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26370 |
KCH4#..E |
1 | ||
| 58518-26370 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 58518-26440 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 58518E - MAT, REAR FLOOR, NO.2 | ||||
| 58518-2F030 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 58518-26480 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26190 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 58518-26360 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518-26360 |
KCH4#..E |
1 | ||
| 58518-2F050 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
1 | ||
| 58518E - MAT, REAR FLOOR, NO.2 | ||||
| 58518-2F030 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 58518-26480 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26190 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 58518-26360 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518-26360 |
KCH4#..E |
1 | ||
| 58518-2F050 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
1 | ||
| 58518E - MAT, REAR FLOOR, NO.2 | ||||
| 58518-2F030 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 58518-26480 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26190 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 58518-26360 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518-26360 |
KCH4#..E |
1 | ||
| 58518-2F050 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
1 | ||
| 58518F - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26400 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518-26450 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26300 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 58518-26400 |
KCH4#..E |
1 | ||
| 58518F - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26400 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518-26450 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26300 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 58518-26400 |
KCH4#..E |
1 | ||
| 58518G - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26380 |
KCH4#..E |
1 | ||
| 58518-26500 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26460 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26460 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26320 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 58518-26380 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518G - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26380 |
KCH4#..E |
1 | ||
| 58518-26500 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26460 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26460 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26320 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 58518-26380 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518G - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26380 |
KCH4#..E |
1 | ||
| 58518-26500 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26460 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26460 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26320 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 58518-26380 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518H - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26760 |
KCH4#,RCH41,47..4D |
1 | ||
| 58518-26520 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518H - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26760 |
KCH4#,RCH41,47..4D |
1 | ||
| 58518-26520 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518H - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26760 |
KCH4#,RCH41,47..4D |
1 | ||
| 58518-26520 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518J - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26420 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26330 |
KCH4#,RCH41,47 |
1 | ||
| 58518J - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26420 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26330 |
KCH4#,RCH41,47 |
1 | ||
| 58518K - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26340 |
KCH4#,RCH41,47 |
1 | ||
| 58518-26430 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518K - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26340 |
KCH4#,RCH41,47 |
1 | ||
| 58518-26430 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518L - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26470 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26770 |
KCH4#,RCH41,47 |
1 | ||
| 58518-26560 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26470 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518L - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26470 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26770 |
KCH4#,RCH41,47 |
1 | ||
| 58518-26560 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26470 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518L - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26470 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518-26770 |
KCH4#,RCH41,47 |
1 | ||
| 58518-26560 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26470 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｼﾔﾄﾙ ｺﾝｿｰﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 58518M - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26310 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 58518-26570 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26390 |
KCH4#..E |
1 | ||
| 58518-2F040 |
KCH4#..E |
1 | ||
| 58518-26350 |
KCH4#,RCH41,47..STD,WINT |
1 | ||
| 58518-2F040 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518M - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26310 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 58518-26570 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26390 |
KCH4#..E |
1 | ||
| 58518-2F040 |
KCH4#..E |
1 | ||
| 58518-26350 |
KCH4#,RCH41,47..STD,WINT |
1 | ||
| 58518-2F040 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
| 58518M - MAT, REAR FLOOR, NO.2 | ||||
| 58518-26310 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 58518-26570 |
KCH4#,RCH41,47..WINT ｱﾘ(ﾘﾔ ﾏﾙﾁﾃﾞｲﾀﾂﾁﾔﾌﾞﾙｼ-ﾄ) |
1 | ||
| 58518-26390 |
KCH4#..E |
1 | ||
| 58518-2F040 |
KCH4#..E |
1 | ||
| 58518-26350 |
KCH4#,RCH41,47..STD,WINT |
1 | ||
| 58518-2F040 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘﾔ NO.1 ﾍﾞﾝﾁｼ-ﾄ) |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
