KCH40W-GRSST (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )1KZTE

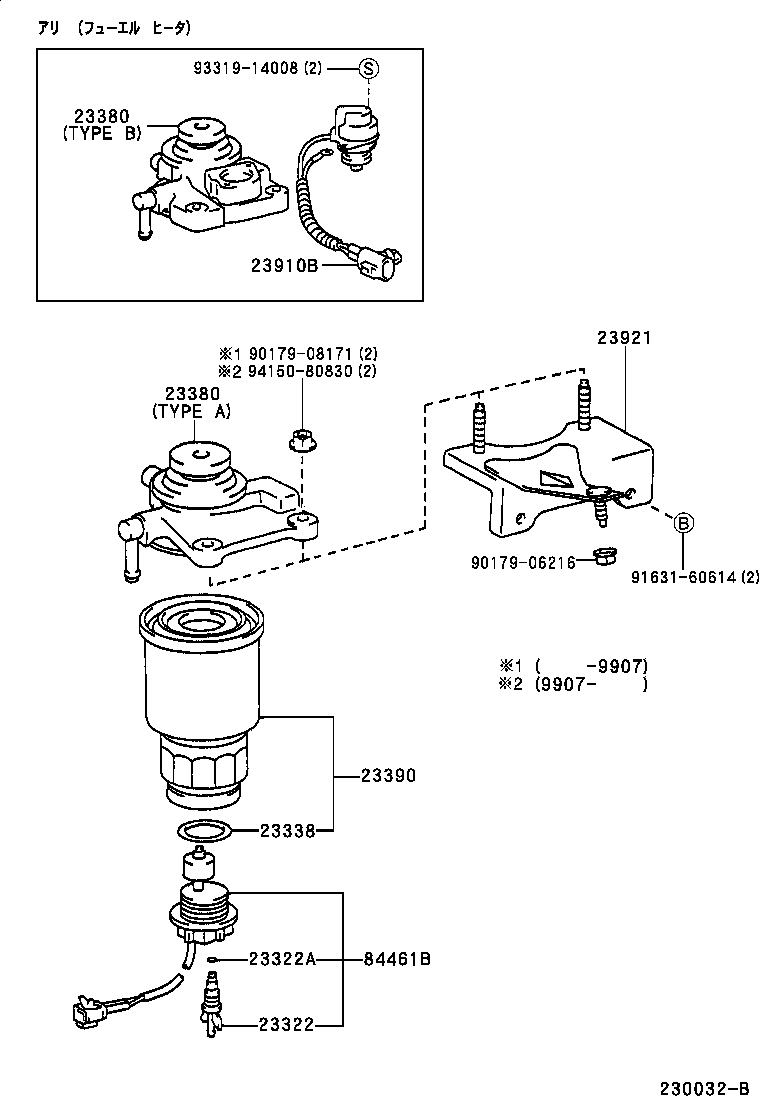

Click highlighted areas on diagram

diagram 23322 23322A 23338 23380 23380 23390 23910B 23921 84461B 9017906216 9017908171 9163160614 9331914008 9415080830
Part # Description Qty Price
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

1KZTE..KCH4#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1KZTE..KCH4#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1KZTE..KCH4#

 1
23380 - CAP ASSY, FUEL FILTER
23380-67210

1KZTE..KCH4#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23380-67220

1KZTE..KCH4#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23380 - CAP ASSY, FUEL FILTER
23380-67210

1KZTE..KCH4#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23380-67220

1KZTE..KCH4#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
23390 - ELEMENT ASSY, FUEL FILTER
23390-64450

1KZTE..KCH4#

 1
23910B - HEATER ASSY, FUEL
23910-54120

1KZTE..KCH4#

 1
23921 - SUPPORT, FUEL FILTER
23921-54370

1KZTE..KCH4#

 1
84461B - SWITCH, LEVEL WARNING
84461-26090

KCH4#

 1
Common parts
90179-06216
90179-08171
91631-60614
93319-14008
94150-80830
