KCH40W-GRSQT (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )KCH4#

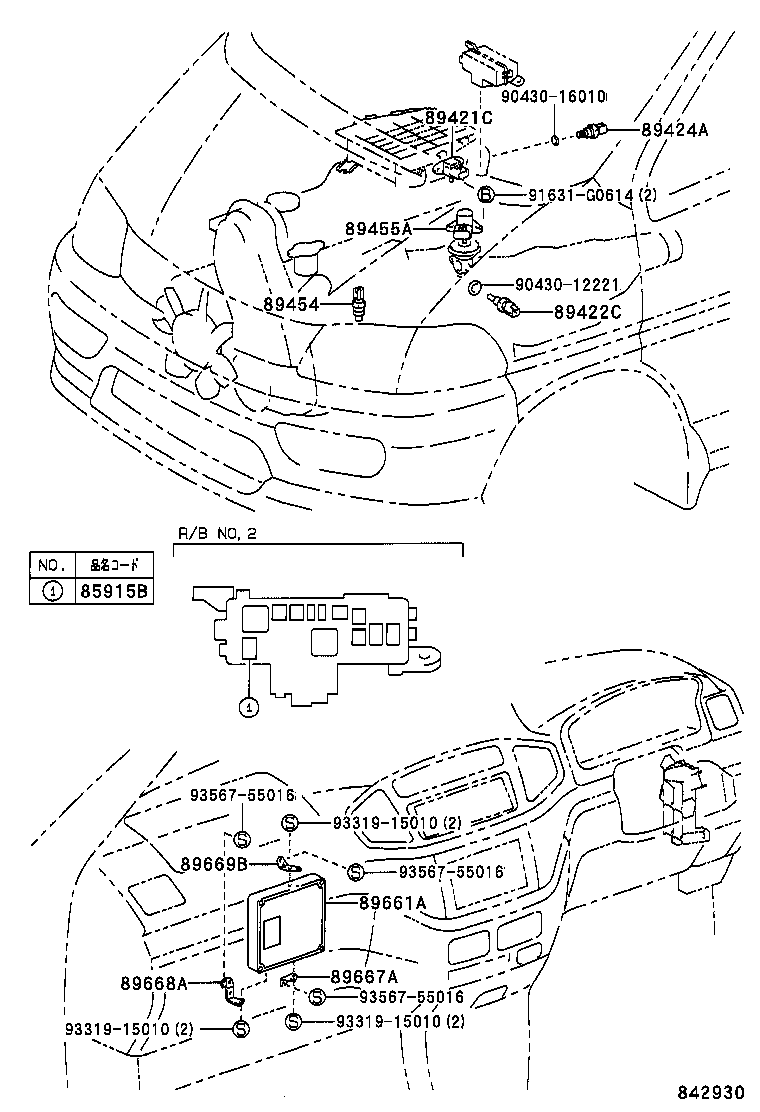

Click highlighted areas on diagram

diagram 85915B 89421C 89422C 89424A 89454 89455A 89661A 89667A 89668A 89669B 9043012221 9043016010 91631G0614 9331915010 9331915010 9331915010 9356755016 9356755016 9356755016
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
85915-26010

KCH4#

 1
90987-02012

KCH4#

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-60030

KCH4#

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

KCH4#

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-12010

KCH4#

 1
89424-60010

KCH4#

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010

KCH4#

 1
89455A - SENSOR, EGR VALVE POSITION
89455-35020

KCH4#

 1
89661A - COMPUTER, ENGINE CONTROL
89661-26450

KCH4#

DENSO

 1
89661-26680

KCH40

DENSO

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-26040

KCH4#

 1
89667-26041

KCH4#

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-26040

KCH4#

 1
89668-26061

KCH4#

 1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-26031

KCH4#

 1
89669-26030

KCH4#

 1
Common parts
90430-12221
90430-16010
91631-G0614
93319-15010
93567-55016
