KCH40W-GRSQT (1999)
Toyota Regius/Touring Hiace

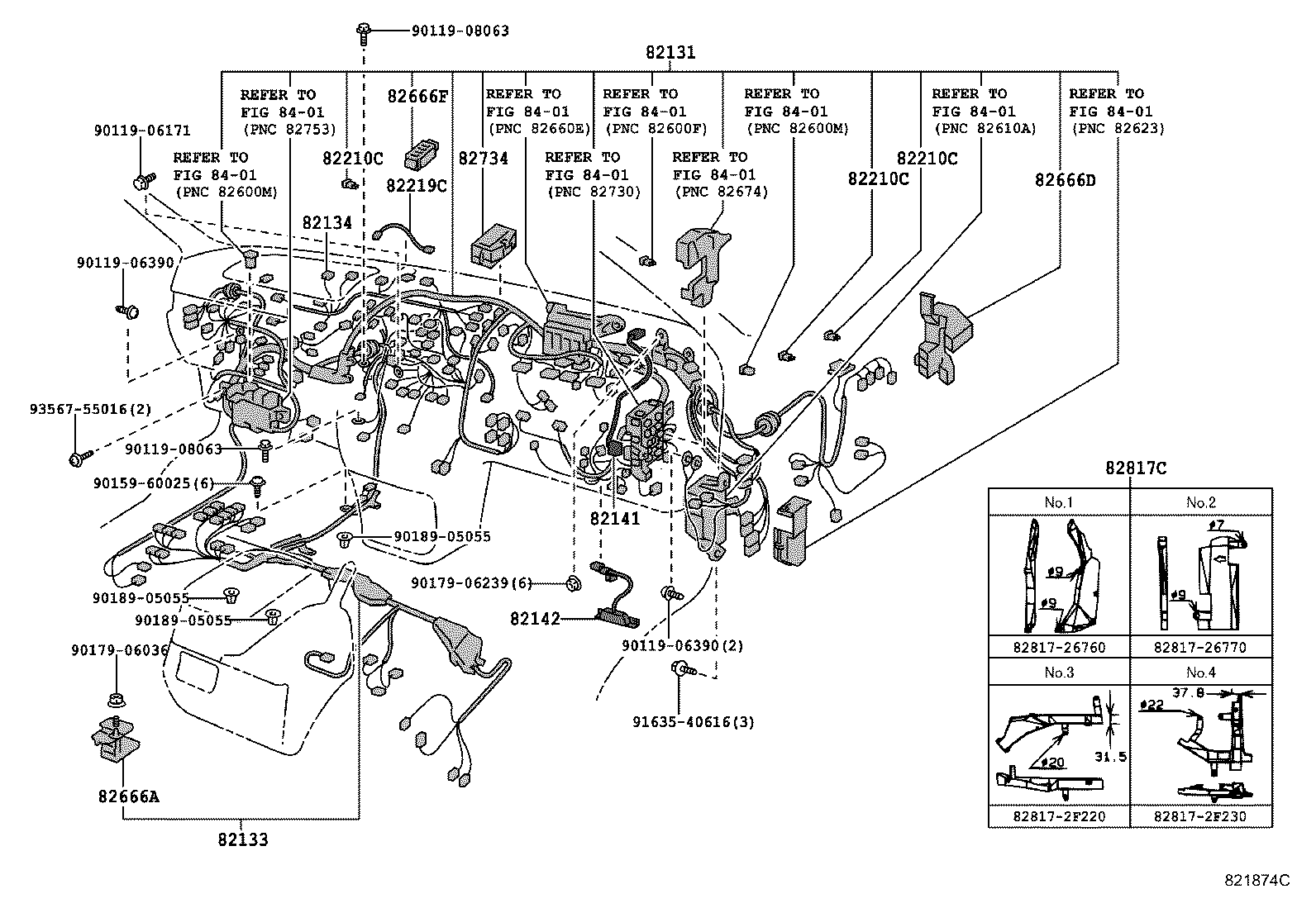

ILLUST NO. 2 OF 8(9907- )KCH4#,RCH41,47
ｲﾝﾊﾟﾈ & ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-2F260 |
KCH4#..E |
1 | ||
| 82135-26311 |
KCH4#..G |
1 | ||
| 82135-26312 |
KCH4#..G |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-26130 |
KCH4#,RCH41..G,STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26150 |
KCH4#,RCH41..G,STD,WINT TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26170 |
KCH4#,RCH41..G,STD,WINT TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26190 |
KCH4#,RCH41..G,STD TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26200 |
KCH4#,RCH41..G,STD,WINT TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26210 |
KCH4#,RCH41..G,STD,WINT TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26140 |
KCH4#,RCH41..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26160 |
KCH4#,RCH41..G,STD TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26220 |
KCH4#,RCH41..G,STD,WINT TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26120 |
KCH4#,RCH41,47..4D..(G,STD) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26180 |
KCH4#,RCH41..G,STD,WINT TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26250 |
KCH4#,RCH41..G,STD,WINT TYPE N:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26240 |
KCH4#,RCH41..G,STD,WINT TYPE M:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26260 |
KCH4#,RCH41..G,STD TYPE O:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26230 |
KCH4#,RCH41..G,STD TYPE L:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26121 |
KCH4#,RCH41,47..(G,V)..W08S ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-) |
1 | ||
| 82133-26161 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾜｲﾄﾞ ﾃﾚﾋﾞ & AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ 9ｽﾋﾟ-ｶ) |
1 | ||
| 82133-26151 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾜｲﾄﾞ ﾃﾚﾋﾞ) |
1 | ||
| 82133-26131 |
KCH4#,RCH41,47..G..W08S ｱﾘ(AM/FM CD ｶｾﾂﾄ CD ｵ-ﾄﾁｴﾝｼﾞﾔ- 9 ｽﾋﾟ-ｶ) |
1 | ||
| 82133-26142 |
KCH4#,RCH41,47..W08S ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 6 ｽﾋﾟ-ｶ) |
1 | ||
| 82133-26172 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾜｲﾄﾞ ﾃﾚﾋﾞ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 6ｽﾋﾟ-ｶ) |
1 | ||
| 82133-26192 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 9ｽﾋﾟ-ｶ & ﾜｲﾄﾞ ﾃﾚﾋﾞ) |
1 | ||
| 82133-26201 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ｶｲﾃﾝｼｷ & AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ 9ｽﾋﾟ-ｶ) |
1 | ||
| 82133-26182 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 9ｽﾋﾟ-ｶ) |
1 | ||
| 82133-26262 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 9ｽﾋﾟ-ｶ & ﾌﾛﾝﾄ ｼ-ﾄ ｶｲﾃﾝｼｷ & ﾜｲﾄﾞ ﾃﾚﾋﾞ) |
1 | ||
| 82133-26242 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 6ｽﾋﾟ-ｶ & ﾌﾛﾝﾄ ｼ-ﾄ ｶｲﾃﾝｼｷ & ﾜｲﾄﾞ ﾃﾚﾋﾞ) |
1 | ||
| 82133-26252 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 9ｽﾋﾟ-ｶ & ﾌﾛﾝﾄ ｼ-ﾄ ｶｲﾃﾝｼｷ) |
1 | ||
| 82133-26212 |
KCH4#,RCH41,47..W08S ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & 6ｽﾋﾟ-ｶ & ﾌﾛﾝﾄ ｼ-ﾄ ｶｲﾃﾝｼｷ) |
1 | ||
| 82133-26231 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ｶｲﾃﾝｼｷ & ﾜｲﾄﾞ ﾃﾚﾋﾞ & AM/FM ﾃﾞﾝｼﾁﾕ-ﾅ ｶｾﾂﾄ CDｵ-ﾄﾁｴﾝｼﾞﾔ 9ｽﾋﾟ-ｶ) |
1 | ||
| 82133-26221 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾌﾛﾝﾄ ｼ-ﾄ ｶｲﾃﾝｼｷ & ﾜｲﾄﾞ ﾃﾚﾋﾞ) |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-26010 |
KCH4#,RCH41,47 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-26170 |
KCH4#,RCH41,47..G,STD |
1 | ||
| 82141-26171 |
KCH4#,RCH41,47..G,V |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-26011 |
KCH4#,RCH41,47 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KCH4#,LXH4# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08282 |
KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
KCH4#,RCH41,47 120A,ｵｽ端子,白 |
1 | ||
| 90982-08190 |
KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08281 |
KCH4# 40A,ﾒｽ端子,緑 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KCH4#,LXH4# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08282 |
KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
KCH4#,RCH41,47 120A,ｵｽ端子,白 |
1 | ||
| 90982-08190 |
KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08281 |
KCH4# 40A,ﾒｽ端子,緑 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KCH4#,LXH4# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08282 |
KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
KCH4#,RCH41,47 120A,ｵｽ端子,白 |
1 | ||
| 90982-08190 |
KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08281 |
KCH4# 40A,ﾒｽ端子,緑 |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-26140 |
KCH4#,RCH41,47 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-26100 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26110 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26140 |
KCH4#,RCH41,47 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-32020 |
KCH4#,RCH41,47 |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90119-06390 | ||||
| 90119-08063 | ||||
| 90159-60025 | ||||
| 90179-06036 | ||||
| 90179-06239 | ||||
| 90189-05055 | ||||
| 91635-40616 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
