KCH40W-GRSQT (1999)
Toyota Regius/Touring Hiace

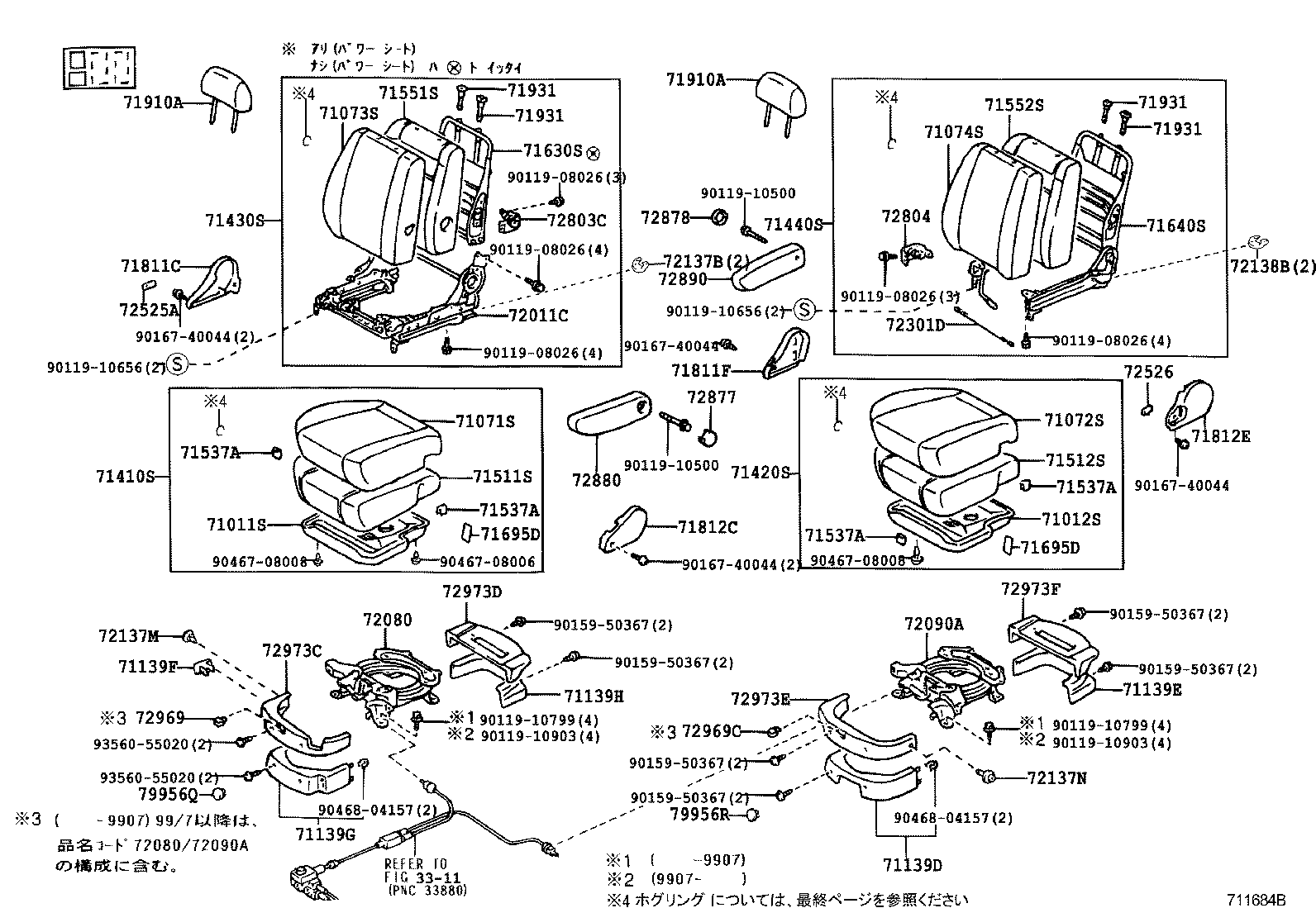

ILLUST NO. 1 OF 6(9907- )KCH4#,RCH41,47
ﾌﾛﾝﾄ ｶｲﾃﾝ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-26040 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26310B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26330G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71071-26850B0 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104,CHARCOAL,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-26310B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26380G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71072-26600B0 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104,CHARCOAL,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26390B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71073-2F060B0 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104,CHARCOAL,TRIM4# |
1 | ||
| 71073-26560G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71073-2F070B0 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),CHARCOAL,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-26530G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71073-26390B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71074-26860B0 |
KCH4#,RCH41,47..G..W08S CHARCOAL,TRIM4# |
1 | ||
| 71074-26870B0 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),CHARCOAL,TRIM4# |
1 | ||
| 71139D - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-26060E0 |
KCH4#,RCH41,47..(G,V)..W08S ORCHID BROWN,TRIM4# |
1 | ||
| 71139-26070G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 71139E - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-26060G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 71139-26070E0 |
KCH4#,RCH41,47..(G,V)..W08S ORCHID BROWN,TRIM4# |
1 | ||
| 71139G - COVER, FRONT SEAT LEG | ||||
| 71139-26050G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 71139-26050E0 |
KCH4#,RCH41,47..(G,V)..W08S ORCHID BROWN,TRIM4# |
1 | ||
| 71139H - COVER, FRONT SEAT LEG | ||||
| 71139-26040E0 |
KCH4#,RCH41,47..(G,V)..W08S ORCHID BROWN,TRIM4# |
1 | ||
| 71139-26040G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-26340B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26360G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71410-26860E0 |
KCH4#,RCH41,47..G ***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-26380G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71410-26340B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71420-26680E0 |
KCH4#,RCH41,47..G ***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-26650G0 |
KCH4#,RCH41,47..4D..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71430-26620G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71430-26600B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71040-26360E0 |
KCH4#,RCH41,47..G ***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71040-26370E0 |
KCH4#,RCH41,47..G..W08S ***,ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),ORCHID BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-26540B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71440-26560G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71440-26590G0 |
KCH4#,RCH41,47..4D..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71070-26270E0 |
KCH4#,RCH41,47..G..W08S ***,ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),ORCHID BROWN,TRIM4# |
1 | ||
| 71070-26260E0 |
KCH4#,RCH41,47..G..W08S ***,ｼ-ﾄ = TYPE C-*104,ORCHID BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26050 |
KCH4#,RCH41,47 |
1 | ||
| 71511-26120 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-26050 |
KCH4#,RCH41,47 |
1 | ||
| 71052-26020 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
RCH41..4D..(G,WINT);KCH4#,RCH47..(G,WINT)..(G07S,W08S) ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
6 | ||
| 71537-26010 |
KCH4#,LXH4#,RCH41,47..G,V,WISTD ﾌﾛﾝﾄ |
6 | ||
| 71695-26050 |
KCH4#,RCH41,47 ﾘﾔ |
9 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
RCH41..4D..(G,WINT);KCH4#,RCH47..(G,WINT)..(G07S,W08S) ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
6 | ||
| 71537-26010 |
KCH4#,LXH4#,RCH41,47..G,V,WISTD ﾌﾛﾝﾄ |
6 | ||
| 71695-26050 |
KCH4#,RCH41,47 ﾘﾔ |
9 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
RCH41..4D..(G,WINT);KCH4#,RCH47..(G,WINT)..(G07S,W08S) ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
6 | ||
| 71537-26010 |
KCH4#,LXH4#,RCH41,47..G,V,WISTD ﾌﾛﾝﾄ |
6 | ||
| 71695-26050 |
KCH4#,RCH41,47 ﾘﾔ |
9 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
RCH41..4D..(G,WINT);KCH4#,RCH47..(G,WINT)..(G07S,W08S) ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾃ-ﾌﾞﾙ) |
6 | ||
| 71537-26010 |
KCH4#,LXH4#,RCH41,47..G,V,WISTD ﾌﾛﾝﾄ |
6 | ||
| 71695-26050 |
KCH4#,RCH41,47 ﾘﾔ |
9 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26080 |
KCH4#..E |
1 | ||
| 71551-26230 |
KCH4#,RCH41,47..G..W08S ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 71551-26140 |
KCH4#,RCH41,47..G |
1 | ||
| 71551-26250 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-26030 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104 |
1 | ||
| 71551-26080 |
KCH4#..E |
1 | ||
| 71552-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 71552-26070 |
KCH4#,RCH41,47..G..W08S ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-26020C0 |
KCH4#..E;LXH4#,RCH42 BLACK,TRIM1# |
1 | ||
| 71013-26170 |
KCH4#,RCH41,47..G |
1 | ||
| 71013-26170 |
KCH4#,RCH41,47..G..W08S |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-26020C0 |
KCH4#..E;LXH4#..G BLACK,TRIM1# |
1 | ||
| 71640-26060C0 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
1 | ||
| 71640-26080C0 |
KCH4#,RCH41..4D..G ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLACK,TRIM6# |
1 | ||
| 71640-26200C0 |
KCH4#,RCH41,47..(G,V)..W08S ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),BLACK,TRIM4# |
1 | ||
| 71640-26190C0 |
KCH4#,RCH41,47..G,V BLACK,TRIM4# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26040G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71811-26020B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26040B1 |
KCH4#,RCH41,47..G MD.CHARCOAL,TRIM4# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26030B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71811-26030B3 |
KCH4#,RCH41,47..G,V MD.CHARCOAL,TRIM4# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26030G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71812-26020B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71812-26030B1 |
KCH4#,RCH41,47..G MD.CHARCOAL,TRIM4# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26010B3 |
KCH4#,RCH41,47..G,V MD.CHARCOAL,TRIM4# |
1 | ||
| 71812-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71812-26010B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26080B3 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26230G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71910-26440B0 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104,CHARCOAL,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26080B3 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26230G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71910-26440B0 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104,CHARCOAL,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030B8 |
KCH4#,RCH41,47..G,V ﾛｯｸ付,MD.CHARCOAL,TRIM4# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B8 |
KCH4#,RCH41,47..G,V ﾛｯｸ無,MD.CHARCOAL,TRIM4# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030B8 |
KCH4#,RCH41,47..G,V ﾛｯｸ付,MD.CHARCOAL,TRIM4# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B8 |
KCH4#,RCH41,47..G,V ﾛｯｸ無,MD.CHARCOAL,TRIM4# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030B8 |
KCH4#,RCH41,47..G,V ﾛｯｸ付,MD.CHARCOAL,TRIM4# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B8 |
KCH4#,RCH41,47..G,V ﾛｯｸ無,MD.CHARCOAL,TRIM4# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030B8 |
KCH4#,RCH41,47..G,V ﾛｯｸ付,MD.CHARCOAL,TRIM4# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B8 |
KCH4#,RCH41,47..G,V ﾛｯｸ無,MD.CHARCOAL,TRIM4# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-26030 |
KCH4#,RCH41,47..4D..(G,STD) ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 72010-26060 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 72010-26010 |
KCH4#,RCH41,47..G |
1 | ||
| 72010-26070 |
KCH4#,RCH41,47..G |
1 | ||
| 72080 - TABLE ASSY, FRONT SEAT TURN, RH | ||||
| 72080-26020 |
KCH4#,RCH41..G |
1 | ||
| 72080-26050 |
KCH4#,RCH41,47..W08S |
1 | ||
| 72090A - TABLE ASSY, FRONT SEAT TURN, LH | ||||
| 72090-26010 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72090-26030 |
KCH4#,RCH41,47..W08S |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-26030E1 |
KCH4#,RCH41,47..G,V ORCHID BROWN,TRIM4# |
2 | ||
| 72137-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 72137-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 72137M - CLIP (FOR SEAT TRACK COVER RH) | ||||
| 90467-06133G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
3 | ||
| 90467-06133E3 |
KCH4#,RCH41,47..(G,V)..W08S ORCHID BROWN,TRIM4# |
1 | ||
| 72137N - CLIP (FOR SEAT TRACK COVER LH) | ||||
| 90467-06133G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 90467-06133E3 |
KCH4#,RCH41,47..(G,V)..W08S ORCHID BROWN,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 72137-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 72137-26070 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
2 | ||
| 72137-26030E1 |
KCH4#,RCH41,47..G,V ORCHID BROWN,TRIM4# |
2 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-26010 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
KCH4#,LXH4#,RCH4# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-26070B2 |
KCH4#,RCH41,47..G,V MD.CHARCOAL,TRIM4# |
1 | ||
| 72525-95J01B0 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 72803C - FRAME SUB-ASSY, SEAT CENTER ARMREST, RH | ||||
| 72804-26060 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72804-26060 |
KCH4#,RCH41,47..W08S |
1 | ||
| 72804 - FRAME SUB-ASSY, SEAT CENTER ARMREST, LH | ||||
| 72803-26050 |
KCH4#,RCH41,47..W08S |
1 | ||
| 72803-26050 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72877-26030G2 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72877-26030B2 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),CHARCOAL,TRIM4# |
1 | ||
| 72848-26010B0 |
KCH4#,RCH41,47..G CHARCOAL,TRIM4# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72878-26030G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72848-26010B0 |
KCH4#,RCH41,47..G CHARCOAL,TRIM4# |
1 | ||
| 72848-28020B4 |
KCH4#,RCH41,47 MD.CHARCOAL,TRIM4# |
1 | ||
| 72878-26030B3 |
KCH4#,RCH41,47..G..W08S ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),CHARCOAL,TRIM4# |
1 | ||
| 72848-28020B3 |
KCH4#,RCH41,47 SHADOW GRAY,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-26100G1 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 72880-26310B0 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104,CHARCOAL,TRIM4# |
1 | ||
| 72880-26320B0 |
KCH4#,RCH41,47..G..W08S ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),CHARCOAL,TRIM4# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-26320B0 |
KCH4#,RCH41,47..G..W08S ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),CHARCOAL,TRIM4# |
1 | ||
| 72890-26080G1 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 72890-26310B0 |
KCH4#,RCH41,47..G ｼ-ﾄ = TYPE C-*104,CHARCOAL,TRIM4# |
1 | ||
| 72969 - KNOB, REAR SEAT TURN LOCK | ||||
| 72969-26030G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 72969-28020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72969C - KNOB, REAR SEAT TURN LOCK, LH | ||||
| 72969-28020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72969-26030G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 72973C - COVER, FRONT SEAT TURN TABLE,NO.1 | ||||
| 72973-26070G0 |
KCH4#,RCH41..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 72973-26050G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72973D - COVER, FRONT SEAT TURN TABLE, NO.2 | ||||
| 72973-26060G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72973-26160E0 |
KCH4#,RCH41,47..(G,V)..W08S ORCHID BROWN,TRIM4# |
1 | ||
| 72973E - COVER, FRONT SEAT TURN TABLE, NO.1 | ||||
| 72973-26080G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72973-26180E0 |
KCH4#,RCH41,47..(G,V)..W08S ORCHID BROWN,TRIM4# |
1 | ||
| 72973F - COVER, FRONT SEAT TURN TABLE, NO.2 | ||||
| 72973-26200E0 |
KCH4#,RCH41,47..G..W08S ORCHID BROWN,TRIM4# |
1 | ||
| 72973-26090G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72973-26190E0 |
KCH4#,RCH41,47..(G,V)..W08S ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),ORCHID BROWN,TRIM4# |
1 | ||
| 79956Q - CAP(FOR FRONT SEAT LEG SIDE COVER RH) | ||||
| 90339-10001E3 |
KCH4#,RCH41,47..G..W08S SANDAL WOOD,TRIM4# |
2 | ||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 90339-10001P3 |
KCH4#,RCH41,47..G..W08S MD.CHARCOAL,TRIM41 |
2 | ||
| 79956R - CAP(FOR FRONT SEAT LEG SIDE COVER LH) | ||||
| 90339-10001E3 |
KCH4#,RCH41,47..G..W08S SANDAL WOOD,TRIM4# |
2 | ||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 90339-10001P3 |
KCH4#,RCH41,47..G..W08S MD.CHARCOAL,TRIM41 |
2 | ||
| Common parts | ||||
| 90119-08026 | ||||
| 90119-10500 | ||||
| 90119-10656 | ||||
| 90119-10799 | ||||
| 90119-10903 | ||||
| 90159-50367 | ||||
| 90167-40044 | ||||
| 90467-08006 | ||||
| 90467-08008 | ||||
| 90468-04157 | ||||
| 93560-55020 | ||||
| Linked diagrams | ||||
| 3311 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
