KCH40W-GRSQT (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )1KZTE

Click highlighted areas on diagram

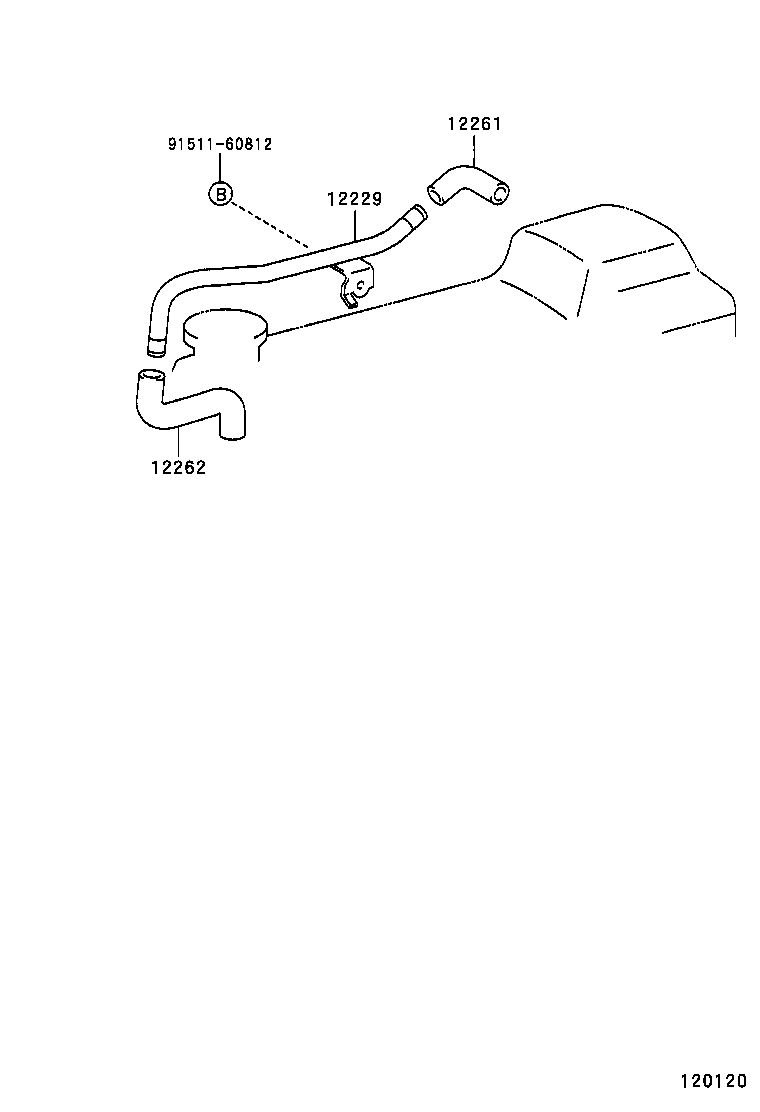

diagram 12229 12261 12262 9151160812
Part # Description Qty Price
12229 - PIPE, VENTILATION
12229-67050

1KZTE..KCH4#

 1
12261 - HOSE, VENTILATION
12261-67020

1KZTE..KCH4#

 1
12261-67010

1KZTE..KCH4#

 1
12262 - HOSE, VENTILATION, NO.2
12262-67040

1KZTE..KCH4#

 1
Common parts
91511-60812
