KCH40W-GRSGT (1999)

Toyota Regius/Touring Hiace

Production Jul 1999 - May 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )1KZTE

Click highlighted areas on diagram

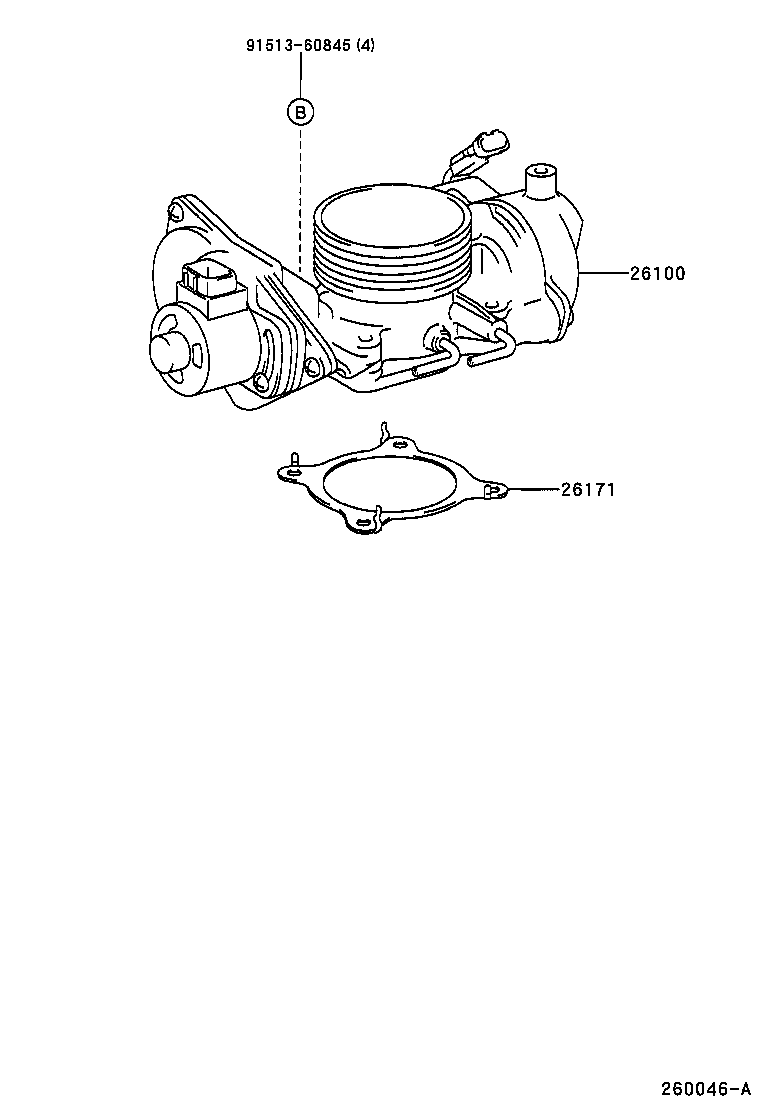

diagram 26100 26171 9151360845
Part # Description Qty Price
26100 - VENTURI ASSY
26100-67100

1KZTE..KCH4#

 1
26100-67030

1KZTE..KCH4#

 1
26171 - GASKET, VENTURI
26171-67010

1KZTE..KCH4#

 1
26171-67030

1KZTE..KCH4#

 1
Common parts
91513-60845
