KCH40G-GRSNT (1997)
Toyota Regius/Touring Hiace

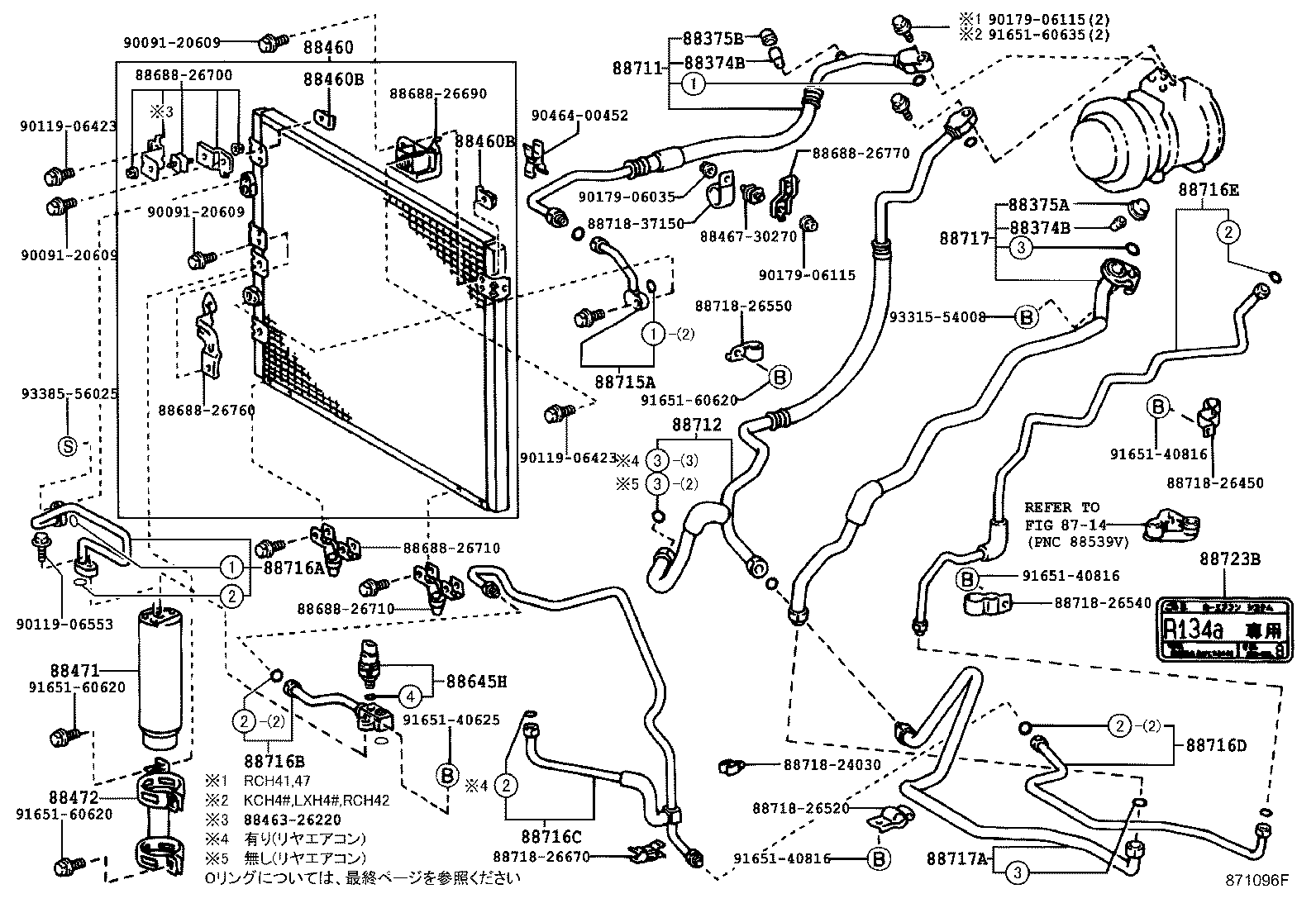

ILLUST NO. 1 OF 3(9704-9804)
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26420 |
KCH4#,LXH4# |
1 | ||
| 88460-26500 |
KCH4#,LXH4# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
3 | ||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
3 | ||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26140 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-26020 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26780 |
KCH4# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-26690 |
KCH4# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26320 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88715-26270 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F310 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716-2F470 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F350 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2F300 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-2F320 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2F260 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716-2F320 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2F280 |
KCH4#,LXH4# |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-26820 |
KCH4#,LXH4# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26800 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 88463-26220 | ||||
| 88467-30270 | ||||
| 88688-26690 | ||||
| 88688-26700 | ||||
| 88688-26710 | ||||
| 88688-26760 | ||||
| 88688-26770 | ||||
| 88718-24030 | ||||
| 88718-26450 | ||||
| 88718-26520 | ||||
| 88718-26540 | ||||
| 88718-26550 | ||||
| 88718-26670 | ||||
| 88718-37150 | ||||
| 90091-20609 | ||||
| 90119-06423 | ||||
| 90119-06553 | ||||
| 90179-06035 | ||||
| 90179-06115 | ||||
| 90464-00452 | ||||
| 91651-40625 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| 91651-60635 | ||||
| 93315-54008 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 8714 | ||||

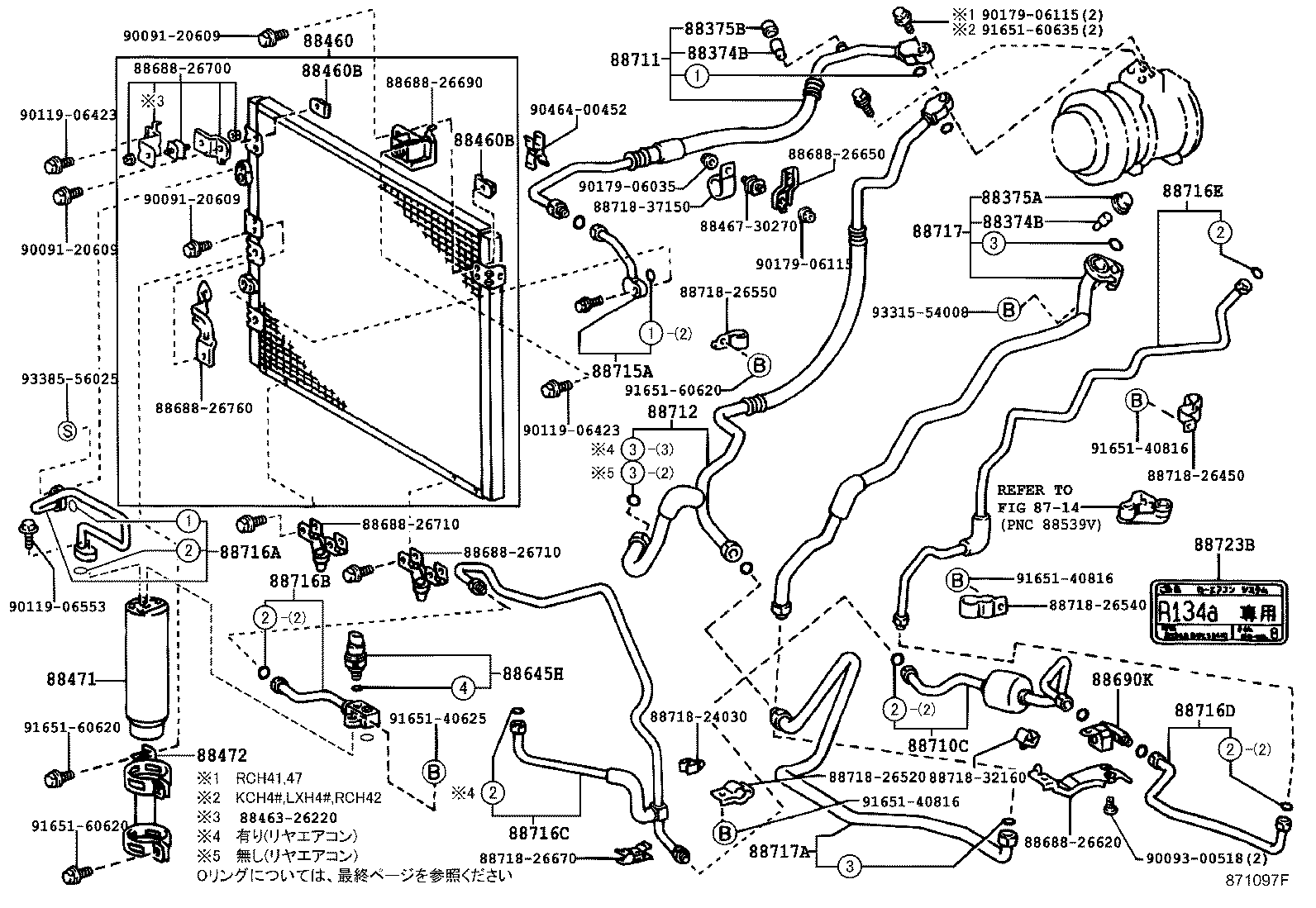

ILLUST NO. 1 OF 3(9704-9804)KCH4#,RCH4#
ﾌﾛﾝﾄ ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26420 |
KCH4#,LXH4# |
1 | ||
| 88460-26500 |
KCH4#,LXH4# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
3 | ||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
3 | ||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-26140 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-26020 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88690K - VALVE ASSY, MAGNET | ||||
| 88690-26150 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26700 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88710-26700 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26780 |
KCH4# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-26690 |
KCH4# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26320 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88715-26270 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F310 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716-2F470 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F350 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2F300 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-2F320 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2F260 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716-2F320 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2F280 |
KCH4#,LXH4# |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-26820 |
KCH4#,LXH4# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26800 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 88463-26220 | ||||
| 88467-30270 | ||||
| 88688-26620 | ||||
| 88688-26650 | ||||
| 88688-26690 | ||||
| 88688-26700 | ||||
| 88688-26710 | ||||
| 88688-26760 | ||||
| 88718-24030 | ||||
| 88718-26450 | ||||
| 88718-26520 | ||||
| 88718-26540 | ||||
| 88718-26550 | ||||
| 88718-26670 | ||||
| 88718-32160 | ||||
| 88718-37150 | ||||
| 90091-20609 | ||||
| 90093-00518 | ||||
| 90119-06423 | ||||
| 90119-06553 | ||||
| 90179-06035 | ||||
| 90179-06115 | ||||
| 90464-00452 | ||||
| 91651-40625 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| 91651-60635 | ||||
| 93315-54008 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 8714 | ||||

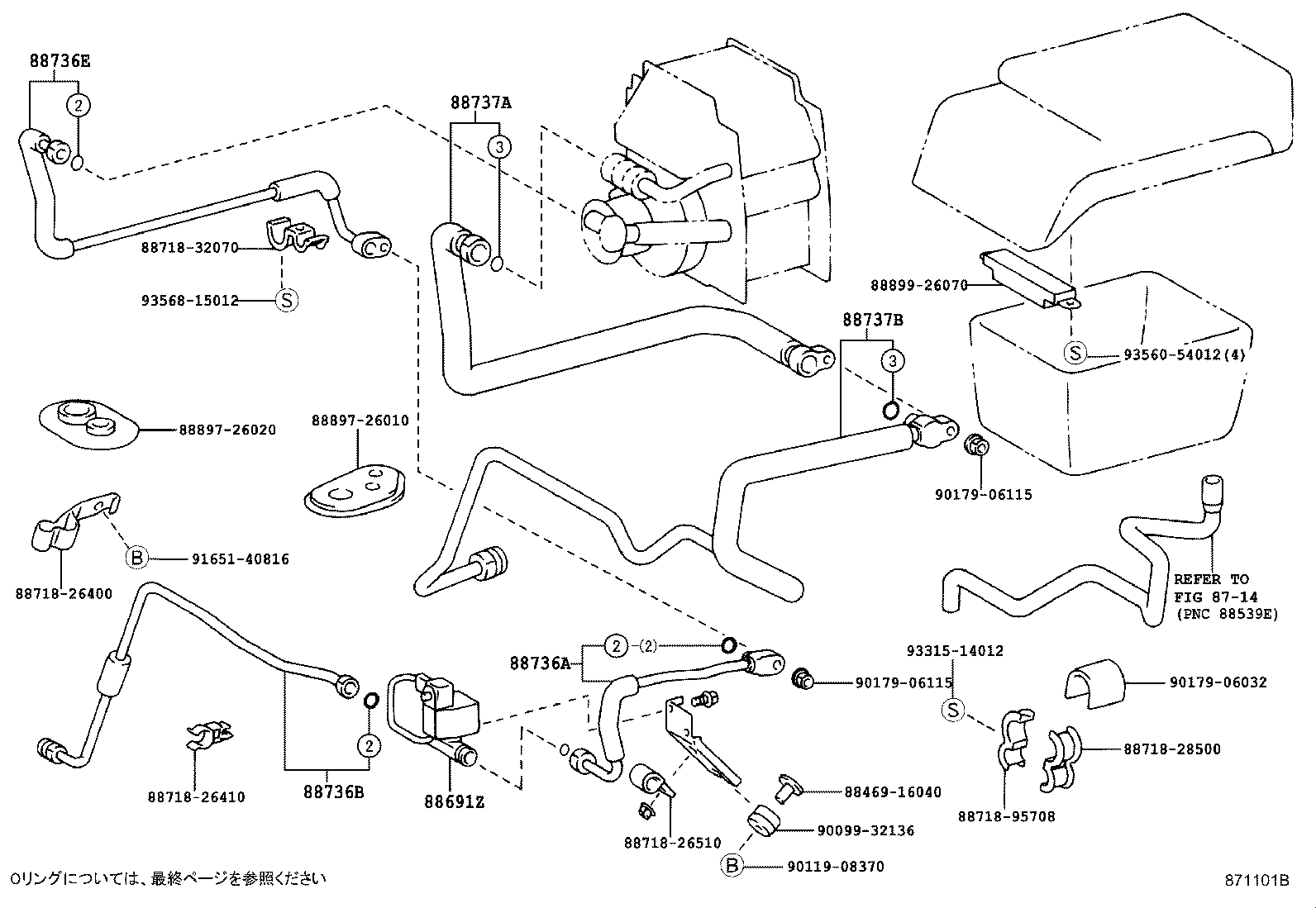

ILLUST NO. 3 OF 3(9704- )
ｸｰﾙ ﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88691Z - VALVE, MAGNET (COOL BOX) | ||||
| 88690-26160 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88690-26160 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-2F330 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88716-2F330 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-2F340 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88716-2F340 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88736E - TUBE, LIQUID, E(FOR COOL BOX) | ||||
| 88716-26650 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88716-26650 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-26480 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88717-26480 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88737B - TUBE, SUCTION, B(FOR COOL BOX) | ||||
| 88717-26840 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| Common parts | ||||
| 88469-16040 | ||||
| 88718-26400 | ||||
| 88718-26410 | ||||
| 88718-26510 | ||||
| 88718-28500 | ||||
| 88718-32070 | ||||
| 88718-95708 | ||||
| 88897-26010 | ||||
| 88897-26020 | ||||
| 88899-26070 | ||||
| 90099-32136 | ||||
| 90119-08370 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91651-40816 | ||||
| 93315-14012 | ||||
| 93560-54012 | ||||
| 93568-15012 | ||||
| Linked diagrams | ||||
| 8714 | ||||

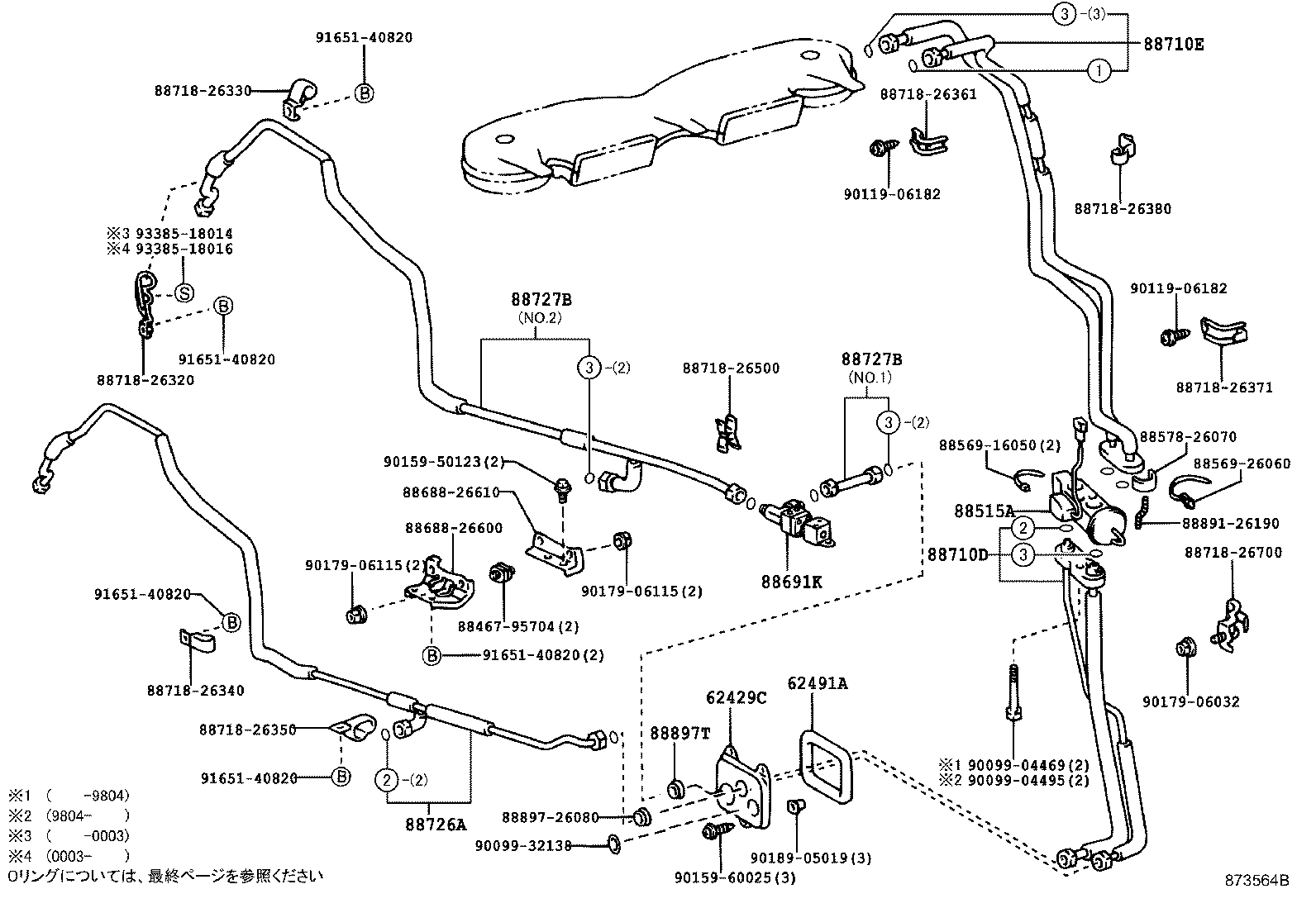

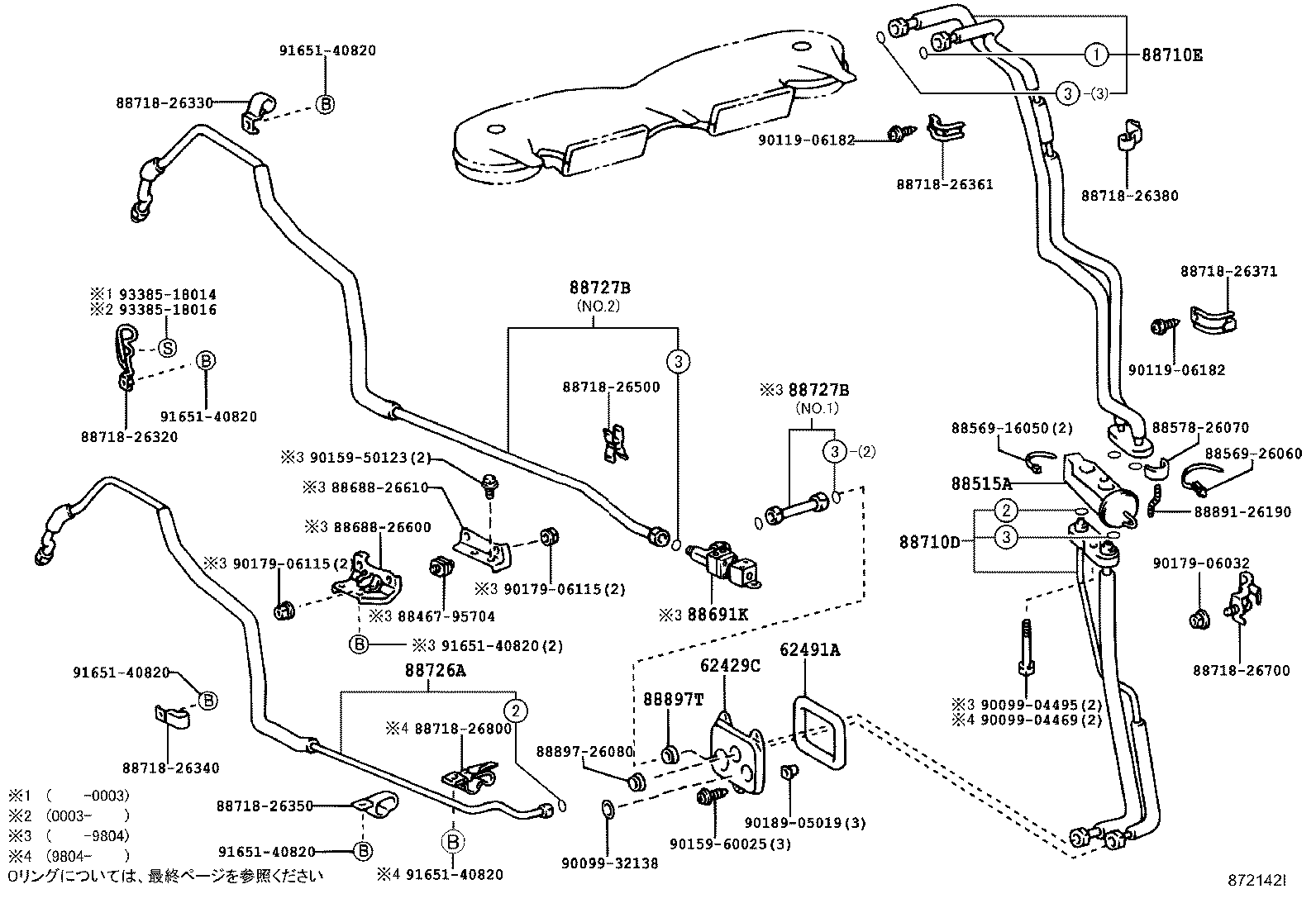

ILLUST NO. 2 OF 3(9704- )4D
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-26020 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 62491A - PACKING, CENTER PILLAR SERVISE HOLE COVER, UPPER | ||||
| 62491-26010 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-60060 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88515-28050 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-26240 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88690-26241 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88710D - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26870 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88710-2F190 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-26860 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F180 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88716-2F190 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2F530 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88716-2F190 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-26750 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88717-26830 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88717-26740 |
KCH4#,RCH41,47 NO.2 |
1 | ||
| 88717-26750 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88717-2F250 |
LXH4#..G;KCH4#,RCH41,47..4D NO.2 |
1 | ||
| 88717-26830 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-26750 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88717-26750 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88717-26830 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88717-26740 |
KCH4#,RCH41,47 NO.2 |
1 | ||
| 88717-2F250 |
LXH4#..G;KCH4#,RCH41,47..4D NO.2 |
1 | ||
| 88717-26830 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-26030 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| Common parts | ||||
| 88467-95704 | ||||
| 88569-16050 | ||||
| 88569-26060 | ||||
| 88578-26070 | ||||
| 88688-26600 | ||||
| 88688-26610 | ||||
| 88718-26320 | ||||
| 88718-26330 | ||||
| 88718-26340 | ||||
| 88718-26350 | ||||
| 88718-26361 | ||||
| 88718-26371 | ||||
| 88718-26380 | ||||
| 88718-26500 | ||||
| 88718-26700 | ||||
| 88718-26800 | ||||
| 88891-26190 | ||||
| 88897-26080 | ||||
| 90099-04469 | ||||
| 90099-04495 | ||||
| 90099-32138 | ||||
| 90119-06182 | ||||
| 90159-50123 | ||||
| 90159-60025 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90189-05019 | ||||
| 91651-40820 | ||||
| 93385-18014 | ||||
| 93385-18016 | ||||
(9704- )

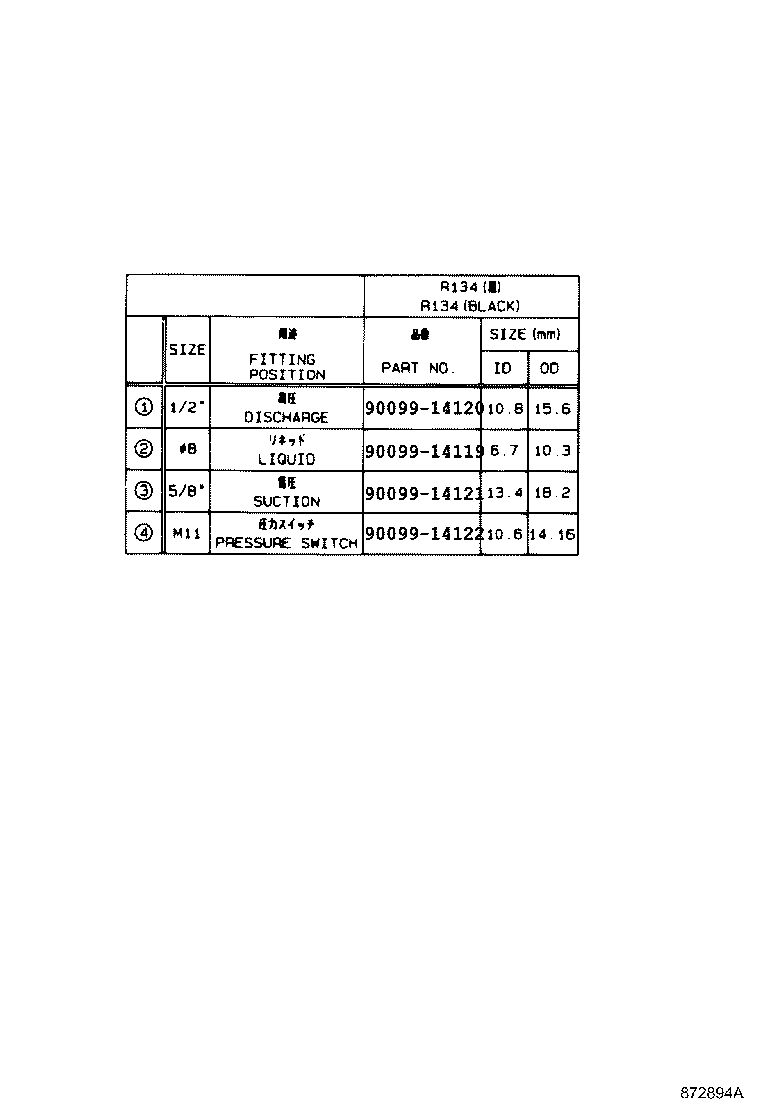

O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 2 OF 3(9704- )4D
ﾘﾔ ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429C - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-26020 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 62491A - PACKING, CENTER PILLAR SERVISE HOLE COVER, UPPER | ||||
| 62491-26010 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88515A - VALVE, COOLER EXPANSION | ||||
| 88515-60060 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88515-28050 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88691K - VALVE ASSY, MAGNET | ||||
| 88690-26240 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88690-26241 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88710D - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26870 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88710-2F190 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-26860 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F180 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88716-2F190 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2F530 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| 88716-2F190 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-26750 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88717-26830 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88717-26740 |
KCH4#,RCH41,47 NO.2 |
1 | ||
| 88717-26750 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88717-2F250 |
LXH4#..G;KCH4#,RCH41,47..4D NO.2 |
1 | ||
| 88717-26830 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-26750 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88717-26830 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88717-26740 |
KCH4#,RCH41,47 NO.2 |
1 | ||
| 88717-26750 |
LXH4#..G;KCH4#,RCH41,47 NO.1 |
1 | ||
| 88717-2F250 |
LXH4#..G;KCH4#,RCH41,47..4D NO.2 |
1 | ||
| 88717-26830 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-26030 |
LXH4#..G;KCH4#,RCH41,47..4D |
1 | ||
| Common parts | ||||
| 88467-95704 | ||||
| 88569-16050 | ||||
| 88569-26060 | ||||
| 88578-26070 | ||||
| 88688-26600 | ||||
| 88688-26610 | ||||
| 88718-26320 | ||||
| 88718-26330 | ||||
| 88718-26340 | ||||
| 88718-26350 | ||||
| 88718-26361 | ||||
| 88718-26371 | ||||
| 88718-26380 | ||||
| 88718-26500 | ||||
| 88718-26700 | ||||
| 88891-26190 | ||||
| 88897-26080 | ||||
| 90099-04469 | ||||
| 90099-04495 | ||||
| 90099-32138 | ||||
| 90119-06182 | ||||
| 90159-50123 | ||||
| 90159-60025 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90189-05019 | ||||
| 91651-40820 | ||||
| 93385-18014 | ||||
| 93385-18016 | ||||

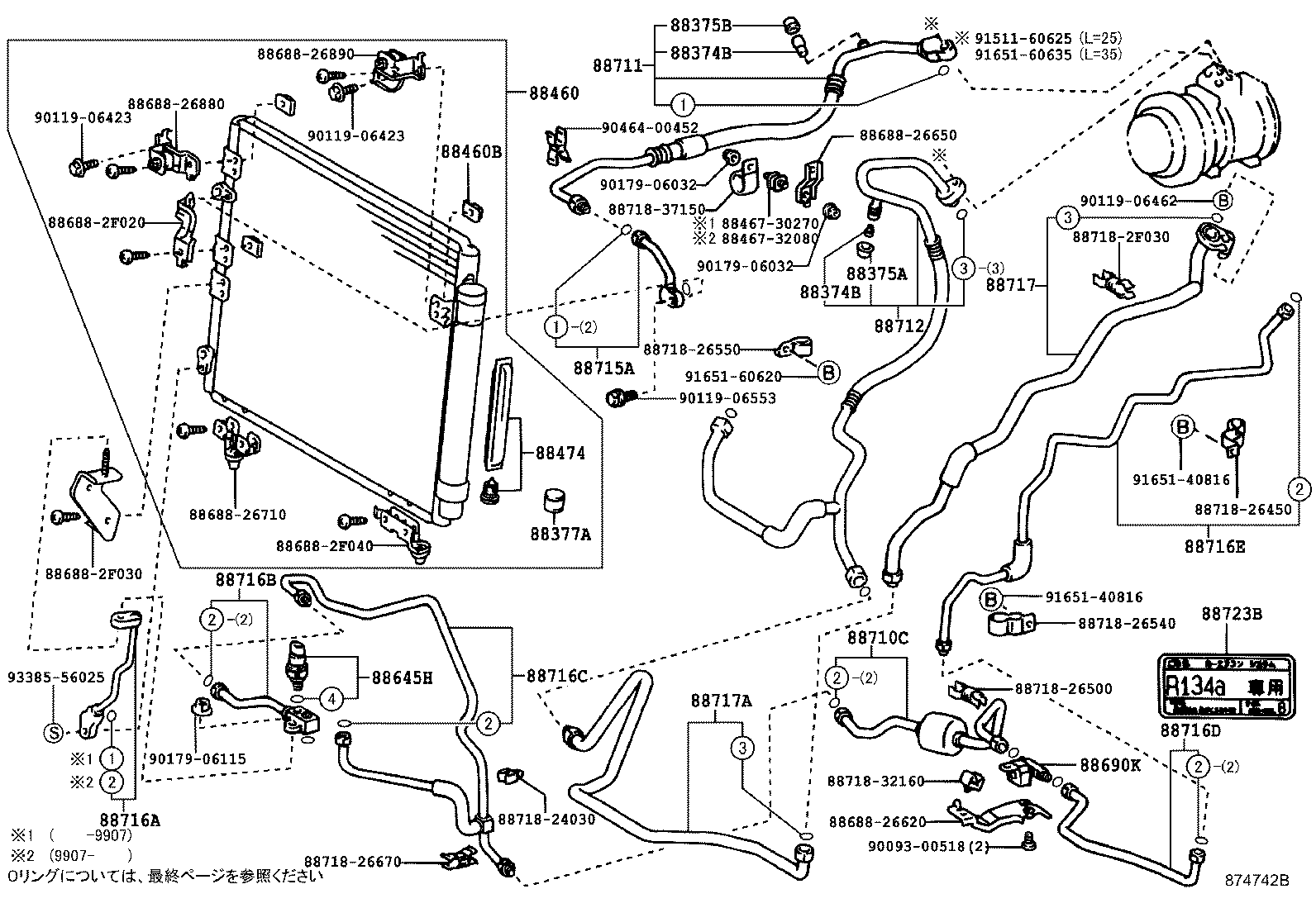

ILLUST NO. 1 OF 3(9804- )KCH4#
ﾌﾛﾝﾄ ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88377A - FILTER, REFRIGERANT | ||||
| 88377-22010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26420 |
KCH4#,LXH4# |
1 | ||
| 88460-26500 |
KCH4#,LXH4# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
3 | ||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-22010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-26020 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88690K - VALVE ASSY, MAGNET | ||||
| 88690-26150 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-26700 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 88710-26700 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26780 |
KCH4# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-26690 |
KCH4# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26320 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88715-26270 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F310 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716-2F470 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F350 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2F300 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-2F320 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2F260 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716-2F320 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2F280 |
KCH4#,LXH4# |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-26820 |
KCH4#,LXH4# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26800 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88467-32080 | ||||
| 88688-26620 | ||||
| 88688-26650 | ||||
| 88688-26710 | ||||
| 88688-26880 | ||||
| 88688-26890 | ||||
| 88688-2F020 | ||||
| 88688-2F030 | ||||
| 88688-2F040 | ||||
| 88718-24030 | ||||
| 88718-26450 | ||||
| 88718-26500 | ||||
| 88718-26540 | ||||
| 88718-26550 | ||||
| 88718-26670 | ||||
| 88718-2F030 | ||||
| 88718-32160 | ||||
| 88718-37150 | ||||
| 90093-00518 | ||||
| 90119-06423 | ||||
| 90119-06462 | ||||
| 90119-06553 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90464-00452 | ||||
| 91511-60625 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| 91651-60635 | ||||
| 93385-56025 | ||||

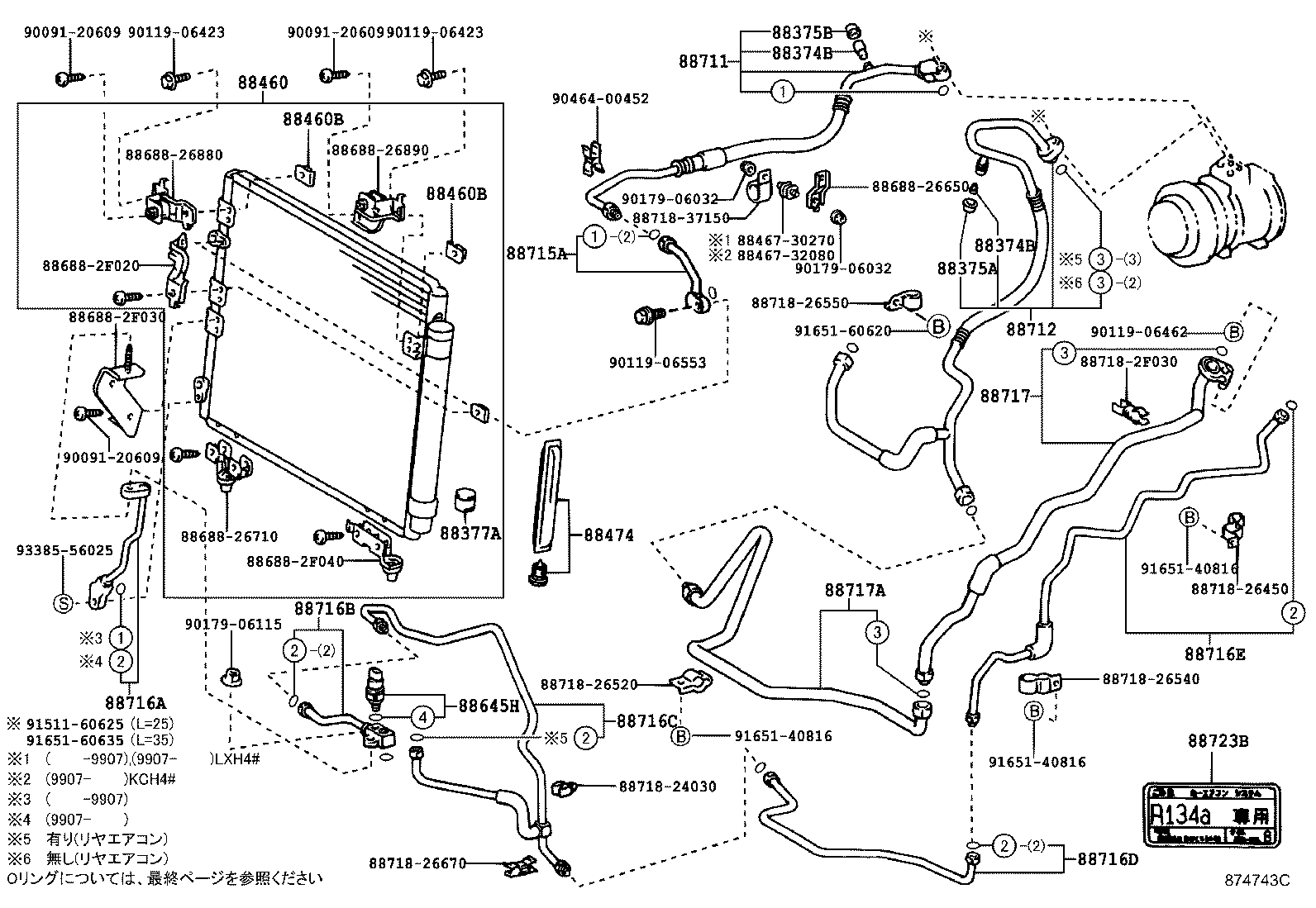

ILLUST NO. 1 OF 3(9804- )KCH4#,LXH4#
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30290 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88377A - FILTER, REFRIGERANT | ||||
| 88377-22010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-26420 |
KCH4#,LXH4# |
1 | ||
| 88460-26500 |
KCH4#,LXH4# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
3 | ||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
3 | ||
| 88463-35120 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-22010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-26020 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-26780 |
KCH4# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-26690 |
KCH4# |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-26320 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88715-26270 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-2F310 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716-2F470 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-2F350 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-2F300 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-2F320 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716-2F260 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88716-2F320 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-2F280 |
KCH4#,LXH4# |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-26820 |
KCH4#,LXH4# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-26800 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88467-32080 | ||||
| 88688-26650 | ||||
| 88688-26710 | ||||
| 88688-26880 | ||||
| 88688-26890 | ||||
| 88688-2F020 | ||||
| 88688-2F030 | ||||
| 88688-2F040 | ||||
| 88718-24030 | ||||
| 88718-26450 | ||||
| 88718-26520 | ||||
| 88718-26540 | ||||
| 88718-26550 | ||||
| 88718-26670 | ||||
| 88718-2F030 | ||||
| 88718-37150 | ||||
| 90091-20609 | ||||
| 90119-06423 | ||||
| 90119-06462 | ||||
| 90119-06553 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90464-00452 | ||||
| 91511-60625 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| 91651-60635 | ||||
| 93385-56025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
