Toyota Regius/touring hiace KCH40 SPEAKER

Part #	Description	Period	Qty
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-26090	KCH4#,RCH41,47..G,STD,WINT 左側	04/1997 - 12/1997	1
86150-26080	KCH4#,RCH41,47..G,STD,WINT 右側	04/1997 - 12/1997	1
86160 - SPEAKER ASSY, FRONT NO.1
86160-26150	KCH4#,RCH41..G,STD,WINT ｱﾘ(9 ｽﾋﾟ-ｶ)	04/1997 - 04/1998	2
86160-44010	KCH4#,RCH41,47..G,STD,WINT	04/1997 - 05/1999	2
86160-44070	KCH4#,RCH41,47..G,STD,V,WINT,WISTD	05/1999 - 12/2999	2
86160-26150	KCH4#,RCH41,47..G,STD,WINT ｱﾘ(9 ｽﾋﾟ-ｶ)	04/1998 - 12/2999	2
86160P - SPEAKER ASSY, FRONT NO.2
86160-26170	KCH4#,RCH41,47..G,STD,V,WINT,WISTD 左側	04/1998 - 12/2999	1
86160-26170	KCH4#,RCH41..G,STD,WINT 左側	04/1997 - 04/1998	1
86160-26160	KCH4#,RCH41,47..G,STD,V,WINT,WISTD 右側	04/1998 - 12/2999	1
86160-26160	KCH4#,RCH41..G,STD,WINT 右側	04/1997 - 04/1998	1
86160Q - SPEAKER ASSY, ROOF
86160-26370	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾑ-ﾝﾙ-ﾌ),左側	04/1997 - 04/1998	1
86160-26360	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾑ-ﾝﾙ-ﾌ),右側	04/1997 - 04/1998	1
86160-26380	KCH4#,RCH41..G08S,W08S 右側	04/1997 - 04/1998	1
86160-26360	KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾑ-ﾝﾙ-ﾌ),右側	04/1998 - 07/1999	1
86160-26390	KCH4#,RCH41..G08S,W08S 左側	04/1997 - 04/1998	1
86160-26370	KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾑ-ﾝﾙ-ﾌ),左側	04/1998 - 07/1999	1
86160-26390	KCH4#,RCH41,47..G08S,W08S 左側	04/1998 - 07/1999	1
86160-26380	KCH4#,RCH41,47..G08S,W08S 右側	04/1998 - 07/1999	1
86160R - SPEAKER ASSY, STEREO COMPONENT
86150-26100	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86150-26100	KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86160-26230	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
86160R - SPEAKER ASSY, STEREO COMPONENT
86150-26100	KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1997 - 04/1998	1
86150-26100	KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ)	04/1998 - 07/1999	1
86160-26230	KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
Common parts
90119-06182
90159-60025
90179-06015
90189-05097
90189-06018
91635-G0616
93560-56016
93567-15016

Part #	Description	Period	Qty
86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT
86160-26350	KCH4#..E;LXH4#..G 15W	04/1997 - 12/2999	2
86160-2B080	KCH4#..E;LXH4#,RCH42 10W	04/1997 - 12/2999	2
86225 - COVER, SPEAKER, RH
86225-26010	KCH4#..E	04/1997 - 07/1999	1
86226 - COVER, SPEAKER, LH
86226-26010	KCH4#..E	04/1997 - 07/1999	1
Common parts
90189-05097
93560-56016
93568-55012

KCH40G-GRSNT (1997)

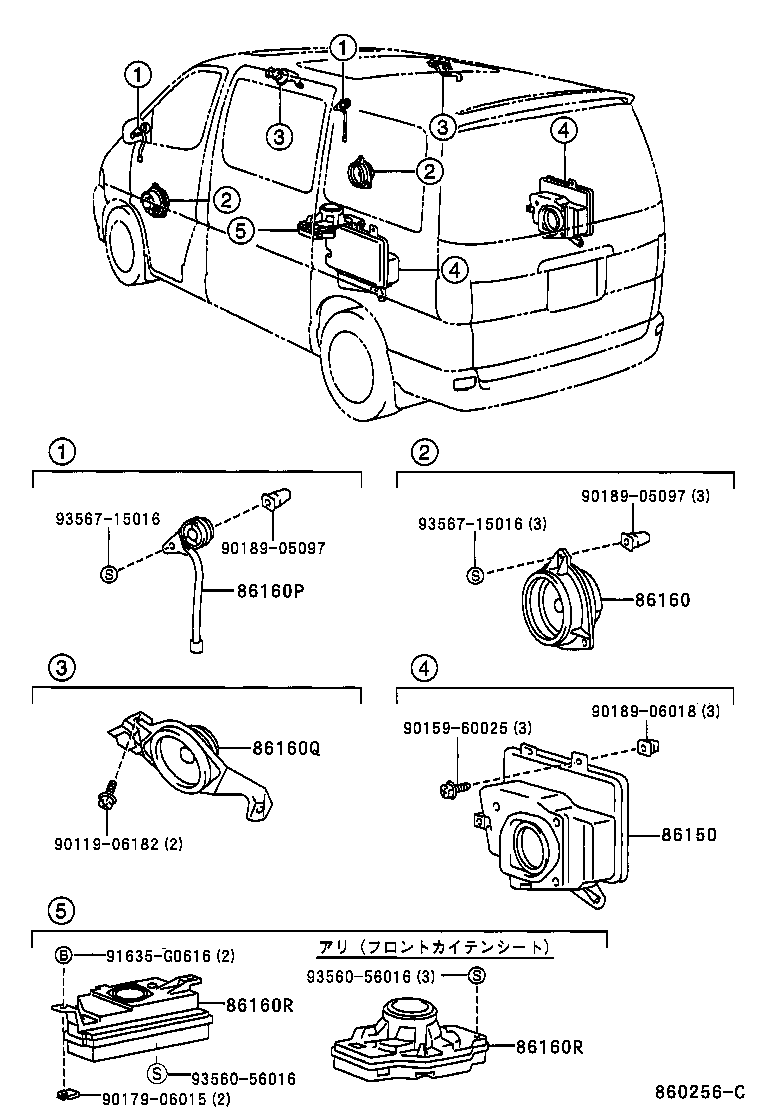

ILLUST NO. 1 OF 2(9704- )

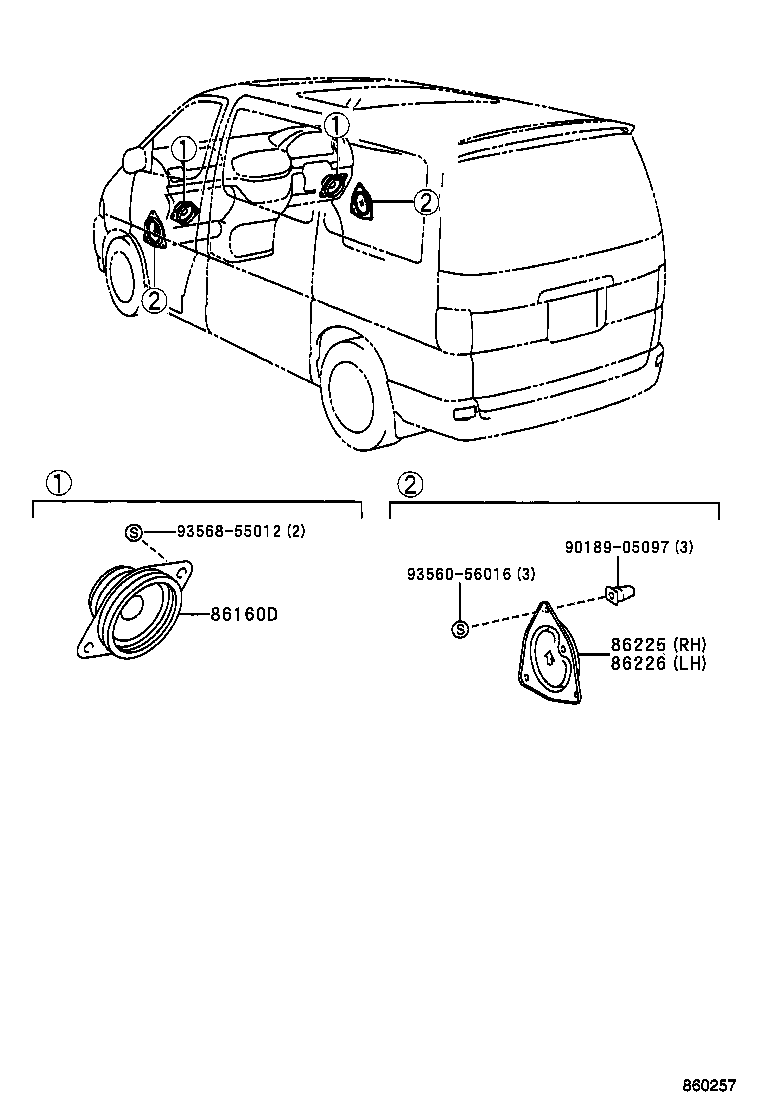

ILLUST NO. 2 OF 2(9704- )
