KCH40G-GRSNT (1997)
Toyota Regius/Touring Hiace

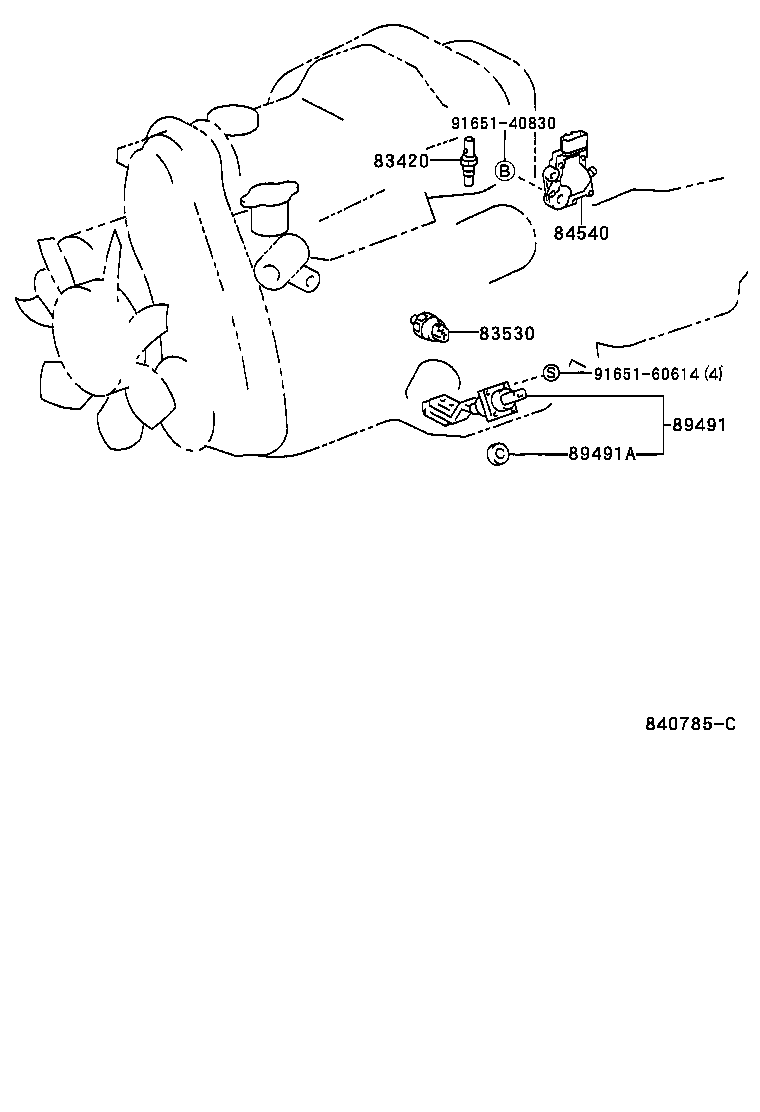

ILLUST NO. 1 OF 8(9704- )KCH4#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
KCH4#,LXH4#,RCH42 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
KCH4# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30270 |
KCH4#;RCH41..5D;RCH47..W07S |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-26120 |
KCH40 |
1 | ||
| 89491-26121 |
KCH40 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90430-27001 |
KCH4#,RCH41,42 |
1 | ||
| 89493-60010 |
KCH4#,LXH4#,RCH47 |
1 | ||
| Common parts | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||

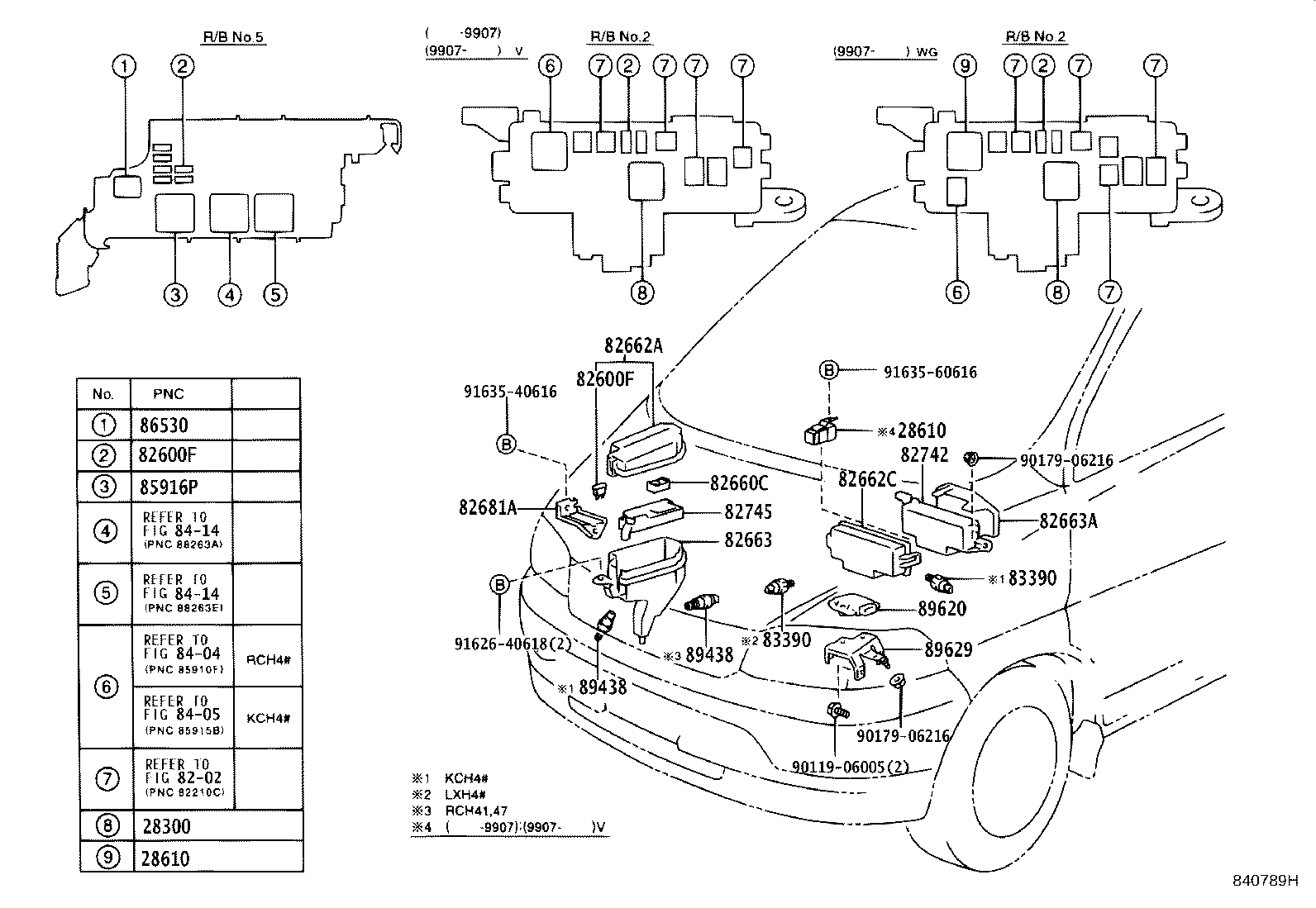

ILLUST NO. 2 OF 8(9704- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1KZTE,5L,1RZE,3RZFE..KCH4#,LXH4#,RCH4# |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54380 |
5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54380 |
5L..LXH4#;1KZTE..KCH4#..G07S;1KZTE..KCH4#..E,STD,WINT |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
KCH4#,LXH4#,RCH4# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
KCH4#,LXH4#,RCH4# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
KCH4#,LXH4#,RCH4# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
KCH4#,LXH4#,RCH4# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
KCH4#,LXH4#,RCH4# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
KCH4#,LXH4#,RCH4# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
KCH4#,LXH4#,RCH4# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
KCH4#,LXH4#,RCH4# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
KCH4#,LXH4#,RCH4# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
KCH4#,LXH4#,RCH4# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
KCH4#,LXH4#,RCH4# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
KCH4#,LXH4#,RCH4# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
KCH4#,LXH4#,RCH4# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
KCH4#,LXH4#,RCH4# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26140 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-26032 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-26072 |
KCH4# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82681A - BRACKET, FUSE BLOCK | ||||
| 82681-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82745 - BLOCK, ENGINE ROOM RELAY, NO.5 | ||||
| 82745-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
KCH4#,LXH4# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
KCH4#,LXH4# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-10010 |
KCH4# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-10010 |
KCH4# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90179-06216 | ||||
| 91626-40618 | ||||
| 91635-40616 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8414 | ||||

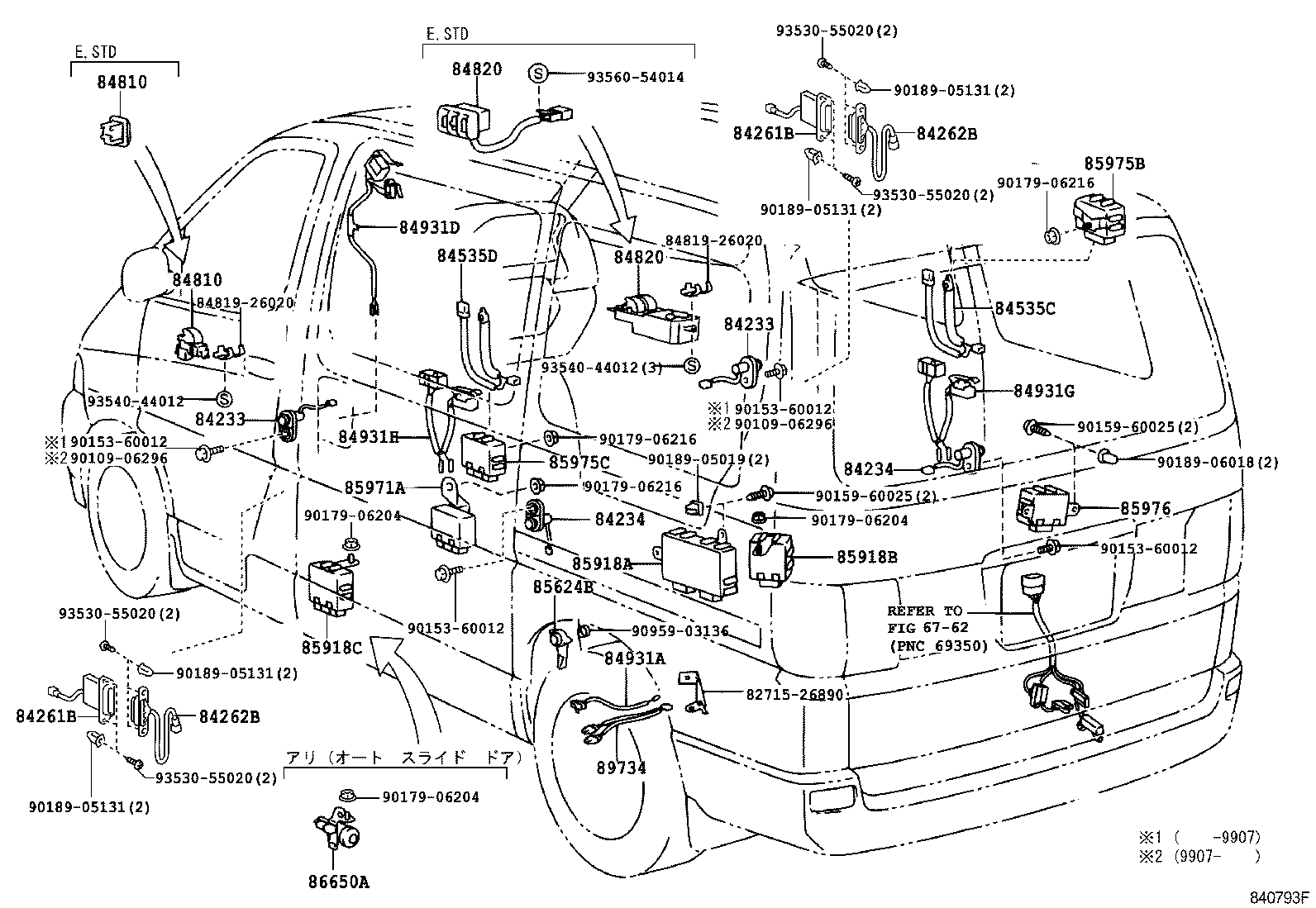

ILLUST NO. 7 OF 8(9704- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-26071 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-26071 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-26061 |
KCH4#,LXH4#,RCH41,47..4D |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-26061 |
KCH4#,LXH4#,RCH41,47..4D |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26040 |
LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD 左側 |
1 | ||
| 84261-26030 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ),左側 |
1 | ||
| 84261-26030 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) OR ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ),左側 |
1 | ||
| 84261B - JUNCTION, SLIDE DOOR CONTROL,MALE | ||||
| 84261-26040 |
LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD 左側 |
1 | ||
| 84261-26030 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ),左側 |
1 | ||
| 84261-26030 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) OR ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ & ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ),左側 |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-26040 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ),左側 |
1 | ||
| 84262-26020 |
LXH4#..4D;KCH4#,RCH41,47..E,STD,V,WINT,WISTD 左側 |
1 | ||
| 84262-26040 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ),左側 |
1 | ||
| 84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE | ||||
| 84262-26040 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ),左側 |
1 | ||
| 84262-26020 |
LXH4#..4D;KCH4#,RCH41,47..E,STD,V,WINT,WISTD 左側 |
1 | ||
| 84262-26040 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ),左側 |
1 | ||
| 84535D - SWITCH, DOOR LOCK, LH | ||||
| 84535-26110 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 84535-26120 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 84535-26110 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 84535-26120 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20060B4 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 84810-12080 |
LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-20060B4 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 84810-12080 |
LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26110B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 84820-26100 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-26110B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 84820-26100 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 84931A - SWITCH, AUTOMATIC DOOR CONTROL | ||||
| 84931-26080 |
KCH4#,RCH41,47 |
1 | ||
| 84931H - SWITCH, SLIDE DOOR CONTROL, LH | ||||
| 84931-26090 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 84931-26090 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85624B - LEVER, AUTO DOOR REGULATOR | ||||
| 85624-26010 |
KCH4#,RCH41,47 |
1 | ||
| 85918A - RELAY, DOOR CONTROL | ||||
| 85918-26140 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85918-26190 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85918-26190 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85918C - RELAY, DOOR CONTROL, LH | ||||
| 85918-26150 |
LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85918-26150 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85975C - RELAY, SLIDE DOOR CLOSER, LH | ||||
| 85975-26060 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85975-26050 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85975-26060 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 85975-26050 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85976 - RELAY, BACK DOOR CLOSER | ||||
| 85976-26030 |
KCH4#,RCH41,47..G,STD,V |
1 | ||
| 85976-26030 |
KCH4#,RCH41..G,STD |
1 | ||
| 86650A - BUZZER ASSY, DOOR OPENING | ||||
| 86650-26060 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 89734 - SENSOR, AUTO DOOR SPEED CONTROL | ||||
| 89734-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| Common parts | ||||
| 82715-26890 | ||||
| 84819-26020 | ||||
| 90109-06296 | ||||
| 90153-60012 | ||||
| 90159-60025 | ||||
| 90179-06204 | ||||
| 90179-06216 | ||||
| 90189-05019 | ||||
| 90189-05131 | ||||
| 90189-06018 | ||||
| 90959-03136 | ||||
| 93530-55020 | ||||
| 93540-44012 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 6762 | ||||

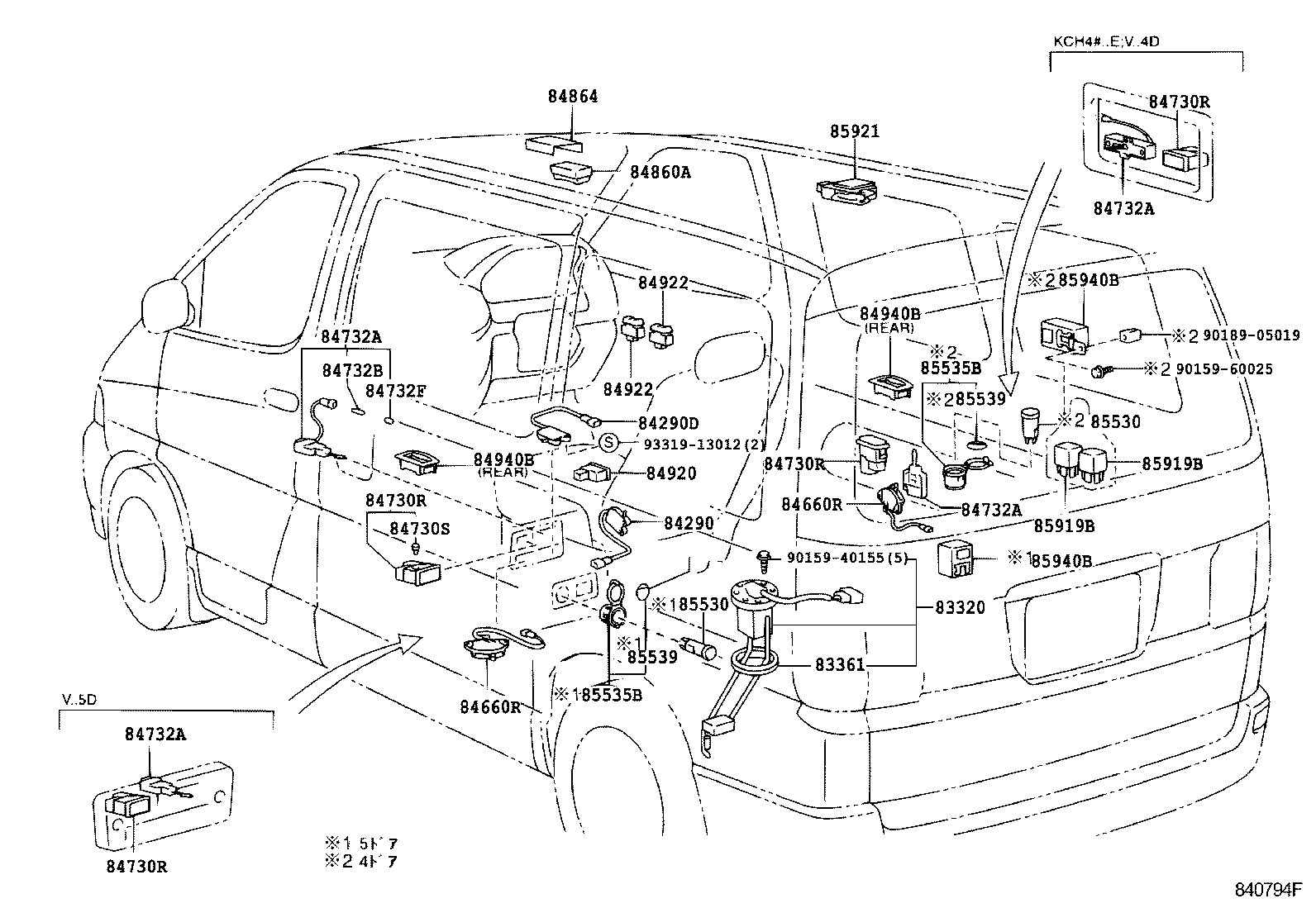

ILLUST NO. 8 OF 8(9704- )
ﾙ-ﾌ,ﾌﾛｱ,ﾄﾘﾑ & ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80350 |
KCH4#,LXH4# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-26040 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 84290D - SWITCH ASSY, LIMIT | ||||
| 84290-26040 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-95J12 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-95J12 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J03 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 84730-95J03 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 84730-26020 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J03 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 84730-95J03 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 84730-26020 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J03 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 84730-95J03 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 84730-26020 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-95J03 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 84730-95J03 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 84730-26020 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-95J04 |
LXH4#,RCH42..5D;KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 84732-95J05 |
KCH4#..E;LXH4#..4D |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-95J04 |
LXH4#,RCH42..5D;KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 84732-95J05 |
KCH4#..E;LXH4#..4D |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-95J04 |
LXH4#,RCH42..5D;KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 84732-95J05 |
KCH4#..E;LXH4#..4D |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-95J04 |
LXH4#,RCH42..5D;KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
1 | ||
| 84732-95J05 |
KCH4#..E;LXH4#..4D |
1 | ||
| 84860A - SWITCH ASSY, SLIDING ROOF | ||||
| 84860-26060 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 84864 - COVER, SLIDE ROOF MOTOR SWITCH | ||||
| 84864-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-26010 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-26030 |
KCH4#,RCH41,47..G ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 84922-26020 |
KCH4#,RCH41,47..G ｽﾗｲﾄﾞ |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-26030 |
KCH4#,RCH41,47..G ﾘｸﾗｲﾆﾝｸﾞ |
1 | ||
| 84922-26020 |
KCH4#,RCH41,47..G ｽﾗｲﾄﾞ |
1 | ||
| 84940B - SWITCH ASSY, CURTAIN(SIDE) | ||||
| 84940-26040 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ﾌﾛﾝﾄ |
1 | ||
| 84940-26040 |
KCH4#,RCH41,47..G,STD,V,WINT ﾌﾛﾝﾄ |
1 | ||
| 84940-95J08G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6#,ﾘﾔ |
2 | ||
| 84940B - SWITCH ASSY, CURTAIN(SIDE) | ||||
| 84940-26040 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ﾌﾛﾝﾄ |
1 | ||
| 84940-26040 |
KCH4#,RCH41,47..G,STD,V,WINT ﾌﾛﾝﾄ |
1 | ||
| 84940-95J08G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6#,ﾘﾔ |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-26020C0 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
1 | ||
| 85535-26010 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85535-26020G0 |
KCH4#,RCH41,47..4D..(G,STD) DK. SAGE,TRIM6# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-26020C0 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
1 | ||
| 85535-26010 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85535-26020G0 |
KCH4#,RCH41,47..4D..(G,STD) DK. SAGE,TRIM6# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85919B - RELAY ASSY, SEAT ADJUSTER | ||||
| 90987-04002 |
KCH4#,RCH41,47..G |
2 | ||
| 85919B - RELAY ASSY, SEAT ADJUSTER | ||||
| 90987-04002 |
KCH4#,RCH41,47..G |
2 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-26030 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Common parts | ||||
| 90159-40155 | ||||
| 90159-60025 | ||||
| 90189-05019 | ||||
| 93319-13012 | ||||

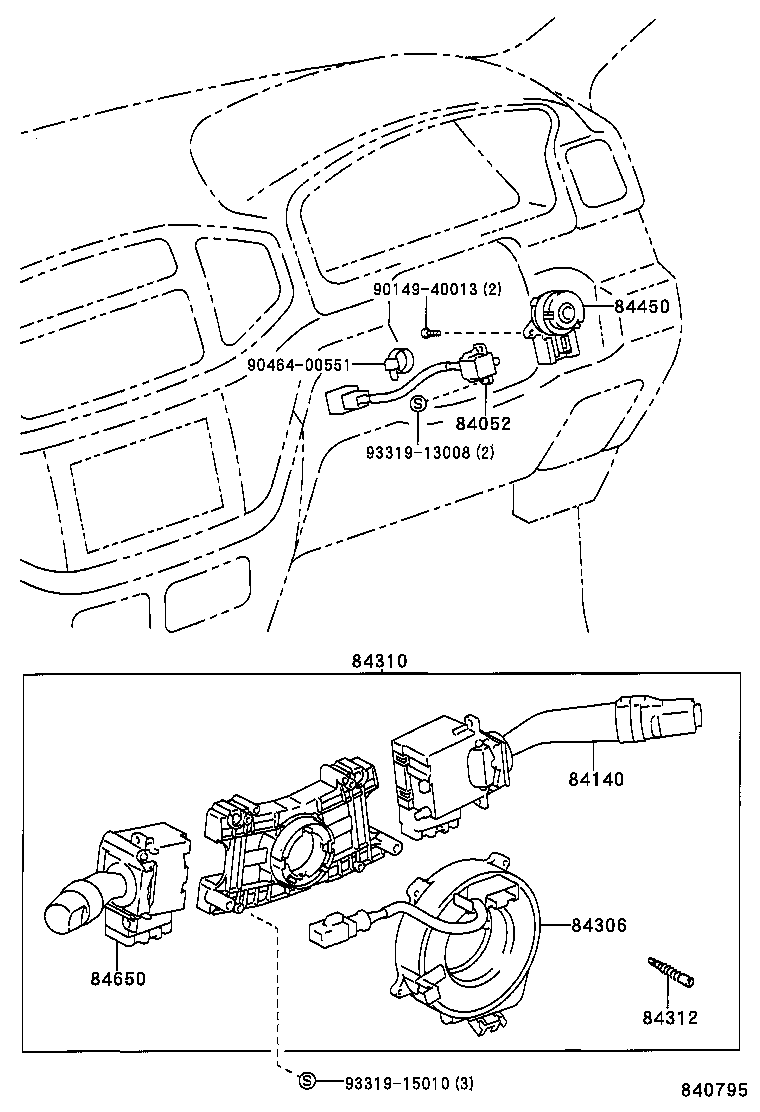

ILLUST NO. 6 OF 8(9704- )
ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-12060 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26160 |
KCH4#,RCH41,47..G |
1 | ||
| 84140-26170 |
KCH4#..E;LXH4#,RCH42 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-26060 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-2F110 |
KCH4#..E |
1 | ||
| 84310-26832 |
KCH4#,RCH41,47..G |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42060 |
KCH4#..E |
1 | ||
| 84652-26500 |
LXH4#..G;KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-15010 | ||||
ILLUST NO. 5 OF 8(9704- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95J05 |
KCH4#..E |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26100 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84332-22130 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-26100 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84332-22130 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
KCH4#,LXH4#,RCH4# 14V 0.91W |
1 | ||
| 90010-01036 |
KCH4#,RCH41,47..G,STD,WINT 14V 0.91W,ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
KCH4#,LXH4#,RCH4# 14V 0.91W |
1 | ||
| 90010-01036 |
KCH4#,RCH41,47..G,STD,WINT 14V 0.91W,ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝｼｽﾃﾑ) |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 84453-26030 |
KCH4# |
1 | ||
| 84453A - BULB, IDLE UP SWITCH | ||||
| 84999-10320 |
RCH41..4D;RCH47..W08S;KCH4#,LXH4#,RCH42 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10110 |
KCH4#..E;LXH4#,RCH42 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
KCH4#..E;LXH4#,RCH42 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-26030 |
KCH4#..E;LXH4#,RCH42 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-43010 |
KCH4#..E;LXH4#..G |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10310 |
KCH4#..E;LXH4#..G 14V 0.91W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
KCH4#..E;LXH4#..G |
1 | ||
| 84870-16040 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN | ||||
| 84930-26040 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 84930-26040 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 84930J - SWITCH ASSY, AUTO SLIDE DOOR MAIN | ||||
| 84930-26040 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 84930-26040 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL | ||||
| 84930-26030 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 84930-26030 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH | ||||
| 90010-01013 |
RCH47..G,STD;KCH4#,RCH41..G,STD,WINT 14V 0.84W |
1 | ||
| 90010-01013 |
KCH4#,RCH41,47..G,STD,WINT 14V 0.84W |
1 | ||
| 84940B - SWITCH ASSY, CURTAIN(SIDE) | ||||
| 84940-26040 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ﾌﾛﾝﾄ |
1 | ||
| 84940-26040 |
KCH4#,RCH41,47..G,STD,V,WINT ﾌﾛﾝﾄ |
1 | ||
| 84940-95J08G0 |
KCH4#,RCH41,47..G,STD SAGE,TRIM6#,ﾘﾔ |
2 | ||
| 84940C - SWITCH ASSY, CURTAIN(BACK) | ||||
| 84940-26050 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 84940-26050 |
KCH4#,RCH41,47..G,STD,V,WINT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-28050 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
KCH4#,RCH4# 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 84998-10550 |
KCH4#,RCH4# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-30010 |
KCH4#,RCH4# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 88610M - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-26010 |
KCH4#..E;LXH4#..G |
1 | ||
| Linked diagrams | ||||
| 8410 | ||||
| 8606 | ||||

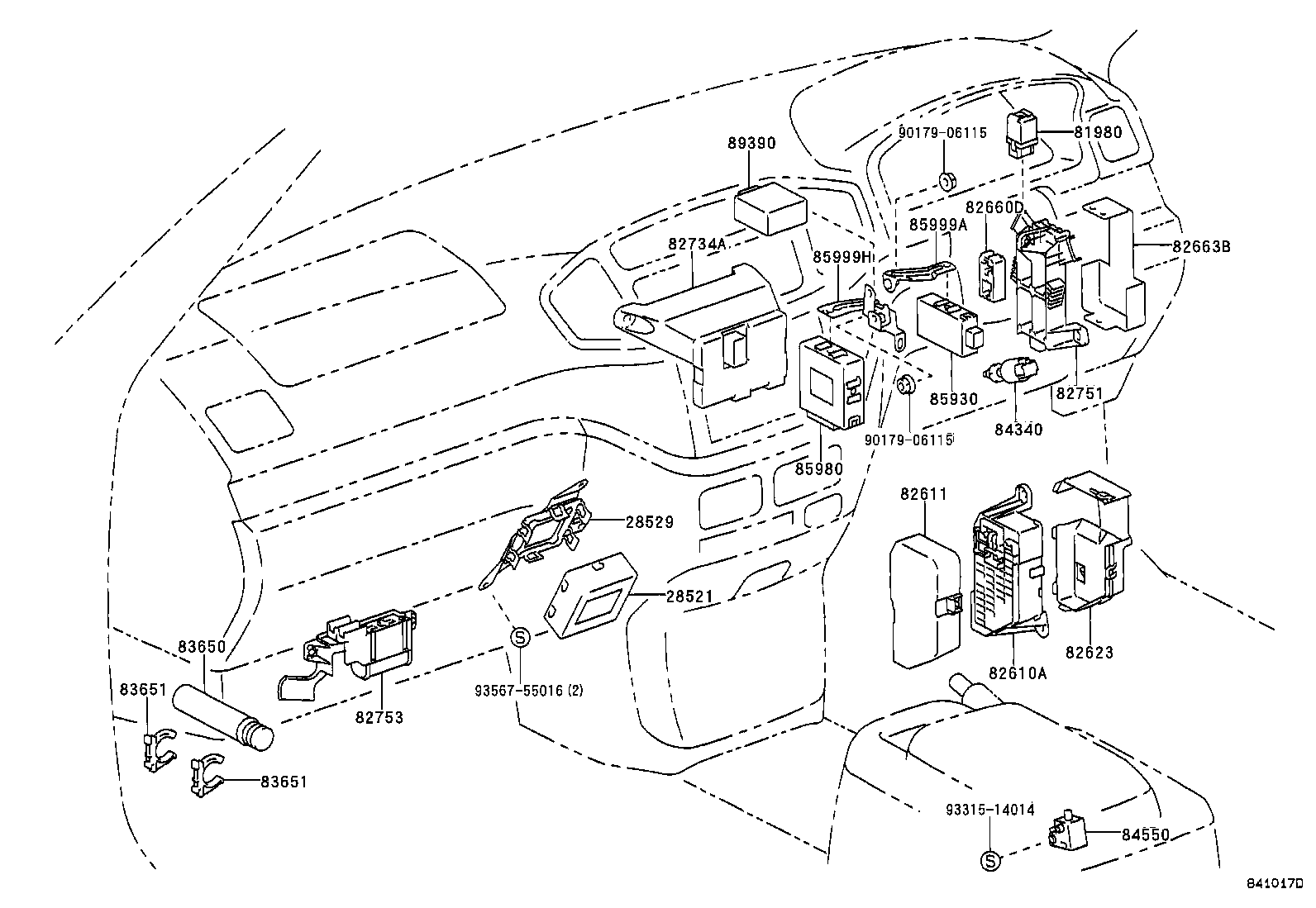

ILLUST NO. 3 OF 8(9704- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-26070 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-26320 |
KCH4#,RCH41,47 |
1 | ||
| 82611-26270 |
KCH4#,RCH41,47 |
1 | ||
| 82623 - COVER, FUSIBLE LINK, LOWER | ||||
| 82623-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26080 |
LXH4#..G;KCH4#,RCH41,47 |
2 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82751 - BLOCK, DRIVER SIDE RELAY | ||||
| 82751-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82753 - BLOCK, PASSENGER SIDE RELAY | ||||
| 82753-26010 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 82753-26020 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 90468-25003 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-26040 |
KCH4#..E;LXH4#,RCH42..STD |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-26070 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85980-26030 |
KCH4#..E;LXH4#,RCH42..STD |
1 | ||
| 85980-26041 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-26240 |
KCH4#..E;LXH4#,RCH42..STD |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-26191 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 89390 - RELAY, BRAKE WARNING | ||||
| 89391-26010 |
RCH41..4D;RCH47..W08S;KCH4#,LXH4#,RCH42 ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 93315-14014 | ||||
| 93567-55016 | ||||

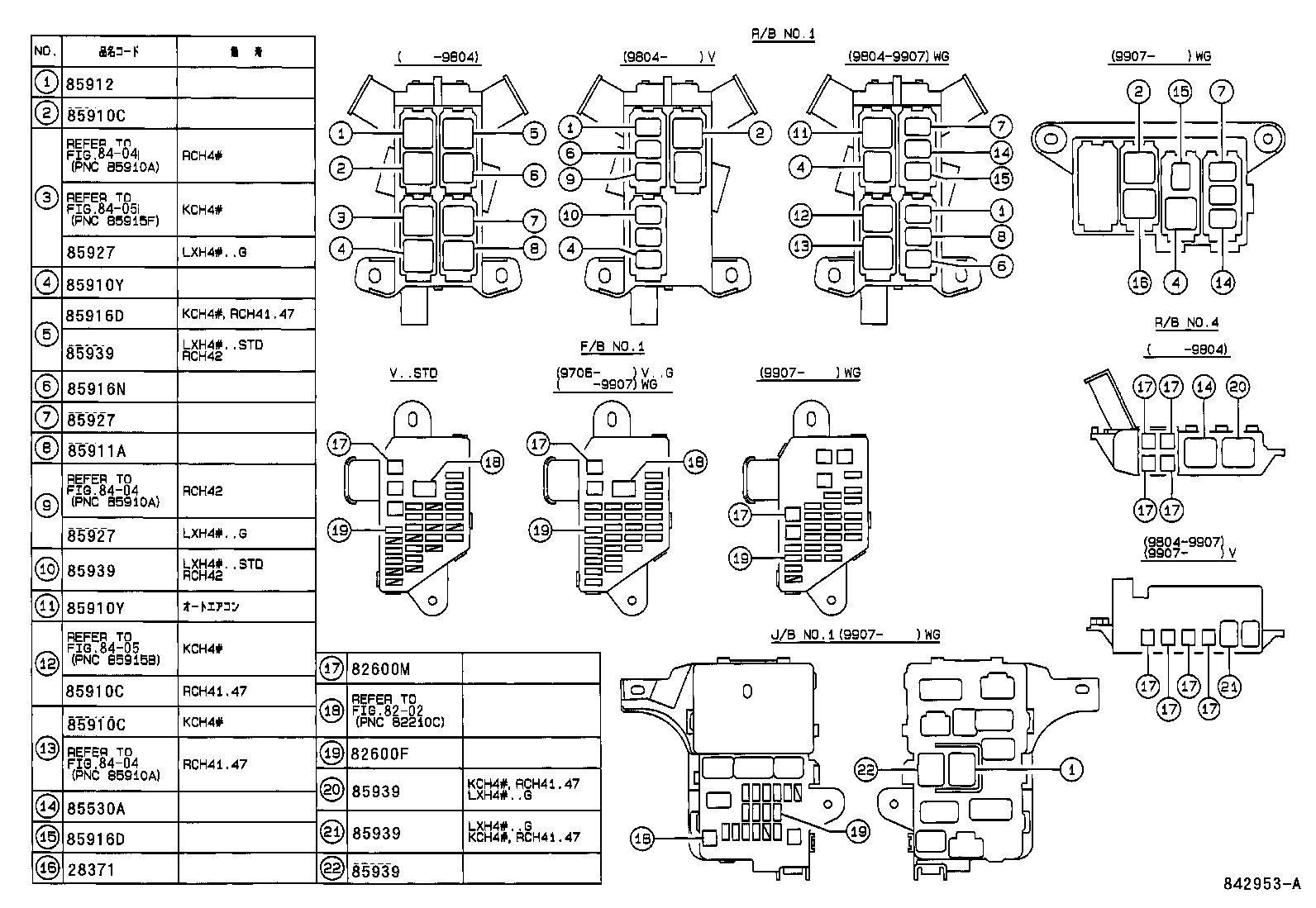

ILLUST NO. 4 OF 8(9704- )
R/B,J/B,F/B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
KCH4#,LXH4#,RCH4# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09008 |
KCH4#,LXH4#,RCH4# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09012 |
KCH4#,LXH4#,RCH4# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09009 |
KCH4#,LXH4#,RCH4# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
KCH4#,LXH4#,RCH4# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
KCH4#,LXH4#,RCH4# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09007 |
KCH4#,LXH4#,RCH4# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
LXH4#..G;KCH4#,RCH41,47 30A,ﾋﾟﾝｸ |
1 | ||
| 90982-10002 |
KCH4#,LXH4#,RCH4# 40A,緑 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-04002 |
KCH4#,RCH41,47..G,WINT |
1 | ||
| 90987-02009 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 90987-02012 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 90987-04002 |
KCH4#,RCH41,47..G,V,WISTD |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-04002 |
KCH4#,RCH41,47..G,WINT |
1 | ||
| 90987-02009 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 90987-02012 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 90987-04002 |
KCH4#,RCH41,47..G,V,WISTD |
1 | ||
| 85911A - RELAY, AUTO CURTAIN | ||||
| 90987-02012 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 90987-02009 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90987-02012 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
KCH4#,RCH41,47 |
1 | ||
| 90987-02009 |
KCH4#,RCH41,47 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
KCH4#,RCH41,47 |
1 | ||
| 90987-02009 |
KCH4#,RCH41,47 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90987-02012 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02009 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 90987-02012 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02009 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 90987-02012 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02009 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 90987-02012 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90987-02012 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90987-02012 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90987-02012 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90987-02012 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 90987-02012 |
KCH4#,LXH4#,RCH4# |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
