KCH40G-GRSNT (1997)
Toyota Regius/Touring Hiace

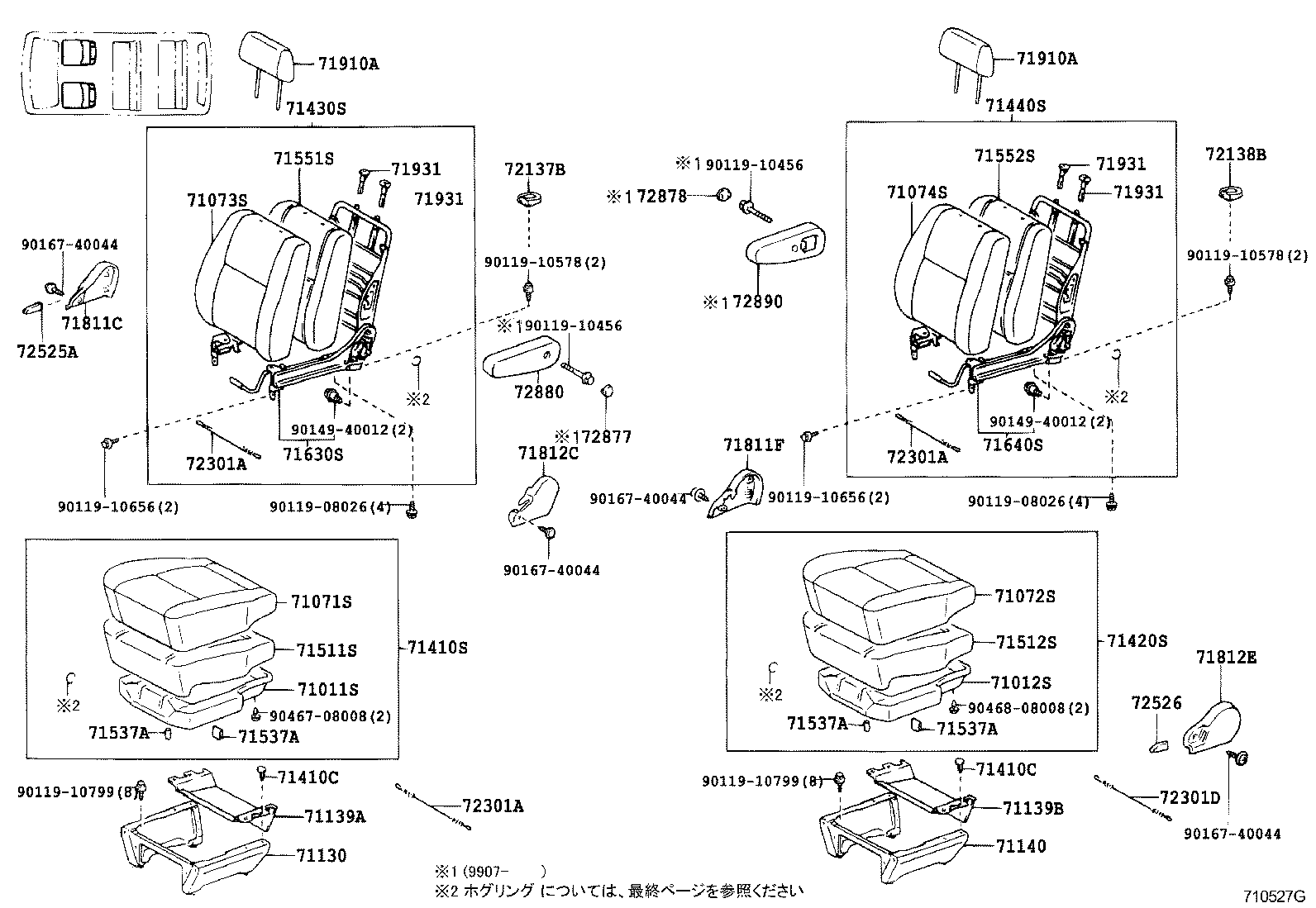

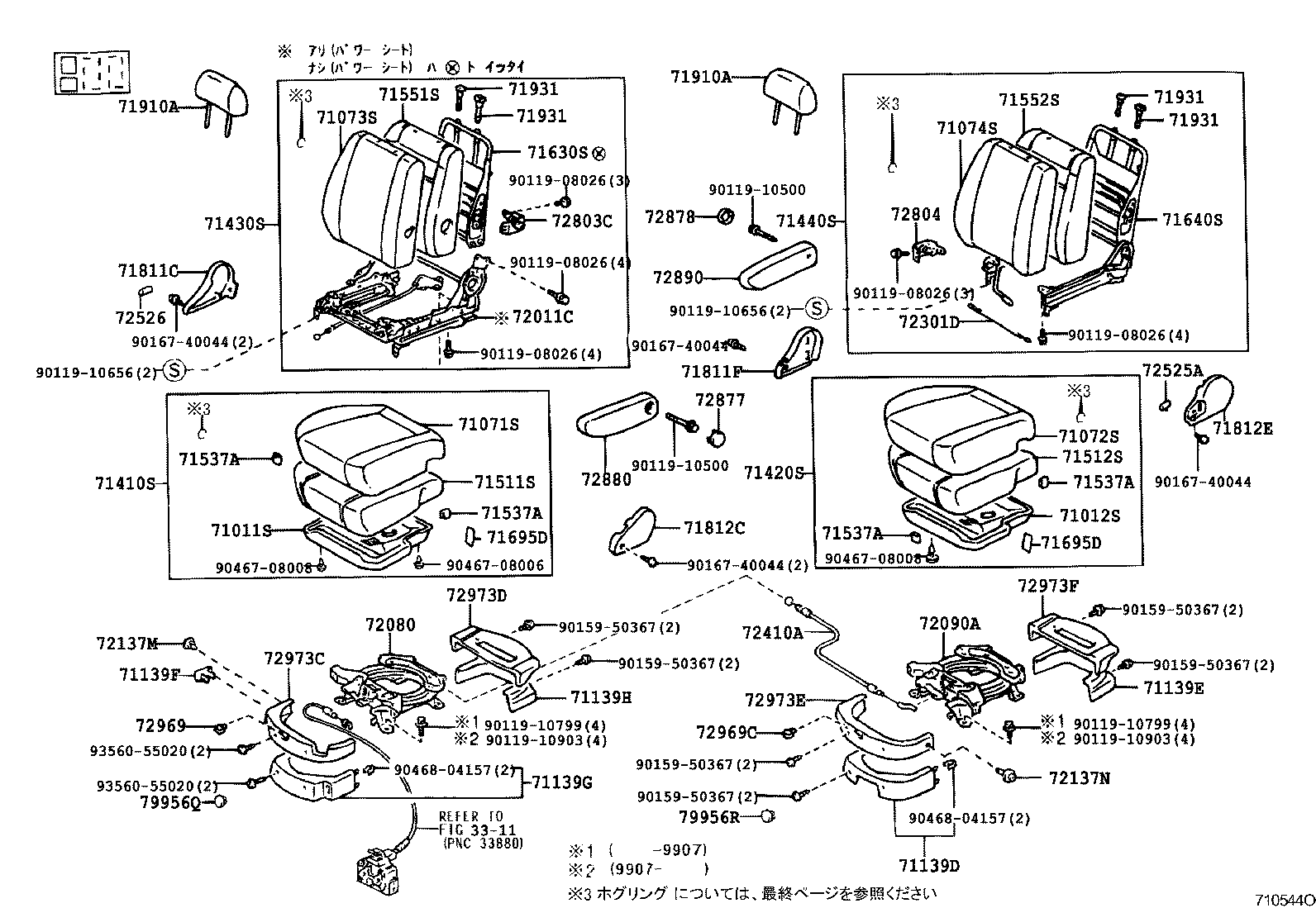

ILLUST NO. 1 OF 6(9704- )E,G
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-26040 |
LXH4#,RCH42;KCH4#,RCH41,47..E,G,V,WINT,WISTD |
1 | ||
| 71011-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-26040 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 71011-26040 |
KCH4#,LXH4#,RCH41,47..E,G,V,WINT,WISTD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26310B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26330G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-26310B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26380G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26390B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26560G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-26530G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71073-26390B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71130 - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-26030G0 |
RCH47..W07S;KCH4#,RCH41..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71130-26020G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ),DK.SAGE,TRIM6# |
1 | ||
| 71130-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 71130-26030B0 |
KCH4#,RCH41..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 71130-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-26010G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾌﾂﾄﾚｽﾄ),DK.SAGE,TRIM6# |
1 | ||
| 71139-26080B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| 71139-26090B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71139-26020G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾌﾂﾄﾚｽﾄ),DK.SAGE,TRIM6# |
1 | ||
| 71140 - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 71140-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-06020B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
12 | ||
| 90467-06020G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
12 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-06020B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
12 | ||
| 90467-06020G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
12 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-26340B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26360G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-26380G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71410-26340B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-26650G0 |
KCH4#,RCH41,47..4D..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71430-26620G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71430-26600B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-26540B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71440-26560G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71440-26590G0 |
KCH4#,RCH41,47..4D..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26050 |
KCH4#,RCH41,47 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-26050 |
KCH4#,RCH41,47 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26080 |
KCH4#..E |
1 | ||
| 71551-26140 |
KCH4#,RCH41,47..G |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26080 |
KCH4#..E |
1 | ||
| 71552-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-26020C0 |
KCH4#..E;LXH4#,RCH42 BLACK,TRIM1# |
1 | ||
| 71013-26170 |
KCH4#,RCH41,47..G |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-26020C0 |
KCH4#..E;LXH4#..G BLACK,TRIM1# |
1 | ||
| 71640-26060C0 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
1 | ||
| 71640-26080C0 |
KCH4#,RCH41..4D..G ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLACK,TRIM6# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26040G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71811-26020B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26030B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26030G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71812-26020B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71812-26010B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26080B3 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26230G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26080B3 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26230G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 72137-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 72137-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 72137-26070 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-26010 |
LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-26010 |
LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-26010 |
LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-26010 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
KCH4#,LXH4#,RCH4# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41..4D..G DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01B0 |
KCH4#,RCH41..4D..G BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26050B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-26050G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01B0 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26050B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72877-26030G2 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72878-26030G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-26100G1 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 72880-26050G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-26050G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72890-26080G1 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
| 90119-10456 | ||||
| 90119-10578 | ||||
| 90119-10656 | ||||
| 90119-10799 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90467-08008 | ||||
| 90468-08008 | ||||

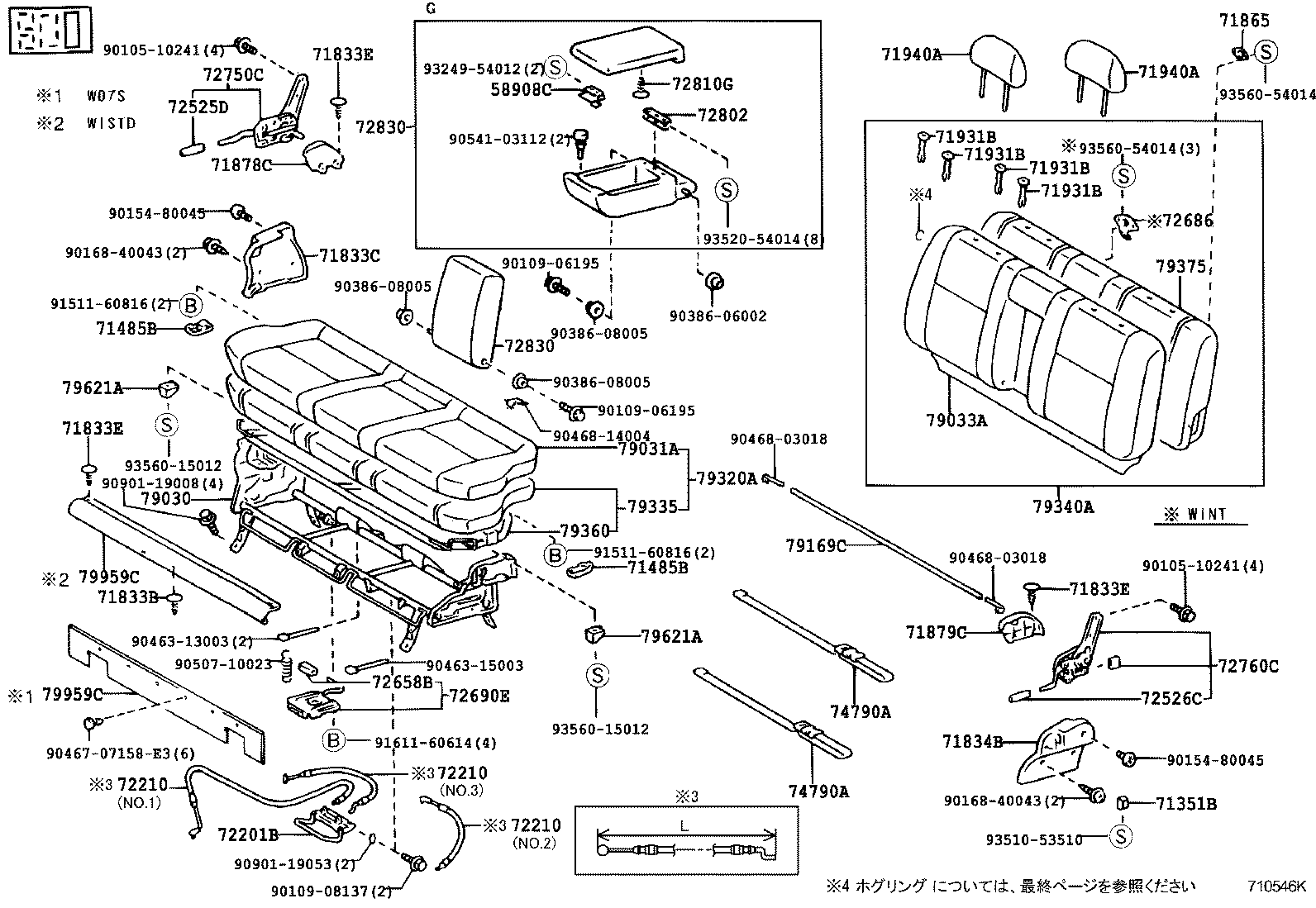

ILLUST NO. 3 OF 6(9704- )KCH4#,RCH41,47..G
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
KCH4#,RCH41,47..(G,STD,WINT,WISTD)..(G08S,W08S) |
19 | ||
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
KCH4#,RCH41,47..(G,STD,WINT,WISTD)..(G08S,W08S) |
19 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-26010B0 |
KCH4#..E ｻ-ﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71833-26010B0 |
KCH4#,RCH41,47..E,STD ｻ-ﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71834-26020B0 |
KCH4#..E ｾｶﾝﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71834-26020B0 |
KCH4#,RCH41,47..E,STD ｾｶﾝﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71811-26060G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71812-26040G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71877B - COVER, REAR SEAT ARMREST HOLE RH | ||||
| 71877-26010G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71877B - COVER, REAR SEAT ARMREST HOLE RH | ||||
| 71877-26010G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71877C - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 71877-26010G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71877C - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 71877-26010G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-26080B3 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26130G0 |
KCH4#,RCH41,47..4D..G SAGE,TRIM6# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-26080B3 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26130G0 |
KCH4#,RCH41,47..4D..G SAGE,TRIM6# |
3 | ||

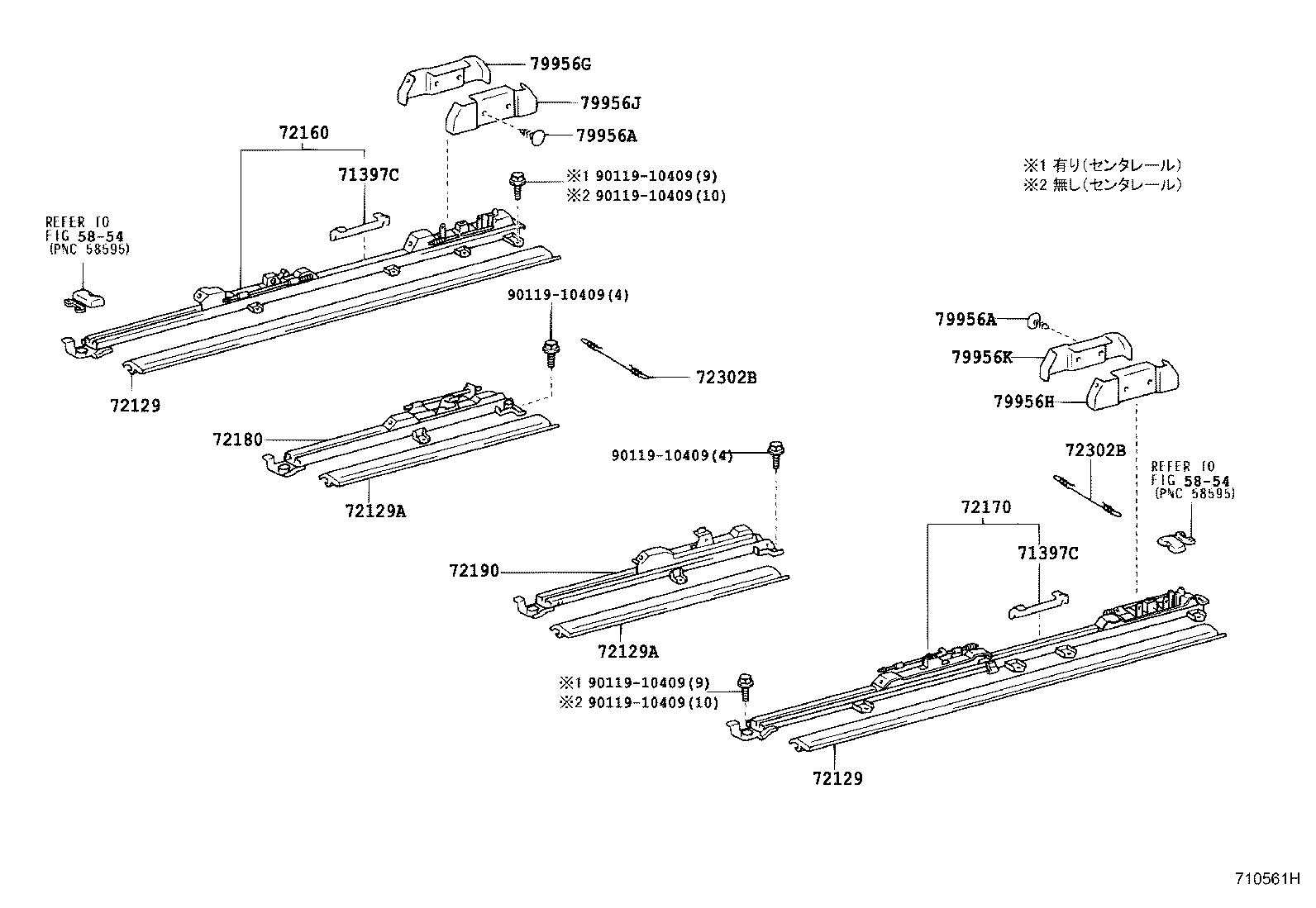

| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-26080 |
KCH4#..E NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#..E NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#,RCH41,47..E,STD,V NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26130 |
KCH4#,RCH41,47..E,STD,V NO.4, L=642:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26040 |
KCH4#..E NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26010 |
KCH4#,RCH41,47..G,STD,WINT NO.5 |
1 | ||
| 72210-26120 |
KCH4#,RCH41,47..E,STD,V NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26090 |
KCH4#..E NO.4, L=650:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26080 |
KCH4#,RCH41,47..E,STD,V NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210C - CABLE ASSY, SEAT TRACK CONTROL, LH | ||||
| 72210-26010 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72213B - KNOB, SEAT TRACK ADJUSTING HANDLE, RH | ||||
| 72213-28020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH | ||||
| 72213-28020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41..G DK.SAGE,TRIM6# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41..G DK.SAGE,TRIM6# |
1 | ||

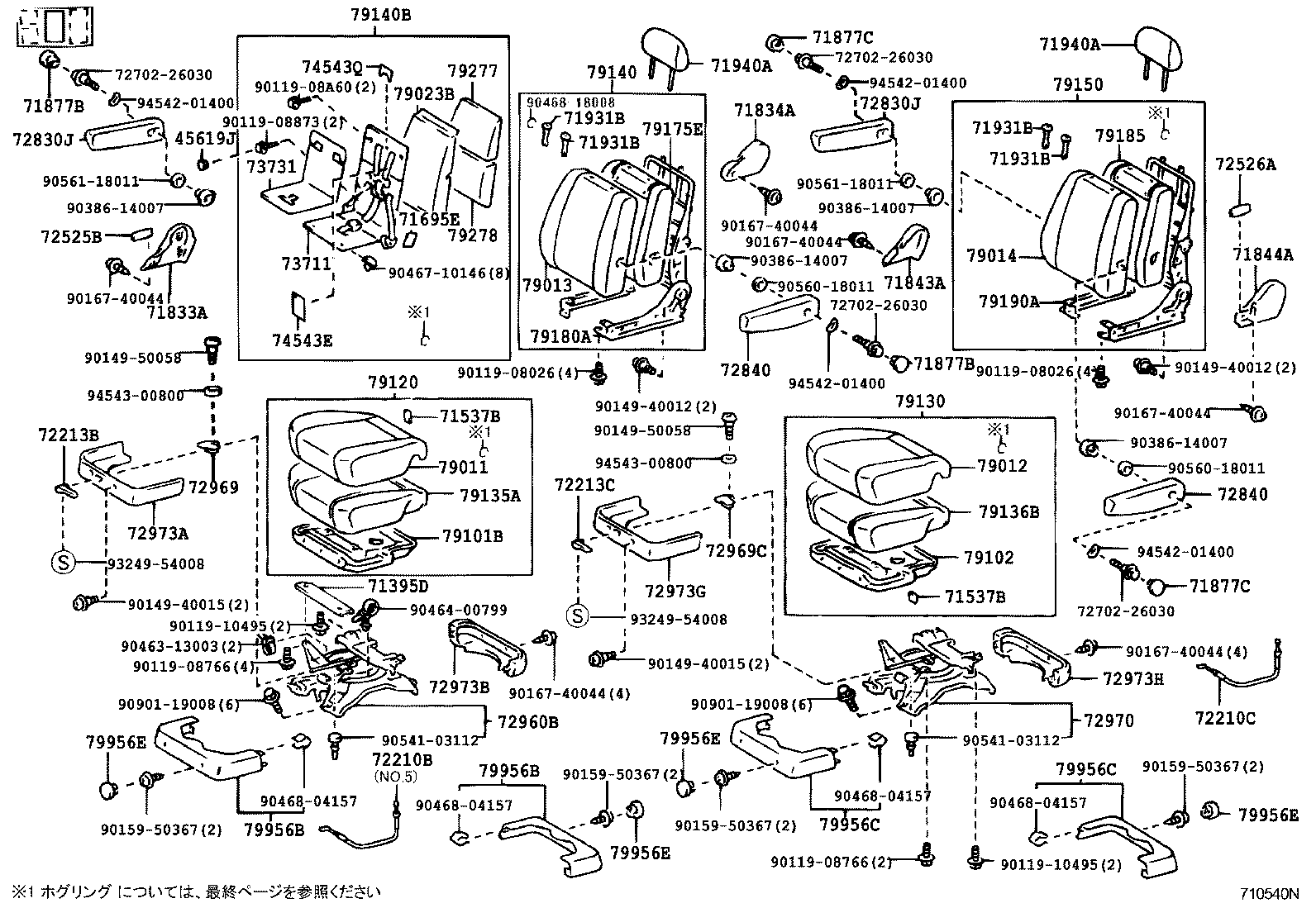

| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-26160G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-26160G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-26070G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-26070G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 72960B - TABLE ASSY, REAR SEAT TURN, RH | ||||
| 72960-26040 |
KCH4#,RCH41,47..G |
1 | ||
| 72969 - KNOB, REAR SEAT TURN LOCK | ||||
| 72969-26030G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 72969-28020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72969C - KNOB, REAR SEAT TURN LOCK, LH | ||||
| 72969-28020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72969-26030G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-26060 |
KCH4#,RCH41,47..G |
1 | ||
| 72973A - COVER, REAR SEAT TURN TABLE | ||||
| 72973-26020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72973B - COVER, REAR SEAT TURN TABLE, NO.2 | ||||
| 72973-26030G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72973G - COVER, REAR SEAT TURN TABLE, NO.1 | ||||
| 72973-26020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72973H - COVER, REAR SEAT TURN TABLE, NO.2 | ||||
| 72973-26040G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 73711 - BODY, CHILD RESTRAINT SEAT | ||||
| 73711-AA010 |
KCH4#,RCH41,47..G |
1 | ||
| 73731 - COVER, CHILD RESTRAINT SEAT | ||||
| 73731-33010G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-26380G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79011-26530G0 |
KCH4#,RCH41,47..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79011-26380G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-26450G0 |
KCH4#,RCH41..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79013-26510G0 |
KCH4#,RCH41,47..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79013-26330G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-26330G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79023B - COVER SUB-ASSY, JUNIOR SEAT BACK | ||||
| 79023-26130G0 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 79023-26170G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-26460G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79120-26570G0 |
KCH4#,RCH41,47..G ***,ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79120-26460G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-26110 |
KCH4#,RCH41..G |
1 | ||
| 79135-26200 |
KCH4#,RCH41,47..G |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79135-26110 |
KCH4#,RCH41,47..G |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-26440G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79140-26510G0 |
KCH4#,RCH41..G ***,ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79140-26600G0 |
KCH4#,RCH41,47..G ***,ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79140B - BACK ASSY, NO.1 JUNIOR SEAT, RH | ||||
| 79140-26610G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79140-26520G0 |
KCH4#,RCH41..G ***,SAGE,TRIM6# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-26190G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-26130 |
KCH4#,RCH41..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ) |
1 | ||
| 79175-26140 |
KCH4#,RCH41,47..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ) |
1 | ||
| 71551-26070 |
KCH4#,RCH41,47..G |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-26190 |
KCH4#,RCH41..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ) |
1 | ||
| 79180-26100 |
KCH4#,RCH41..G |
1 | ||
| 79180-26201 |
KCH4#,RCH41,47..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ) |
1 | ||
| 79180-26200 |
KCH4#,RCH41..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ) |
1 | ||
| 79180-26160 |
KCH4#,RCH41,47..G |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 71551-26070 |
KCH4#,RCH41,47..G |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-26060 |
KCH4#,RCH41..G |
1 | ||
| 79190-26061 |
KCH4#,RCH41,47..G |
1 | ||
| 79277 - PAD, JUNIOR SEAT BACK SAFETY, A | ||||
| 79277-26010 |
KCH4#,RCH41..G |
1 | ||
| 79278 - PAD, JUNIOR SEAT BACK SAFETY, B | ||||
| 79278-26010 |
KCH4#,RCH41..G |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-26170G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
2 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-26170G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
2 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-26170G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
2 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-26170G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
2 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ,DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ OR ﾅｼ(ﾘﾔ ｼ-ﾄ),DK.SAGE,TRIM6# |
8 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ,DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ OR ﾅｼ(ﾘﾔ ｼ-ﾄ),DK.SAGE,TRIM6# |
8 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ,DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ OR ﾅｼ(ﾘﾔ ｼ-ﾄ),DK.SAGE,TRIM6# |
8 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ,DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ OR ﾅｼ(ﾘﾔ ｼ-ﾄ),DK.SAGE,TRIM6# |
8 | ||
| Common parts | ||||
| 72702-26030 | ||||
| 90119-08026 | ||||
| 90119-08766 | ||||
| 90119-08873 | ||||
| 90119-08A60 | ||||
| 90119-10495 | ||||
| 90149-40012 | ||||
| 90149-40015 | ||||
| 90149-50058 | ||||
| 90159-50367 | ||||
| 90167-40044 | ||||
| 90386-14007 | ||||
| 90463-13003 | ||||
| 90464-00799 | ||||
| 90467-10146 | ||||
| 90468-04157 | ||||
| 90541-03112 | ||||
| 90560-18011 | ||||
| 90561-18011 | ||||
| 90901-19008 | ||||
| 93249-54008 | ||||
| 94542-01400 | ||||
| 94543-00800 | ||||

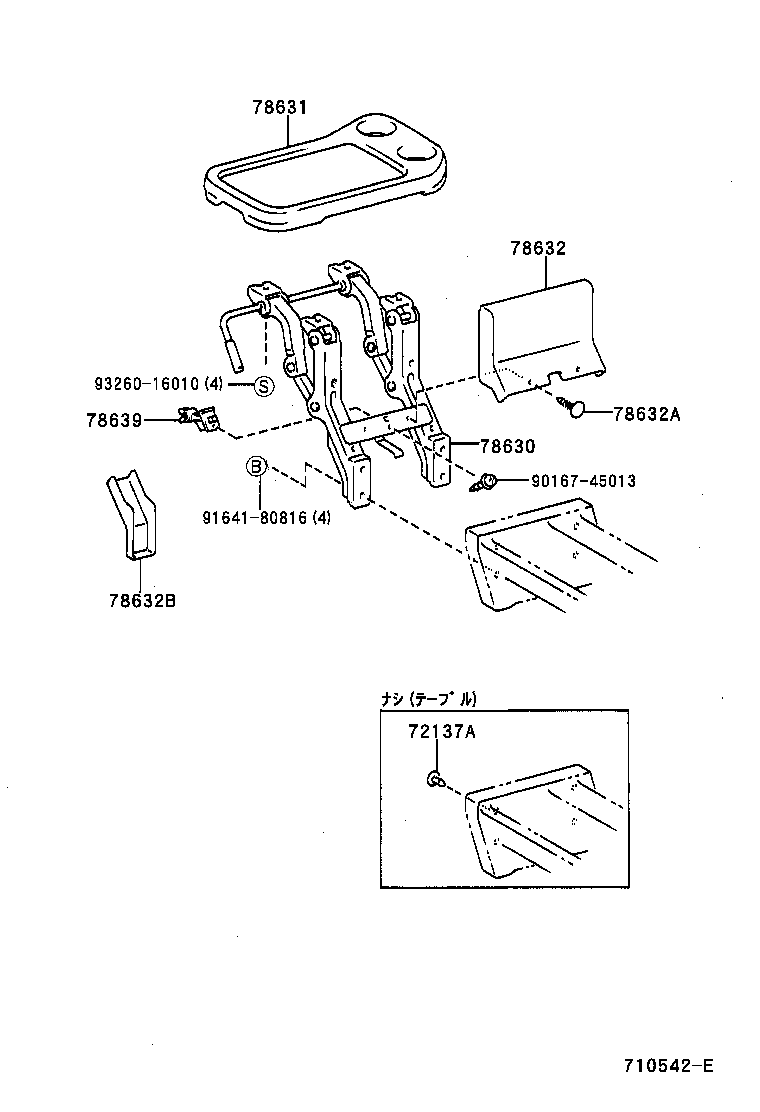

ILLUST NO. 2 OF 6(9704- )KCH4#,RCH41,47
ｼ-ﾄｻｲﾄﾞ ﾃ-ﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72137A - CLIP (FOR SEAT TRACK COVER) | ||||
| 90467-08200G0 |
KCH4#,RCH4#..G,STD DK.SAGE,TRIM6# |
4 | ||
| 90467-11050B0 |
KCH4#,RCH41,47..G08S,W08S GRAY,TRIM1# |
4 | ||
| 90467-11050G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 90467-08200B0 |
KCH4#,RCH4#..G08S,W08S BLUISH GRAY,TRIM1# |
4 | ||
| 78630 - ADJUSTER ASSY, FR0NT SEAT SIDE TABLE | ||||
| 78630-26010B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 78630-26010G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 78631 - TABLE, FRONT SEAT SIDE | ||||
| 78061-26010G0 |
KCH4#,RCH41,47..4D..(G,STD) ﾓｸﾒ,SAGE,TRIM6# |
1 | ||
| 78631-26030B1 |
KCH4#,RCH41,47..G08S,W08S LT.BLUISH GRAY,TRIM1# |
1 | ||
| 78632 - COVER, FRONT SEAT SIDE TABLE | ||||
| 78632-26010B1 |
KCH4#,RCH41,47..G08S,W08S LT.BLUISH GRAY,TRIM1# |
1 | ||
| 78632-26010G1 |
KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6# |
1 | ||
| 78632A - CLIP, FRONT SEAT SIDE TABLE COVER | ||||
| 90467-05021G2 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
2 | ||
| 90467-05021B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 78632B - COVER, FRONT SEAT SIDE TABLE LEG | ||||
| 78632-26020G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
2 | ||
| 78632-26020B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 78639 - CLIP, FRONT SEAT SIDE TABLE | ||||
| 78639-26010B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 78639-26010G0 |
KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90167-45013 | ||||
| 91641-80816 | ||||
| 93260-16010 | ||||

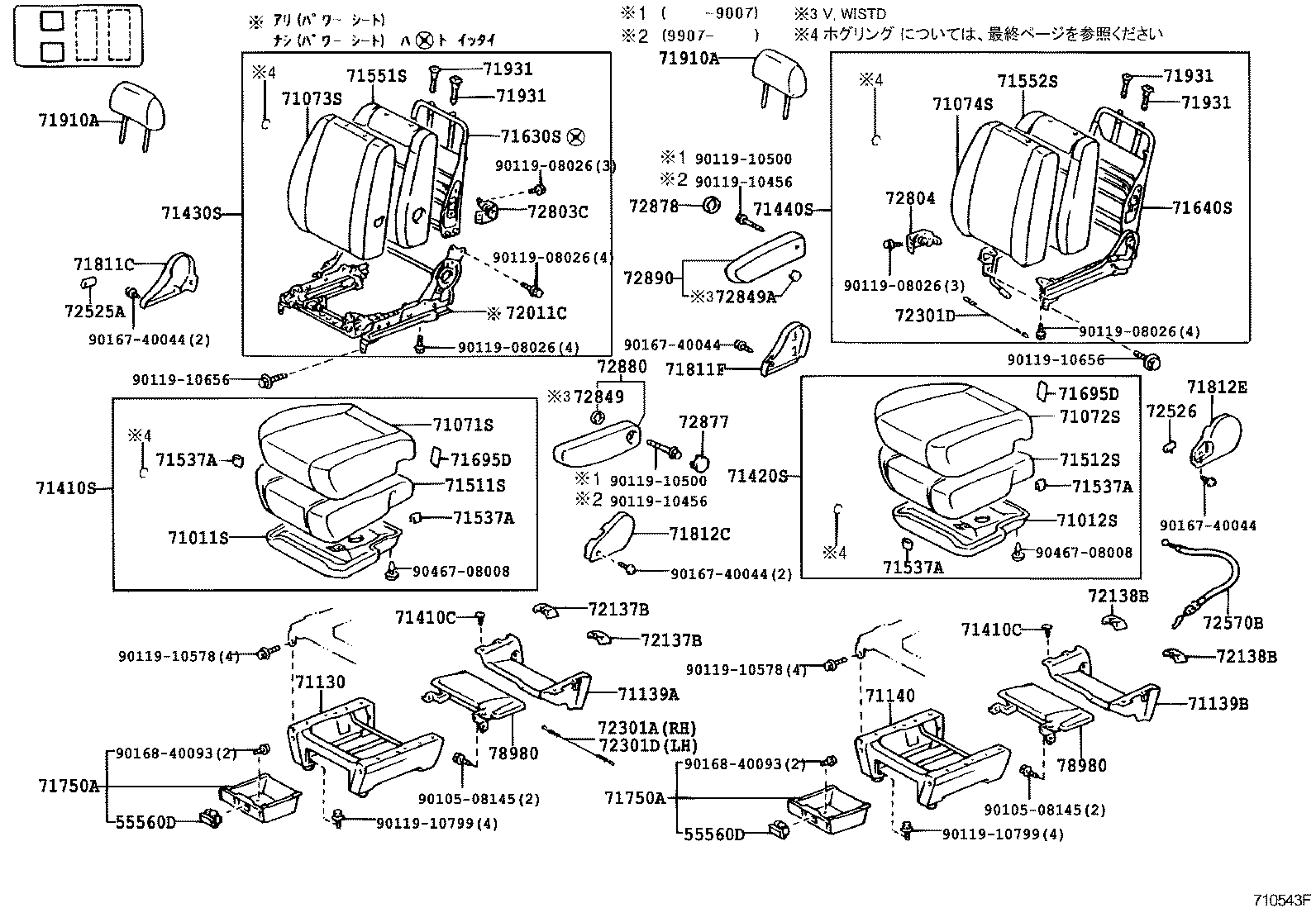

ILLUST NO. 1 OF 6(9704- )KCH4#,RCH41,47..G,STD,V,WINT,WISTD
ﾌﾛﾝﾄ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-26040 |
LXH4#,RCH42;KCH4#,RCH41,47..E,G,V,WINT,WISTD |
1 | ||
| 71011-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-26040 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 71011-26040 |
KCH4#,LXH4#,RCH41,47..E,G,V,WINT,WISTD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26310B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26330G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-26310B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26380G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26390B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26560G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-26530G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71073-26390B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71130 - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-26030G0 |
RCH47..W07S;KCH4#,RCH41..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71130-26020G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ),DK.SAGE,TRIM6# |
1 | ||
| 71130-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 71130-26030B0 |
KCH4#,RCH41..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 71130-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-26010G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾌﾂﾄﾚｽﾄ),DK.SAGE,TRIM6# |
1 | ||
| 71139-26080B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71139B - COVER, FRONT SEAT LEG, NO.2 | ||||
| 71139-26090B0 |
KCH4#..E;LXH4#..G BLUISH GRAY,TRIM1# |
1 | ||
| 71139-26020G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ﾌﾂﾄﾚｽﾄ),DK.SAGE,TRIM6# |
1 | ||
| 71140 - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 71140-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-06020B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
12 | ||
| 90467-06020G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
12 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-06020B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
12 | ||
| 90467-06020G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
12 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-26340B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26360G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-26380G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71410-26340B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-26650G0 |
KCH4#,RCH41,47..4D..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71430-26620G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71430-26600B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-26540B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71440-26560G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71440-26590G0 |
KCH4#,RCH41,47..4D..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26050 |
KCH4#,RCH41,47 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-26050 |
KCH4#,RCH41,47 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26080 |
KCH4#..E |
1 | ||
| 71551-26140 |
KCH4#,RCH41,47..G |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26080 |
KCH4#..E |
1 | ||
| 71552-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-26020C0 |
KCH4#..E;LXH4#,RCH42 BLACK,TRIM1# |
1 | ||
| 71013-26170 |
KCH4#,RCH41,47..G |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-26020C0 |
KCH4#..E;LXH4#..G BLACK,TRIM1# |
1 | ||
| 71640-26060C0 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
1 | ||
| 71640-26080C0 |
KCH4#,RCH41..4D..G ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLACK,TRIM6# |
1 | ||
| 71695D - PROTECTOR, SEAT | ||||
| 71695-26050 |
KCH4#,RCH41,47..G,WINT |
8 | ||
| 71695D - PROTECTOR, SEAT | ||||
| 71695-26050 |
KCH4#,RCH41,47..G,WINT |
8 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26040G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71811-26020B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26030B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26030G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71812-26020B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71812-26010B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26080B3 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26230G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26080B3 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26230G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-26030 |
KCH4#,RCH41,47..4D..(G,STD) ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 72010-26010 |
KCH4#,RCH41,47..G |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 72137-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 72137-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 72137-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 72137-26070 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-26030B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 72137-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 72137-26070 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ) |
2 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-26010 |
LXH4#;KCH4#,RCH4#..E,STD,V,WINT,WISTD |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-26010 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-26010 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
KCH4#,LXH4#,RCH4# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41..4D..G DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01B0 |
KCH4#,RCH41..4D..G BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26050B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-26050G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01B0 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26050B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 72570B - CABLE ASSY, RECLINING ADJUSTING, RH | ||||
| 72580-26020 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 72803C - FRAME SUB-ASSY, SEAT CENTER ARMREST, RH | ||||
| 72804-26060 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72804-26060 |
KCH4#,RCH41,47..G |
1 | ||
| 72804 - FRAME SUB-ASSY, SEAT CENTER ARMREST, LH | ||||
| 72803-26050 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72803-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72877-26030G2 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72878-26030G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-26100G1 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 72880-26050G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-26050G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72890-26080G1 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 78980 - FOOTREST ASSY, REAR SEAT | ||||
| 78980-26010G1 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 78980 - FOOTREST ASSY, REAR SEAT | ||||
| 78980-26010G1 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| Common parts | ||||
| 90105-08145 | ||||
| 90119-08026 | ||||
| 90119-10456 | ||||
| 90119-10500 | ||||
| 90119-10578 | ||||
| 90119-10656 | ||||
| 90119-10799 | ||||
| 90167-40044 | ||||
| 90168-40093 | ||||
| 90467-08008 | ||||
ILLUST NO. 1 OF 6(9704-9907)KCH4#,RCH41,47..G,STD,WINT
ﾌﾛﾝﾄ ｶｲﾃﾝ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-26040 |
LXH4#,RCH42;KCH4#,RCH41,47..E,G,V,WINT,WISTD |
1 | ||
| 71011-26040 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-26040 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 71011-26040 |
KCH4#,LXH4#,RCH41,47..E,G,V,WINT,WISTD |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-26310B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71071-26330G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-26310B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71072-26380G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-26390B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71073-26560G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-26530G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 71073-26390B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71139D - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-26070G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 71139E - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-26060G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 71139G - COVER, FRONT SEAT LEG | ||||
| 71139-26050G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 71139H - COVER, FRONT SEAT LEG | ||||
| 71139-26040G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-26340B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71410-26360G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-26380G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71410-26340B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-26650G0 |
KCH4#,RCH41,47..4D..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71430-26620G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71430-26600B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-26540B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71440-26560G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 71440-26590G0 |
KCH4#,RCH41,47..4D..G ***,ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-26050 |
KCH4#,RCH41,47 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-26050 |
KCH4#,RCH41,47 |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S |
14 | ||
| 71537-26010 |
KCH4#..E;LXH4#..G |
14 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-26080 |
KCH4#..E |
1 | ||
| 71551-26140 |
KCH4#,RCH41,47..G |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-26080 |
KCH4#..E |
1 | ||
| 71552-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-26020C0 |
KCH4#..E;LXH4#,RCH42 BLACK,TRIM1# |
1 | ||
| 71013-26170 |
KCH4#,RCH41,47..G |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-26020C0 |
KCH4#..E;LXH4#..G BLACK,TRIM1# |
1 | ||
| 71640-26060C0 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
1 | ||
| 71640-26080C0 |
KCH4#,RCH41..4D..G ｱﾘ(ﾌﾛﾝﾄｶｲﾃﾝｼ-ﾄ),BLACK,TRIM6# |
1 | ||
| 71695D - PROTECTOR, SEAT | ||||
| 71695-26050 |
KCH4#,RCH41,47..G,WINT |
8 | ||
| 71695D - PROTECTOR, SEAT | ||||
| 71695-26050 |
KCH4#,RCH41,47..G,WINT |
8 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26040G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71811-26020B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-26030B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26030G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26030G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71812-26020B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71812-26010B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26080B3 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26230G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-26080B3 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26230G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
2 | ||
| 71930-28030B7 |
LXH4#;KCH4#,RCH4#..E,STD,WINT ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-26030 |
KCH4#,RCH41,47..4D..(G,STD) ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ) |
1 | ||
| 72010-26010 |
KCH4#,RCH41,47..G |
1 | ||
| 72080 - TABLE ASSY, FRONT SEAT TURN, RH | ||||
| 72080-26020 |
KCH4#,RCH41..G |
1 | ||
| 72080-26040 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 72090A - TABLE ASSY, FRONT SEAT TURN, LH | ||||
| 72090-26010 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72090-26020 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 72137M - CLIP (FOR SEAT TRACK COVER RH) | ||||
| 90467-06133G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
3 | ||
| 72137N - CLIP (FOR SEAT TRACK COVER LH) | ||||
| 90467-06133G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-26010 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| 72410A - CABLE ASSY, SEAT ADJUSTER DRIVE, NO.1 | ||||
| 72410-26010 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
KCH4#,LXH4#,RCH4# BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41..4D..G DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01B0 |
KCH4#,RCH41..4D..G BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26050B0 |
LXH4#;KCH4#,RCH4#..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-26050G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01B0 |
LXH4#..G;KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 72525-26050B0 |
LXH4#..G;KCH4#,RCH41,47..E,STD,WINT BLUISH GRAY,TRIM1# |
1 | ||
| 72803C - FRAME SUB-ASSY, SEAT CENTER ARMREST, RH | ||||
| 72804-26060 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72804-26060 |
KCH4#,RCH41,47..G |
1 | ||
| 72804 - FRAME SUB-ASSY, SEAT CENTER ARMREST, LH | ||||
| 72803-26050 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72803-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 72877 - COVER, SEAT ARMREST, RH | ||||
| 72877-26030G2 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 72878-26030G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-26100G1 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 72880-26050G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-26050G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72890-26080G1 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 72969 - KNOB, REAR SEAT TURN LOCK | ||||
| 72969-26030G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 72969-28020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72969C - KNOB, REAR SEAT TURN LOCK, LH | ||||
| 72969-28020G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72969-26030G0 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｶｲﾃﾝ ｼｷ ﾘﾔｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 72973C - COVER, FRONT SEAT TURN TABLE,NO.1 | ||||
| 72973-26070G0 |
KCH4#,RCH41..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 72973-26050G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72973-26050G0 |
KCH4#,RCH41..4D..G DK.SAGE,TRIM6# |
1 | ||
| 72973-26120G0 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｶｲﾃﾝ ｼｷ ﾌﾛﾝﾄｼ-ﾄ),DK.SAGE,TRIM6# |
1 | ||
| 72973D - COVER, FRONT SEAT TURN TABLE, NO.2 | ||||
| 72973-26060G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72973E - COVER, FRONT SEAT TURN TABLE, NO.1 | ||||
| 72973-26080G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72973-26110G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 72973F - COVER, FRONT SEAT TURN TABLE, NO.2 | ||||
| 72973-26140G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 72973-26090G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 79956Q - CAP(FOR FRONT SEAT LEG SIDE COVER RH) | ||||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 79956R - CAP(FOR FRONT SEAT LEG SIDE COVER LH) | ||||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| Common parts | ||||
| 90119-08026 | ||||
| 90119-10500 | ||||
| 90119-10656 | ||||
| 90119-10799 | ||||
| 90119-10903 | ||||
| 90159-50367 | ||||
| 90167-40044 | ||||
| 90467-08006 | ||||
| 90467-08008 | ||||
| 90468-04157 | ||||
| 93560-55020 | ||||
| Linked diagrams | ||||
| 3311 | ||||
ILLUST NO. 4 OF 6(9704- )KCH4#,RCH41,47
ﾘﾔ NO.2 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58908C - LOCK SUB-ASSY, REAR SEAT ARMREST | ||||
| 58908-26010 |
KCH4#,RCH41,47..G |
1 | ||
| 71351B - KNOB, SEAT HINGE LEVER, NO.2 | ||||
| 71351-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71351-26010B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 71485-26010B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 71485B - COVER, REAR SEAT HINGE | ||||
| 71485-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
2 | ||
| 71485-26010B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
2 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05020B0 |
KCH4#..E GRAY,TRIM1# |
8 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020G1 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-26010B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 71833-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 90467-05020G1 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
8 | ||
| 90467-05020G1 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..G08S,W08S GRAY,TRIM1# |
4 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..G08S,W08S GRAY,TRIM1# |
8 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 90467-05020G1 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
8 | ||
| 90467-05020G1 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..G08S,W08S GRAY,TRIM1# |
4 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..G08S,W08S GRAY,TRIM1# |
8 | ||
| 71833E - COVER, REAR SEAT RECLINING, NO.3 RH | ||||
| 90467-05020G1 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
8 | ||
| 90467-05020G1 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..G08S,W08S GRAY,TRIM1# |
4 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..G08S,W08S GRAY,TRIM1# |
8 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-26020G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 71834-26020B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 71878C - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-26010 |
KCH4#,RCH41,47 |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-26010 |
KCH4#,RCH41,47 |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-26080B3 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26130G0 |
KCH4#,RCH41,47..4D..G SAGE,TRIM6# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-26080B3 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26130G0 |
KCH4#,RCH41,47..4D..G SAGE,TRIM6# |
3 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-26030 |
KCH4#,RCH41,47 |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-26110 |
KCH4#,RCH41,47..E,G,STD,V,WISTD NO.1, L=1129:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26040 |
KCH4#,RCH41,47 NO.2, L=476:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26020 |
KCH4#,RCH41,47 NO.3, L=831:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-26110 |
KCH4#,RCH41,47..E,G,STD,V,WISTD NO.1, L=1129:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26040 |
KCH4#,RCH41,47 NO.2, L=476:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26020 |
KCH4#,RCH41,47 NO.3, L=831:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-26110 |
KCH4#,RCH41,47..E,G,STD,V,WISTD NO.1, L=1129:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26040 |
KCH4#,RCH41,47 NO.2, L=476:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26020 |
KCH4#,RCH41,47 NO.3, L=831:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72525-95J01B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72658B - KNOB, REAR SEAT LOCK HANDLE | ||||
| 72658-95J01C0 |
KCH4#,RCH41,47..E,WINT,WISTD BLACK,TRIM1# |
1 | ||
| 72658-95J01C0 |
KCH4#,RCH41,47..G BLACK,TRIM6# |
1 | ||
| 72690E - LEVER ASSY, SEAT CUSHION LOCK RELEASE, NO.2 | ||||
| 72690-26040C0 |
KCH4#,RCH41,47 BLACK,TRIM4# |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72750-26040B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 72750-26040G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72760C - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72760-26050G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72760-26050B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 72802 - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-30010 |
KCH4#,RCH41,47..G |
1 | ||
| 72810G - CLIP, REAR SEAT ARMREST | ||||
| 90467-05017G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-26150G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-26150G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 74790A - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26020 |
KCH4#,RCH41,47 |
2 | ||
| 74790A - HOLDER ASSY, WARNING REFLECTOR | ||||
| 74790-26020 |
KCH4#,RCH41,47 |
2 | ||
| 79030 - LEG ASSY, NO.3 SEAT, RH | ||||
| 79030-26030 |
KCH4#,RCH41,47 |
1 | ||
| 79031A - COVER SUB-ASSY, NO.3 SEAT CUSHION | ||||
| 79031-26230B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26250G0 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 79031-26230B1 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26250G1 |
KCH4#,RCH41..G SAGE,TRIM6# |
1 | ||
| 79031-26251G1 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79031-26251G2 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79031-26230B2 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79033A - COVER SUB-ASSY, NO.3 SEAT BACK | ||||
| 79033-26140B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79033-26160G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79169C - ROD, REAR NO.2 SEAT HINGE CONNECTOR | ||||
| 79169-26110 |
KCH4#,RCH41,47..E,G,STD,V |
1 | ||
| 79320A - CUSHION ASSY, NO.3 SEAT | ||||
| 79320-26240B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79320-26270G0 |
KCH4#,RCH41..G ***,SAGE,TRIM6# |
1 | ||
| 79320-26271G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79335 - PAD, NO.3 SEAT CUSHION | ||||
| 79035-26030 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 79035-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 79035-26030 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 79340A - BACK ASSY, NO.3 SEAT | ||||
| 79340-26190G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79340-26170B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79360 - SPRING ASSY, NO.3 SEAT CUSHION | ||||
| 79360-26090 |
KCH4#,RCH41,47 |
1 | ||
| 79375 - PAD, NO.3 SEAT BACK | ||||
| 79037-26080 |
KCH4#,RCH41,47..G |
1 | ||
| 79037-26060 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 79037-26060 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 79621A - STOPPER, NO.3 SEAT CUSHION | ||||
| 79226-26010 |
KCH4#,RCH41,47 |
2 | ||
| 79621A - STOPPER, NO.3 SEAT CUSHION | ||||
| 79226-26010 |
KCH4#,RCH41,47 |
2 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-26020G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 79959-26020B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79959-26020B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 79959-26020B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-26020G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 79959-26020B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79959-26020B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 79959-26020B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-10241 | ||||
| 90109-06195 | ||||
| 90109-08137 | ||||
| 90154-80045 | ||||
| 90168-40043 | ||||
| 90386-06002 | ||||
| 90386-08005 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90467-07158E3 | ||||
| 90468-03018 | ||||
| 90468-14004 | ||||
| 90507-10023 | ||||
| 90541-03112 | ||||
| 90901-19008 | ||||
| 90901-19053 | ||||
| 91511-60816 | ||||
| 91611-60614 | ||||
| 93249-54012 | ||||
| 93510-53510 | ||||
| 93520-54014 | ||||
| 93560-15012 | ||||
| 93560-54014 | ||||
ILLUST NO. 3 OF 6(9704- )KCH4#,RCH41,47..G,STD,V,WINT,WISTD
ﾘﾔ NO.1 ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
KCH4#,RCH41,47..(G,STD,WINT,WISTD)..(G08S,W08S) |
19 | ||
| 71537B - PROTECTOR, REAR SEAT CUSHION | ||||
| 71537-26010 |
KCH4#,RCH41,47..(G,STD,WINT,WISTD)..(G08S,W08S) |
19 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-26010B0 |
KCH4#..E ｻ-ﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71833-26010B0 |
KCH4#,RCH41,47..E,STD ｻ-ﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71834-26020B0 |
KCH4#..E ｾｶﾝﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71834-26020B0 |
KCH4#,RCH41,47..E,STD ｾｶﾝﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71811-26060G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71812-26040G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-26080B3 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26130G0 |
KCH4#,RCH41,47..4D..G SAGE,TRIM6# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-26080B3 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26130G0 |
KCH4#,RCH41,47..4D..G SAGE,TRIM6# |
3 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-26080 |
KCH4#..E NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#..E NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#,RCH41,47..E,STD,V NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26130 |
KCH4#,RCH41,47..E,STD,V NO.4, L=642:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26040 |
KCH4#..E NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26010 |
KCH4#,RCH41,47..G,STD,WINT NO.5 |
1 | ||
| 72210-26120 |
KCH4#,RCH41,47..E,STD,V NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26090 |
KCH4#..E NO.4, L=650:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26080 |
KCH4#,RCH41,47..E,STD,V NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210C - CABLE ASSY, SEAT TRACK CONTROL, LH | ||||
| 72210-26010 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 72506A - ROD SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72506-26020 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 72506B - ROD SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72506-26150 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41..G DK.SAGE,TRIM6# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01G0 |
KCH4#,RCH41..G DK.SAGE,TRIM6# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 72688 - CABLE, REAR SEAT TRACK & TURN CONTROL | ||||
| 72688-26030 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 72688A - CABLE, REAR TRACK & TURN CONTROL | ||||
| 72688-26030 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-26050 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) ﾘﾔ NO.1 ｼｰﾄ,左側 |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-26050 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) ﾘﾔ NO.1 ｼｰﾄ,左側 |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-26080 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) ﾘﾔ NO.1 ｼｰﾄ,右側 |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-26080 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) ﾘﾔ NO.1 ｼｰﾄ,右側 |
1 | ||
| 72960B - TABLE ASSY, REAR SEAT TURN, RH | ||||
| 72960-26040 |
KCH4#,RCH41,47..G |
1 | ||
| 72970 - TABLE ASSY, REAR SEAT TURN, LH | ||||
| 72970-26060 |
KCH4#,RCH41,47..G |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-26380G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79011-26530G0 |
KCH4#,RCH41,47..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79011-26380G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-26450G0 |
KCH4#,RCH41..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79013-26510G0 |
KCH4#,RCH41,47..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79013-26330G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-26330G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-26460G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79120-26570G0 |
KCH4#,RCH41,47..G ***,ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79120-26460G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-26110 |
KCH4#,RCH41..G |
1 | ||
| 79135-26200 |
KCH4#,RCH41,47..G |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79135-26110 |
KCH4#,RCH41,47..G |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-26440G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79140-26510G0 |
KCH4#,RCH41..G ***,ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79140-26600G0 |
KCH4#,RCH41,47..G ***,ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ),SAGE,TRIM6# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-26190G0 |
KCH4#,RCH41,47..G ***,SAGE,TRIM6# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79360-26090 |
KCH4#,RCH41,47 ｱﾘ(ﾀﾞﾌﾞﾙｽﾍﾟ-ｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 79111-26020 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-26110 |
KCH4#,RCH41,47..E,WINT 3ﾆﾝ ﾖｳ |
1 | ||
| 79169-26050 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 79169B - ROD, REAR NO.2 SEAT HINGE CONNECTOR | ||||
| 79169-26040 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-26130 |
KCH4#,RCH41..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ) |
1 | ||
| 79175-26140 |
KCH4#,RCH41,47..G ｱﾘ(ﾁﾔｲﾙﾄﾞ ｼ-ﾄ) |
1 | ||
| 71551-26070 |
KCH4#,RCH41,47..G |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-26140 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 71551-26070 |
KCH4#,RCH41,47..G |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79211-26040 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-26060 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 79956B - COVER, REAR SEAT LEG SIDE, RH | ||||
| 79956-26170G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
2 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-26170G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
2 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-26170G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
2 | ||
| 79956C - COVER, REAR SEAT LEG SIDE, LH | ||||
| 79956-26170G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
2 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ,DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ OR ﾅｼ(ﾘﾔ ｼ-ﾄ),DK.SAGE,TRIM6# |
8 | ||
| 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) | ||||
| 90339-10001G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ,DK.SAGE,TRIM6# |
4 | ||
| 90339-10001G0 |
RCH41..4D..(G,STD);KCH4#,RCH47..(G,STD)..(G07S,G08S,W08S) ﾊﾝﾃﾞｲｷﾔﾌﾞ OR ﾅｼ(ﾘﾔ ｼ-ﾄ),DK.SAGE,TRIM6# |
8 | ||
| Common parts | ||||
| 72189-26020 | ||||
| 90119-08766 | ||||
| 90159-50279 | ||||
| 90159-50367 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 90468-03018 | ||||
| 90541-03112 | ||||
| 90901-19008 | ||||
| 91612-60612 | ||||
| 91631-60840 | ||||
| 93249-54012 | ||||
| 93249-55010 | ||||
| 93315-16016 | ||||
| 93560-14012 | ||||
ILLUST NO. 3 OF 6(9704- )
ﾘﾔ NO.1 ｼ-ﾄ(ﾀﾞﾌﾞﾙｽﾍﾟ-ｽｱﾂﾌﾟ ｼ-ﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71063A - CLIP, FRONT SEAT BACK COVER, REAR | ||||
| 90467-05021B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
2 | ||
| 90467-05021B0 |
KCH4#,RCH41,47..E,STD BLUISH GRAY,TRIM1# |
2 | ||
| 71351 - KNOB, SEAT HINGE LEVER | ||||
| 71351-26010B0 |
KCH4#,RCH41,47..E,STD BLUISH GRAY,TRIM1# |
1 | ||
| 71351-26010B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
1 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-26010B0 |
KCH4#,RCH41,47..E,STD BLUISH GRAY,TRIM1# |
2 | ||
| 71485-26010B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
2 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-26010B0 |
KCH4#,RCH41,47..E,STD BLUISH GRAY,TRIM1# |
2 | ||
| 71485-26010B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
2 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-26010B0 |
KCH4#..E ｻ-ﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71833-26010B0 |
KCH4#,RCH41,47..E,STD ｻ-ﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71811-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05020B0 |
KCH4#..E GRAY,TRIM1# |
8 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020G1 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05020B0 |
KCH4#..E GRAY,TRIM1# |
8 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020G1 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05020B0 |
KCH4#..E GRAY,TRIM1# |
8 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020G1 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 71833B - CLIP (FOR REAR SEAT RECLINING COVER) | ||||
| 90467-05020B0 |
KCH4#..E GRAY,TRIM1# |
8 | ||
| 90467-05020B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),GRAY,TRIM1# |
12 | ||
| 90467-05020G1 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
4 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71812-26050G0 |
KCH4#,RCH41,47..G DK.SAGE,TRIM6# |
1 | ||
| 71834-26020B0 |
KCH4#..E ｾｶﾝﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71834-26020B0 |
KCH4#,RCH41,47..E,STD ｾｶﾝﾄﾞｼ-ﾄ,BLUISH GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-26010 |
KCH4#..E |
1 | ||
| 71878-26010 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-26010 |
KCH4#..E |
1 | ||
| 71879-26010 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71930-28030B7 |
KCH4#..E ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B7 |
KCH4#..E ﾛｯｸ無,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ付,SAGE,TRIM6# |
3 | ||
| 71931-28030G1 |
KCH4#,RCH41,47..G,STD ﾛｯｸ無,SAGE,TRIM6# |
3 | ||
| 71930-28030B7 |
KCH4#,RCH41,47..G08S,W08S ﾛｯｸ付,LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-26080B3 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26130G0 |
KCH4#,RCH41,47..4D..G SAGE,TRIM6# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-26080B3 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71910-26300B0 |
KCH4#..E;LXH4#,RCH42..STD LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71940-26130G0 |
KCH4#,RCH41,47..4D..G SAGE,TRIM6# |
3 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-26030 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 72201-26030 |
KCH4#..E |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-26080 |
KCH4#..E NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#..E NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#,RCH41,47..E,STD,V NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26130 |
KCH4#,RCH41,47..E,STD,V NO.4, L=642:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26040 |
KCH4#..E NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26010 |
KCH4#,RCH41,47..G,STD,WINT NO.5 |
1 | ||
| 72210-26120 |
KCH4#,RCH41,47..E,STD,V NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26090 |
KCH4#..E NO.4, L=650:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26080 |
KCH4#,RCH41,47..E,STD,V NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-26080 |
KCH4#..E NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#..E NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#,RCH41,47..E,STD,V NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26130 |
KCH4#,RCH41,47..E,STD,V NO.4, L=642:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26040 |
KCH4#..E NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26010 |
KCH4#,RCH41,47..G,STD,WINT NO.5 |
1 | ||
| 72210-26120 |
KCH4#,RCH41,47..E,STD,V NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26090 |
KCH4#..E NO.4, L=650:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26080 |
KCH4#,RCH41,47..E,STD,V NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-26080 |
KCH4#..E NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#..E NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#,RCH41,47..E,STD,V NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26130 |
KCH4#,RCH41,47..E,STD,V NO.4, L=642:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26040 |
KCH4#..E NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26010 |
KCH4#,RCH41,47..G,STD,WINT NO.5 |
1 | ||
| 72210-26120 |
KCH4#,RCH41,47..E,STD,V NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26090 |
KCH4#..E NO.4, L=650:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26080 |
KCH4#,RCH41,47..E,STD,V NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210B - CABLE ASSY, SEAT TRACK CONTROL, RH | ||||
| 72210-26080 |
KCH4#..E NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#..E NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26030 |
KCH4#,RCH41,47..E,STD,V NO.1, L=1229:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26130 |
KCH4#,RCH41,47..E,STD,V NO.4, L=642:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26040 |
KCH4#..E NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26010 |
KCH4#,RCH41,47..G,STD,WINT NO.5 |
1 | ||
| 72210-26120 |
KCH4#,RCH41,47..E,STD,V NO.2, L=483:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26090 |
KCH4#..E NO.4, L=650:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72210-26080 |
KCH4#,RCH41,47..E,STD,V NO.3, L=381:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-95J01G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 72525-95J01B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 72620B - CABLE ASSY, REAR NO.1 SEAT LOCK | ||||
| 72620-26010 |
KCH4#..E |
1 | ||
| 72620-26010 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 72690D - LEVER ASSY, SEAT CUSHION LOCK RELEASE, NO.1 | ||||
| 72690-26040C0 |
KCH4#,RCH41,47..E,STD BLACK,TRIM1#,6# |
1 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72710-26030B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
1 | ||
| 72710-26030B0 |
KCH4#,RCH41,47..E,STD BLUISH GRAY,TRIM1# |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72720-26030B0 |
KCH4#..E BLUISH GRAY,TRIM1# |
1 | ||
| 72720-26030B0 |
KCH4#,RCH41,47..E,STD BLUISH GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-26150G0 |
KCH4#,RCH41,47..G SAGE,TRIM6# |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79031-26230B1 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26600B1 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79031-26230B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79011-26600B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-26360B0 |
KCH4#..E LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-26140 |
KCH4#..E |
1 | ||
| 79105-26140 |
KCH4#,RCH41,47..E,STD |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79320-26240B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79120-26670B0 |
KCH4#..E ***,LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79035-26030 |
KCH4#..E |
1 | ||
| 79015-26010 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-26420B0 |
KCH4#..E ***,LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79360-26090 |
KCH4#,RCH41,47 ｱﾘ(ﾀﾞﾌﾞﾙｽﾍﾟ-ｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 79111-26020 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-26110 |
KCH4#,RCH41,47..E,WINT 3ﾆﾝ ﾖｳ |
1 | ||
| 79169-26050 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79037-26060 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 79037-26060 |
KCH4#..E |
1 | ||
| 79226A - STOPPER, REAR NO.1 SEAT CUSHION | ||||
| 79226-26010 |
KCH4#..E |
1 | ||
| 79226-26010 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 79226A - STOPPER, REAR NO.1 SEAT CUSHION | ||||
| 79226-26010 |
KCH4#..E |
1 | ||
| 79226-26010 |
KCH4#,RCH41,47..E,STD,V |
1 | ||
| 79959 - COVER, RR SEAT LEG | ||||
| 79959-26030 |
KCH4#..E |
1 | ||
| 79959C - COVER, REAR SEAT LEG | ||||
| 79959-26020G0 |
KCH4#,RCH41,47..4D..(G,STD) DK.SAGE,TRIM6# |
1 | ||
| 79959-26020B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79959-26020B0 |
KCH4#,RCH41,47..G08S,W08S BLUISH GRAY,TRIM1# |
1 | ||
| 79959-26020B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-10241 | ||||
| 90109-06195 | ||||
| 90109-08137 | ||||
| 90154-80045 | ||||
| 90168-40125 | ||||
| 90206-12050 | ||||
| 90386-08005 | ||||
| 90463-13003 | ||||
| 90467-05020B1 | ||||
| 90467-05020B7 | ||||
| 90467-05021B0 | ||||
| 90468-03018 | ||||
| 90507-10023 | ||||
| 91511-60816 | ||||
| 91611-60614 | ||||
| 93249-55010 | ||||
| 93510-53510 | ||||
| 93560-15012 | ||||
| 96160-00400 | ||||
ILLUST NO. 6 OF 6(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397C - STOPPER, REAR SEAT | ||||
| 71397-26050 |
KCH4#..E |
1 | ||
| 71397-26040 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 71397-26050 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 71397C - STOPPER, REAR SEAT | ||||
| 71397-26050 |
KCH4#..E |
1 | ||
| 71397-26040 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 71397-26050 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 72129-26030B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-26010G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 72129-26030B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-26020G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-26020G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
4 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-26070 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 72160-26060 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 72160-26060 |
KCH4#..E |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-26090 |
KCH4#,RCH41,47..E,STD,V ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 72170-26120 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 72170-26090 |
KCH4#..E |
1 | ||
| 72180 - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72170-26110 |
KCH4#,RCH41,47..(G,STD,V,WINT,WISTD)..(G08S,W08S) |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72160-26080 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05021G2 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
14 | ||
| 90467-05021B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
24 | ||
| 90467-05021B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
24 | ||
| 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) | ||||
| 90467-05021G2 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
14 | ||
| 90467-05021B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
24 | ||
| 90467-05021B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
24 | ||
| 79956G - COVER, NO.3 SEAT LEG SIDE, RH | ||||
| 79956-26090G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 79956-26090B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26090B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79956H - COVER, NO.3 SEAT LEG SIDE, LH | ||||
| 79956-26090B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26090B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26090G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 79956J - COVER, NO.3 SEAT LEG, INNER RH | ||||
| 79956-26100G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| 79956-26100B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26100B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79956K - COVER, NO.3 SEAT LEG, INNER LH | ||||
| 79956-26100B0 |
KCH4#..E ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26100B0 |
KCH4#,RCH41,47..E,STD ｱﾘ(ﾘｱ ﾀﾞﾌﾞﾙｽﾍﾟｰｽｱﾂﾌﾟ ｼ-ﾄ),BLUISH GRAY,TRIM1# |
2 | ||
| 79956-26100G0 |
KCH4#,RCH41,47..G,STD DK.SAGE,TRIM6# |
1 | ||
| Common parts | ||||
| 90119-10409 | ||||
| Linked diagrams | ||||
| 5854 | ||||
(9704- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
