KCH40G-GRSNT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

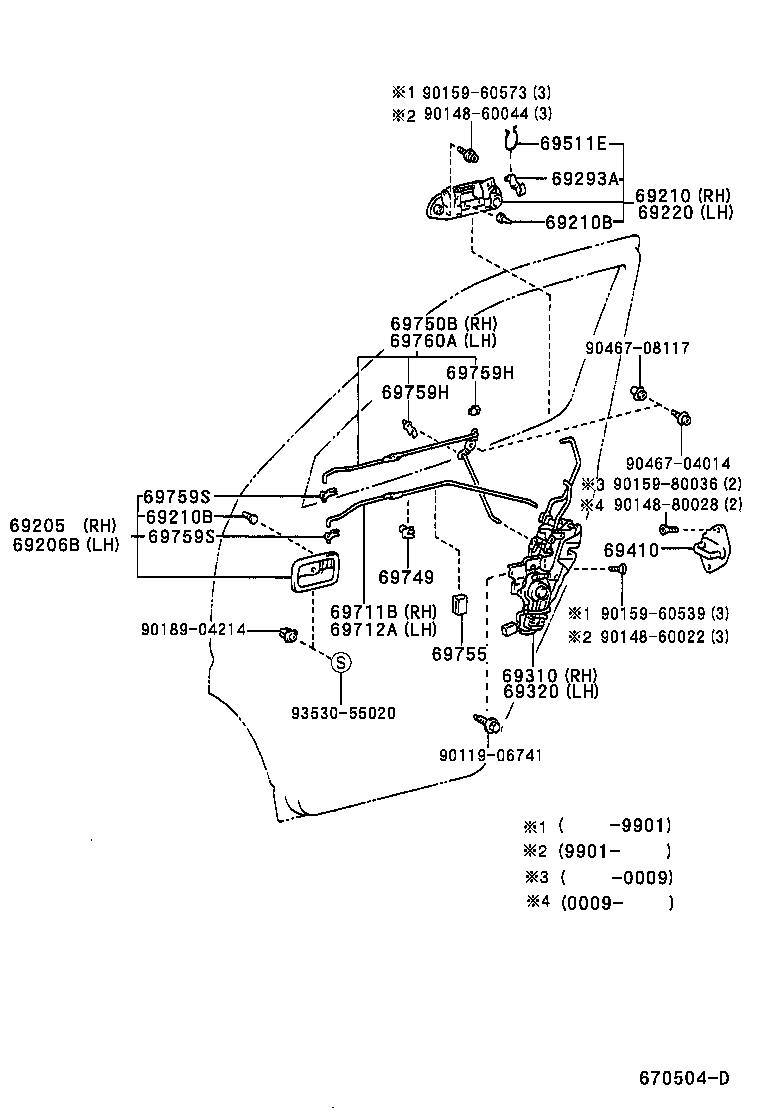

Click highlighted areas on diagram

diagram 69205 69206B 69210 69210B 69210B 69220 69293A 69310 69320 69410 69511E 69711B 69712A 69749 69750B 69755 69759H 69759H 69759S 69759S 69760A 9011906741 9014860022 9014860044 9014880028 9015960539 9015960573 9015980036 9018904214 9046704014 9046708117 9353055020
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-20120G0

KCH4#,RCH41,47..G,STD

SAGE,TRIM6#

 1
69205-20120B2

LXH4#;KCH4#,RCH4#..E,STD,WINT

LT.BLUISH GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-20120G0

KCH4#,RCH41,47..G,STD

SAGE,TRIM6#

 1
69206-20120B2

LXH4#;KCH4#,RCH4#..E,STD,WINT

LT.BLUISH GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-26020A0

KCH4#,RCH41..G

WHITE PEARL MC.,2EB

 1
69210-26020G3

KCH4#,RCH41..G

DK.GREEN M.M.,2DK

 1
69210-26020G2

KCH4#,RCH41,47..G

LT GREEN M,2DJ

 1
69210-26020A0

KCH4#,RCH41,47..G,STD

WHITE PEARL MC.,2EB

 1
69210-95J03

LXH4#;KCH4#,RCH4#..E,STD

 1
69210-26020C0

KCH4#,RCH41,47..G,STD

BLACK ME,2EV

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

KCH4#,LXH4#,RCH4#

 6
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014

KCH4#,LXH4#,RCH4#

 6
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-26020G2

KCH4#,RCH41,47..G

LT GREEN M,2DJ

 1
69220-26020A0

KCH4#,RCH41,47..G,STD

WHITE PEARL MC.,2EB

 1
69220-26020G3

KCH4#,RCH41..G

DK.GREEN M.M.,2DK

 1
69220-26020A0

KCH4#,RCH41..G

WHITE PEARL MC.,2EB

 1
69220-26020C0

KCH4#,RCH41,47..G,STD

BLACK ME,2EV

 1
69220-95J03

LXH4#;KCH4#,RCH4#..E,STD

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-10020

KCH4#,RCH41,47..G,V,WINT,WISTD

右側

 1
69293-10010

KCH4#,RCH41,47..G,V,WINT,WISTD

左側

 1
69293-12040

LXH4#;KCH4#,RCH4#..E,STD

右側

 1
69293-12030

LXH4#;KCH4#,RCH4#..E,STD

左側

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-26100

RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69030-26110

KCH4#..E;LXH4#,RCH42..STD

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69030-26100

KCH4#,RCH41..G

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-26080

KCH4#,RCH41..G

 1
69040-26070

LXH4#;KCH4#,RCH4#..E,STD,WINT

ｱﾘ(ﾃﾞﾝｼﾞ ﾄﾞｱﾛﾂｸ)

 1
69040-26080

RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT)

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ)

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-26010

KCH4#,LXH4#,RCH4#

 2
69511E - RETAINER, FRONT DOOR LOCK CYLINDER
69511-26010

KCH4#,LXH4#,RCH4#

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69701-26010

KCH4#,LXH4#,RCH4#

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69702-26010

KCH4#,LXH4#,RCH4#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20030

KCH4#,LXH4#,RCH4#

 4
69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-26020

KCH4#,LXH4#,RCH4#

 1
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-95500

KCH4#,LXH4#,RCH4#

 2
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-24030

KCH4#,LXH4#,RCH4#

ﾚｯﾄﾞ

 1
69759-20030

KCH4#,LXH4#,RCH4#

ﾗｲﾄﾌﾞﾙｰ

 1
69759-20020

KCH4#,LXH4#,RCH4#

ﾅﾁｭﾗﾙ

 1
69759-24040

KCH4#,LXH4#,RCH4#

ﾋﾟﾝｸ

 1
69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2
69759-24030

KCH4#,LXH4#,RCH4#

ﾚｯﾄﾞ

 1
69759-20030

KCH4#,LXH4#,RCH4#

ﾗｲﾄﾌﾞﾙｰ

 1
69759-20020

KCH4#,LXH4#,RCH4#

ﾅﾁｭﾗﾙ

 1
69759-24040

KCH4#,LXH4#,RCH4#

ﾋﾟﾝｸ

 1
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-24070

KCH4#,LXH4#,RCH4#

右側

 2
69759-14050

KCH4#,LXH4#,RCH4#

左側

 2
69759S - SNAP, FRONT DOOR INSIDE HANDLE
69759-24070

KCH4#,LXH4#,RCH4#

右側

 2
69759-14050

KCH4#,LXH4#,RCH4#

左側

 2
69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-26020

KCH4#,LXH4#,RCH4#

 1
Common parts
90119-06741
90148-60022
90148-60044
90148-80028
90159-60539
90159-60573
90159-80036
90189-04214
90467-04014
90467-08117
93530-55020
