KCH40G-GRSNT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )KCH4#

Click highlighted areas on diagram

A340E,A340F

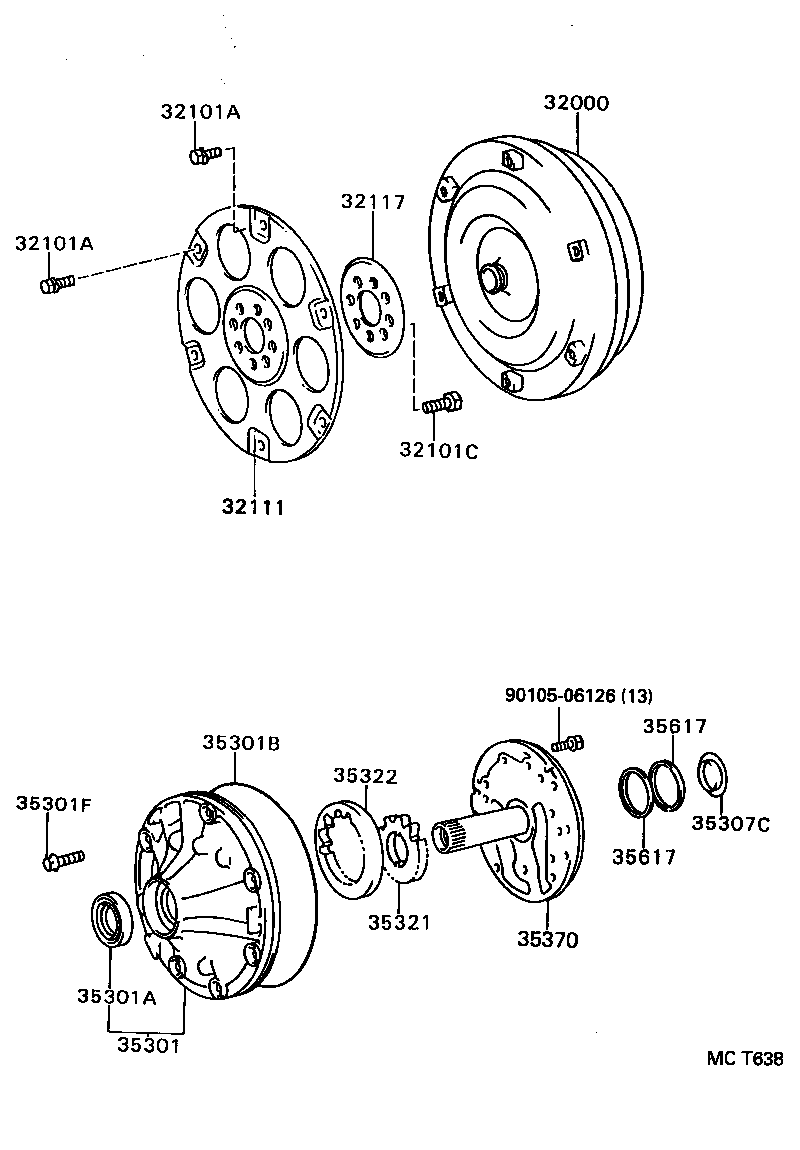

diagram 32000 32101A 32101A 32101C 32111 32117 35301 35301A 35301B 35301F 35307C 35321 35322 35370 35617 35617 9010506126
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-35170

KCH4#

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09010

KCH4#..G07S;LXH4#,RCH4#..ATM;KCH4#..E,STD,WINT

*9−1.25PX12.8−9,ｸﾞﾘｰﾝ

 1
90119-09009

KCH4#..G07S;LXH4#,RCH4#..ATM;KCH4#..E,STD,WINT

*9−1.25PX12.8−8.8,ｲｴﾛｰ

 5
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09010

KCH4#..G07S;LXH4#,RCH4#..ATM;KCH4#..E,STD,WINT

*9−1.25PX12.8−9,ｸﾞﾘｰﾝ

 1
90119-09009

KCH4#..G07S;LXH4#,RCH4#..ATM;KCH4#..E,STD,WINT

*9−1.25PX12.8−8.8,ｲｴﾛｰ

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-13010

KCH4#

*13−1.5PX43.5−23.5

 8
32111 - PLATE, PUMP IMPELLER DRIVE
32111-60050

KCH4#

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-60050

KCH4#

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30040

KCH4#

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029

KCH4#

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033

KCH4#

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091

KCH4#

*8−1.25PX35−35

 7
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30020

KCH4#

厚さ=3.7

 1
35789-30340

KCH4#

厚さ=3.7

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12080

KCH4#

厚さ=9.450−9.459

 1
35321-12070

KCH4#

厚さ=9.440−9.449

 1
35321-12100

KCH4#

厚さ=9.471−9.480

 1
35321-12090

KCH4#

厚さ=9.460−9.470

 1
35321-12110

KCH4#

厚さ=9.481−9.490

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-12070

KCH4#

厚さ=9.450−9.459

 1
35322-12080

KCH4#

厚さ=9.460−9.470

 1
35322-12090

KCH4#

厚さ=9.471−9.480

 1
35322-12060

KCH4#

厚さ=9.440−9.449

 1
35322-12100

KCH4#

厚さ=9.481−9.490

 1
35370 - SHAFT ASSY, STATOR
35370-30031

KCH4#

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

KCH4#

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020

KCH4#

 2
Common parts
90105-06126
