KCH40G-GRSNT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

Click highlighted areas on diagram

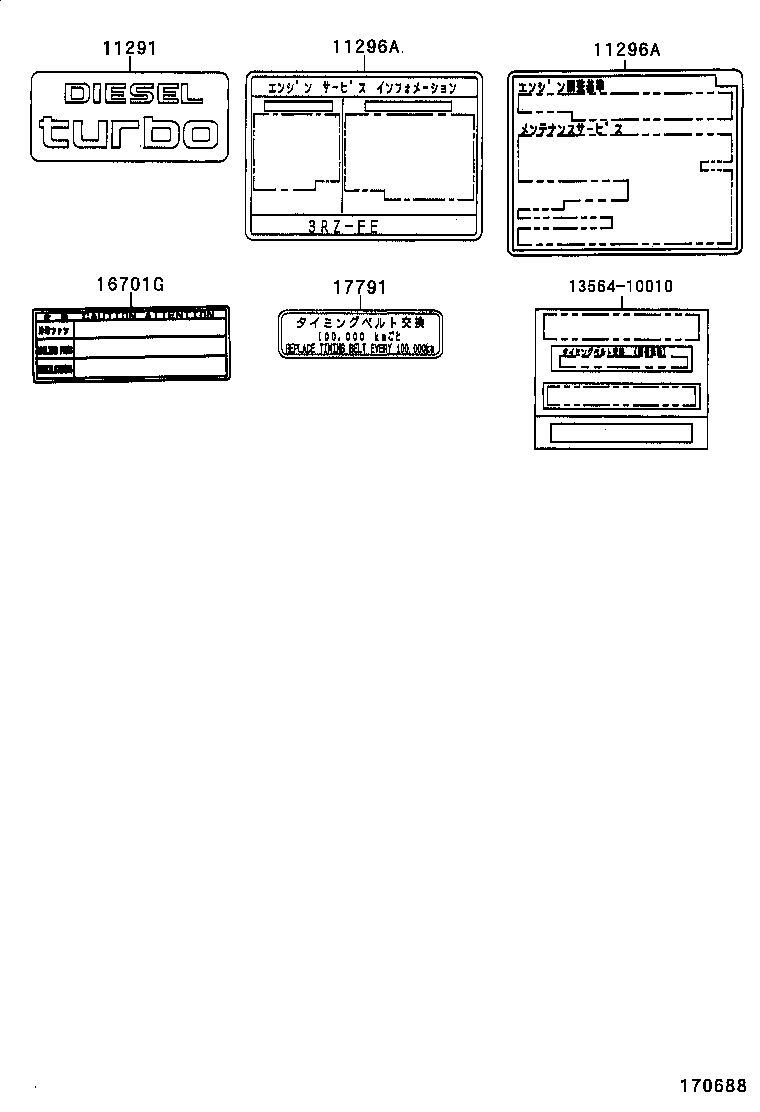

diagram 11291 11296A 11296A 1356410010 16701G 17791
Part # Description Qty Price
11291 - PLATE, ENGINE NAME
11291-67010

1KZTE..KCH4#

 1
11296A - LABEL, ENGINE SERVICE INFORMATION
11296-67020

1KZTE..KCH4#

 1
11296-67040

1KZTE..KCH4#

 1
11296A - LABEL, ENGINE SERVICE INFORMATION
11296-67020

1KZTE..KCH4#

 1
11296-67040

1KZTE..KCH4#

 1
16701G - LABEL, CAUTION
88723-20081

5L..LXH4#..G;1KZTE,3RZFE..KCH4#,RCH41,47

 1
88723-20080

5L..LXH4#..G;1KZTE,3RZFE..KCH4#,RCH41,47

 1
17791 - LABEL, MAINTENANCE INFORMATION
17791-55010

1KZTE..KCH4#

 1
17791-55010

1KZTE,5L..KCH4#,LXH4#

 1
Common parts
13564-10010
