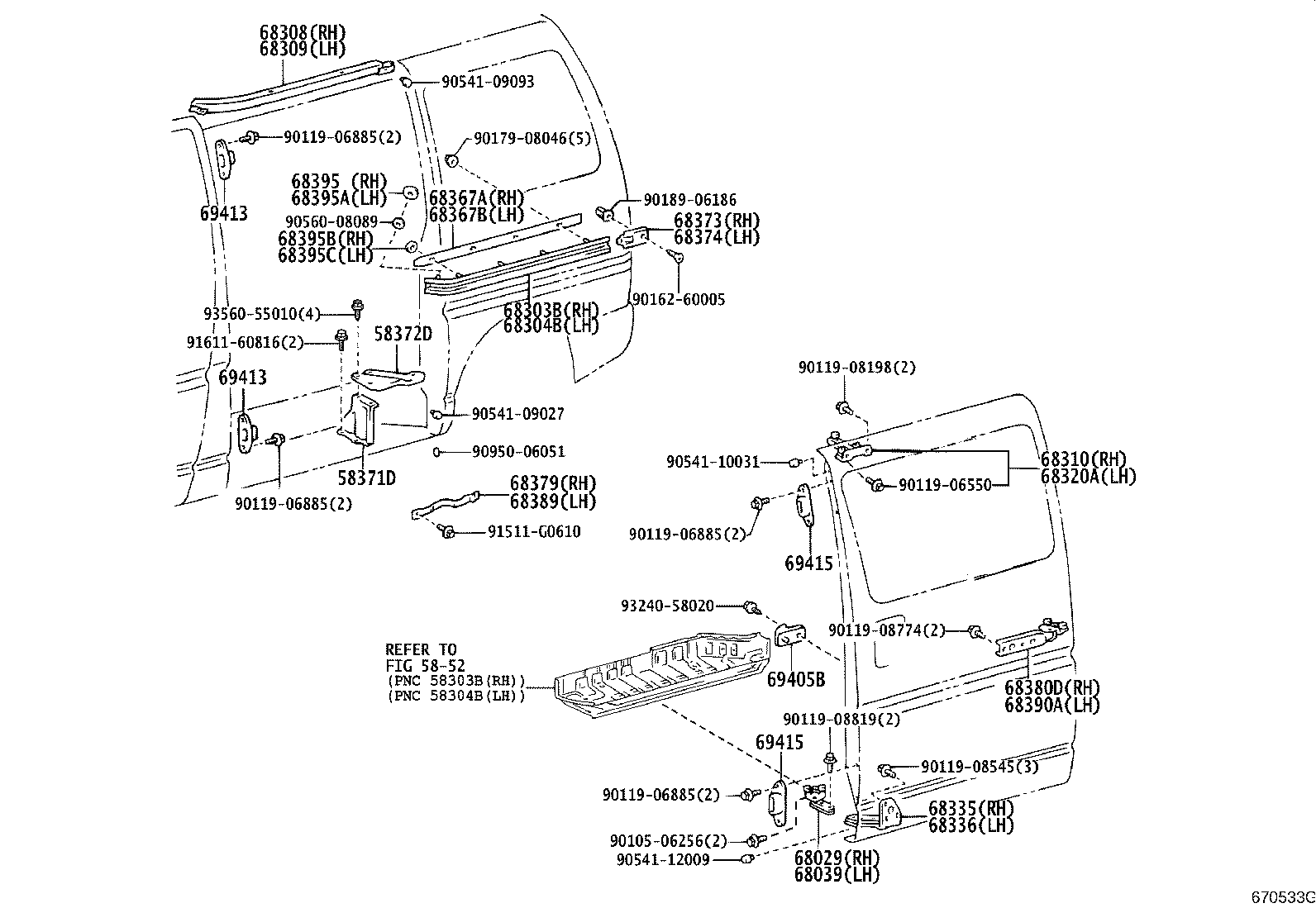

KCH40G-GRSGT (1997)
Toyota Regius/Touring Hiace
(9704- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58371D - COVER, REAR FLOOR STEP, NO.1 | ||||
| 58371-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 58371-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 58372D - COVER, REAR FLOOR STEP, NO.2 | ||||
| 58372-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 58372-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 68039 - BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH | ||||
| 68039-26040 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 68039-26040 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 68039-26020 |
KCH4#,RCH41,47 |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-26050G2 |
KCH4#,RCH41,47..G,STD DK.GREEN M.M.,2DK |
1 | ||
| 68304-26050G1 |
KCH4#,RCH41,47..STD LT GREEN M,6L5 |
1 | ||
| 68304-26050B0 |
KCH4#,RCH41,47..STD,WINT BLUISH SILVER ME.,1A0 |
1 | ||
| 68304-26050G1 |
KCH4#,RCH41,47..G LT GREEN M,2DJ |
1 | ||
| 68304-26050J0 |
KCH4#,RCH41,47..STD BLUE M.M.,2DM |
1 | ||
| 68304-26050A0 |
KCH4#,RCH41,47..G,STD WHITE PM,2EB |
1 | ||
| 68304-26050C0 |
KCH4#,RCH41,47..G,STD BLACK ME,2EV |
1 | ||
| 68304-26050G1 |
KCH4#,RCH41,47..STD LT GREEN M,2DJ ,6L5 |
1 | ||
| 68304-26040 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 68304-26050A1 |
KCH4#,RCH41,47..STD ﾎﾜｲﾄｴﾃﾞｲｼﾖﾝ *(S), *(T),WHITE,2EW |
1 | ||
| 68309 - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH | ||||
| 68309-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 68320A - ROLLER ASSY, SLIDE DOOR, UPPER, LH | ||||
| 68320-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 68336 - ARM, SLIDE DOOR LOWER ROLLER, LH | ||||
| 68336-26030 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 68367B - PAD, SLIDE DOOR CENTER RAIL | ||||
| 68367-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 68374 - MOULDING, SLIDE RAIL END, LH | ||||
| 68374-26050G1 |
KCH4#,RCH41,47..STD LT GREEN M,6L5 |
1 | ||
| 68374-26050J0 |
KCH4#,RCH41,47..STD BLUE M.M.,2DM |
1 | ||
| 68374-26050G2 |
KCH4#,RCH41,47..G,STD DK.GREEN M.M.,2DK |
1 | ||
| 68374-26050A0 |
KCH4#,RCH41,47..G,STD WHITE PM,2EB |
1 | ||
| 68374-26050B0 |
KCH4#,RCH41,47..STD,WINT BLUISH SILVER ME.,1A0 |
1 | ||
| 68374-26050G1 |
KCH4#,RCH41,47..G LT GREEN M,2DJ |
1 | ||
| 68374-26040 |
LXH4#;KCH4#,RCH4#..E,STD |
1 | ||
| 68374-26050C0 |
KCH4#,RCH41,47..G,STD BLACK ME,2EV |
1 | ||
| 68374-26050A1 |
KCH4#,RCH41,47..STD ﾎﾜｲﾄｴﾃﾞｲｼﾖﾝ *(S), *(T),WHITE,2EW |
1 | ||
| 68374-26050G1 |
KCH4#,RCH41,47..STD LT GREEN M,2DJ ,6L5 |
1 | ||
| 68389 - SPRING, SLIDE DOOR CATCH, LH | ||||
| 68389-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-26020 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 68395A - PACKING, SLIDE DOOR CENTER RAIL | ||||
| 68395-26010 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 68395C - PACKING, SLIDE DOOR CENTER RAIL | ||||
| 68395-95J00 |
KCH4#,LXH4#,RCH4# |
4 | ||
| 69405B - STOP SUB-ASSY, SLIDE DOOR OPEN | ||||
| 69405-26020 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 69405-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｵ-ﾄ ｽﾗｲﾄﾞ ﾄﾞｱ) |
1 | ||
| 69405-26010 |
KCH4#,LXH4#,RCH41,47..4D |
1 | ||
| 69413 - STOP, SLIDE DOOR DOWN MALE | ||||
| 69416-26010 |
KCH4#,LXH4#,RCH41,47..4D |
2 | ||
| 69413 - STOP, SLIDE DOOR DOWN MALE | ||||
| 69416-26010 |
KCH4#,LXH4#,RCH41,47..4D |
2 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-26010 |
KCH4#,LXH4#,RCH41,47..4D |
2 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-26010 |
KCH4#,LXH4#,RCH41,47..4D |
2 | ||
| Common parts | ||||
| 90105-06256 | ||||
| 90119-06550 | ||||
| 90119-06885 | ||||
| 90119-08198 | ||||
| 90119-08545 | ||||
| 90119-08774 | ||||
| 90119-08819 | ||||
| 90162-60005 | ||||
| 90179-08046 | ||||
| 90189-06186 | ||||
| 90541-09027 | ||||
| 90541-09093 | ||||
| 90541-10031 | ||||
| 90541-12009 | ||||
| 90560-08089 | ||||
| 90950-06051 | ||||
| 91511-G0610 | ||||
| 91611-60816 | ||||
| 93240-58020 | ||||
| 93560-55010 | ||||
| Linked diagrams | ||||
| 5852 | ||||

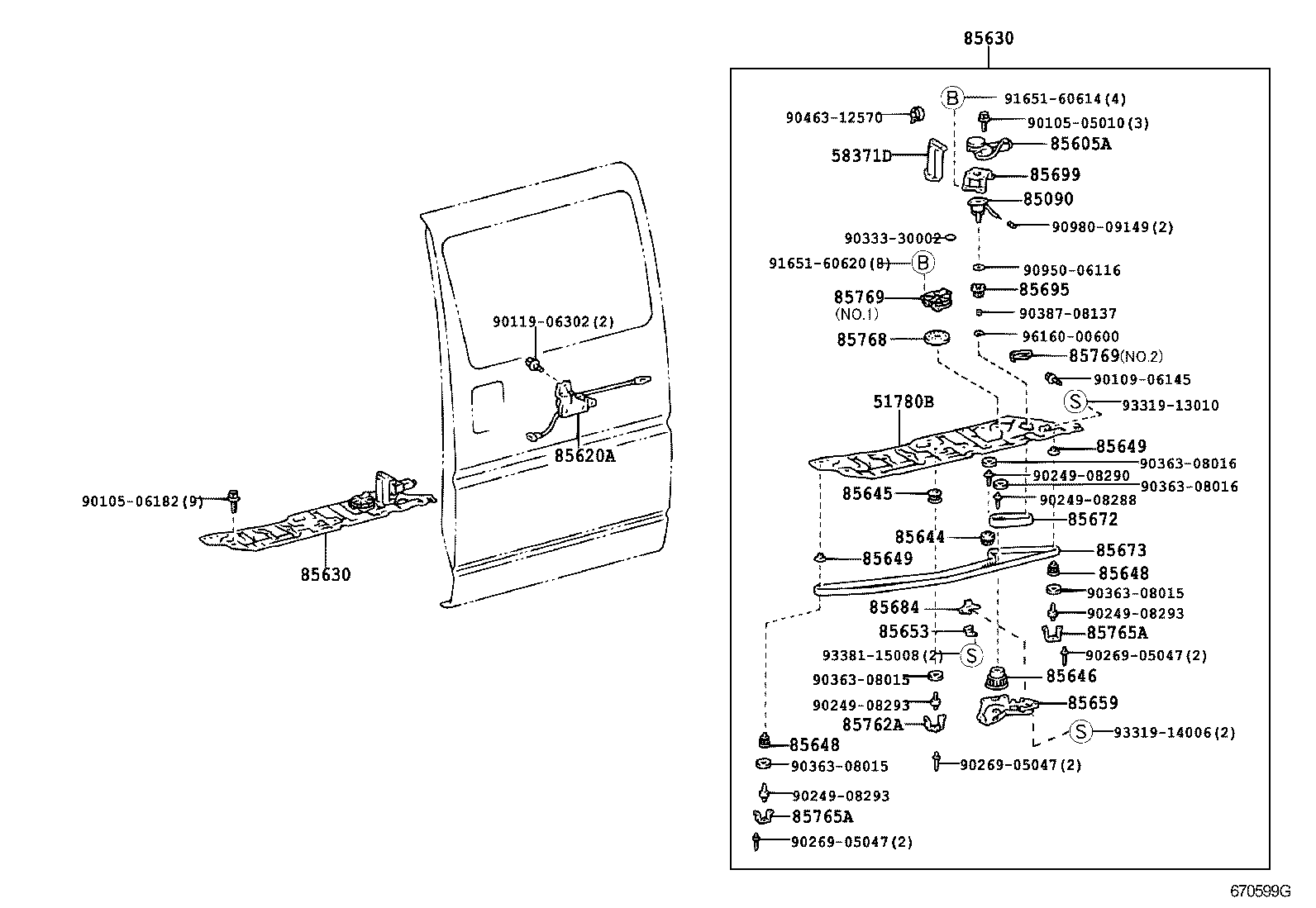

(9704-9907)
ｵ-ﾄｽﾗｲﾄﾞ ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51780B - STEP ASSY, LH | ||||
| 51780-26010 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 51780-26021 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 51780-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 51780-26020 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 58371D - COVER, REAR FLOOR STEP, NO.1 | ||||
| 58371-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 58371-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85090 - CLUTCH ASSY, SLIDE DOOR MOTOR | ||||
| 85090-26030 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85090-26030 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85605A - MOTOR SUB-ASSY, SLIDE DOOR | ||||
| 85605-26030 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85605-26030 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85620A - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH | ||||
| 85620-26030 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85620-26030 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85630 - MOTOR ASSY, SLIDE DOOR | ||||
| 85006-26010 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85006-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85006-26012 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85006-26011 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85630 - MOTOR ASSY, SLIDE DOOR | ||||
| 85006-26010 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85006-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85006-26012 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85006-26011 |
KCH4#,RCH41,47..G,STD,WINT |
1 | ||
| 85644 - PULLEY, BELT IDLE, NO.1 | ||||
| 85644-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85644-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85645 - PULLEY, BELT IDLE, NO.2 | ||||
| 85645-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85645-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85646 - PULLEY, MAIN | ||||
| 85646-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85646-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85648 - PULLEY, DRIVE BELT | ||||
| 85648-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
2 | ||
| 85648-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 85648 - PULLEY, DRIVE BELT | ||||
| 85648-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
2 | ||
| 85648-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 85649 - FLANGE, PULLEY(FOR SLIDE DOOR MOTOR) | ||||
| 85649-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
2 | ||
| 85649-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 85649 - FLANGE, PULLEY(FOR SLIDE DOOR MOTOR) | ||||
| 85649-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
2 | ||
| 85649-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 85653 - PLATE, DRIVE BELT | ||||
| 85653-26030 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85653-26030 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85659 - COVER, BELT | ||||
| 85064-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85064-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85672 - BELT, CLUTCH TO MAIN PULLEY | ||||
| 85672-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85672-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85673 - BELT, SLIDE DOOR MOTOR | ||||
| 85673-26030 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85673-26030 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85684 - BRACKET, POWER SLIDE DOOR MOTOR ARM | ||||
| 85684-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85684-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85695 - PULLEY, CLUTCH, NO.1 | ||||
| 85695-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85695-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85699 - BRACKET, SLIDE DOOR MOTOR CONNECTOR | ||||
| 85699-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85699-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85762A - BRACKET, BELT IDLER, NO.2 | ||||
| 85762-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85762-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85765A - BRACKET, DRIVE BELT PULLEY | ||||
| 85765-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
2 | ||
| 85765-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 85765A - BRACKET, DRIVE BELT PULLEY | ||||
| 85765-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
2 | ||
| 85765-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
2 | ||
| 85768 - PLATE, SLIDE DOOR MOTOR CONTROL | ||||
| 85768-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
1 | ||
| 85768-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
1 | ||
| 85769 - COVER, SLIDE DOOR MOTOR CONTROL PLATE | ||||
| 85769-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD NO.1 |
1 | ||
| 85769-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT NO.2 |
1 | ||
| 85769-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD NO.2 |
1 | ||
| 85769-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT NO.1 |
1 | ||
| 85769 - COVER, SLIDE DOOR MOTOR CONTROL PLATE | ||||
| 85769-26010 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD NO.1 |
1 | ||
| 85769-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT NO.2 |
1 | ||
| 85769-26020 |
KCH4#,RCH41,47..G,STD,V,WINT,WISTD NO.2 |
1 | ||
| 85769-26010 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT NO.1 |
1 | ||
| Common parts | ||||
| 90105-05010 | ||||
| 90105-06182 | ||||
| 90109-06145 | ||||
| 90119-06302 | ||||
| 90249-08288 | ||||
| 90249-08290 | ||||
| 90249-08293 | ||||
| 90269-05047 | ||||
| 90333-30002 | ||||
| 90363-08015 | ||||
| 90363-08016 | ||||
| 90387-08137 | ||||
| 90463-12570 | ||||
| 90950-06116 | ||||
| 90980-09149 | ||||
| 91651-60614 | ||||
| 91651-60620 | ||||
| 93319-13010 | ||||
| 93319-14006 | ||||
| 93381-15008 | ||||
| 96160-00600 | ||||
