Toyota Regius/touring hiace KCH40 REAR AXLE SHAFT & HUB

KCH40G-GRSGT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999

Engine 1KZTE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

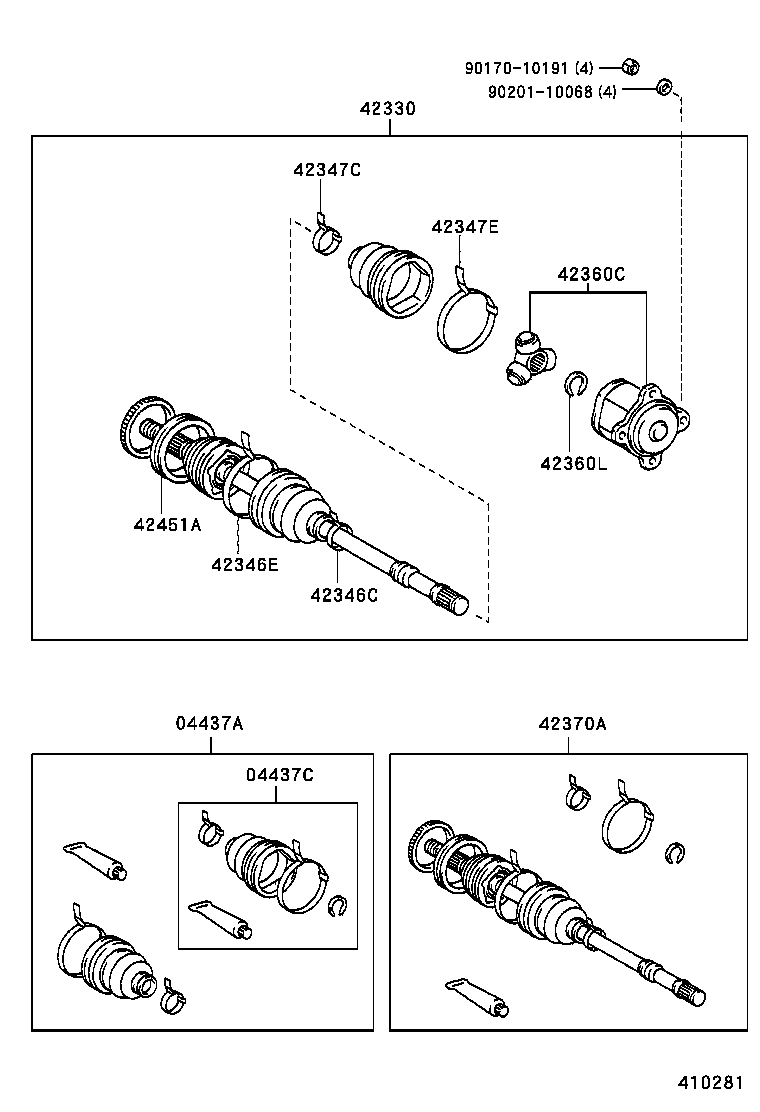

ILLUST NO. 1 OF 2(9704- )

Click highlighted areas on diagram

ﾗｲﾄ,TYPE A

Part #	Description	Period	Qty
04437A - BOOT KIT, REAR DRIVE SHAFT, RH
04437-26020	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
04437-26020	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
04437-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
04437-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1997 - 04/1998	1
42330-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(LSD)	04/1998 - 12/2999	1
42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
90949-01221	KCH4#,LXH4#,RCH42 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01221	KCH4#,LXH4#,RCH42,47 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R
90949-01290	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
90949-01290	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
90949-01221	KCH4#,LXH4#,RCH42 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01221	KCH4#,LXH4#,RCH42,47 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH
90949-01222	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01222	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42360-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90520-29028	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90520-29028	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-29365	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1997 - 04/1998	1
42370-29365	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1998 - 12/2999	1
42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42452-26030	KCH4#;LXH4#..G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ABS)	04/1997 - 05/1998	1
42452-26030	LXH4#..G;KCH4#..G07S;KCH4#,RCH47..E,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ABS)	05/1998 - 12/2999	1
Common parts
90170-10191
90201-10068

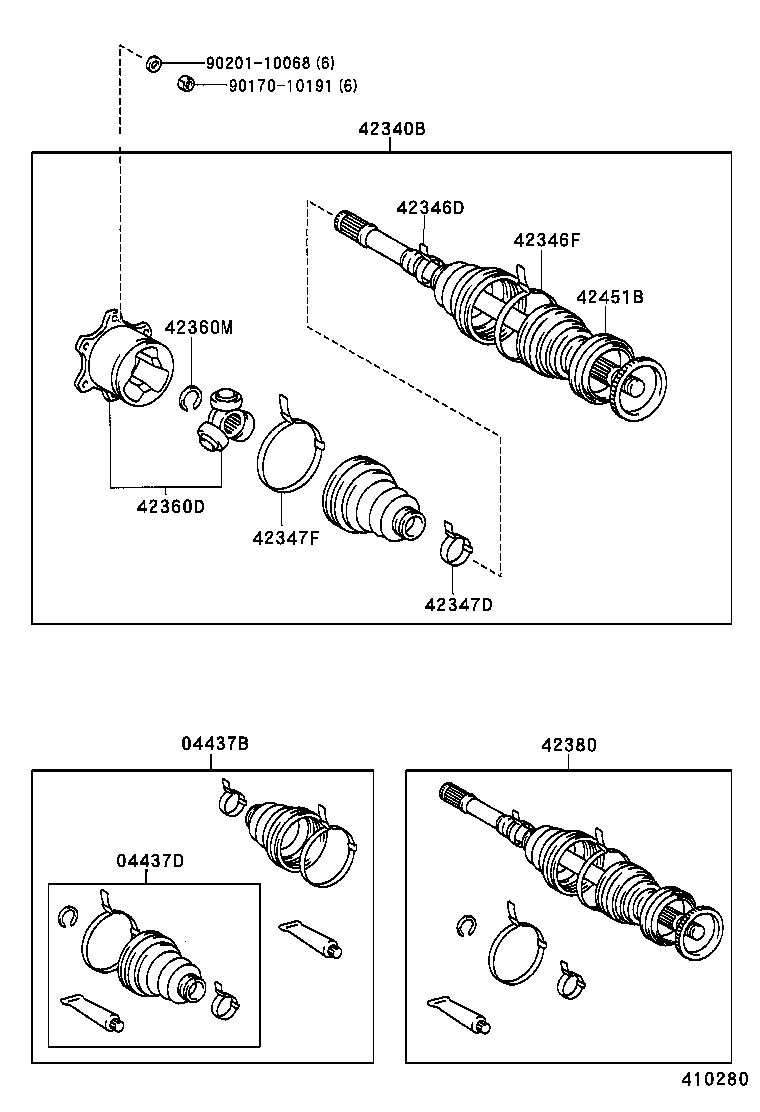

ILLUST NO. 1 OF 2(9704- )

Click highlighted areas on diagram

ﾚﾌﾄ,TYPE A

Part #	Description	Period	Qty
04437B - BOOT KIT, REAR DRIVE SHAFT, LH
04437-26020	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
04437-26020	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH
04437-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
04437-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-26090	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1997 - 04/1998	1
42340-26090	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(LSD)	04/1998 - 12/2999	1
42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
90949-01221	KCH4#,LXH4#,RCH42,47 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
90949-01221	KCH4#,LXH4#,RCH42 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L
90949-01290	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01290	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
90949-01221	KCH4#,LXH4#,RCH42 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01221	KCH4#,LXH4#,RCH42,47 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
90949-01222	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01222	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42360-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42360-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90520-29028	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
90520-29028	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42380-29125	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1997 - 04/1998	1
42380-29125	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1998 - 12/2999	1
42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
42452-26030	LXH4#..G;KCH4#..G07S;KCH4#,RCH47..E,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ABS)	05/1998 - 12/2999	1
42452-26030	KCH4#;LXH4#..G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ABS)	04/1997 - 05/1998	1
Common parts
90170-10191
90201-10068

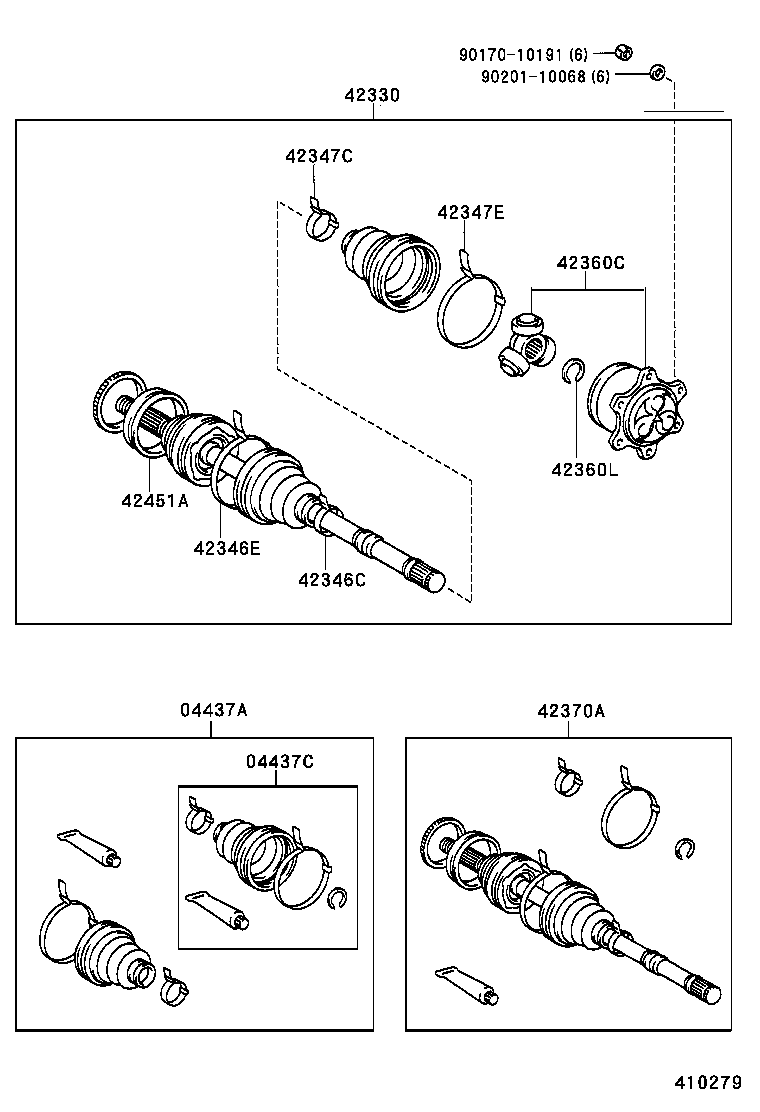

ILLUST NO. 1 OF 2(9704- )

Click highlighted areas on diagram

ﾗｲﾄ,TYPE B

Part #	Description	Period	Qty
04437A - BOOT KIT, REAR DRIVE SHAFT, RH
04437-26020	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
04437-26020	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH
04437-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
04437-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1997 - 04/1998	1
42330-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(LSD)	04/1998 - 12/2999	1
42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
90949-01221	KCH4#,LXH4#,RCH42 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01221	KCH4#,LXH4#,RCH42,47 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R
90949-01290	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
90949-01290	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
90949-01221	KCH4#,LXH4#,RCH42 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01221	KCH4#,LXH4#,RCH42,47 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH
90949-01222	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01222	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42360-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90520-29028	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90520-29028	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-29365	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1997 - 04/1998	1
42370-29365	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1998 - 12/2999	1
42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42452-26030	KCH4#;LXH4#..G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ABS)	04/1997 - 05/1998	1
42452-26030	LXH4#..G;KCH4#..G07S;KCH4#,RCH47..E,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ABS)	05/1998 - 12/2999	1
Common parts
90170-10191
90201-10068

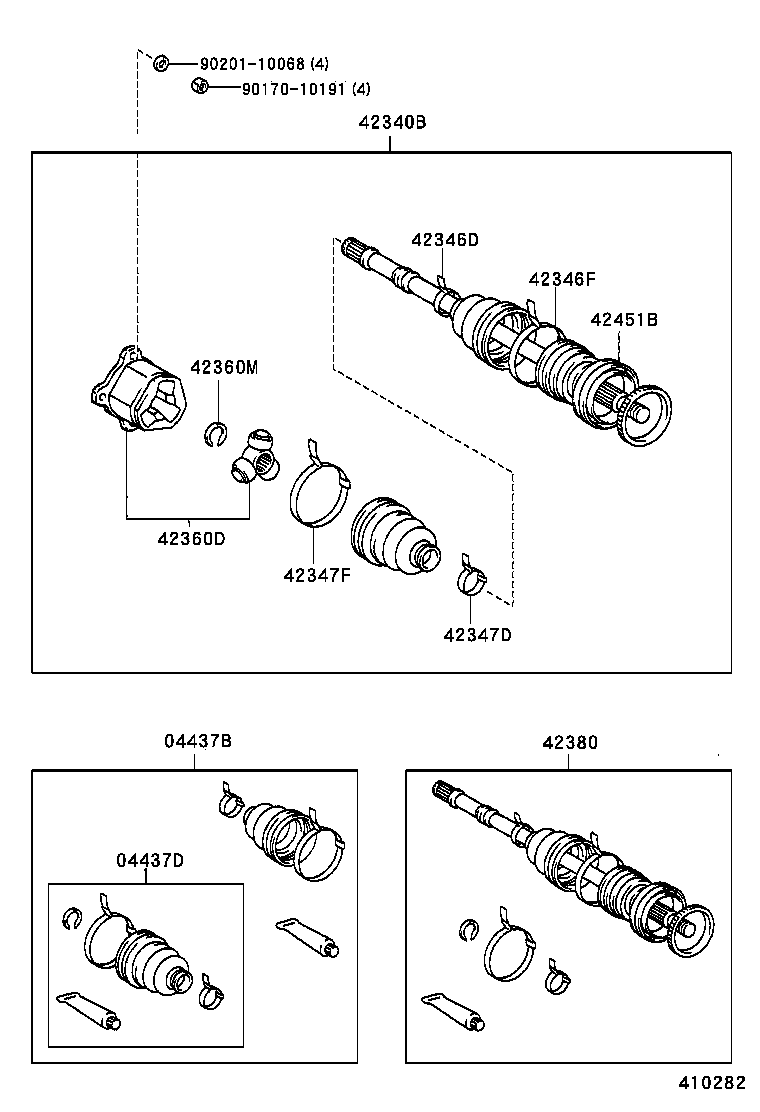

ILLUST NO. 1 OF 2(9704- )

Click highlighted areas on diagram

ﾚﾌﾄ,TYPE B

Part #	Description	Period	Qty
04437B - BOOT KIT, REAR DRIVE SHAFT, LH
04437-26020	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
04437-26020	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH
04437-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
04437-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-26090	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1997 - 04/1998	1
42340-26090	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(LSD)	04/1998 - 12/2999	1
42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
90949-01221	KCH4#,LXH4#,RCH42,47 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
90949-01221	KCH4#,LXH4#,RCH42 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L
90949-01290	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01290	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
90949-01221	KCH4#,LXH4#,RCH42 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01221	KCH4#,LXH4#,RCH42,47 内径=38.94,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH
90949-01222	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
90949-01222	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42360-26010	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42360-26010	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90520-29028	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1998 - 12/2999	1
90520-29028	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	04/1997 - 04/1998	1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42380-29125	KCH4#,LXH4#,RCH42 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1997 - 04/1998	1
42380-29125	KCH4#,LXH4#,RCH42,47 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ｱﾘ(ABS)	04/1998 - 12/2999	1
42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
42452-26030	LXH4#..G;KCH4#..G07S;KCH4#,RCH47..E,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ABS)	05/1998 - 12/2999	1
42452-26030	KCH4#;LXH4#..G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ, ｱﾘ(ABS)	04/1997 - 05/1998	1
Common parts
90170-10191
90201-10068

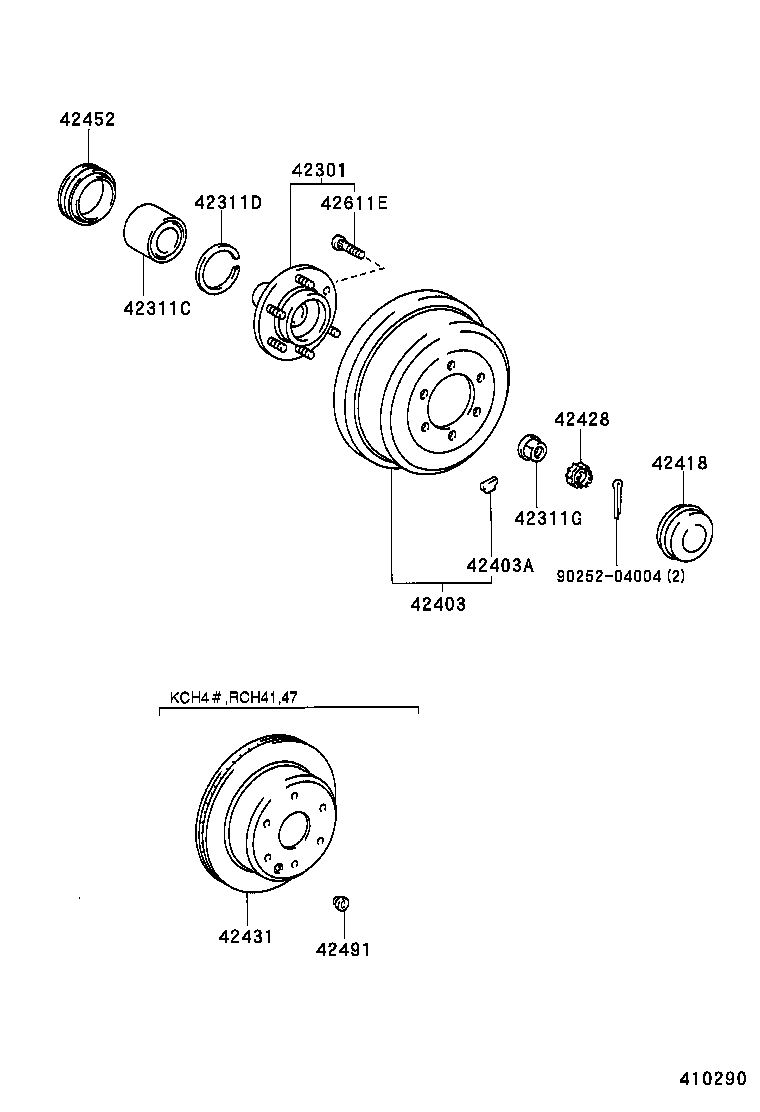

ILLUST NO. 2 OF 2(9704- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42301 - SHAFT SUB-ASSY, REAR AXLE
42301-26021	KCH40,LXH43,RCH41,42	04/1997 - 12/2999	2
42311C - BEARING (FOR REAR AXLE SHAFT)
90369-47003	KCH4#,RCH41,47	04/1997 - 12/2999	2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90521-88001	KCH4#,RCH41,47	04/1997 - 12/2999	2
42311G - NUT (FOR REAR AXLE SHAFT)
90179-26006	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	2
42428 - PLATE, REAR AXLE LOCK NUT
42428-24010	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	2
42431 - DISC, REAR
42431-26160	KCH40,RCH41	04/1997 - 12/2999	2
42452 - DEFLECTOR, REAR WHEEL BEARING DUST, NO.2
42451-28010	KCH4#,LXH4#,RCH4# ｱﾘ(ABS)	04/1997 - 12/2999	2
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020	KCH4#,RCH41,47	04/1997 - 12/2999	2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02052	KCH4#,LXH4#,RCH4#	04/1997 - 08/2000	12
Common parts
90252-04004
