KCH40G-GFSQT (1997)
Toyota Regius/Touring Hiace

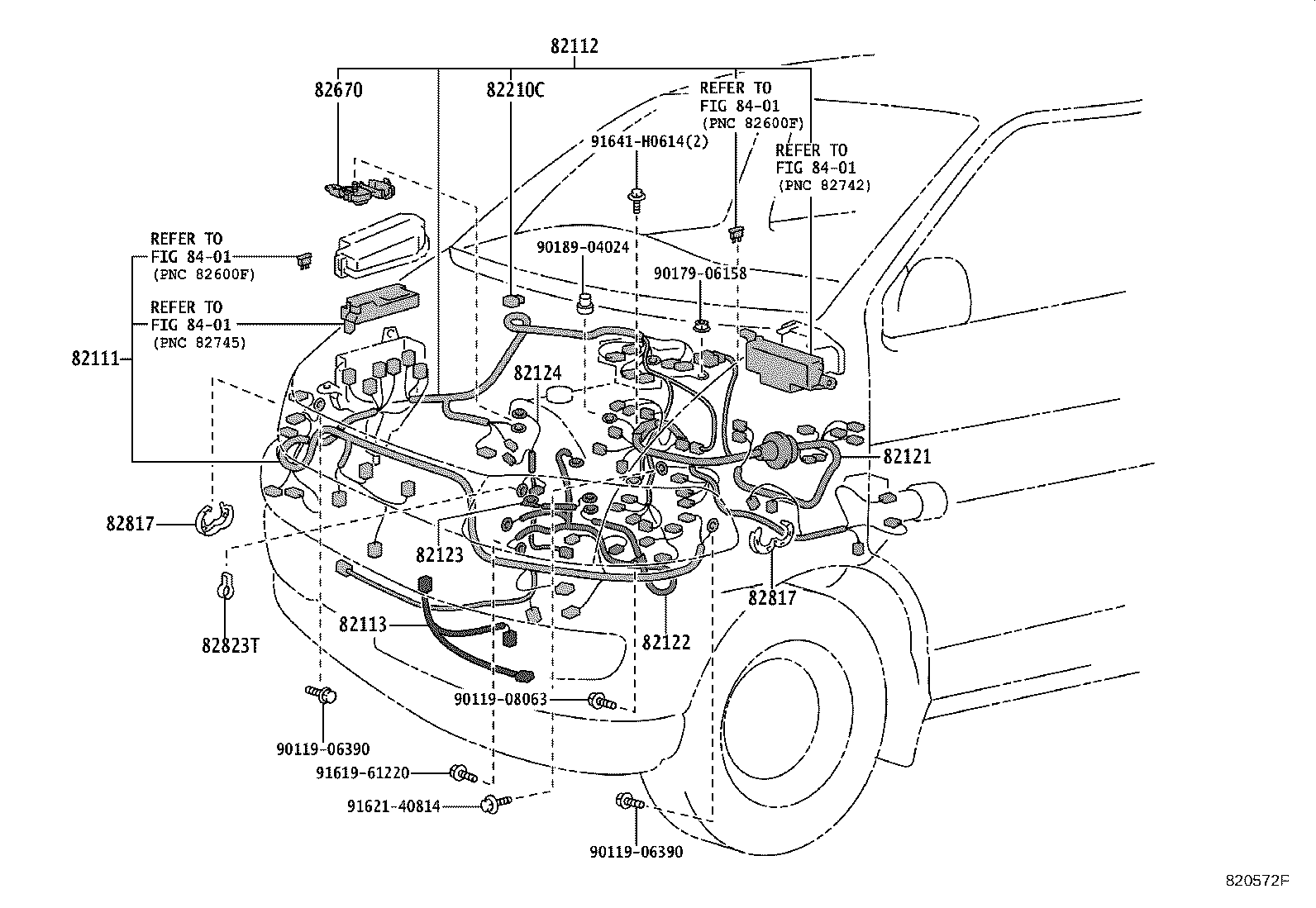

ILLUST NO. 1 OF 8(9704- )KCH4#
ｴﾝｼﾞﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2N700 |
KCH4#..E |
1 | ||
| 82111-2N660 |
KCH4#..G,STD,WINT ｱﾘ(ｵ-ﾄｴｱｺﾝ & ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-26290 |
KCH40 |
1 | ||
| 82112-26300 |
KCH40 ｱﾘ(ABS) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-26060 |
KCH4#..G,STD,WINT ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ) |
1 | ||
| 82113-26021 |
KCH4# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-26490 |
KCH40 |
1 | ||
| 82121-26491 |
KCH40 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26330 |
KCH4# |
1 | ||
| 82122-26340 |
KCH4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-26080 |
KCH4#,LXH4#..ATM |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26100 |
KCH40 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KCH4#,LXH4# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08282 |
KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
KCH4#,RCH41,47 120A,ｵｽ端子,白 |
1 | ||
| 90982-08190 |
KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08281 |
KCH4# 40A,ﾒｽ端子,緑 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-26020 |
KCH4#,LXH4# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B730 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B730 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
KCH4#,LXH4# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08063 | ||||
| 90179-06158 | ||||
| 90189-04024 | ||||
| 91619-61220 | ||||
| 91621-40814 | ||||
| 91641-H0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

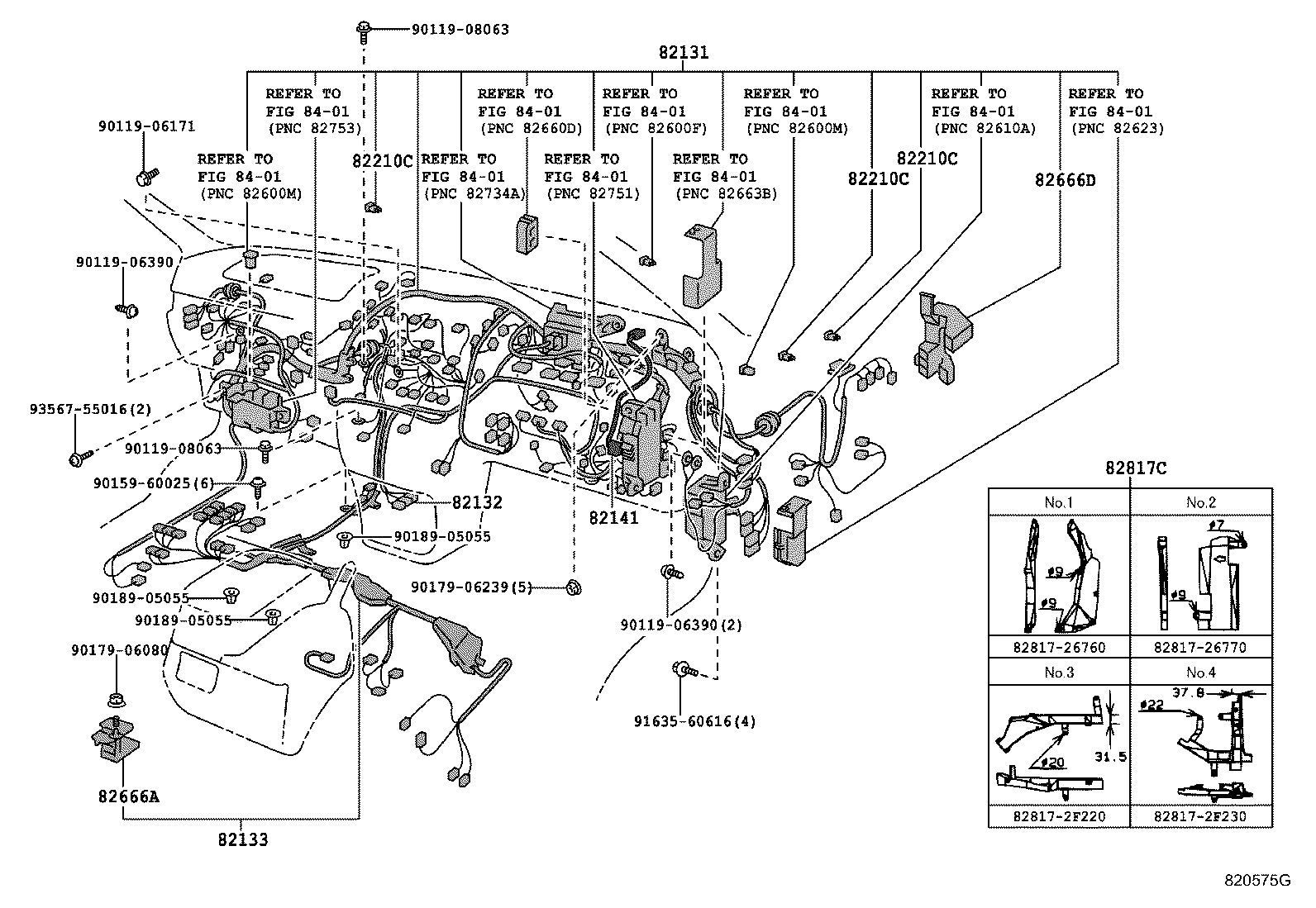

ILLUST NO. 2 OF 8(9704-9907)
ｲﾝﾊﾟﾈ & ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

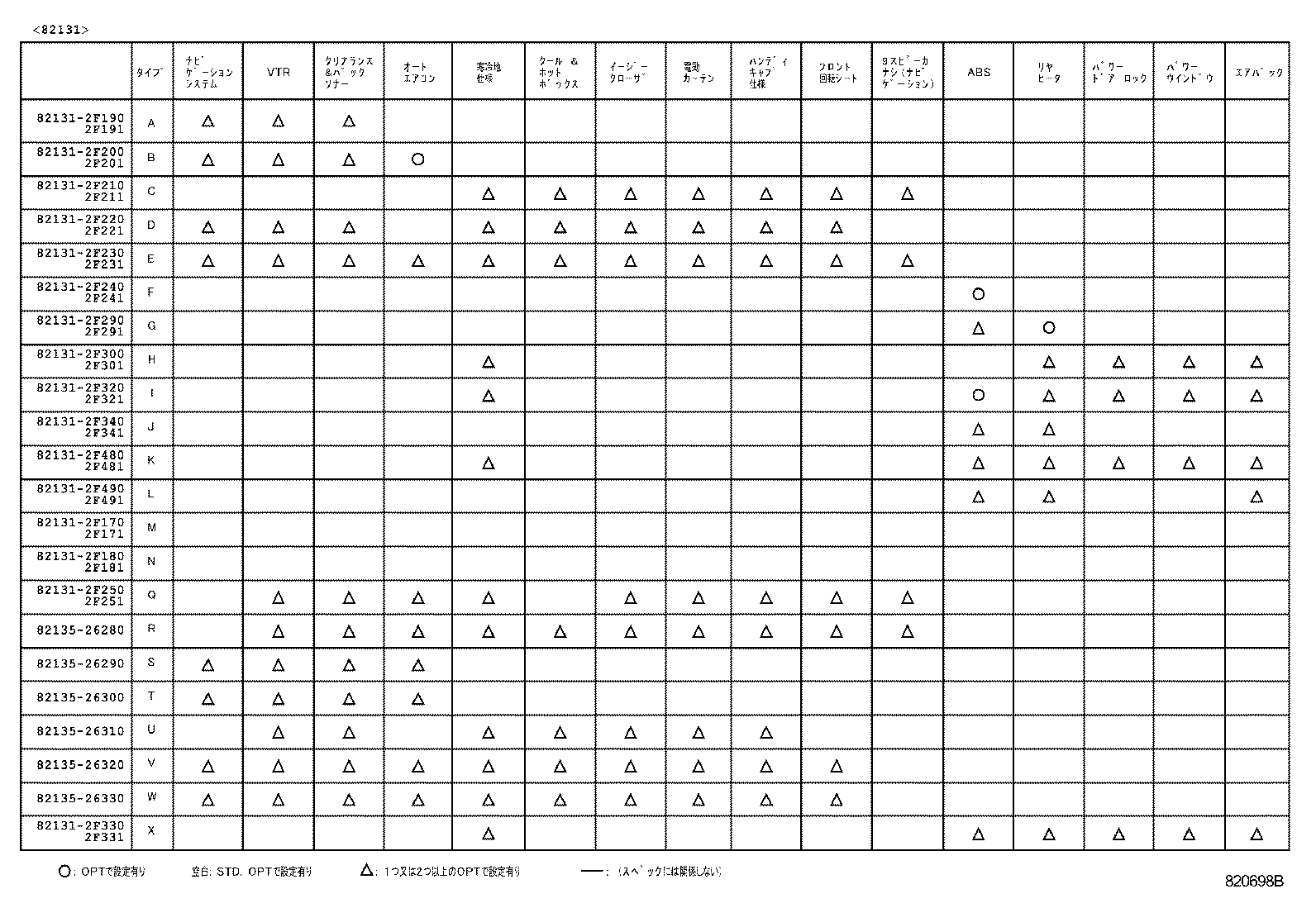

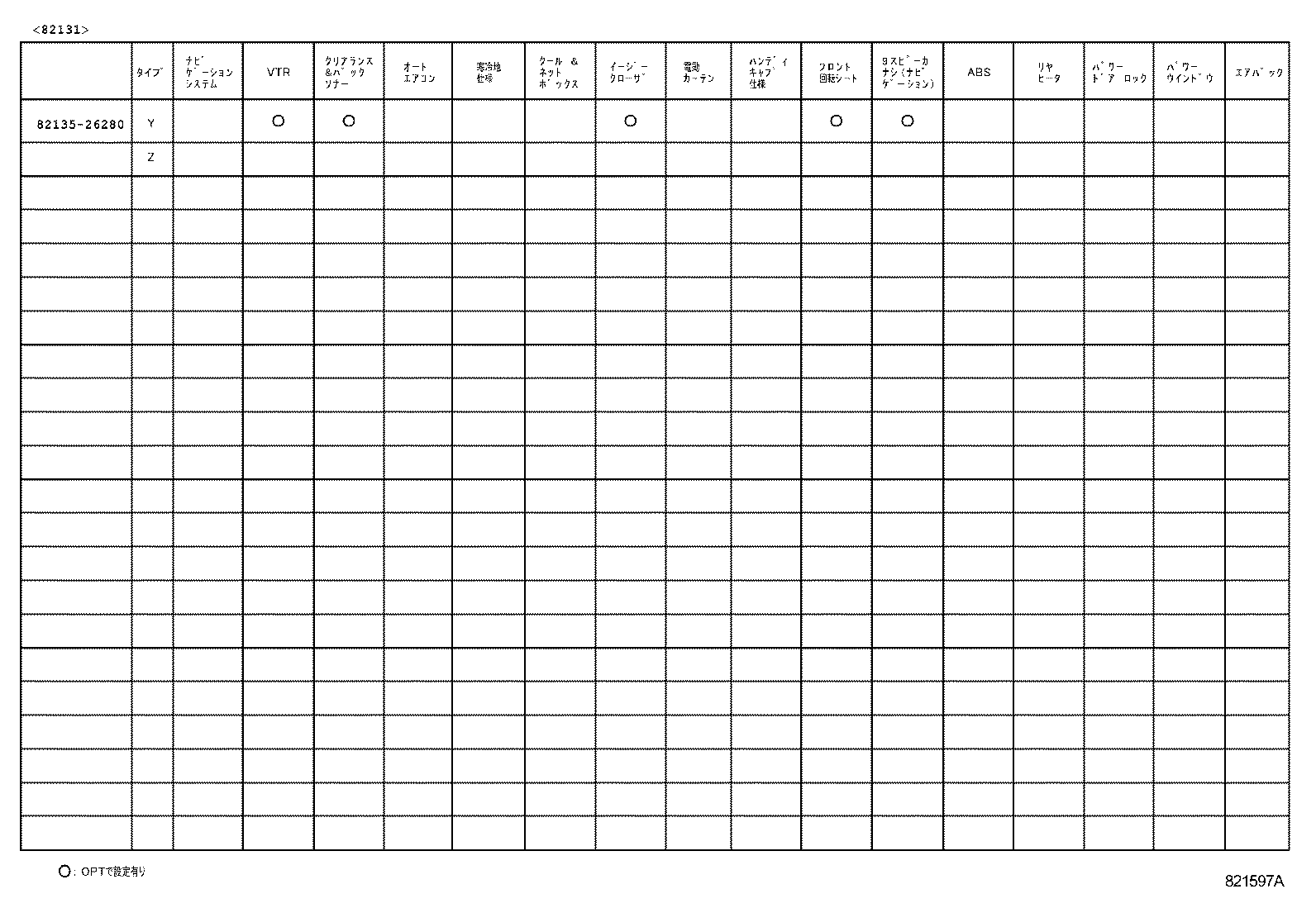

| 82131 - WIRE, COWL | ||||
| 82131-2F250 |
KCH4#..G07S |
1 | ||
| 82131-2F260 |
KCH4#..E |
1 | ||
| 82131-2F251 |
KCH46..G,STD;KCH40..G,STD,WINT TYPE Q:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82131-2F261 |
KCH4#..E |
1 | ||
| 82135-26330 |
KCH4#..G,STD TYPE W:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||

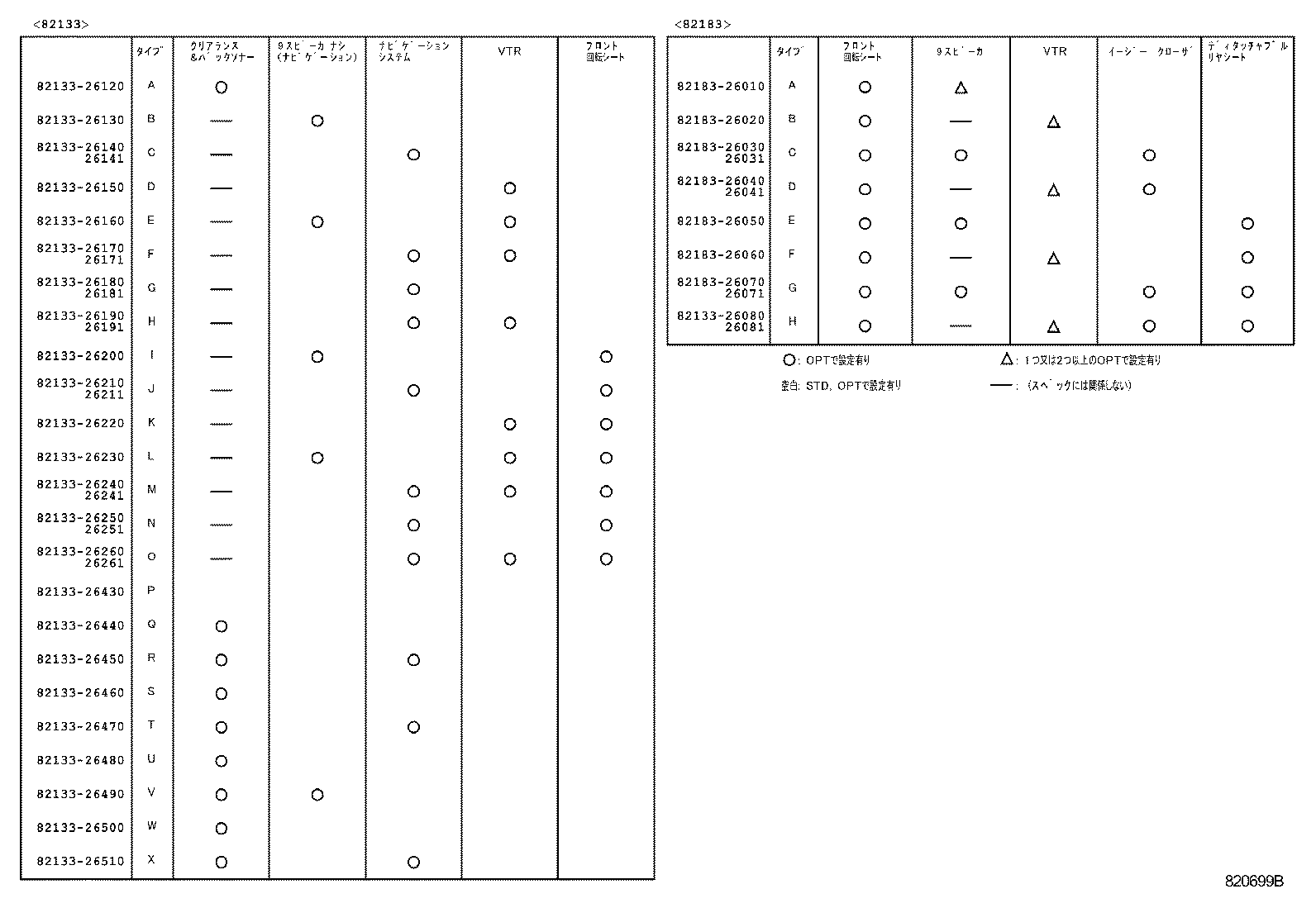

| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-26130 |
KCH4#,RCH41..G,STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26150 |
KCH4#,RCH41..G,STD,WINT TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26170 |
KCH4#,RCH41..G,STD,WINT TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26190 |
KCH4#,RCH41..G,STD TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26200 |
KCH4#,RCH41..G,STD,WINT TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26210 |
KCH4#,RCH41..G,STD,WINT TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26140 |
KCH4#,RCH41..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26160 |
KCH4#,RCH41..G,STD TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26220 |
KCH4#,RCH41..G,STD,WINT TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26120 |
KCH4#,RCH41,47..4D..(G,STD) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26180 |
KCH4#,RCH41..G,STD,WINT TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26160 |
KCH4#,RCH41,47..4D..(G,STD) TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26150 |
RCH47..4D;KCH4#,RCH41..4D..(G,STD) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26171 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26250 |
KCH4#,RCH41..G,STD,WINT TYPE N:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26240 |
KCH4#,RCH41..G,STD,WINT TYPE M:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26191 |
KCH4#,RCH41,47..4D..(G,STD) TYPE H:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26260 |
KCH4#,RCH41..G,STD TYPE O:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26230 |
KCH4#,RCH41..G,STD TYPE L:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26181 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE G:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26230 |
KCH4#,RCH41,47..4D..(G,STD) TYPE L:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26200 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE I:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26261 |
KCH4#,RCH41,47..4D..(G,STD) TYPE O:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26211 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE J:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26241 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE M:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26220 |
RCH47..4D;KCH4#,RCH41..4D..(G,STD) TYPE K:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26251 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE N:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26130 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82133-26141 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-26170 |
KCH4#,RCH41,47..G,STD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KCH4#,LXH4# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08282 |
KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
KCH4#,RCH41,47 120A,ｵｽ端子,白 |
1 | ||
| 90982-08190 |
KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08281 |
KCH4# 40A,ﾒｽ端子,緑 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KCH4#,LXH4# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08282 |
KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
KCH4#,RCH41,47 120A,ｵｽ端子,白 |
1 | ||
| 90982-08190 |
KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08281 |
KCH4# 40A,ﾒｽ端子,緑 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
KCH4#,LXH4# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08282 |
KCH4#,LXH4#,RCH4# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08274 |
KCH4#,RCH41,47 120A,ｵｽ端子,白 |
1 | ||
| 90982-08190 |
KCH4#,LXH4#,RCH4# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08281 |
KCH4# 40A,ﾒｽ端子,緑 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-26100 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 82666-26100 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26110 |
LXH4#..G;KCH4#,RCH41,47 |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90119-06390 | ||||
| 90119-08063 | ||||
| 90159-60025 | ||||
| 90179-06080 | ||||
| 90179-06239 | ||||
| 90189-05055 | ||||
| 91635-60616 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

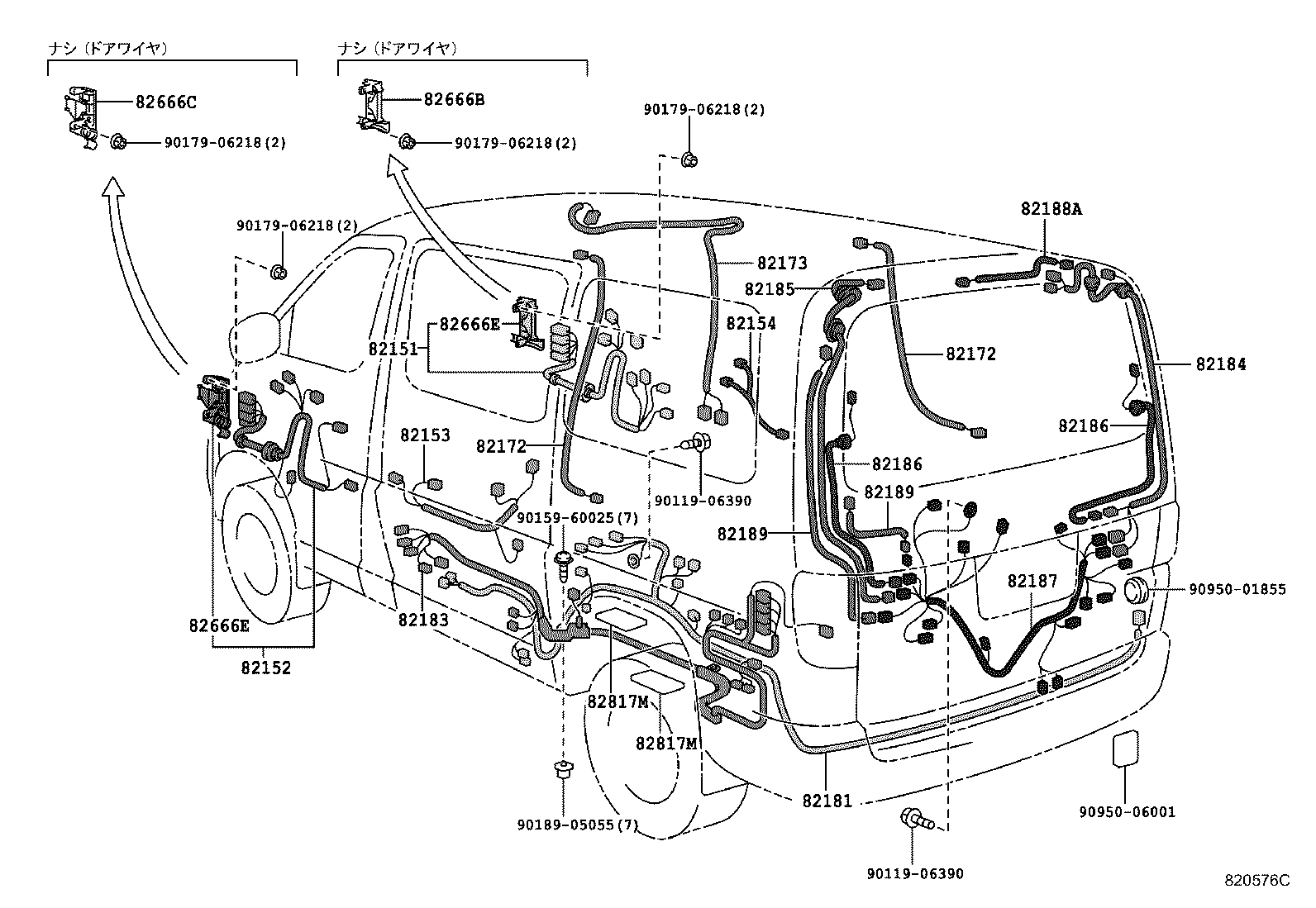

ILLUST NO. 3 OF 8(9704- )
ﾄﾞｱ & ﾙ-ﾌ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26350 |
KCH4#..E |
1 | ||
| 82151-26340 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26270 |
KCH4#..E |
1 | ||
| 82152-26280 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ);ｶﾝﾚｲﾁ ｼﾖｳ;ｱﾘ(9 ｽﾋﾟ-ｶ) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-26050 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ- & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82153-26040 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82153-26050 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ- & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82153-26040 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-26080 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
2 | ||
| 82172-26080 |
KCH4#,RCH41,47..G,STD,WINT |
2 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-26080 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT |
2 | ||
| 82172-26080 |
KCH4#,RCH41,47..G,STD,WINT |
2 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-26080 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾘﾔ ｸ-ﾗ) |
1 | ||
| 82173-26060 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ) |
1 | ||
| 82173-26060 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ) |
1 | ||
| 82173-26070 |
LXH4#..G;KCH4#,RCH41,47..E,STD |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-26070 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ-ｸﾛ-ｻﾞ) & ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ) |
1 | ||
| 82181-26061 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 82181-26070 |
KCH4#,RCH41,47..4D..(G,STD,WINT) ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ-ｸﾛ-ｻﾞ) & ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ) |
1 | ||
| 82181-26060 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 82181-26050 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ(ｻｲﾄﾞ & ﾊﾞﾂｸ)) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-26010 |
KCH4#,RCH41..G,STD,WINT TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82183-26020 |
KCH4#,RCH41..G,STD,WINT TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82183-26030 |
KCH4#,RCH41..G,STD,WINT TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82183-26020 |
RCH47..4D;KCH4#,RCH41..4D..(G,STD) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82183-26040 |
KCH4#,RCH41..G,STD,WINT TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82183-26031 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82183-26041 |
RCH47..4D..(G,STD);KCH4#,RCH41..4D..(G,STD,WINT) TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82183-26010 |
KCH4#,RCH41,47..4D..(G,STD,WINT) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-26190 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ(ｻｲﾄﾞ & ﾊﾞﾂｸ)) |
1 | ||
| 82184-26190 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ(ｻｲﾄﾞ & ﾊﾞﾂｸ)) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-26290 |
KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 82185-26270 |
KCH4#,LXH4#,RCH4# |
1 | ||
| 82185-26280 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 82185-26280 |
KCH4#,RCH41..G,STD ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 82185-26290 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26050 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26050 |
KCH4#,LXH4#,RCH4# |
2 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-26020 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ(ｻｲﾄﾞ & ﾊﾞﾂｸ)) |
1 | ||
| 82187-26030 |
KCH4#,RCH41..G,STD ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ- ｸﾛ-ｻﾞ) & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ(ｻｲﾄﾞ & ﾊﾞﾂｸ)) |
1 | ||
| 82187-26020 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ(ｻｲﾄﾞ & ﾊﾞﾂｸ)) |
1 | ||
| 82187-26030 |
KCH4#,RCH41,47..G,STD ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ- ｸﾛ-ｻﾞ) & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ(ｻｲﾄﾞ & ﾊﾞﾂｸ)) |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-26100 |
KCH4#,RCH41,47 |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82189-26060 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT 上側 |
1 | ||
| 82189-26060 |
KCH4#,RCH41,47..G,STD,WINT 上側 |
1 | ||
| 82189-26110 |
KCH4#,RCH41,47..G,STD,WINT 下側 |
1 | ||
| 82189-26110 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT 下側 |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82189-26060 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT 上側 |
1 | ||
| 82189-26060 |
KCH4#,RCH41,47..G,STD,WINT 上側 |
1 | ||
| 82189-26110 |
KCH4#,RCH41,47..G,STD,WINT 下側 |
1 | ||
| 82189-26110 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT 下側 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-26120 |
KCH4#,LXH4#,RCH4# 右側 |
1 | ||
| 82666-26050 |
KCH4#,LXH4#,RCH4# 左側 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-26120 |
KCH4#,LXH4#,RCH4# 右側 |
1 | ||
| 82666-26050 |
KCH4#,LXH4#,RCH4# 左側 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-60025 | ||||
| 90179-06218 | ||||
| 90189-05055 | ||||
| 90950-01855 | ||||
| 90950-06001 | ||||

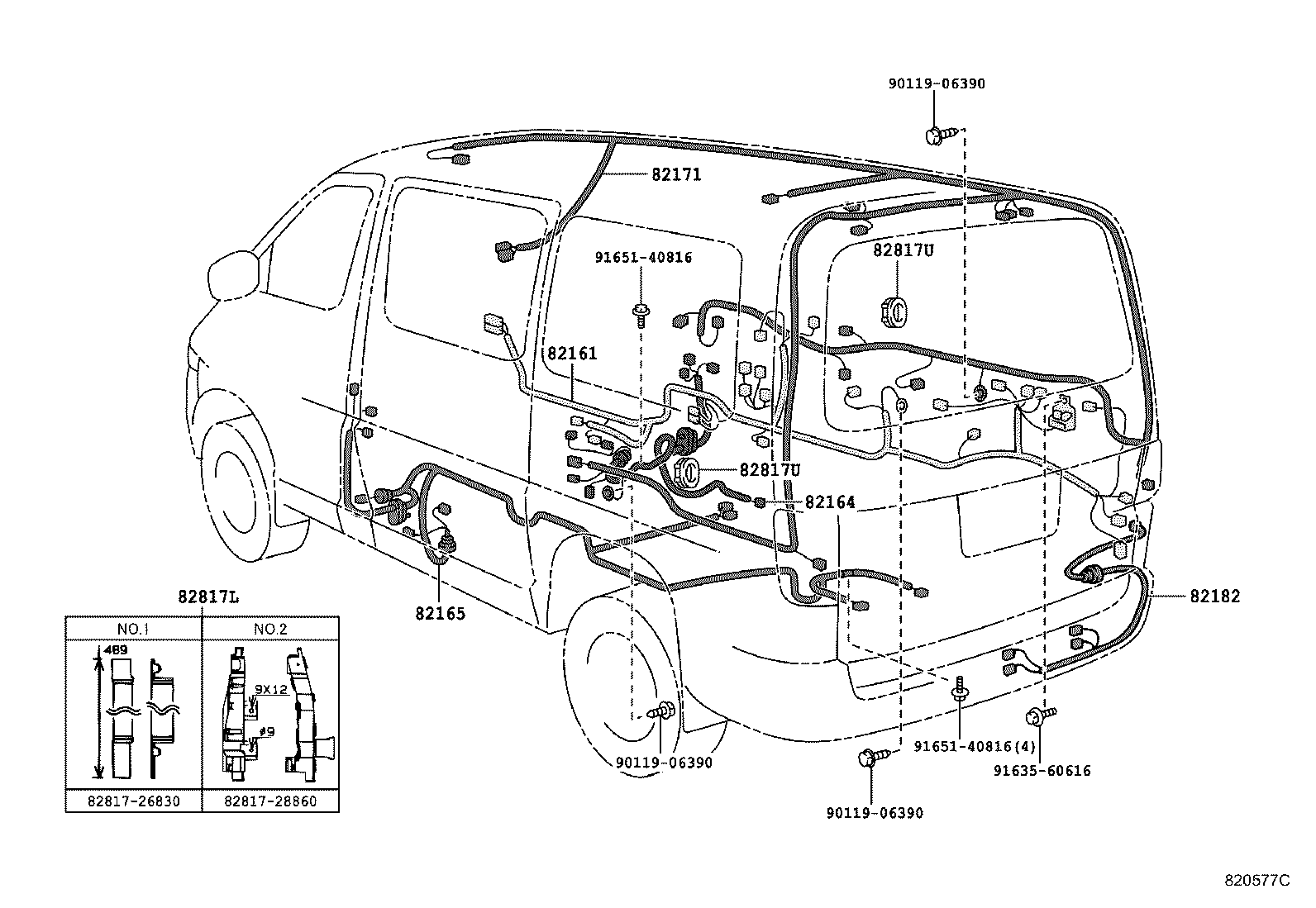

ILLUST NO. 5 OF 8(9704- )
ﾌﾛｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-26270 |
KCH4#,RCH41..G ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-26280 |
KCH4#..E |
1 | ||
| 82161-26390 |
KCH4#,RCH41..G ｱﾘ(VTR) |
1 | ||
| 82161-26281 |
KCH4#..E |
1 | ||
| 82161-26381 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 82161-26271 |
KCH4#,RCH41,47..4D..G ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
1 | ||
| 82161-26380 |
KCH4#,RCH41..G |
1 | ||
| 82161-26391 |
KCH4#,RCH41,47..4D..G ｱﾘ(VTR) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-26460 |
KCH4#;LXH4#..G |
1 | ||
| 82164-26590 |
LXH4#,RCH42;KCH4#,RCH41,47..4D |
1 | ||
| 82164-26392 |
KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｱﾘ(ｸ-ﾙ & ﾎﾂﾄ ﾎﾞﾂｸｽ) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-26190 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ- & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82165-26210 |
LXH4#..G;KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82165-26191 |
KCH4#,RCH41,47..G,STD,WINT ｱﾘ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ- & ｵ-ﾄ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 82165-26210 |
LXH4#..G;RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｲ-ｼﾞ-ｸﾛ-ｻﾞ) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-2F390 |
RCH47..STD;KCH4#,RCH41..G,STD,WINT ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ- ｸﾛ-ｻﾞ) & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) |
1 | ||
| 82171-2F400 |
KCH4#..E |
1 | ||
| 82171-2F391 |
RCH47..W08S;KCH4#,RCH41..4D..(G,STD,WINT) ｱﾘ(ｽﾗｲﾄﾞ & ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｲ-ｼﾞ- ｸﾛ-ｻﾞ) & ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶ-ﾃﾝ) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-26020 |
KCH4#,RCH41,47..G,STD,V |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-26830 |
KCH4#,RCH41..G,STD,WINT NO.1 |
1 | ||
| 82817-26830 |
KCH4#,RCH41,47..G,STD,WINT NO.1 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91635-60616 | ||||
| 91651-40816 | ||||

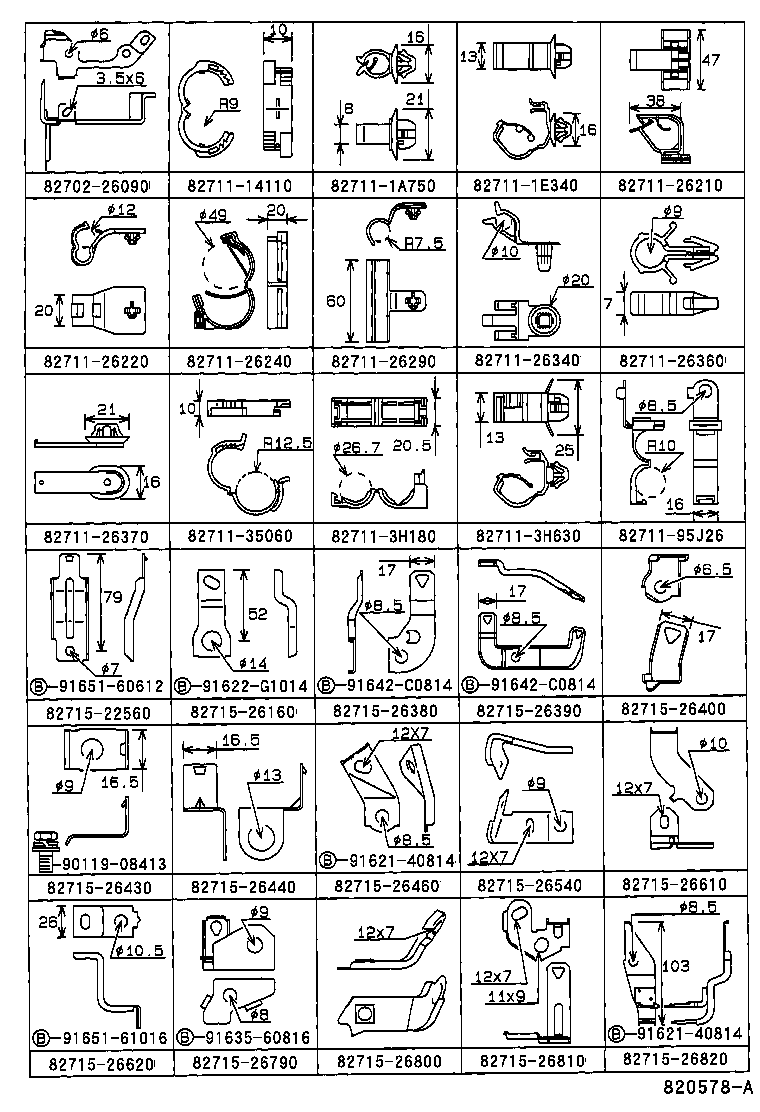

ILLUST NO. 6 OF 8(9704- )
ﾌﾞﾗｹﾂﾄ & ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-26090 | ||||
| 82711-14110 | ||||
| 82711-1A750 | ||||
| 82711-1E340 | ||||
| 82711-26210 | ||||
| 82711-26220 | ||||
| 82711-26240 | ||||
| 82711-26290 | ||||
| 82711-26340 | ||||
| 82711-26360 | ||||
| 82711-26370 | ||||
| 82711-35060 | ||||
| 82711-3H180 | ||||
| 82711-3H630 | ||||
| 82711-95J26 | ||||
| 82715-22560 | ||||
| 82715-26160 | ||||
| 82715-26380 | ||||
| 82715-26390 | ||||
| 82715-26400 | ||||
| 82715-26430 | ||||
| 82715-26440 | ||||
| 82715-26460 | ||||
| 82715-26540 | ||||
| 82715-26610 | ||||
| 82715-26620 | ||||
| 82715-26790 | ||||
| 82715-26800 | ||||
| 82715-26810 | ||||
| 82715-26820 | ||||
| 90119-08413 | ||||
| 91621-40814 | ||||
| 91622-G1014 | ||||
| 91635-60816 | ||||
| 91642-C0814 | ||||
| 91651-60612 | ||||
| 91651-61016 | ||||

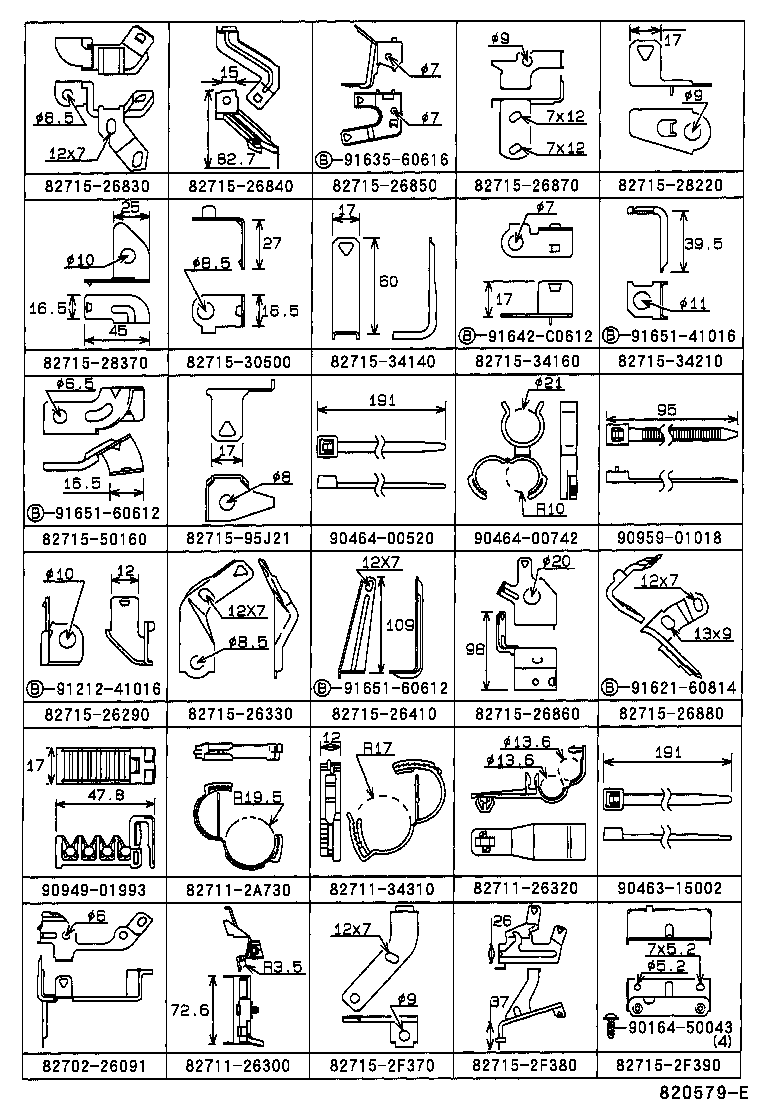

ILLUST NO. 6 OF 8(9704- )G07S ; (9704- )LXH4# ; (9704- )RCH42..MTM ; (9704- )RCH41,47..W
ﾌﾞﾗｹﾂﾄ & ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-26091 | ||||
| 82711-26300 | ||||
| 82711-26320 | ||||
| 82711-2A730 | ||||
| 82711-34310 | ||||
| 82715-26290 | ||||
| 82715-26330 | ||||
| 82715-26410 | ||||
| 82715-26830 | ||||
| 82715-26840 | ||||
| 82715-26850 | ||||
| 82715-26860 | ||||
| 82715-26870 | ||||
| 82715-26880 | ||||
| 82715-28220 | ||||
| 82715-28370 | ||||
| 82715-2F370 | ||||
| 82715-2F380 | ||||
| 82715-2F390 | ||||
| 82715-30500 | ||||
| 82715-34140 | ||||
| 82715-34160 | ||||
| 82715-34210 | ||||
| 82715-50160 | ||||
| 82715-95J21 | ||||
| 90164-50043 | ||||
| 90463-15002 | ||||
| 90464-00520 | ||||
| 90464-00742 | ||||
| 90949-01993 | ||||
| 90959-01018 | ||||
| 91212-41016 | ||||
| 91621-60814 | ||||
| 91635-60616 | ||||
| 91642-C0612 | ||||
| 91651-41016 | ||||
| 91651-60612 | ||||

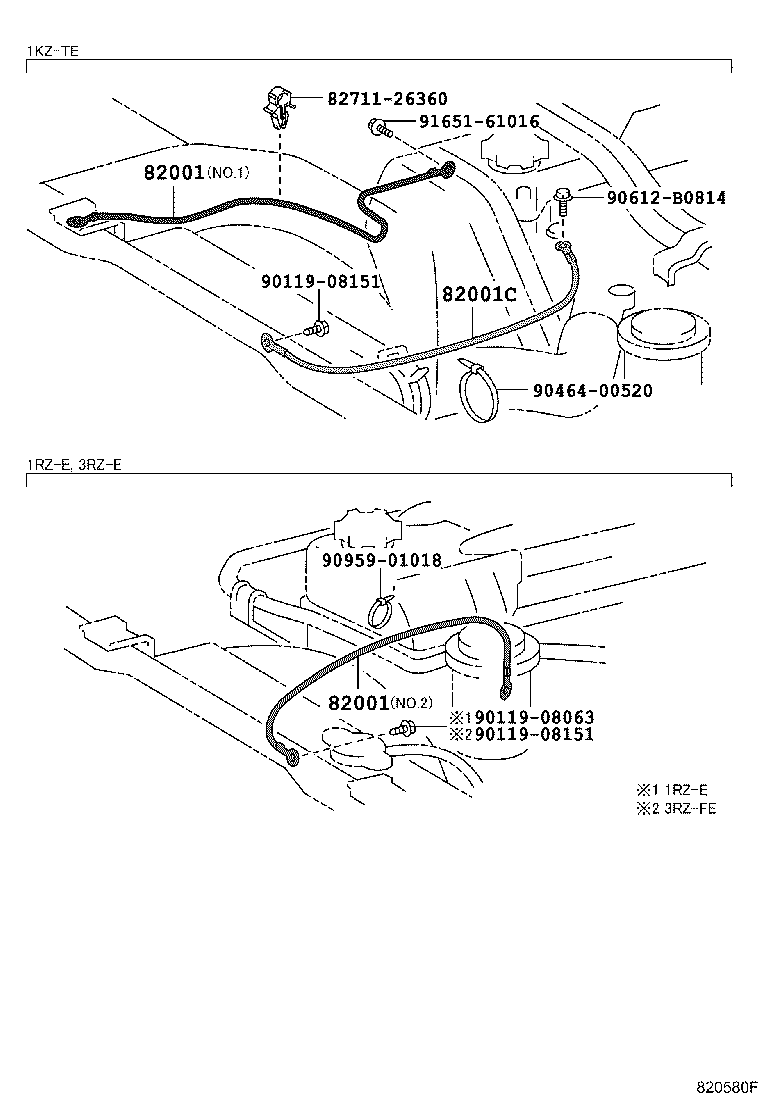

ILLUST NO. 7 OF 8(9704- )
ｹ-ﾌﾞﾙ ﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07313 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 90980-07313 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 90980-07339 |
KCH4# NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07313 |
KCH4#,RCH41,47..4D..(G,STD,WINT) |
1 | ||
| 90980-07313 |
KCH4#,RCH41..G,STD,WINT |
1 | ||
| 90980-07339 |
KCH4# NO.1 |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07201 |
KCH4# |
1 | ||
| 90980-07153 |
KCH4# |
1 | ||
| Common parts | ||||
| 82711-26360 | ||||
| 90119-08063 | ||||
| 90119-08151 | ||||
| 90464-00520 | ||||
| 90612-B0814 | ||||
| 90959-01018 | ||||
| 91651-61016 | ||||

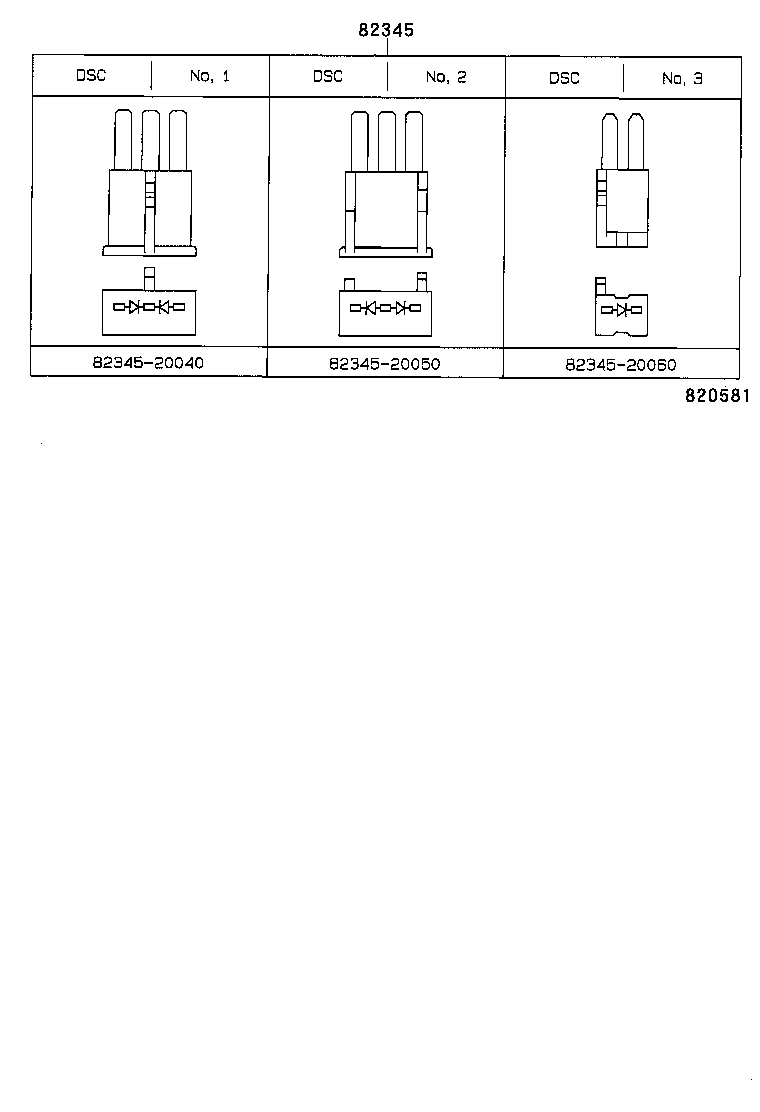

ILLUST NO. 8 OF 8(9704- )
ﾀﾞｲｵ-ﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-20060 |
LXH4#;KCH4#,RCH41..G NO.3 |
1 | ||
| 82345-20050 |
KCH40..G07S;RCH41,47..STD;RCH41,47..W07S;KCH40..STD,WINT;KCH46..(G,STD)..(G07S,G08S) ｱﾘ(ｱﾅﾛｸﾞﾒ-ﾀ,KM/H & ｵ-ﾄｴｱｺﾝ),NO.2 |
2 | ||
| 82345-20060 |
KCH40..G07S;KCH40..STD,WINT;LXH4#,RCH41,47..G,STD,V;KCH46..(G,STD)..(G07S,G08S) NO.3 |
1 | ||
| 82345-20050 |
KCH4#,RCH41..G NO.2 |
2 | ||
(9704-9907)
ｶｳﾙﾜｲﾔ(PNC82131) ｽﾍﾟﾂｸﾘｽﾄ
| Part # | Description | Qty | Price |
|---|
(9704-9907)
PNC82133, PNC82183 ｽﾍﾟﾂｸﾘｽﾄ
| Part # | Description | Qty | Price |
|---|
(9704-9907)
ｶｳﾙﾜｲﾔ(PNC82131) ｽﾍﾟﾂｸﾘｽﾄ
| Part # | Description | Qty | Price |
|---|

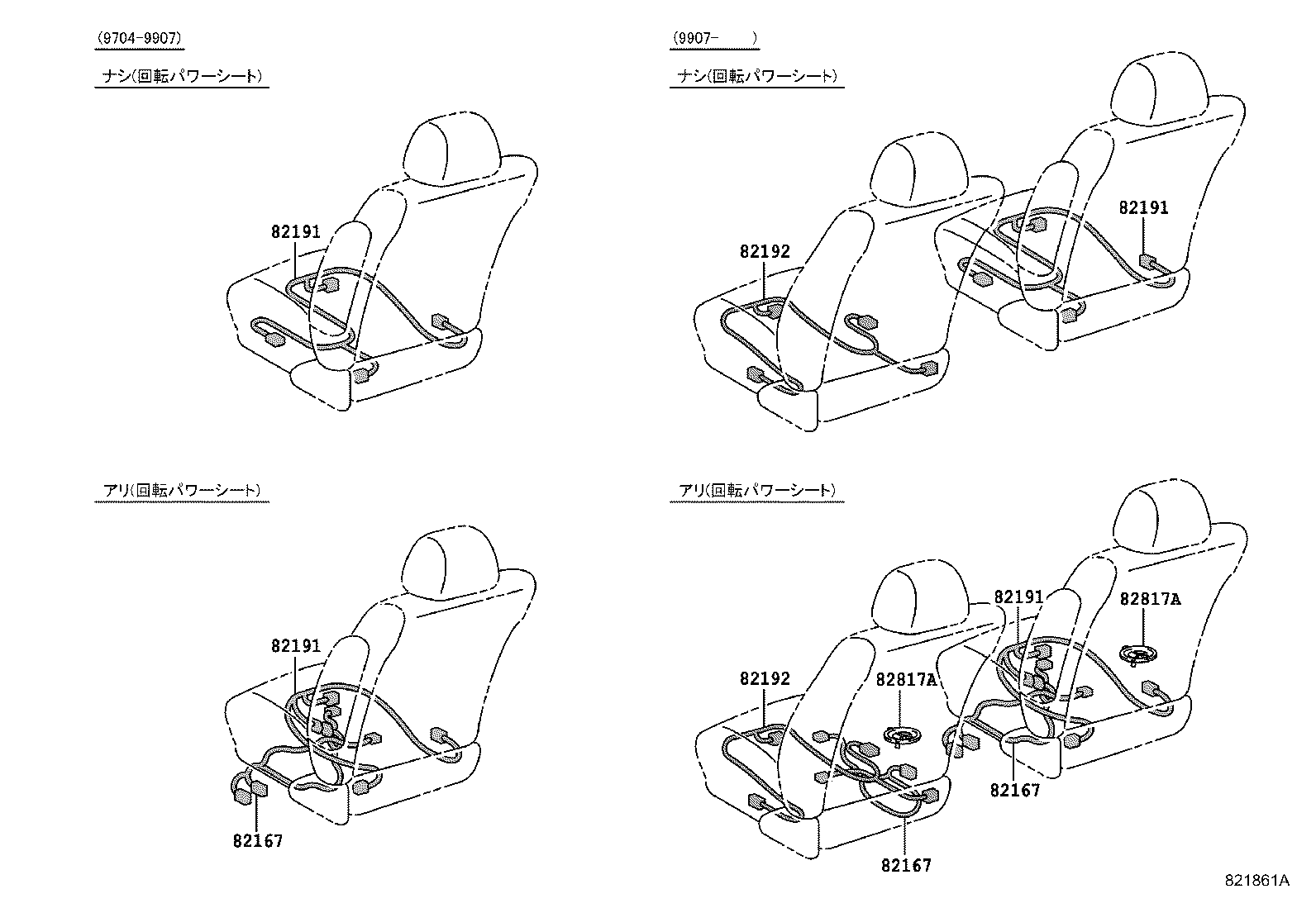

ILLUST NO. 4 OF 8(9704- )
ｼ-ﾄ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-26050 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 82167-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-26050 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 82167-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-26050 |
KCH4#,RCH41,47..4D..G |
1 | ||
| 82167-26050 |
KCH4#,RCH41,47..G |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-26050 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82191-26030 |
KCH4#,RCH41,47..G |
1 | ||
| 82191-26050 |
KCH4#,RCH41,47..G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82191-26040 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-26050 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82191-26030 |
KCH4#,RCH41,47..G |
1 | ||
| 82191-26050 |
KCH4#,RCH41,47..G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82191-26040 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-26050 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82191-26030 |
KCH4#,RCH41,47..G |
1 | ||
| 82191-26050 |
KCH4#,RCH41,47..G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82191-26040 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-26050 |
KCH4#,RCH41,47..4D..G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82191-26030 |
KCH4#,RCH41,47..G |
1 | ||
| 82191-26050 |
KCH4#,RCH41,47..G ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 82191-26040 |
LXH4#;KCH4#,RCH4#..E,STD,WINT |
1 | ||

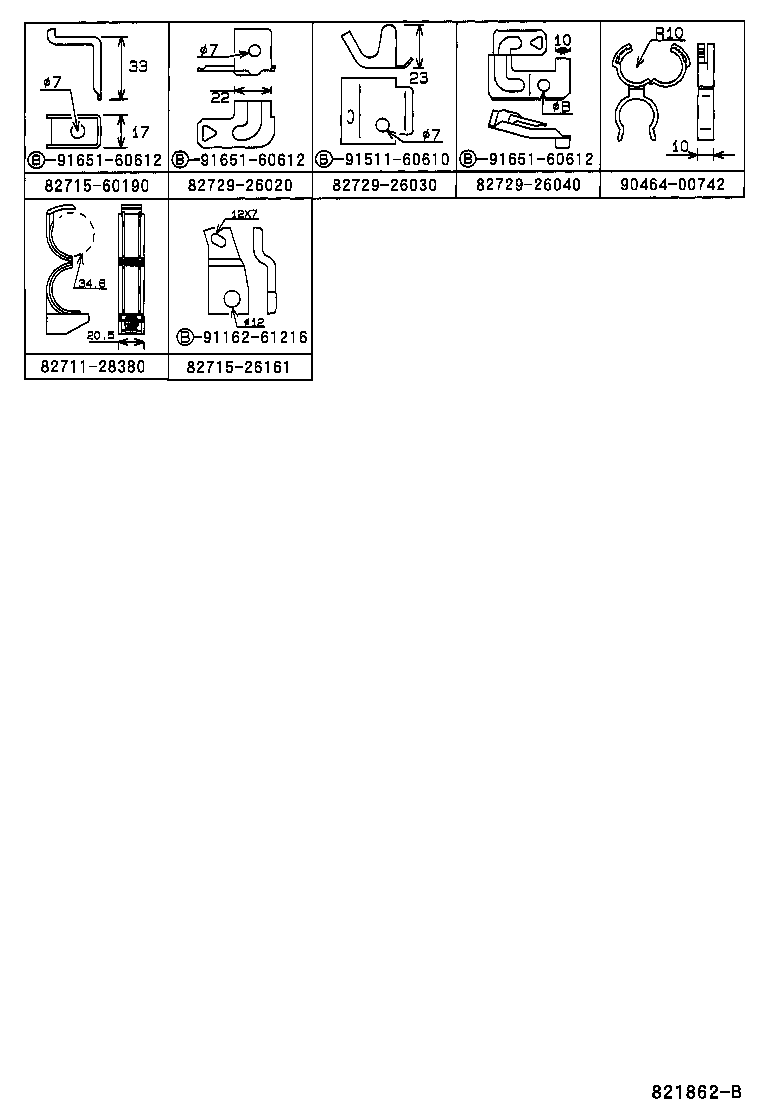

ILLUST NO. 6 OF 8(9704- )
ﾌﾞﾗｹﾂﾄ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-28380 | ||||
| 82715-26161 | ||||
| 82715-60190 | ||||
| 82729-26020 | ||||
| 82729-26030 | ||||
| 82729-26040 | ||||
| 90464-00742 | ||||
| 91162-61216 | ||||
| 91511-60610 | ||||
| 91651-60612 | ||||

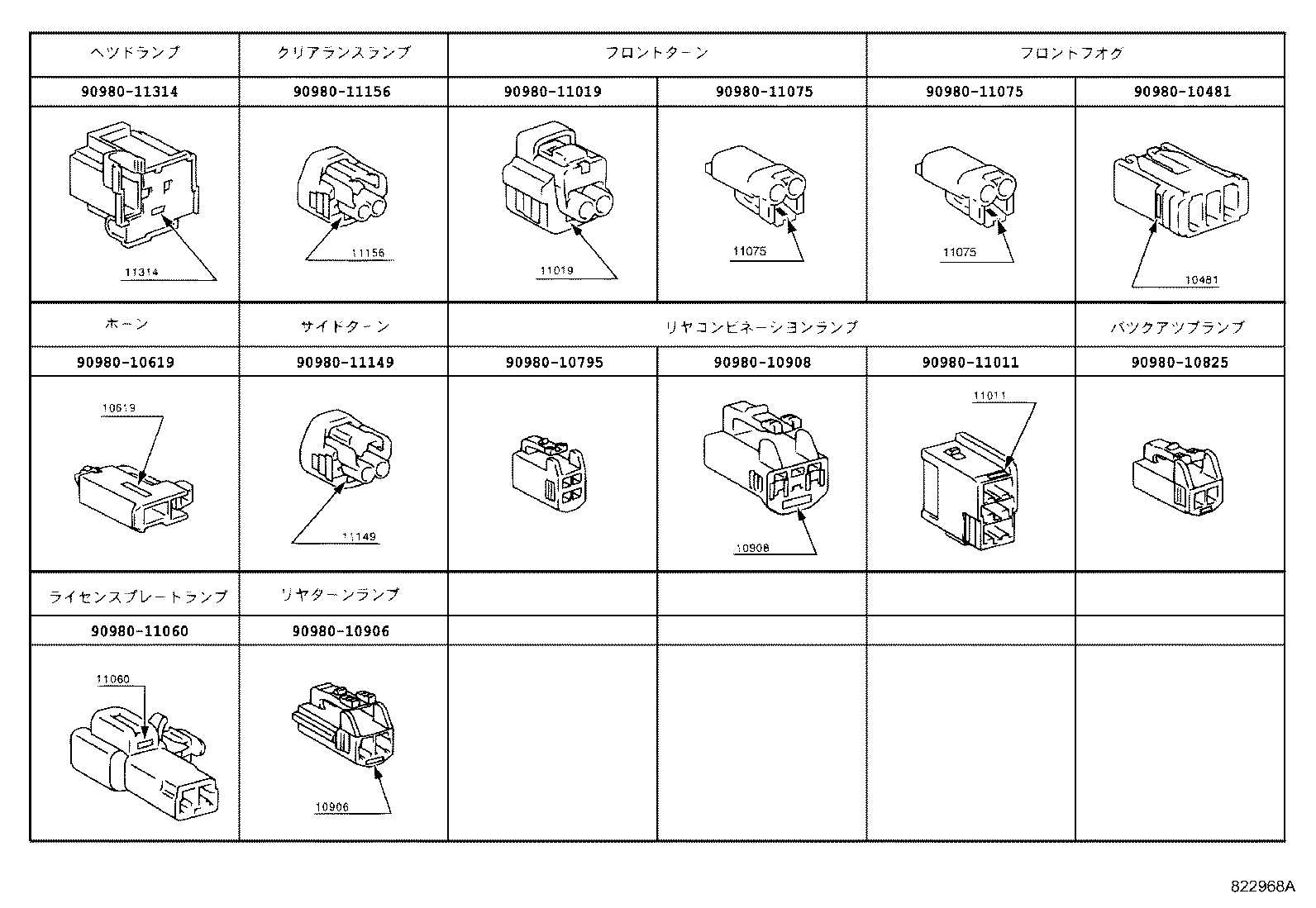

(9704- )
ｺﾈｸﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10906 | ||||
| 90980-10908 | ||||
| 90980-11011 | ||||
| 90980-11019 | ||||
| 90980-11060 | ||||
| 90980-11075 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
