Toyota Regius/touring hiace KCH40 REAR DOOR PANEL & GLASS

KCH40G-GFSQT (1997)

Toyota Regius/Touring Hiace

Production Apr 1997 - Jul 1999

Engine 1KZTE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

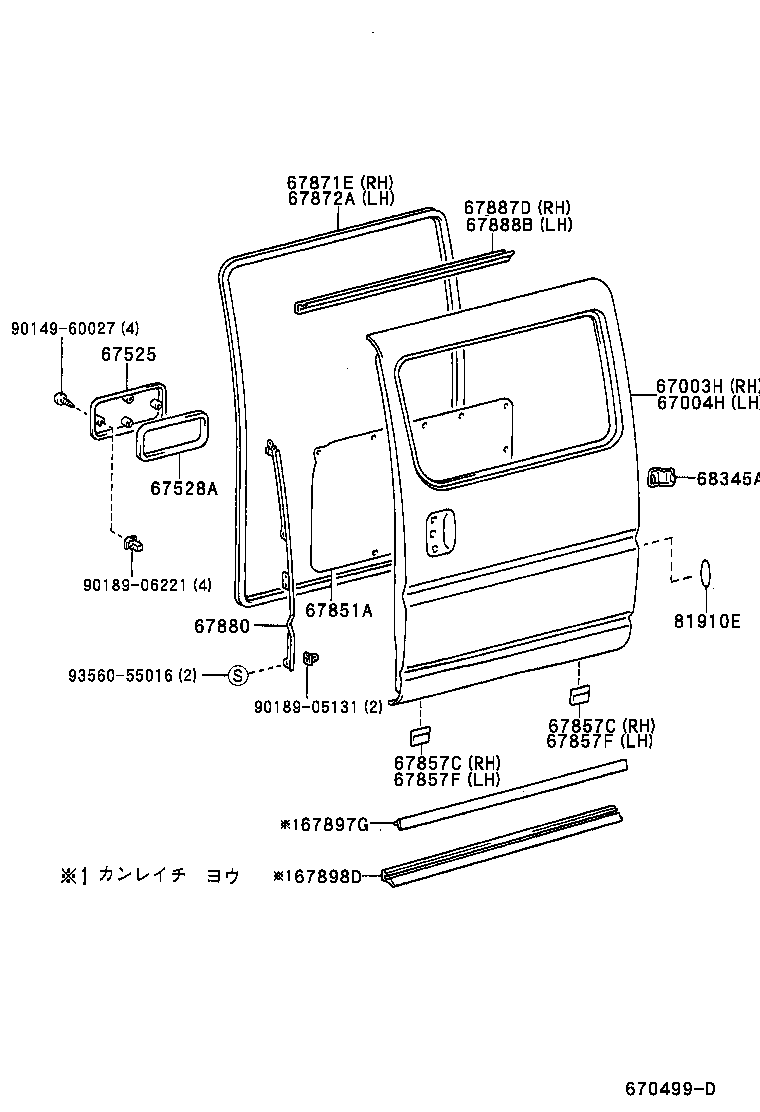

Click highlighted areas on diagram

Part #	Description	Period	Qty
67004H - DOOR SUB-ASSY, SLIDE, LH
67004-26520	KCH4#,RCH41,47..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳｽﾗｲﾄﾞﾄﾞｱ)	08/1997 - 07/1999	1
67004-26480	KCH4#,RCH41,47..G,STD ｱﾘ(ﾃﾞﾝﾄﾞｳｽﾗｲﾄﾞﾄﾞｱ)	04/1997 - 08/1997	1
67004-26390	KCH4#,RCH41,47..4D..(G,STD,V)	04/1997 - 12/2999	1
67004-26440	KCH4#..E;LXH4#..G	04/1997 - 12/2999	1
67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1
67851-26020	KCH4#,LXH4#,RCH41,47..4D	04/1997 - 12/2999	1
67857F - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	2
67857F - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	2
67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH
67872-26010	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
67880 - PROTECTOR, SLIDE DOOR EDGE, LH
67880-26010	KCH4#,RCH41,47..G,STD,WINT	04/1998 - 07/1999	1
67880-26010	RCH47..STD;KCH4#,RCH41..G,STD,WINT	04/1997 - 04/1998	1
67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH
67888-26010	KCH4#,LXH4#,RCH4#	04/1997 - 12/2999	1
67897G - SEAL, SLIDE DOOR, LOWER
67897-26010	KCH4#,LXH4#,RCH41,47..4D..(E,G,STD,V)	01/1998 - 12/2999	1
67897-26010	KCH4#,LXH4#,RCH4#..E,G,STD	04/1997 - 01/1998	1
67898D - SEAL, SLIDE DOOR, LOWER NO.2
67898-26010	KCH4#,LXH4#,RCH4#..E,G,STD	04/1997 - 10/1997	1
67898-26010	KCH4#,LXH4#,RCH4#	10/1997 - 01/1998	1
67898-26010	KCH4#,LXH4#,RCH41,47..4D	01/1998 - 12/2999	1
Common parts
90149-60027
90189-05131
90189-06221
93560-55016

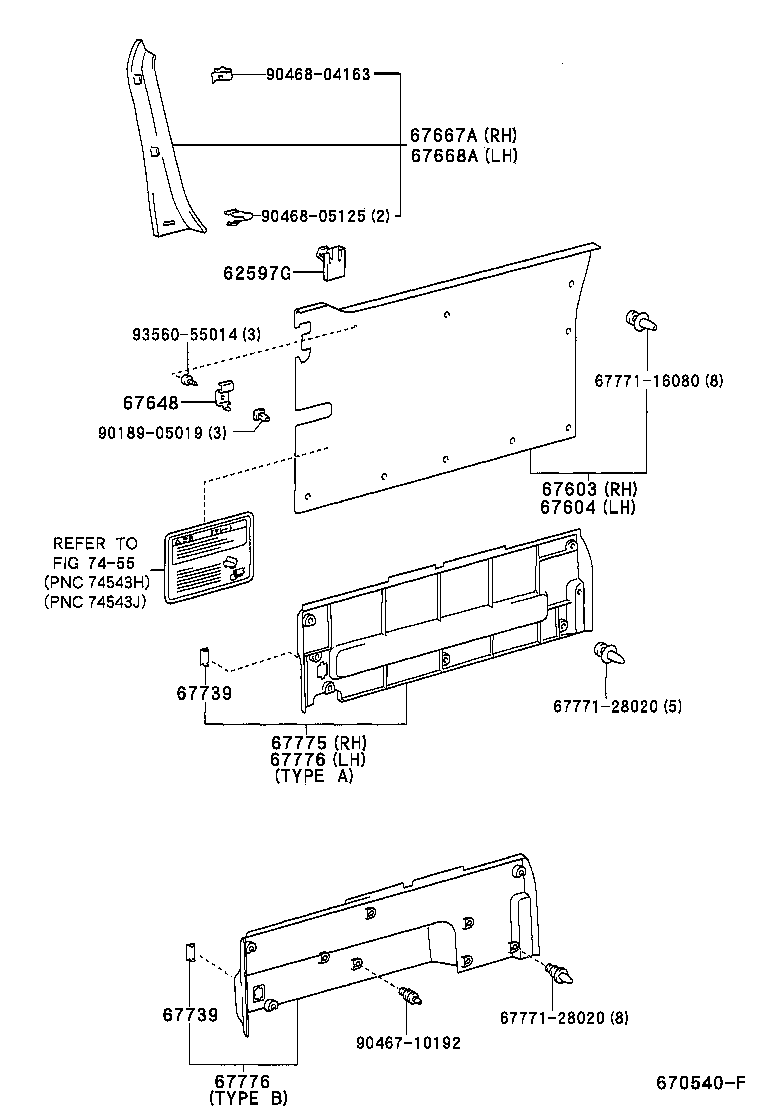

Click highlighted areas on diagram

Part #	Description	Period	Qty
62597G - CLAMP, REAR DOOR TRIM
62597-26030	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ｲｴﾛｰ	04/1997 - 12/2999	1
62597-26040	KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) ﾅﾁｭﾗﾙ	04/1997 - 12/2999	2
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-26210G0	KCH4#,RCH41..G SAGE,TRIM6#	04/1997 - 04/1998	1
67640-26270B0	KCH4#..E;LXH4#..G LT.BLUISH GRAY,TRIM1#	04/1997 - 07/1999	1
67640-26310G0	KCH4#,RCH41,47..G ｱﾘ(ｵ-ﾄｽﾗｲﾄﾞﾄﾞｱ),SAGE,TRIM6#	04/1998 - 07/1999	1
67640-26240G0	KCH4#,RCH41..G ｱﾘ(ﾃﾞﾝﾄﾞｳｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ-),SAGE,TRIM6#	04/1997 - 04/1998	1
67640-26300G0	KCH4#,RCH41,47..G SAGE,TRIM6#	04/1998 - 07/1999	1
67648 - PLATE, DOOR TRIM RETAINER
67648-26010	KCH4#..E;LXH4#..G	04/1997 - 12/2999	3
67668A - GARNISH, SLIDE DOOR WINDOW, LH
67668-26020B5	KCH4#,RCH41,47..G GRAY,TRIM6#	04/1997 - 07/1999	1
67739 - COVER, REAR DOOR TRIM
67739-26010G0	KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6#	04/1997 - 07/1999	1
67739 - COVER, REAR DOOR TRIM
67739-26010G0	KCH4#,RCH41,47..4D..(G,STD) SAGE,TRIM6#	04/1997 - 07/1999	1
67776 - COVER, REAR DOOR TRIM, LOWER LH
67776-26070G0	KCH4#,RCH41,47..G,STD SAGE,TRIM6#	04/1997 - 07/1999	1
67776 - COVER, REAR DOOR TRIM, LOWER LH
67776-26070G0	KCH4#,RCH41,47..G,STD SAGE,TRIM6#	04/1997 - 07/1999	1
Common parts
67771-16080
67771-28020
90189-05019
90467-10192
90468-04163
90468-05125
93560-55014
